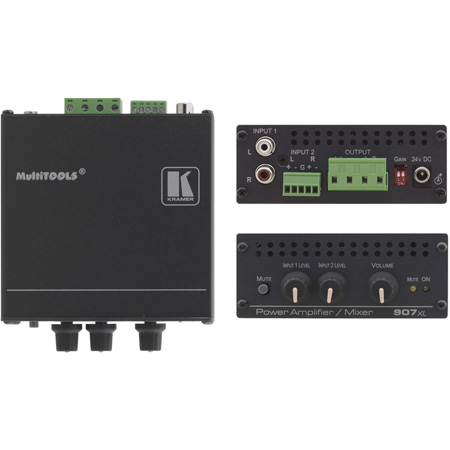

Kramer 907XL 40Watts Per Channel Stereo Power Amplifier/Mixer

907XL - Overview

• Features:

  • 40 Watts Per Channel
  • Input Volume Controls & Mute
  • Class D Operation
  • Rack Kit - RK-1
  • High Efficiency - Class D operation
  • Controls - 1 volume control knob for each input & mute button
  • Gain Control DIP-Switches
  • Mute and On Indicator LEDs
  • Compact MultiTOOLS - Up to 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter


• Specifications:

  • Inputs: 1 balanced stereo audio on a terminal block connector, 1 unbalanced stereo audio on RCA connectors
  • Output: Speaker output on a terminal block connector
  • Output Power: 40W per channel into 8Ω
  • Output Music Power: 150W per channel into 8Ω
  • Input Sensitivity: 1.2Vrms
  • Amplifier Type: Class D
  • Voltage Gain: 36dB (x10)
  • Bandwidth (-3DB): 25kHz
  • S/N Ratio: 66dB
  • Coupling: Inputs: AC, Outputs: DC
  • Audio THD + Noise: 1.2%
  • Audio 2nd Harmonic: 1%
  • Power Consumption: 24V DC, 2.2A
  • Controls: 2 gain DIP-switches, mute button, 2 input level knobs, 1 volume knob
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing
  • Product Dimensions: 10.68cm x 10.35cm x 4.36cm (4.20" x 4.07" x 1.72" ) W, D, H
  • Product Weight: 0.4kg (0.8lbs) approx.
  • Shipping Dimensions: 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
  • Shipping Weight: 1.3kg (2.9lbs) approx.


• Item Includes:

  • 1x Kramer 907XL 40Watt Per Channel Stereo Power Amplifier/Mixer
  • 1x Power supply


• GTIN:

  7291063016401
