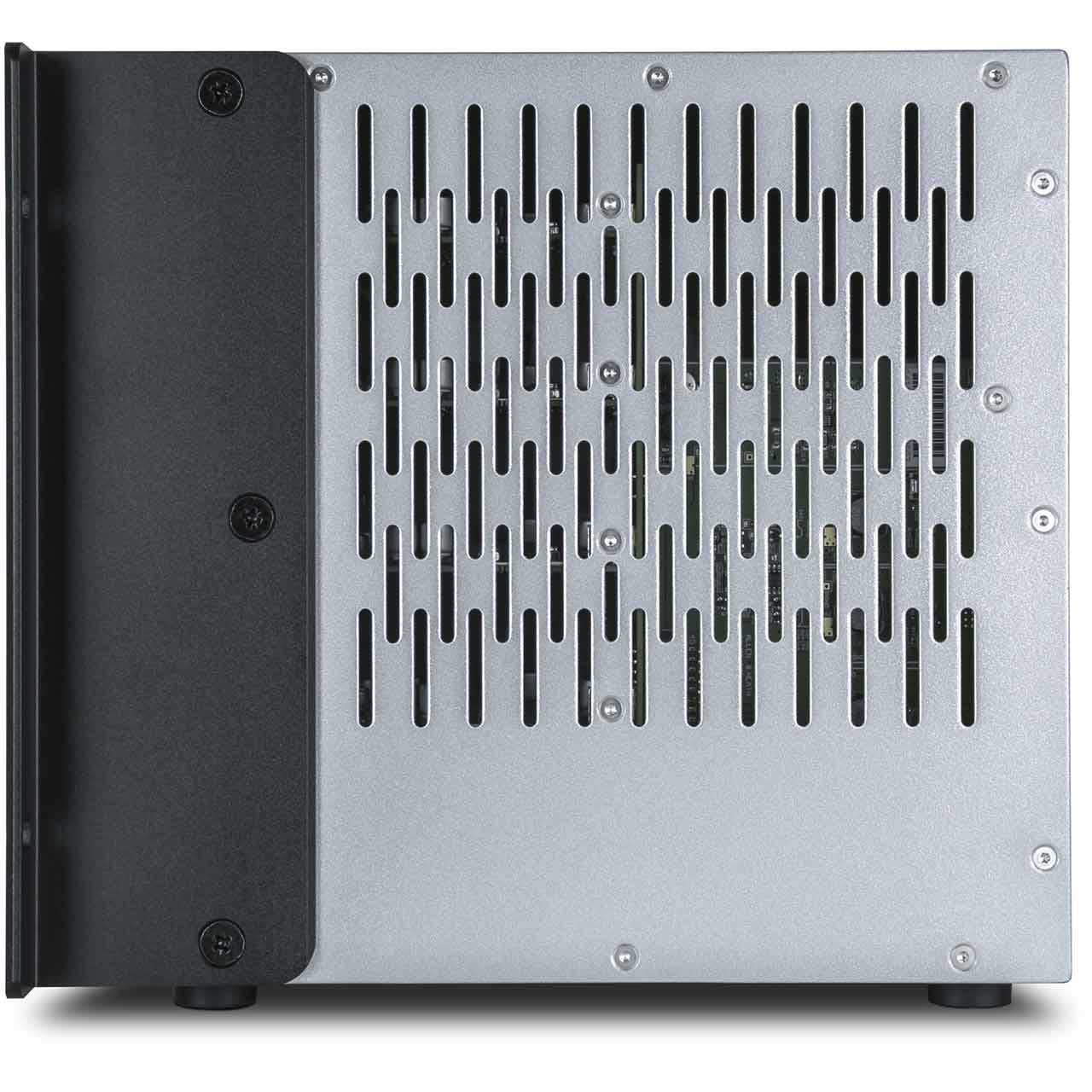

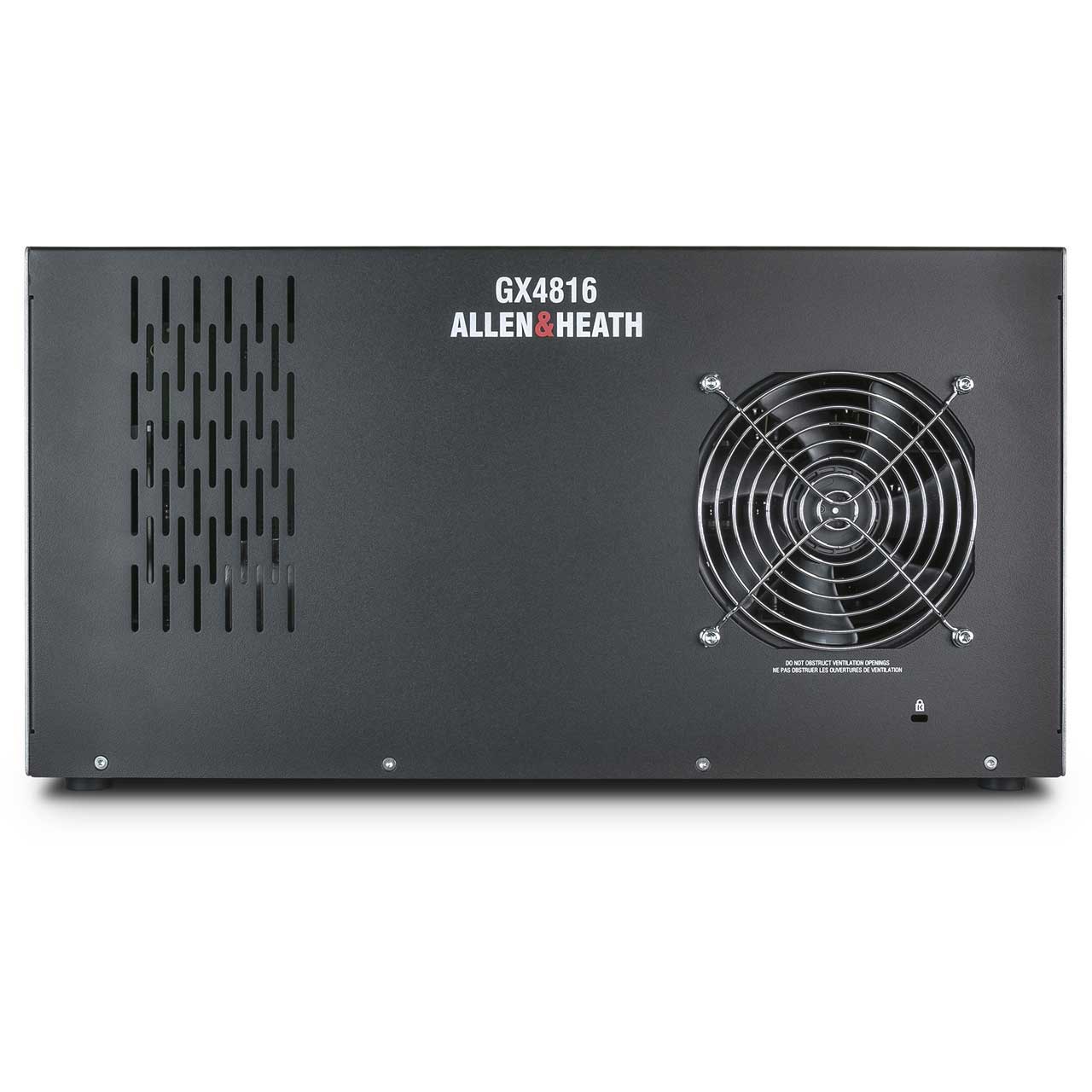

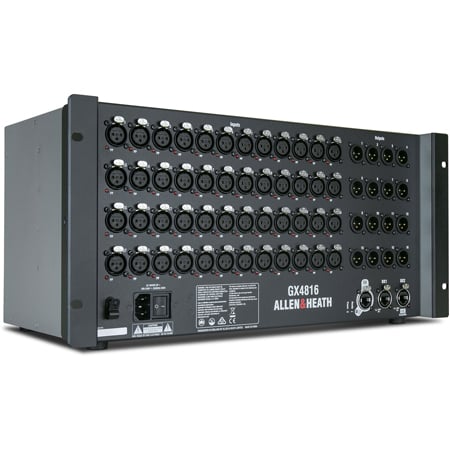

Allen & Heath GX4816 48 Input x 16 Output Audio Expander w/ dLive 96kHz Mic Preamps

ITEM #: AH-GX-4816 MFG #: GX4816

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$5,599.00

Our Price:

$4,499.00

Availability: In Stock
iAvailability Description Popup


    GX4816 - Overview

    Allen & Heath GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive mixing systems, and for the AHM-64 audio matrix processor.

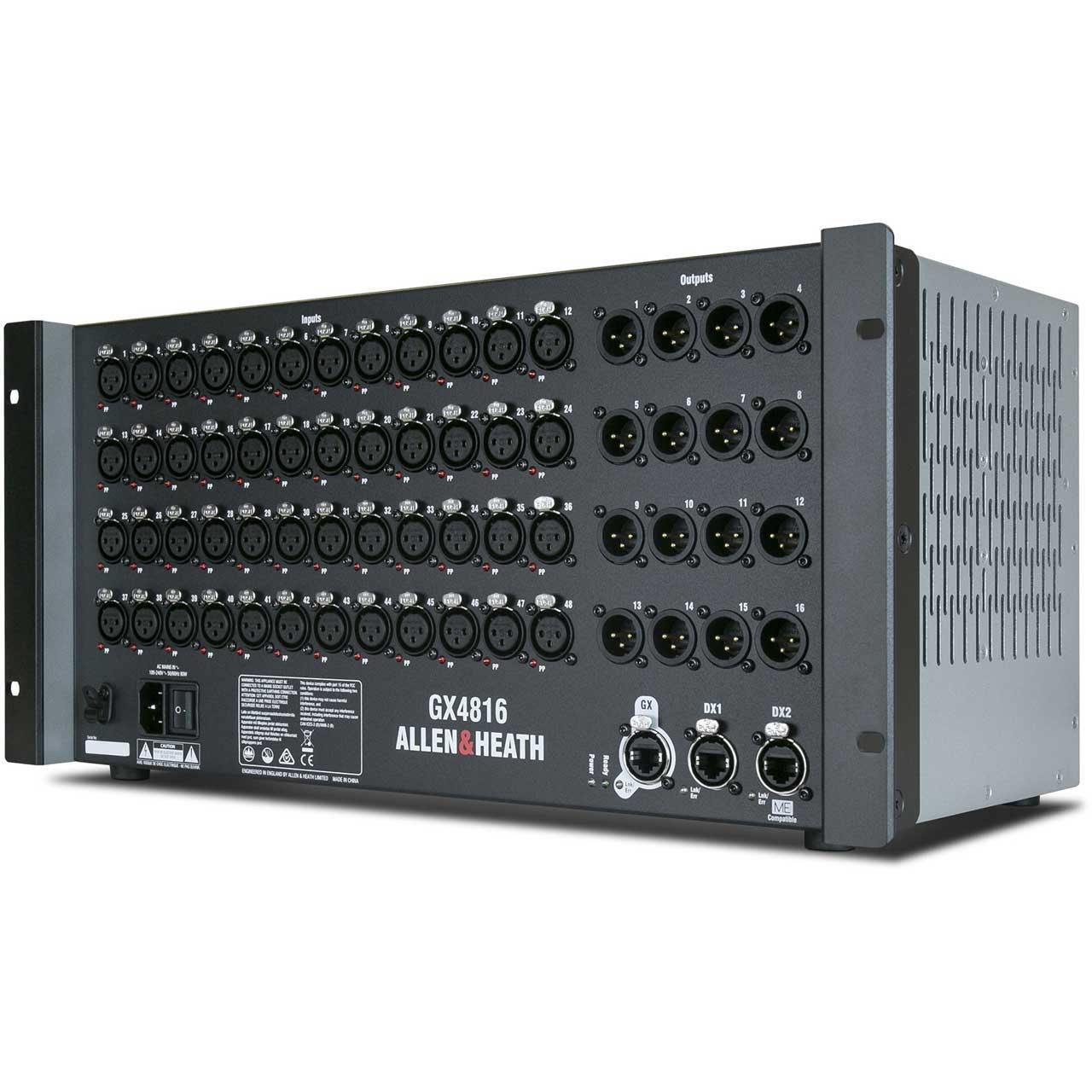

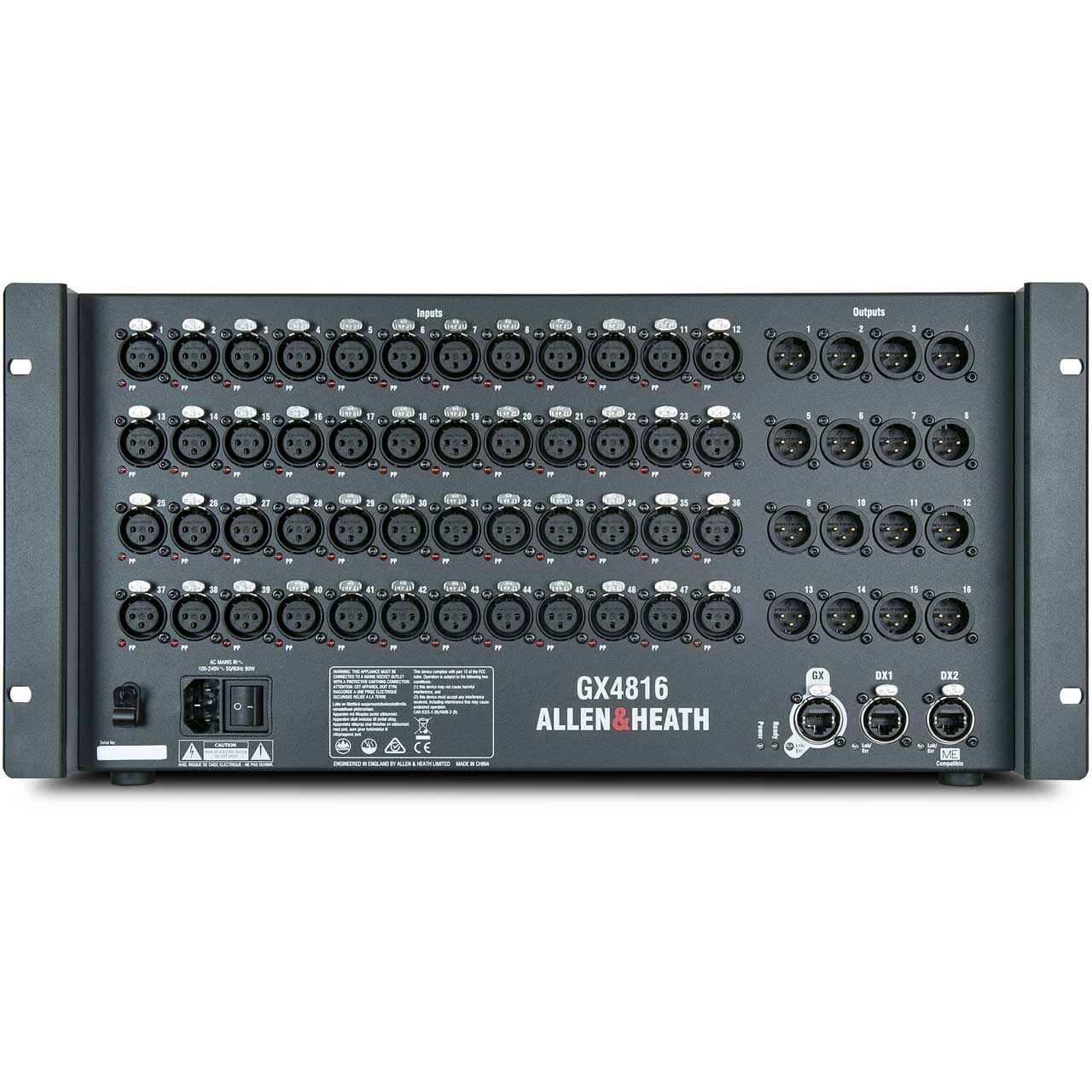

    Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket when used with SQ or Avantis.

    GX4816 connects via a single Cat5e cable to an SLink socket on a SQ, Avantis or AHM-64, or to a gigaACE audio network card on a dLive system.

    Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.

    • Features:

      • 48 Mic Preamps on XLR with Phantom Power status LEDs
      • 16 XLR Line Outs
      • 96kHz operation
      • DX1 Port - compatible with a single DX32, or up to 2 DX168/DX164-W expanders
      • DX2/ME Port - compatible with a single DX32, up to 2 DX168/DX164-W expanders, or a ME personal monitoring system (not compatible with AHM-64 or dLive).
      • Compatible with SQ, Avantis, AHM-64 and dLive (dLive requires firmware V1.86 onwards)
      • Multiple GX4816 can be added to a system: Up to 2 GX4816 units can be added to a SQ system, Up to 3 GX4816 units can be added to an Avantis system, Up to 5 GX4816 units can be added to a dLive S Class system, Up to 3 GX4816 units can be added to a dLive C Class system
      • Rack-mounted (5u) or shelf/floor operation
      • Plug and Play - no IP addressing required
      • Compatible with CAT5e (or higher) cables of up to 100m
      • Locking EtherCon ports

    • Specifications:

      • Inputs
      • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
      • Mic/Line Preamp: Fully recallable
      • Input Sensitivity: -60 to +15dBu
      • Analog Gain: +5 to +60dB, 1dB step
      • Pad: -20dB Active PAD
      • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
      • Mic EIN: -127dB with 150Ω source
      • Phantom Power Indication: Per socket, internal or external phantom power sensing, triggered at 24V

        Outputs
      • Analog XLR Outputs: Balanced, Relay protected
      • Output Impedance: <75Ω
      • Nominal Output: +4dBu = 0dB meter reading
      • Maximum Output Level: +21dBu
      • Residual Output Noise: -95dBu (muted, 22Hz-22kHz)

        Power/Temperature
      • Mains Voltage Operating Range: 100-240V AC, 50/60Hz
      • Operating Temperature Range 0°C to 40°C (32°F to 104°F)
      • Mains Power Consumption: 80W max

        Dimensions and Weights
      • GX4816:18.9" x 10" x 9" x 17.6lbs)
      • GX4816(boxed): 22" x 15.2" x 12.2" x 22lbs

    • Item Includes:

      • 1x GX4816 expander
      • 1x Getting Started Guide AP11651
      • 1x Safety Sheet
      • 1x IEC mains lead

    • GTIN:

      6938122248809
