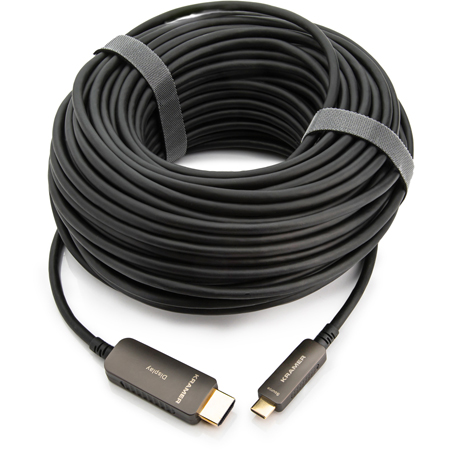

Kramer CP-AOCU/CH-15 Active Optical 4K USB Type C Male to HDMI Male Cable - Plenum Rated - 15 Foot

ITEM #: KR-CP-AOCU-CH-15 MFG #: CP-AOCU-CH-15

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$285.00

Our Price:

$228.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    CP-AOCU-CH-15 - Overview

    Thinner, lighter, and more flexible than copper or even standard optical cables!

    Kramer CLS-AOCU/CH-15 is an innovative active optical USB C to HDMI cable for 4K signals.

    CLS-AOCU/CH cables are thinner, lighter, and more flexible than copper or even standard optical cables. They offer transparent EDID and HDCP support with no signal attenuation and reduced risk of EMI and RFI interference. CLS-AOCU/CH cables are an ideal solution for maximizing signal integrity in critical AV installations.

    • Features:

      • Video Resolution - Up to 4K@60Hz (4:4:4).
      • High Data Transfer Rate - Up to 18Gbps.
      • Embedded Audio - PCM 8-channel, Dolby Digital True HD and DTS-HD Master Audio.
      • HDMI Support - HDCP 2.2/1.4, HDR, EDID.
      • High-Quality Connectors - 24K gold-plated, corrosion-resistant and best possible connectivity.
      • Reduced EMI & RFI.
      • Thin Construction - 4.7mm diameter.
      • Jacket Construction - Plenum rated.
      • RoHS 2011/65/EU, CE, FCC Compliant.

    • Specifications:

      • VIDEO
      • Max Resolution: 4K@60Hz
      • Supported Color Spaces: RGB, YCbCr, xvYCC, BT.2020
      • HDMI Support: HDR, HDCP 2.2/1.4, EDID

      • AUDIO
      • Supported Audio Formats: DTS HD 7.1, Dolby TrueHD

      • PHYSICAL
      • USB-C Source: On a male HDMI type A, 24K gold-plated
      • HDMI Display: On a male HDMI type A, 24K gold-plated

      • GENERAL
      • Cable Type: Hybrid with 4x polymer insulated glass fibers
      • Copper Type: 30-20 AWG tinned copper wire
      • Flammability: Plenum Rated

      • MECHANICAL
      • Cable Bending Radius: 20mm

      • JACKET
      • Color: Black
      • Diameter: 4.7 +/ - 0.2mm

      • POWER
      • Consumption: < 1.5W

      • ENVIRONMENTAL CONDITIONS
      • Operating Temperature: 0-50°C
      • Storage Temperature: -20-70°C

      • STANDARDS COMPLIANCE - EC VERIFIED
      • Safety: CE/FCC

      • REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
      • Environmental: REACH, RoHS 2011/65/ EU

    • Item Includes:

      • Active Optical 4K USB Type C Male to HDMI Male Cable

    • Warranty:

      • standard one (1) year warranty

    • GTIN:

      7291063096212
