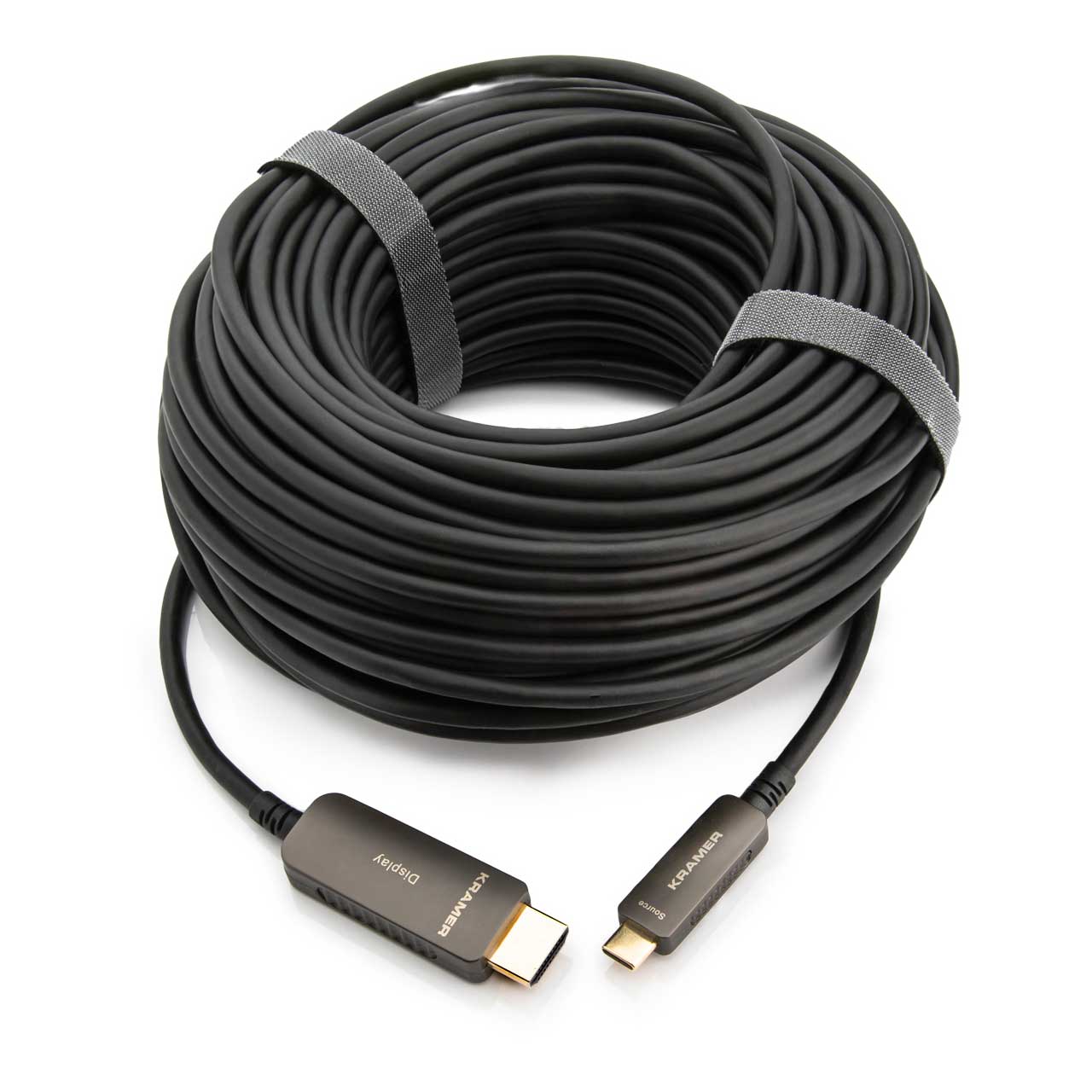

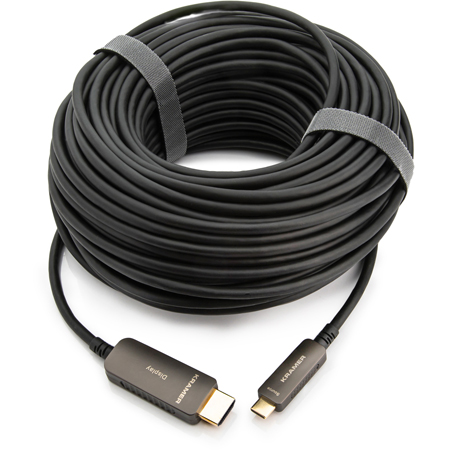

Kramer 97-044000015 CP-AOCU/CH Active Optical 4K USB Type C Male to HDMI Male - Plenum Rated - 15 Foot

97-044000015 - Overview

• Features:

  • High Data Transfer Rate - Up to 18Gbps.
  • Embedded Audio - PCM 8-channel, Dolby Digital True HD and DTS-HD Master Audio.
  • HDMI Support - HDCP 2.2/1.4, HDR, EDID.
  • High-Quality Connectors - 24K gold-plated, corrosion-resistant and best possible connectivity.
  • Reduced EMI & RFI.
  • Thin Construction - 4.7mm diameter.
  • Jacket Construction - Plenum rated.
  • RoHS 2011/65/EU, CE, FCC Compliant.
  • Varied Selection of Lengths - Available in versions from 5 to 30m (15 to 98ft).
  • Lengths - 5-30m (15-98')
  • Max. data rate: 18Gbps
  • Max. resolution: 4K@60Hz
  • Plenum Rated
  • No external power required
  • Supports HDCP 2.2


• Specifications:

  • Video
  • Max Resolution: 4K@60Hz
  • Supported Color Spaces: RGB, YCbCr, xvYCC, BT.2020
  • HDMI Support: HDR, HDCP 2.2/1.4, EDID

    Audio
  • Supported Audio Formats: DTS HD 7.1, Dolby TrueHD

    Physical
  • USB-C Source: On a male HDMI type A, 24K gold-plated
  • HDMI Display: On a male HDMI type A, 24K gold-plated

    General
  • Cable Type: Hybrid with 4x polymer insulated glass fibers
  • Copper Type: 30-20 AWG tinned copper wire
  • Flammability: Plenum Rated

    Mechanical
  • Cable Bending Radius: 20mm

    Jacket
  • Color: Black
  • Diameter: 4.7 ±0.2mm

    Power
  • Consumption: < 1.5W

    Environmental Conditions
  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Storage Temperature: -4° to 158°F (-20° to 70°C)

    Standards Compliance - EC Verified
  • Safety: CE/FCC

    Regulatory Compliance (Standards Compliance)
  • Environmental: REACH, RoHS 2011/65/ EU


• GTIN:

  7291063096236
