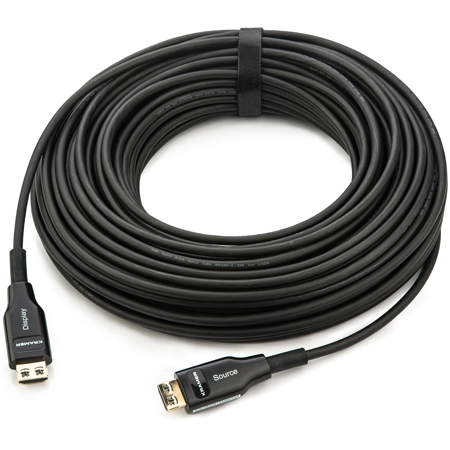

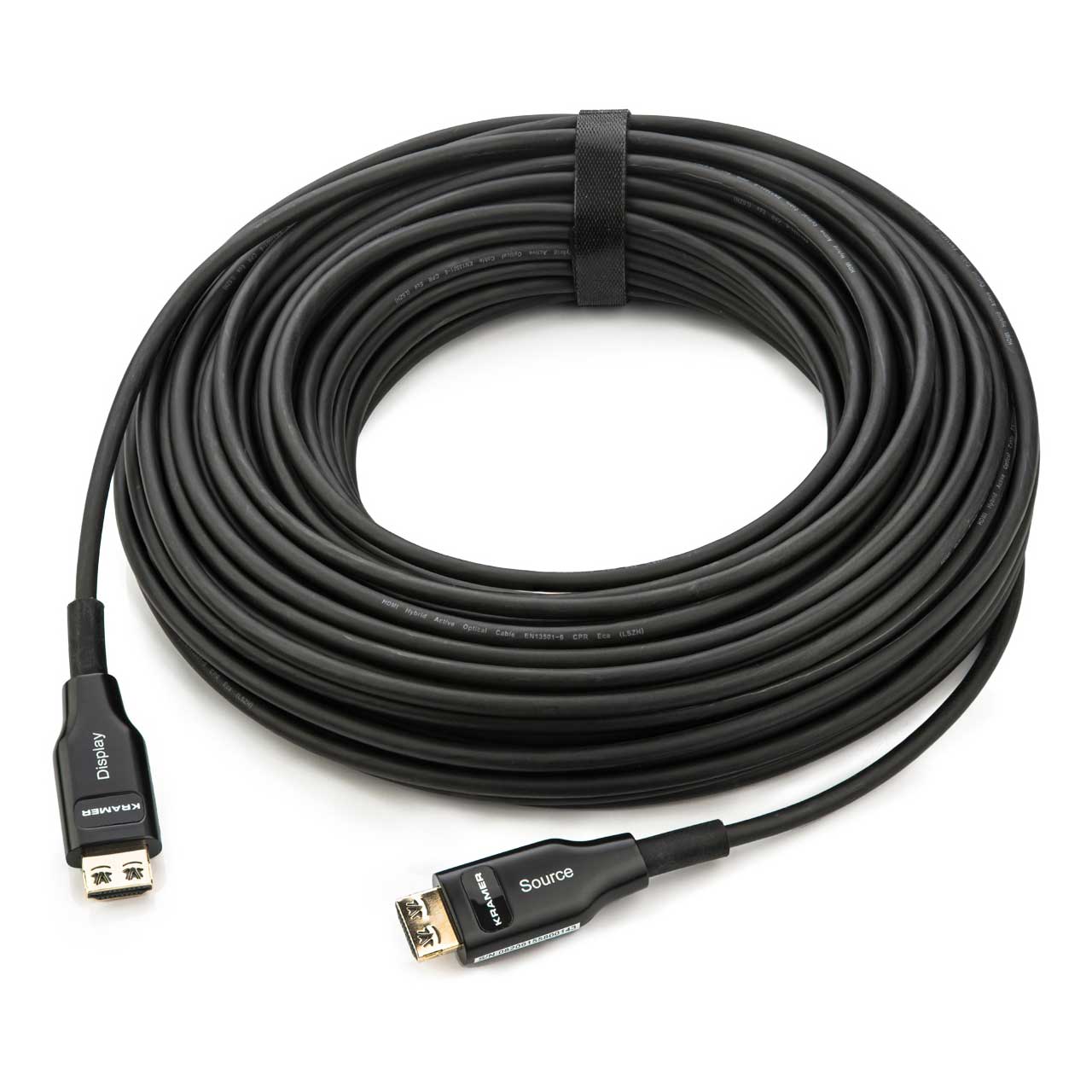

Kramer CP-AOCH/60F-131 High Speed Active HDMI Optic Hybrid Cable - Plenum Rated - 131 Foot

97-04161131 - Overview

High-Speed HDMI Optic Hybrid Cable - Plenum Rated

• Features:

  • Video Resolution - Up to 4K@60Hz (4:4:4)
  • High Data Transfer Rate - Up to 18Gbps
  • Embedded Audio - PCM 8-channel, Dolby Digital True HD and DTS-HD Master Audio
  • HDMI Support - HDCP 2.2/1.4, HDR, EDID, ARC and CEC
  • High-Quality Connectors - 24K gold-plated, corrosion-resistant and best possible connectivity
  • Reduced EMI & RFI
  • Thin Construction - 4.5mm diameter
  • Jacket Construction - Plenum rated
  • RoHS 2011/65/EU CE,FCC Compliant
  • Varied Selection of Lengths - Available in versions from 10 to 90m (33 to 295ft)


• Specifications:

  • Video
  • Max Resolution: 4K@60Hz
  • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
  • HDMI Support: HDR, HDCP 2.2/1.4, EDID and CEC, ARC

    Physical
  • HDMI Source: On a male HDMI type A, 24K gold-plated K-Lock connector
  • HDMI Display: On a male HDMI type A, 24K gold-plated K-Lock connector

    General
  • Cable Type: Hybrid with OM3 fiber and copper wire
  • O/E Converter: 4 channel 850 nm VCSEL array
  • Material: Bare Copper

    Jacket:
  • Color: Black
  • Diameter : 4.5mm

    Other Specifications:
  • Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD
  • Power Consumption: 250 mW (max)
  • Cable Bending Radius: 20mm
  • Standards Compliance - EC Verified: CE/FCC


• Item Includes:

  • 1x Kramer CP-AOCH/60F-131 High Speed Active HDMI Optic Hybrid Cable - 131 Foot


• Warranty:

  • 7 Year Limited Warranty
