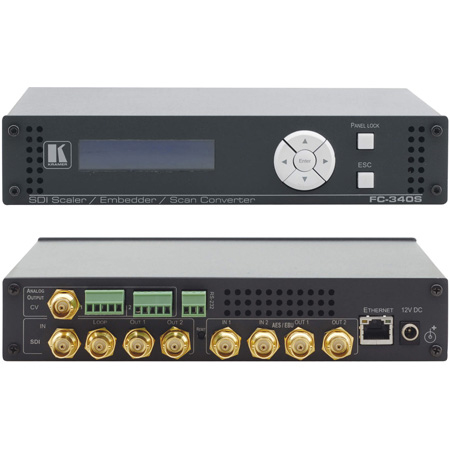

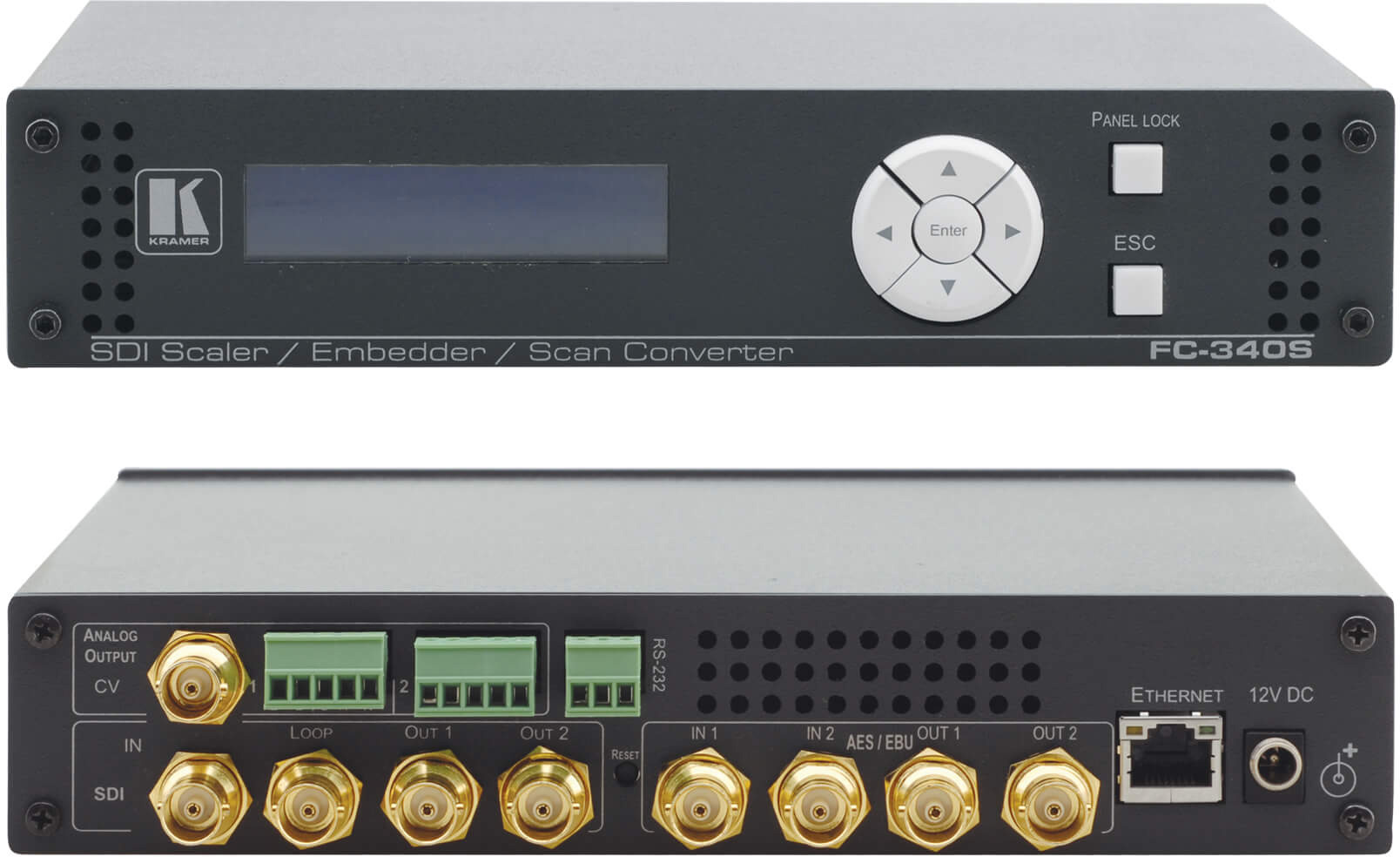

Kramer FC-340S 3G HD-SDI Scaler/Embedder/Scan Converter

Manufacturer: Kramer

Item #: KR-FC-340S   •   MFG #: FC-340S



List Price:$1,935.00
Our Price:$1,548.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

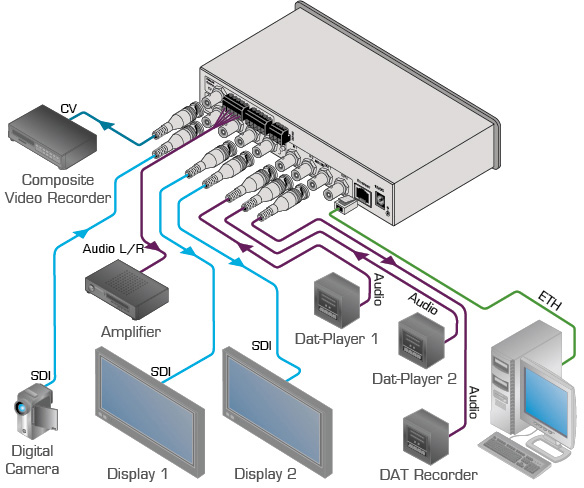

    The Kramer FC-340S is a broadcast-quality video scaler and audio embedder/de-embedder for digital signals up to 3G HD-SDI. The unit inputs SDI and AES/3id signals and simultaneously outputs two SDI and composite video signals while the audio embedded in the SDI input signal is output to both AES/3id and balanced stereo audio outputs.


    • Features

      • Max. Data Rate - 3Gbps
      • HDTV Compatible
      • Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
      • Looping Video Input
      • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances
      • Embedding Options - Selects embedded audio or embeds two independent audio groups
      • Flexible Control Options - Front panel with 2-row LCD, Ethernet & RS-232

    • Specifications

      • Digital inputs: 1 SD/HD/3G HD-SDI with loop, 75Ω on BNC connectors; 2 AES-3id audio on BNC connectors
      • Digital outputs: 2 SD/HD/3G HD-SDI, 75Ω on BNC connectors; 2 AES-3id audio on BNC connectors
      • Analog outputs: 1 composite video on a BNC connector, PAL/NTSC (according to output frame rate); 2 balanced stereo audio on 5-pin terminal blocks
      • Max digital video input/output level: 800mVpp/75Ω
      • Sample conversion rate: 48kHz (digital audio)
      • Bandwidth: 20kHz (analog audio)
      • Input resolutions: 480i @59.94, 576i @50, 720p @59.94/60/50, 1080i @59.94/60/50, 1080p @29.97/30/23.98/24, 23.98sF/24sF, 1080p @59.94/60/50
      • Output resolutions: 480i @59.94, 576i @50, 72p @59.94/60/50, 1080i @59.94/60/50, 1080p @59.94/60/50
      • Power consumption: 12V DC, 1A
      • Operation temperature: 0° to +40°C (32° to 104°F)
      • Storage temperature: -40° to +70°C (-40° to 158°F)
      • Humidity: 10% to 90%, RHL non-condensing
      • Dimensions(W x D x H): 8.45" x 6.42" x 1.72" (21.46cm x 16.30cm x 4.36cm)
      • Weight: 2.2lbs (1.0kg) approx
      • Shipping dimensions(W x D x H): 13.82" x 8.35" x 2.83" (35.10cm x 21.20cm x 7.20cm)
      • Shipping weight: 3.6lbs (1.6kg) approx.

    • Item Includes

      • Power supply

    • GTIN:

      7291063053505
