    VC-100UHD - Overview

    Introducing the Roland VC-100UHD, a next-generation A/V signal management solution for live events, fixed installations, and livestreaming. Built on a reliable hardware platform for mission-critical applications, this powerhouse processor combines multiple single-task technologies in a compact and flexible half-rack design. With Roland's Ultra Scaler on board, the VC-100UHD supports simultaneous scaling and conversion to multiple destinations, including 4K LED walls, HD displays, USB livestreams, and more.

    LED Walls

    Process Images for Multiple Audiences at Once
    Using the VC-100UHD, it's a simple task to send 4K and 1080p video to multiple destinations at one time, including pixel-hungry LED walls, tech operator displays and recorders, and USB webcam streams for online viewing. With an ultra-high-definition source signal connected to the 12G-SDI or HDMI 2.0 video inputs, the VC-100UHD will automatically process and convert it to different resolutions, ready for distribution at 12G-SDI, HDMI, and USB 3.0 rear-panel outputs.

    The Ultra-Reliable Ultra Scaler
    The VC-100UHD features Roland's revolutionary Ultra Scaler, the same no-compromise, ultra-reliable professional video processor found in the flagship V-600UHD 4K video switcher. Backed by a lightning-fast processing engine, Ultra Scaler delivers premium quality conversion for perfectly synchronized big-screen IMAG and precise dot-by-dot scaling for LED wall displays.

    High Frame Rates? No Problem.
    High frame rate (HFR) video sources can pose signal workflow challenges for integrated systems, but the VC-100UHD handles them with ease. Thanks to Ultra Scaler technology, system designers can simultaneously deliver 1080p video at rates up to 240 Hz for a gaming monitor, 59.94/50 Hz for an HD video system and LED displays, and 59.94/50 Hz for an HD livestream broadcast.

    Onboard Visual Effects and Image Processing
    Using the VC-100UHD's built-in visual effects, it's simple to rotate, flip, and mirror images. For example, a portrait image generated by a smartphone can be trimmed and rotated to fit seamlessly on a 16:9 landscape display for digital signage. And with the VC-100UHD's Frame Synchronizer and Genlock features, you can easily re-clock and stabilize video images as needed. Please see latest Block Diagram on the Data Sheets Tab.

    • Features:

      • Professional A/V signal management in a compact and robust unit
      • Features 12G-SDI and HDMI 2.0 I/O with Roland's Ultra Scaler video processing technology
      • Display processing for multiple audiences: 4K, HD, and web streaming
      • High frame rate support at 120, 144, and 240 Hz
      • Advanced visual effects and image processing
      • Professional audio processing with flexible patching
      • USB 3.0 webcam output for livestreaming broadcasts
    • Specifications:

      • Video
      • Processing: 4:4:4 (Y/Pb/Pr), 10-bit
      • Formats:
        SDI: 2160p(DCI)/59.94 Hz, 50 Hz (SMPTE ST2048) 2160p(UHD)/59.94 Hz, 50 Hz (SMPTE ST2036) 1080p/59.94 Hz, 50 Hz (SMPTE ST274) 1080i/59.94 Hz, 50 Hz (SMPTE ST274)
        HDMI*1: 2160p(DCI)/59.94 Hz, 50 Hz (CEA-861-F) 2160p(UHD)/59.94 Hz, 50 Hz (CEA-861-F) 1080p/59.94 Hz, 50 Hz (CEA-861-F) 1080i/59.94 Hz, 50 Hz (CEA-861-F) 4096 x 2160/60 Hz (CEA-861-F) 3840 x 2160/60 Hz (CEA-861-F) 2560 x 1440/60 Hz (VESA CVT Reduced blanking) 1920 x 1200/60 Hz (VESA CVT Reduced blanking) 1920 x 1080/240 Hz (Pixel Clock 556.8 MHz, 567.0MHz) *2 1920 x 1080/144 Hz (Pixel Clock 346.54 MHz) *2 1920 x 1080/120 Hz (VESA CVT Reduced blanking) *2 1920 x 1080/60 Hz (CEA-861-F)
        *1 HDCP 1.4, 2.2 supported. *2 Input and through output.
        USB Streaming*3*4*5: 1080p, 720p, 640 x 480
        *3 UVC (USB Video Class) Uncompressed Video 4:2:2 (Y/Pb/Pr), 8-bit - The video signal frame rate can be selected Full or Half of System frame rate.
        *4 Color Gamut: Rec.601, Rec.709, Dynamic Range: SDR
        *5 Color Gamut: Rec.601, Rec.709, Rec.2020, Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG

      • 4K Scaler
      • FHD Down Scaler for USB Streaming
      • Fade to Black
      • Test Pattern Generator
      • Rotation*6
      • Flip H, V
      • Edge Enhancer
      • Motion Adaptive Deinterlacer
      • Color Corrction
      • Dynamic Range Convertion
      • Frame Rate Conversion (up to 240Hz)
      • *6 Require to disable Sub Processing to use.

      • Processing: 24 bits/48 kHz
      • Formats:
        12G-SDI: Linear PCM, 24-bits/48kHz, 16CH (SMPTE 299M)
        HDMI 4K: Linear PCM, 24-bits/48kHz, 8CH
        Streaming: Linear PCM, 16-bits/48kHz, 2CH (UAC (USB Audio Class))
      • Input Level:
        Line In: -10dBu (Max: +8dBu)
        Audio In: +4dBu (Max: +24dBu)
      • Input Impedance
        Line In: 38kohms
        Audio In: 15kohms
      • Output Level
        Line Out: -10dBu (Max: +8dBu)
        Audio Out: +4dBu (Max: +24dBu)
      • Output Impedance
        Line Out: 1kohm
        Audio Out: 600ohms
      • Functions: Output Level, Patchbay, Delay, Equalizer, Mastering, Test Tone Generator

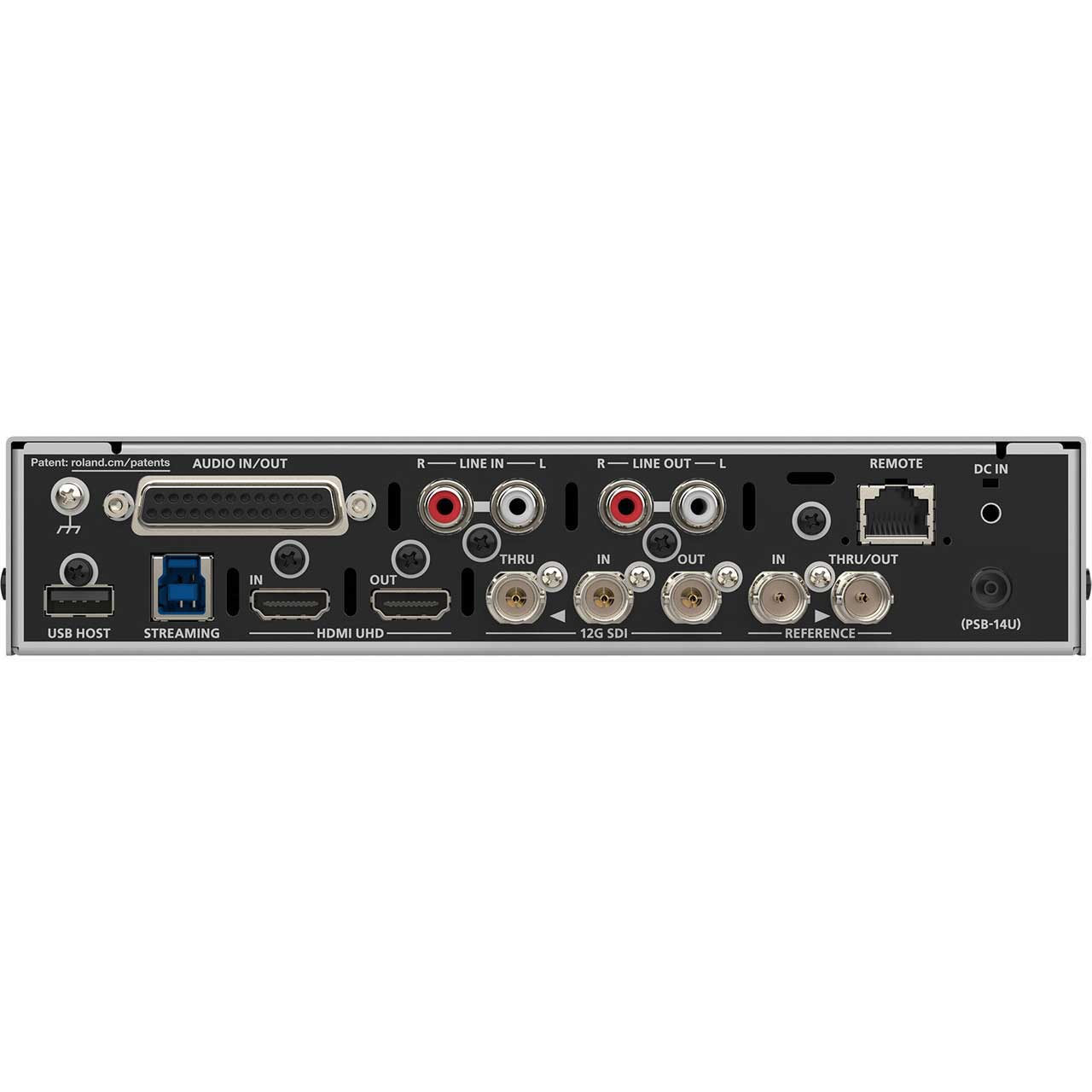

      • Input Connectors:
        12G-SDI In: BNC type (SMPTE 2082, 2081, 424M(SMPTE 425M-AB), 292M, 259M)
        HDMI 4K In: HDMI type A
        Streaming: USB type B (USB3.0)
        Line In: RCA phono type
        Audio In: DB-25 female type (Balanced audio 2 ch)
        Reference In: BNC type (Black Burst (Sync to frames), Bi-Level, Tri-Level)
      • Output Connectors:
        12G-SDI Out: BNC type (SMPTE ST2082, ST2081, 424M (SMPTE 425M-AB), 292M, 259M)
        12G-SDI Thru: BNC type
        HDMI 4K Out: HDMI type A
        Streaming: USB type B (USB3.0)
        Line Out: RCA phono type
        Audio Out: DB-25 female type (Balanced audio 2 ch)
        Reference Thru/Out: BNC type (Black Burst)
      • Other Connectors:
        USB Host: USB A type (USB2.0) (for USB flash drive)
        Remote: RJ45 type, 100BASE-TX

      • Functions: EDID Emulator, Genlock, Preset Memory x8
      • Display: Graphic LCD 256 x 64 dots
      • Power Supply: AC Adapter
      • Current Draw: 2.3A (DC 24V)
      • Power Consumption: 55W
      • Operation Temperature: 32° to 104°F (0° to 40°C)
      • Dimensions (WxDxH): 8.27 x 11.20 x 1.69" (210 x 284.50 x 43mm)
      • Weight: 4Lbs (2.2kg)
    • Item Includes:

      • 1x Owner's Manual
      • 1x Leaflet "USING THE UNIT SAFELY"
      • 1x AC adapter
      • 1x Power cord
      • 4x Rubber feet
      • 1x Rack mount angle set
      • 1x DC Plug Stopper
