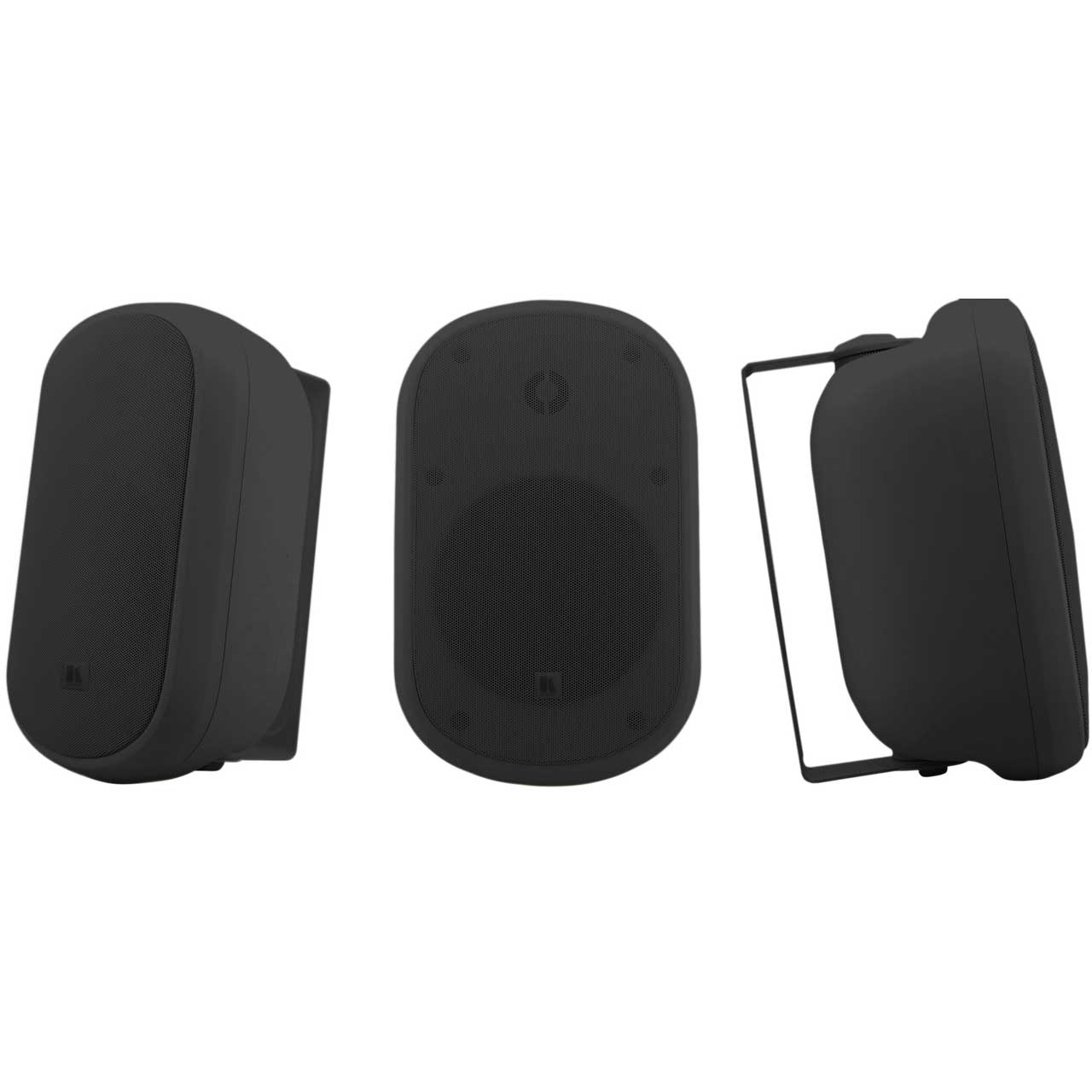

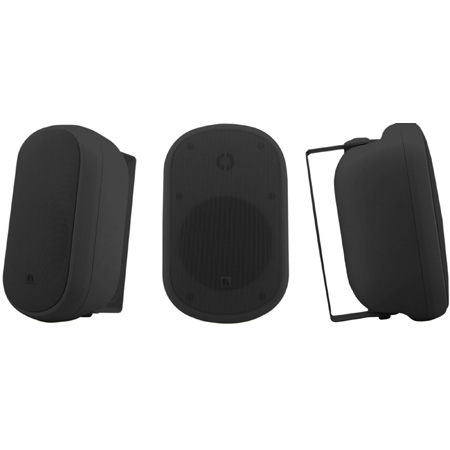

Kramer Galil 6-AW 6.5 Inch 2-Way On-Wall Outdoor Speakers - Black- Pair

GALIL6-AW-BK - Overview

2-way on-wall speaker

• Features:

  • IP 66 Certified - Withstands heavy showers and other outdoor conditions.
  • Type - 2-way on-wall speaker.
  • Woofer - 6.5 inch polypropylene cone.
  • Tweeter - 1 inch silk dome.
  • Impedance - 8Ω.
  • Power Handling - 30W RMS 80W, continuous program.
  • Transformer Taps - 70V: 30W/15W/7.5W/3.7W/Off (Lo-Z); 100V: 30W/15W/7.5W/Off (Lo-Z).
  • Package Includes - 2 speakers (1 pair), u-mount brackets, grommets.
  • Colors Available - Black and white.


• Specifications:

  • Description
  • 2-way on-wall speakers

    Frequency Response
  • 65Hz to 20kHz @-10dB, 80Hz to 20kHz @±3dB

    Woofer
  • 6.5" (165mm) polypropylene cone with rubber surround

    Tweeter
  • 1" (25mm) silk dome

    Impedance
  • 8Ω (transformer tap in off position)

    Transformer Taps
  • 70V - 30W/15W/7.5W/3.7W/Off (Lo-Z), 100V - 30W/15W/7.5W/Off (Lo-Z)

    Sensitivity
  • 85dB+/-3db@15W-1m

    Max SPL
  • Continuous: 102dB, peak: 105dB

    Power Handling
  • 30W RMS, 80W continuous program

    Crossover Frequency
  • 4.3kHz

    Directivity Factor (Q)
  • 3.9 averaged 1kHz to 10kHz

    Directivity Index (DI)
  • 5.9dB averaged 1kHz to 10kHz

    Input Connectors
  • Terminal blocks

    Materials
  • Frame, aluminum grill, steel brackets and ABS cabinet

    Standards Compliance
  • IP66 compliant

    Operating Temperature
  • -15° to +70°C (5° to 158°F)

    Storage Temperature
  • -30° to +55°C (-22° to 131°F)

    Humidity
  • 10% to 90%, RHL non-condensing

    Physical
  • Shipping Weight (For Pair): 6.6kg (14.6lbs)
  • Dimensions with mounting brackets: (8.5" x 8.9" x 11.9"), W, D, H
  • Installation Clearance: Front panel to wall (with mounting bracket): (8.9"), back panel to wall (with mounting bracket): (1.5")
  • Accessories: 2 mounting brackets (including 4 knobs and 4 mounting screws)
  • Colors: Available in white or black


• Item Includes:

  • Galil 6-AW All Weather Speakers (2)
  • Mounting U Brackets (2)
  • Knobs (4)
  • Mounting screws (4)
  • Cable gland (2)
  • Grommet (2)


• Warranty:

  • Standard One (1) Year Warranty


• GTIN:

  7291063083700
