KAC-CAM-70 - Overview

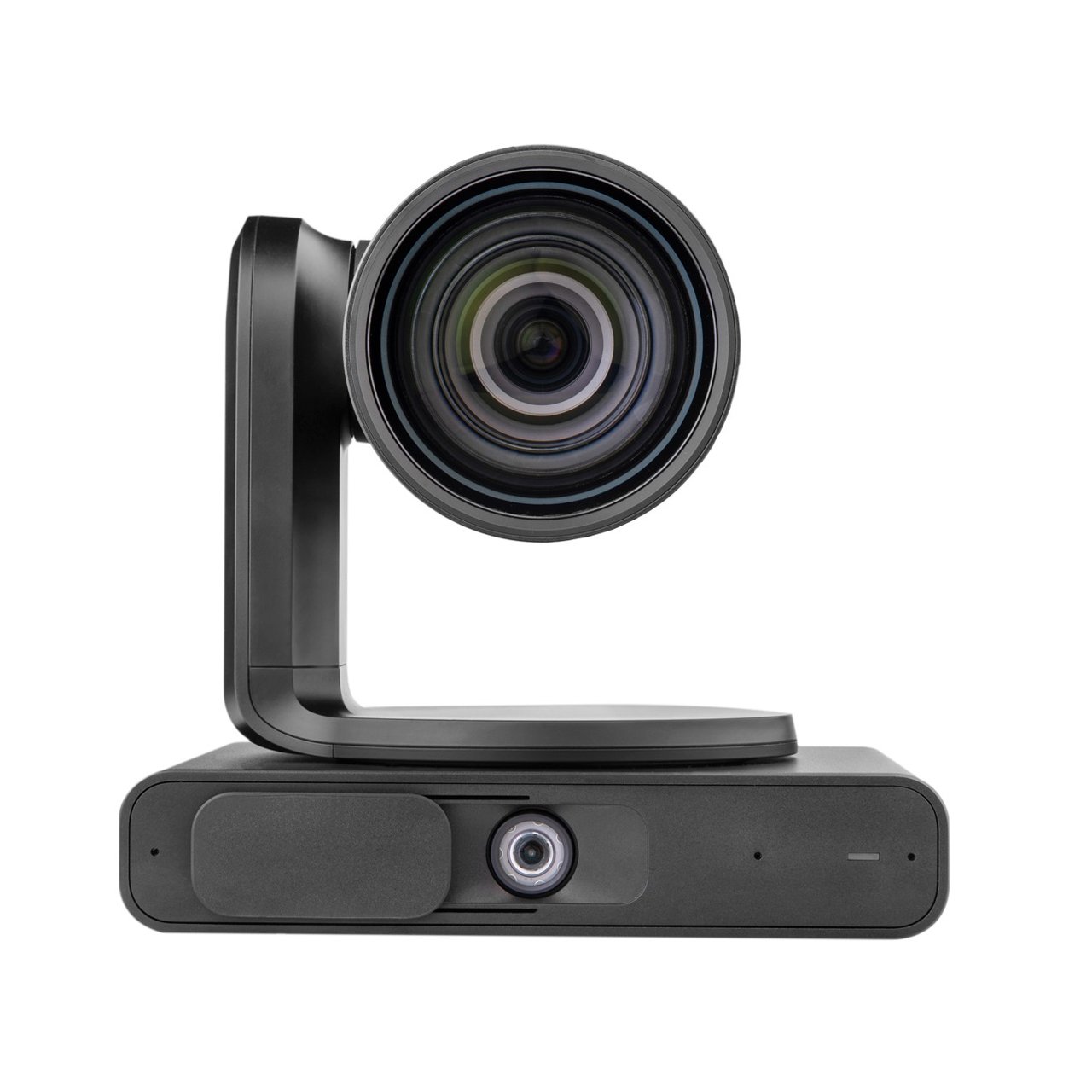

The Kramer KAC-CAM-70 is a Microsoft certified cutting-edge dual 4K lens PTZ video camera for medium to large meeting spaces.

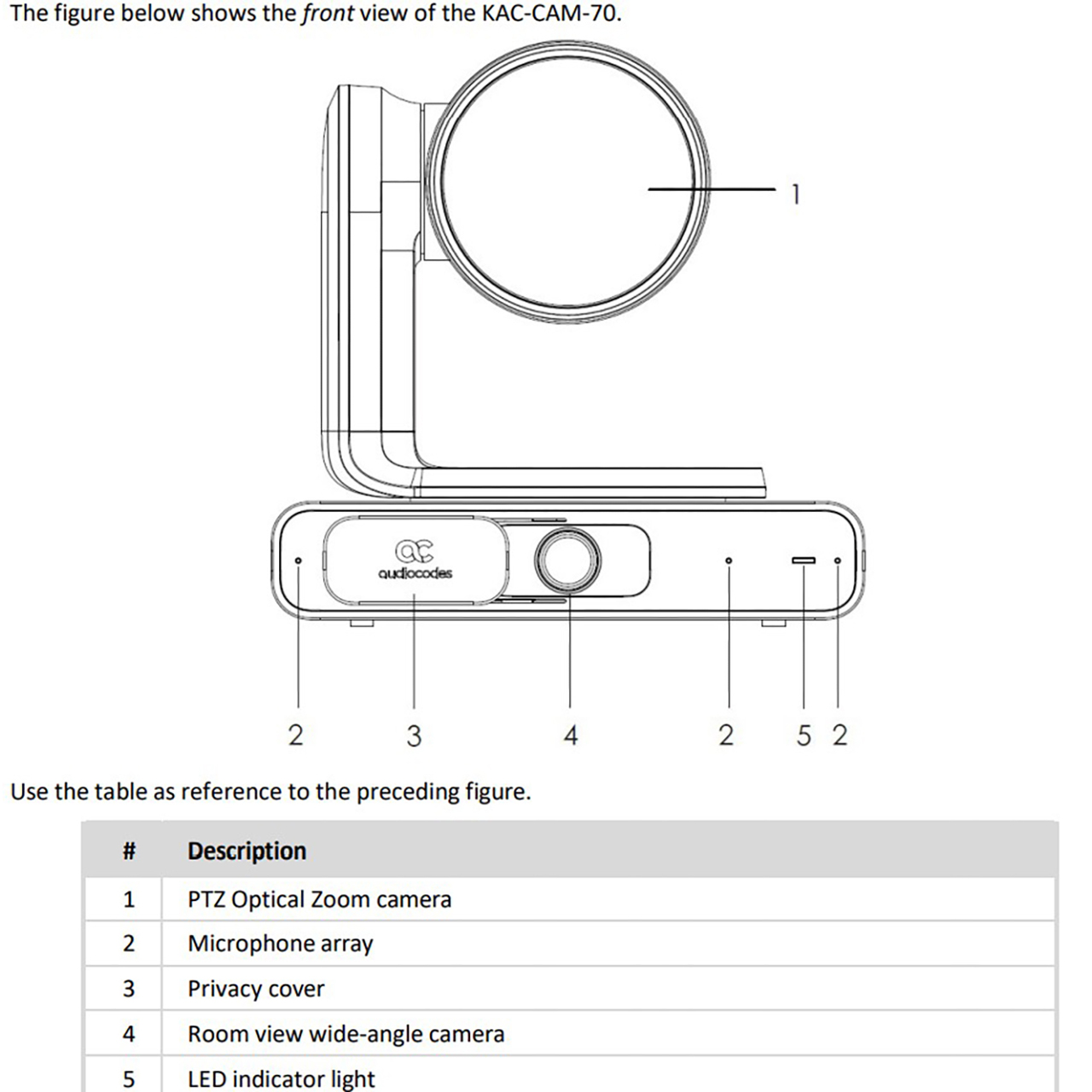

Featuring a 12x optical zoom close-up lens, a second wide angle 119° DFOV panoramic lens, and an integrated microphone array for direction assistance, the KAC-CAM-70 ensures an exceptional video experience for all participants. Its advanced AI-driven features, including auto-framing, speaker tracking, and advanced smart gallery, ensure that remote participants can clearly see the full expressions of everyone in the conference room, even those seated at a distance.

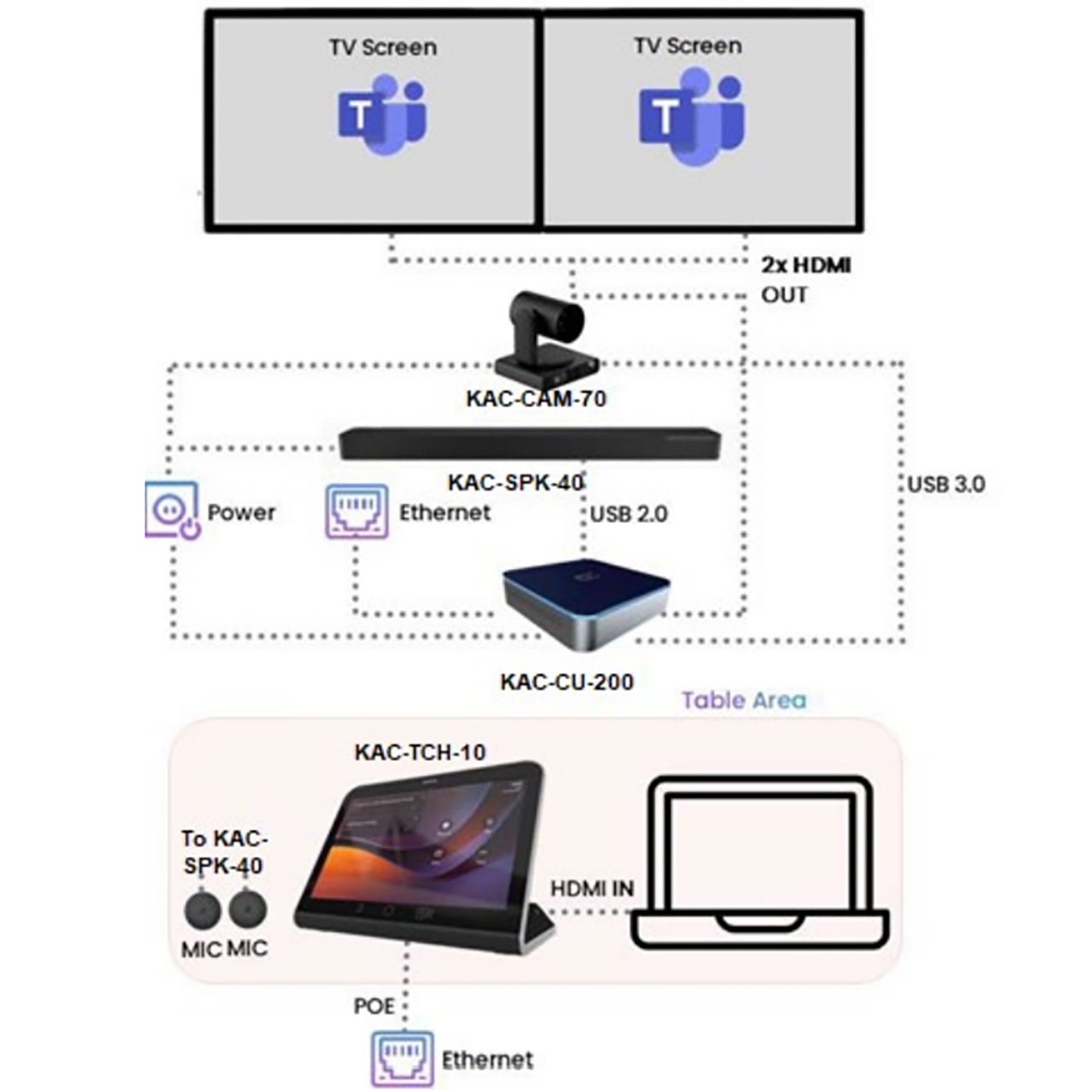

What sets the KAC-CAM-70 apart is its superior wide-angle sensor, which, when paired with our KAC-CU-200 MTR system, it provides a complete room view alongside a focused PTZ stream. Both video feeds are efficiently managed by the KAC-CU-200, ensuring seamless coverage for an exceptional meeting experience.

Designed to complement Kramer's solution bundles for medium-large Microsoft Teams Rooms, the KAC-CAM-70 plays a pivotal role in creating a highly optimized environment for hybrid Teams meetings.

Features:
- Enhance your meetings with advanced AI-powered features for a dynamic and engaging experience
- Perfect for hybrid sessions, ensuring every participant is clearly seen and heard, no matter their location
- Integrates seamlessly with Kramer AudioCodes MTR systems for a smooth and efficient hybrid video conferencing experience
- Effortless installation and operation using the KAC-TCH-10 room controller
Specifications:
- Image Sensor: 1/1.8" high quality 4K CMOS sensor
- Effective Pixels: 8.42M
- Lens Zoom:
  - Optical: 12x
  - Digital: 16x
- Focal Length: F= 4.8mm ~ 57.8mm
- Aperture: F1.8 ~ F3.6
- Minimum Illumination: 0.5Lux @ (F1.8, AGC ON)
- Shutter: 1/30s ~ 1/10000s
- White Balance: Auto, indoor, outdoor, one-touch, manual, variable color temperature
- Backlight: Compensation Support
- Digital Noise Reduction: 2D & 3D
- Signal-to-Noise Ratio: ≥55dB
- Angle of View:
  - HFOV: 80° ~ 7.54°
  - VFOV: 49.2° ~ 4.34°
- Motorized Pan & Tilt Pan: ± 170°, Tilt: ±90°
- Image Senso: 1/2.8", CMOS, Effective pixel: 8.46M
- Focal Length: F=1.97mm
- Field of View: HFOV: 107°
- Minimum: Illumination 0.5 Lux @ (F1.8, AGC ON)
- Shutter: 1/30s ~ 1/10000s
- Digital Noise Reduction: 2D & 3D
- Privacy Shutter: Electric

  USB
- Video Compression: YUV/H.264/MJPEG
- USB Protocol: USB 3.0, USB UVC
- Video Format (USB 3.0): H.264 /
  - MJPEG: 4K/30, 4K/25, 1080p/30, 1080p/25, 720p/30, 720p/25, 1024x576p/30, 1024x576p/25 960x540p/30, 960x540p/25, 800x600p/30, 800x600p/25, 640x480p/30, 640x480p/25, 640x360p/30, 640x360p/25, 480x270p/30, 480x270p/25, 352x288p/30, 352x288p/25, 320x240p/30, 320x240p/25
  - YUV: 1080p/30, 1080p/25, 720p/30, 720p/25, 360p/30, 360p/25

  Microphone
- Quantity: 3x
- Pickup Angle: 180°

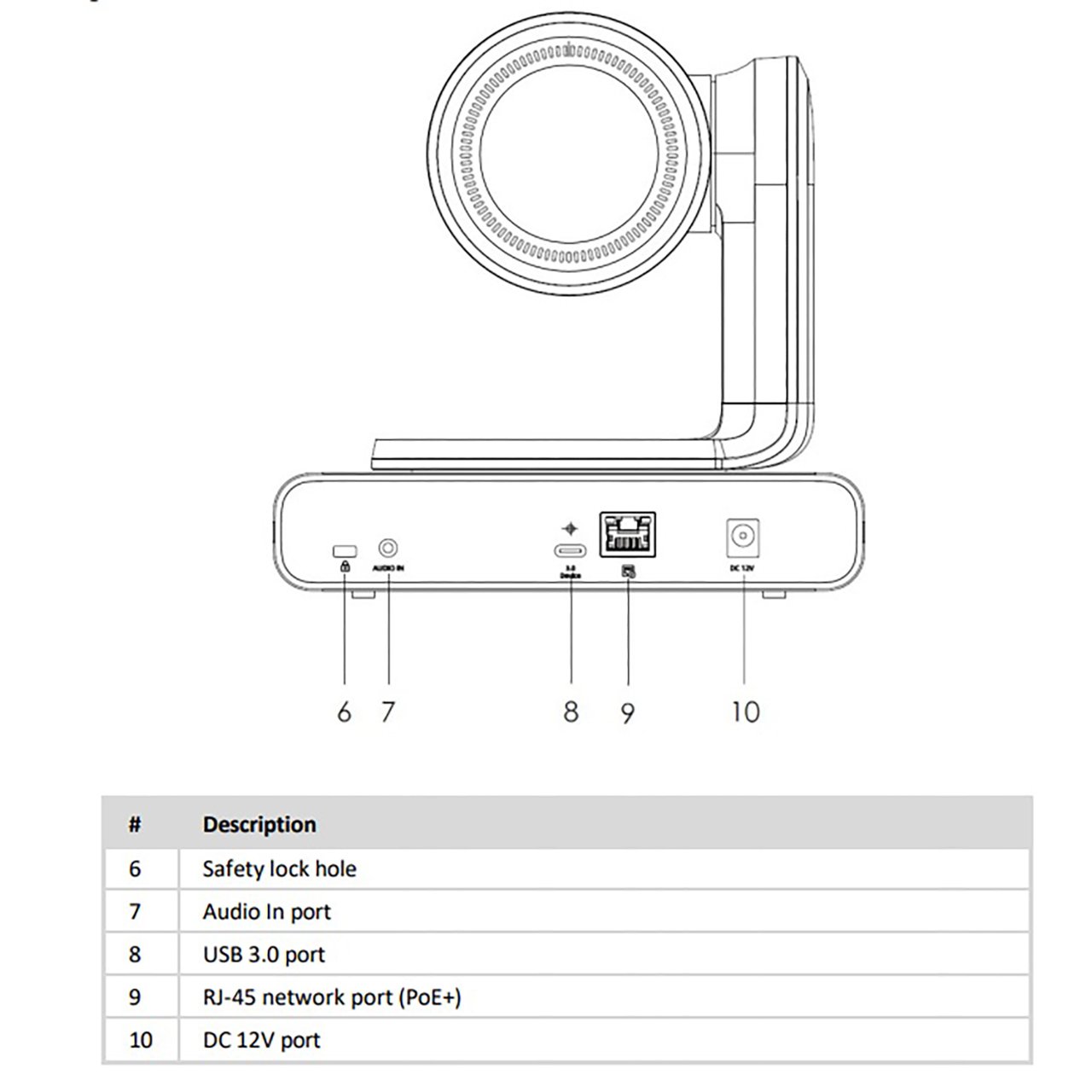

  I/O
- LAN Port: 1x RJ45, POE+
- USB Port: 1x USB 3.0, Type-C
- Audio Port: (Future use) 1x 3.5mm
- Power Port : 1x DC-005/Φ2.0 type (DC IN 12V/2A)

  General
- Input Voltage: DC 12V/PoE+ (802.3at)
- Input Current: 2A
- Power Consumption: ~20W
- Dimensions: 18.11" x 3.82" x 2.87" (46.00cm x 9.70cm x 7.30cm)
- Weight: 2.3lbs (1.1kg)
- Security: Kensington lock
- Smart Gallery Maximum Number of Feeds: 8
- Algorithm Support Range: 1~8m
- Camera Modes: Presenter Tracking, Auto Framing, Smart Gallery, Speaker tracking, Multi Stream, Manual
Item Includes:
- 1x KR-KAC-CAM-70 PTZ Camera
- 1x Wall Mount Bracket
- 1x Power Adapter
- 1x Remote Control
- 1x USB-A to USB-C Cable (6.6 Foot)
Warranty:
- 7-Year Limited Warranty
