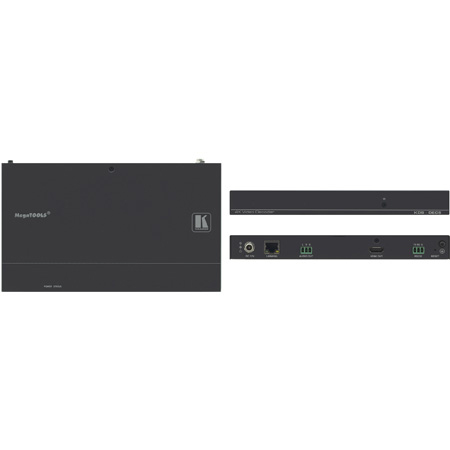

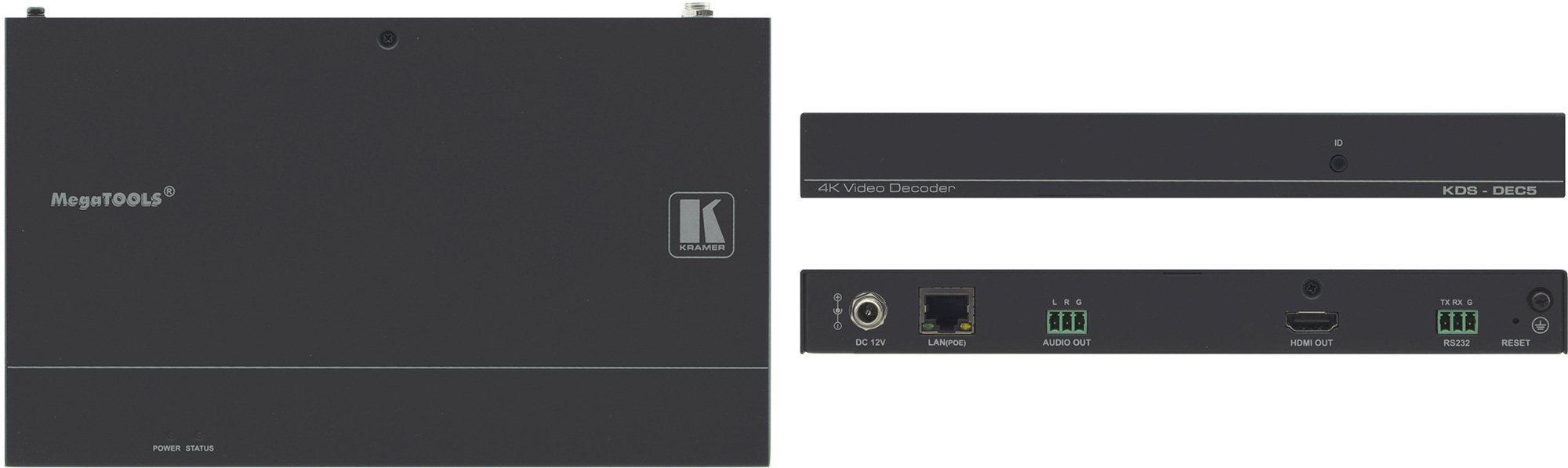

Kramer KDS-DEC5 4K60 4:2:0 - H.264 Video Decoder Supporting PoE and Video Wall
  • Kramer KDS-DEC5 4K60 4:2:0 - H.264 Video Decoder Supporting PoE and Video Wall
  • Kramer KDS-DEC5 4K60 4:2:0 - H.264 Video Decoder Supporting PoE and Video Wall

Questions? Ask a Markertek Expert:
800-522-2025 Email

Kramer KDS-DEC5 4K60 4:2:0 - H.264 Video Decoder Supporting PoE and Video Wall

Manufacturer: Kramer

Item #: KR-KDS-DEC5   •   MFG #: KDS-DEC5



List Price:$1,506.00
Our Price:$1,204.80

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

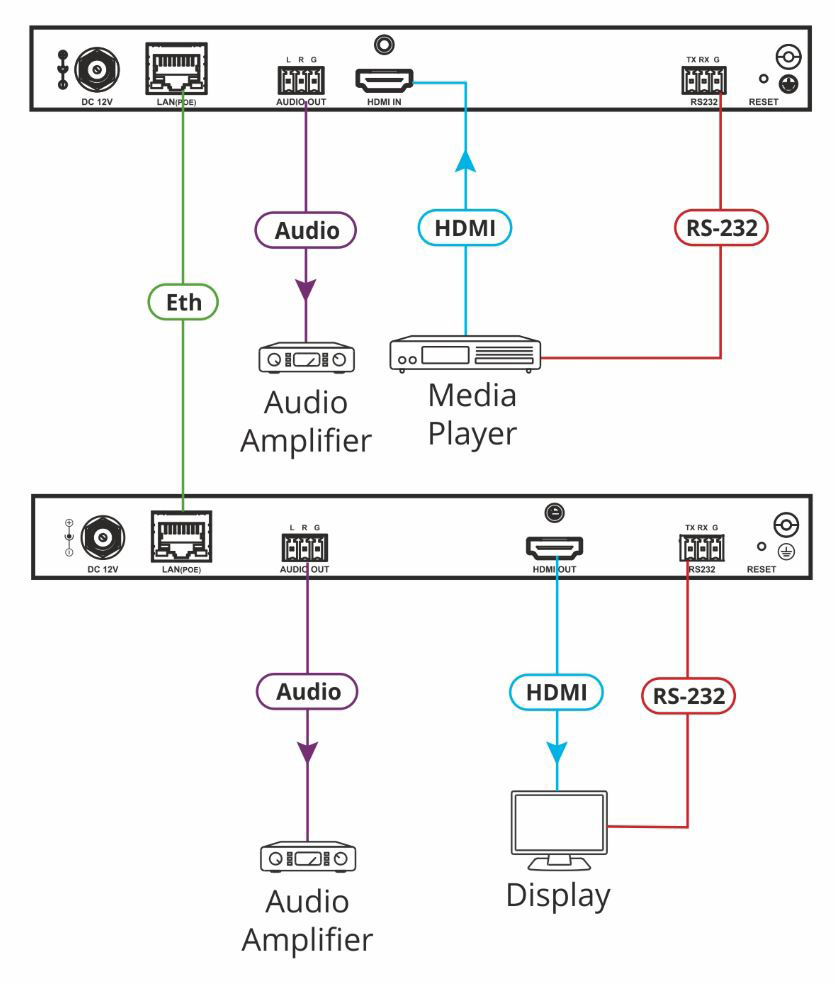

    The KDS-DEC5 is a high performance 4K60 4:2:0, H.264 Video decoder that support PoE and video wall in unicast (one-to-one) or multicast (many-to-many) configurations
    .


    • Features

      • Max. Data Rate - HDMI [email protected] (4:2:0) output.
      • Flexible Audio Support - HDMI or analog line in.
      • Standard AVC Support - H.264 & AAC codecs.
      • Virtualization - RS-232 over IP.
      • Network and IP Support - Standard Ethernet network operation 10/100/1000 Mb. Managed switch: 1G, multicast, IGMP snooping, layer 2. Configurable DHCP, Static or Auto IP.
      • Streaming and Session Control - Unicast, multicast, and RTP over RTSP.
      • Management and Control Options - Embedded web pages and API
      • Video Wall - Up to 256 screens (16x16).
      • Power - PoE or external power supply (not included).

    • Specifications

      • 1 HDMI (1.4): on a female HDMI connector
      • 1 Unbalanced Stereo Audio: on a 3-pin terminal block connector
      • 1 Ethernet: on an R-J45 connector
      • 1 Unbalanced Audio: on a 3-pin terminal block connector
      • 1 RS-232: on a 3-pin terminal block connector
      • Compression Standard: H.264/MPEG-4 AVC
      • Profiles Base line, Main, High profile
      • Levels: Up to 5.0
      • Rate Control: CBR,VBR, adjustable GOP size
      • Bit Rates: 2Mbps-30Mbps
      • Encapsulation Format: MPEG-2 transport stream
      • Transmission format: TS over UDP, TS over RTP
      • Compession Standard: MPEG4 AACLC
      • Channels: 2 channel (stereo), HDMI with stereo LPCM/AAC audio
      • Sample Frequency: 48kHz, Bitrate: 1.6Mbps(LPCM), =240Kbps(AAC)
      • Source: PoE or 12V DC power supply (not included)
      • Consumption: 5.6W
      • Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
      • Storage Temperature: -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
      • Humidity: 10% to 90%, non-condensing
