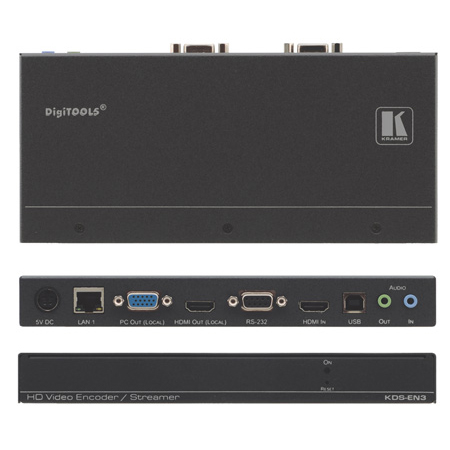

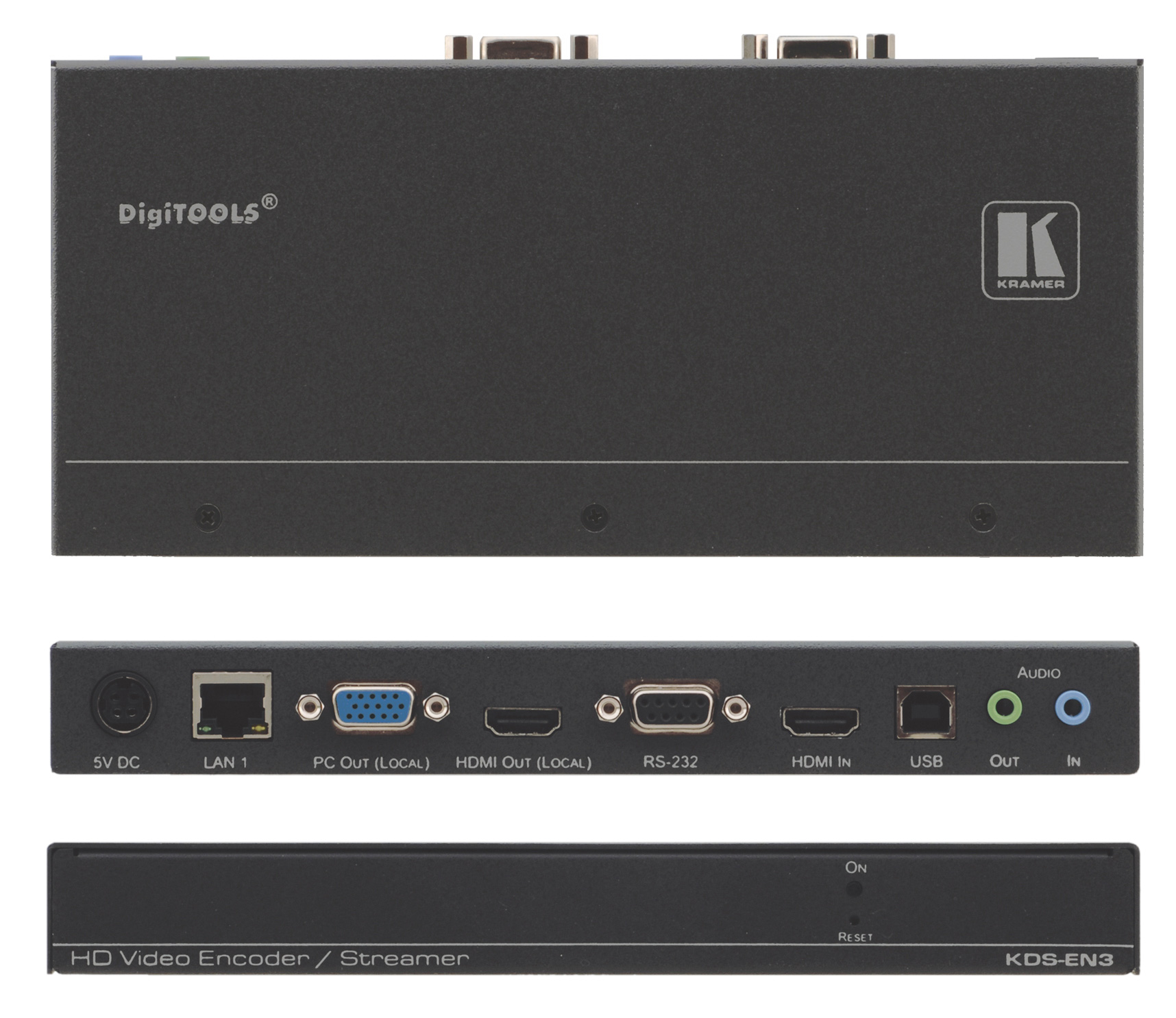

Kramer KDS-EN3 H.264 Encoder Recorder & Streamer
  • Kramer KDS-EN3 H.264 Encoder Recorder & Streamer
  • Kramer KDS-EN3 H.264 Encoder Recorder & Streamer
Questions? Ask a Markertek Expert:
800-522-2025 Email

Kramer KDS-EN3 H.264 Encoder Recorder & Streamer

Manufacturer: Kramer

Item #: KR-KDS-EN3   •   MFG #: KDS-EN3


List Price:$1,995.00
Our Price:$1,596.00

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



Required Accessories

    Show More

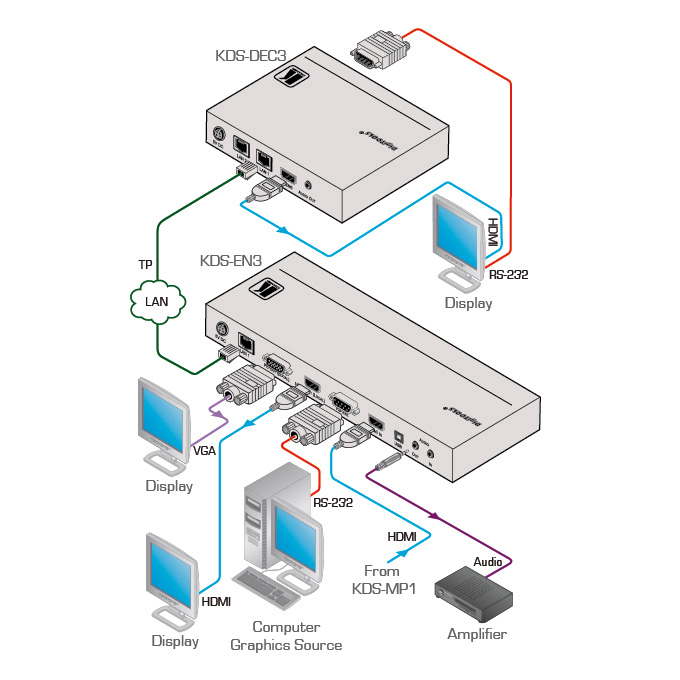

The Kramer KDS-EN3 is an H.264 encoder for HDMI signals up to 1080p60. The KDS-EN3 provides unicast (one-to-one) or multicast (one-to-many) streaming to the KDS-DEC3 decoder or computers running VLCc software. KDS-EN3 can also record content to a network drive for later access.

  • Features

    • AVC Support - MPEG-4 using H.264 & AAC codecs.
    • Built-in Scaling and Frame Rate Control - For lower bandwidth consumption when distributing over the network.
    • Open Encoding - Enable software decoding through VLC player software.
    • Standard Ethernet Network Operation - 10/100/1000Mb.
    • Video Support - HDMI.
    • Audio Support - HDMI or analog.
    • Streaming Support - Unicast and multicast through RTSP (Real Time Streaming Protocol).
    • KDS-EN3 Manager Software - Allows remote management of the KDS-EN3 network including auto-detection and discovery of KDS-EN3/KDS-DEC3 units on a subnet.
    • Manual & Scheduled Recording - To network storage option on encoders.
    • RS-232 Virtualization - From encoder to decoder.
  • Specifications

    • INPUTS: 1 HDMI, 1 unbalanced stereo audio on a 3.5mm mini jack (line in).
    • OUTPUTS: 1 HDMI, 1 VGA on a 15-pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack.
    • PORTS: 1 Ethernet on an RJ-45 connector, 1 RS-232 on a 9-pin D-sub connector.
    • VIDEO SINGLE CHANNEL HD: Up to 1920x1080p60 and 1920x1200(60Hz).
    • COMPRESSION STANDARD: H.264/Mpeg4 Part 10 (AVC).
    • PROFILES: Baseline, Main, High.
    • LEVELS: Up to 4.2.
    • BIT RATES: 100Kbps to 25Mbps.
    • RATE CONTROL: CBR, VBR, adjustable GOP (Group Of Pictures) size.
    • CHANNELS: 2 channel (stereo), HDMI with digital L-PCM audio.
    • ANALOG SAMPLE FREQUENCY: 32, 44.1, and 48kHz.
    • BIT RATES: 96, 128, 192, and 256Kbps.
    • INPUT RESOLUTIONS: 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, and 640 x 480.
    • OUTPUT RESOLUTIONS: 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024.
    • OPERATING TEMPERATURE 0° to +40°C (32° to 104°F).
    • STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
    • HUMIDITY: 10% to 90%, RHL non-condensing.
    • DIMENSIONS: 21.6cm x 2.6cm x 10.7cm (8.5" x 1.0" x 4.0").
    • WEIGHT: 0.36kg
    • INCLUDED ACCESSORIES: Power supply, power cord, plastic bracket set.
  • Applications

    • AV distribution systems with one or more sources and many displays in schools, universities and public venues
    • Long-distance transmission of signals using existing wires and infrastructure in corporate offices, government applications
    • Advanced applications where functions such as recording, archiving, scaling and more are required
