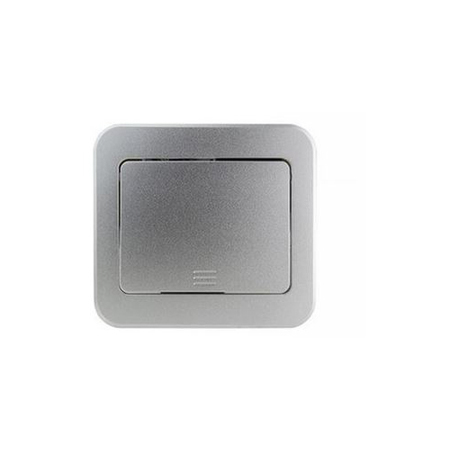

Primary Image
Kramer
Free Shipping with $49 Minimum Order
Availability: Sold Out
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    TBUS-201XL-BC - Overview

    Kramer's TBUS-201xl provides an extremely simple, affordable and elegant single-push pop-up multi-connection boardroom solution. By pressing down gently on the lid, the unit opens and closes pneumatically. TBUS-201xl is fast and easy to install and flexible to configure. It customizes to your own needs and is intuitive to operate.


    Requires a Country Specific Power Socket Module & Power Cord - Purchased Separately

    Perfect for
    Boardrooms
    Conference rooms
    Classrooms
    Training facilities

    • Features:

      • Elegant in-table compact solution
      • Avoids the tabletop "cable jungle"
      • Easy to install
      • Flexible to configure and customize
      • CE qualified
      • Pneumatic Lift - Easy opening & closing by pressing down gently on the cover. When not in use, it lowers flush with the table.
      • Power Input - Universal, USA, European and many other worldwide power sockets available.
      • 4 Fixed Inputs - 15-pin HD, HDMI, 3.5mm & Ethernet.
      • Rugged Rectangular Design - The sturdy and attractive anodized aluminum enclosure provides maximum connectivity in the smallest possible footprint, and at the same time is cost effective.
      • Installation - Requires tools and expertise to cut a 133mm x 120mm (5.2" x 4.7") rectangular hole in the surface of the furniture involved. Maximum table thickness is 7.6cm (3").
      • Note - The power socket module is not included. Purchase the country-specific module separately.


    • Specifications:

      • PORTS: 1 HDMI connector, 1 Ethernet RJ-45 connector, 1 15-pin HD connector, 1 3.5mm mini jack.
      • POWER SOCKET ASSEMBLIES: USA 100-220V AC, 50/60Hz, 5A per outlet;
      • Germany and EU 100-240V AC, 50/60Hz, 5A per outlet;
      • Belgium and France 100-240V AC, 50/60Hz, 5A per outlet;
      • Italy 100-240V AC, 50/60Hz, 5A per outlet;
      • Australia 100-240V AC, 50/60Hz, 5A per outlet;
      • Israel 220V AC, 50/60Hz, 5A per outlet;
      • South Africa 220V AC, 50/60Hz, 5A per outlet;
      • Switzerland 220V AC, 50/60Hz, 5A per outlet;
      • UK 220V AC, 50/60Hz, 5A per outlet;
      • Brazil 220V AC, 50/60Hz, 5A per outlet.
      • OPERATING TEMPERATURE RANGE: +5° to +45°C (41° to 113°F).
      • OPERATING HUMIDITY RANGE: 10 to 90% RHL, non-condensing.
      • STORAGE TEMPERATURE RANGE: -20° to +70°C (-4° to 158°F).
      • STORAGE HUMIDITY RANGE: 5 to 95% RHL, non-condensing.
      • DIMENSIONS: Including the outer rim: 14.5cm x 13.2cm x 17.3cm (5.71" x 5.2" x 6.81") W, D, H;
      • Without the outer rim: 13.3cm x 12.0cm x 17.3cm (5.24" x 4.72" x 6.81") W, D, H.
      • WEIGHT: 0.85kg (1.87lbs) approx., 1.2kg (2.65lbs) approx. with mounting brackets.
      • INCLUDED ACCESSORIES: Cardboard template.
      • OPTIONS: Power socket kits, power cord.


    • Item Includes:

      • TBUS-201XL(BC)
      • Cardboard Template


    • Warranty:

      • Limited 7 Year Warranty


    • GTIN:

      7291063059408
