West Penn 25359B 4-Conductor 20 Gauge Plenum Control Cable 500 Feet

ITEM #: WP-25359B-500 MFG #: 25359B-500

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$176.00

Our Price:

$147.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    25359B-500 - Overview

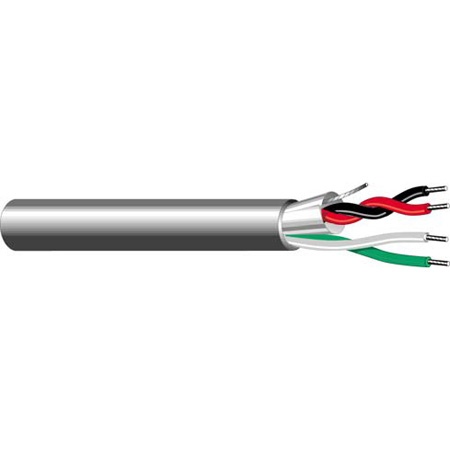

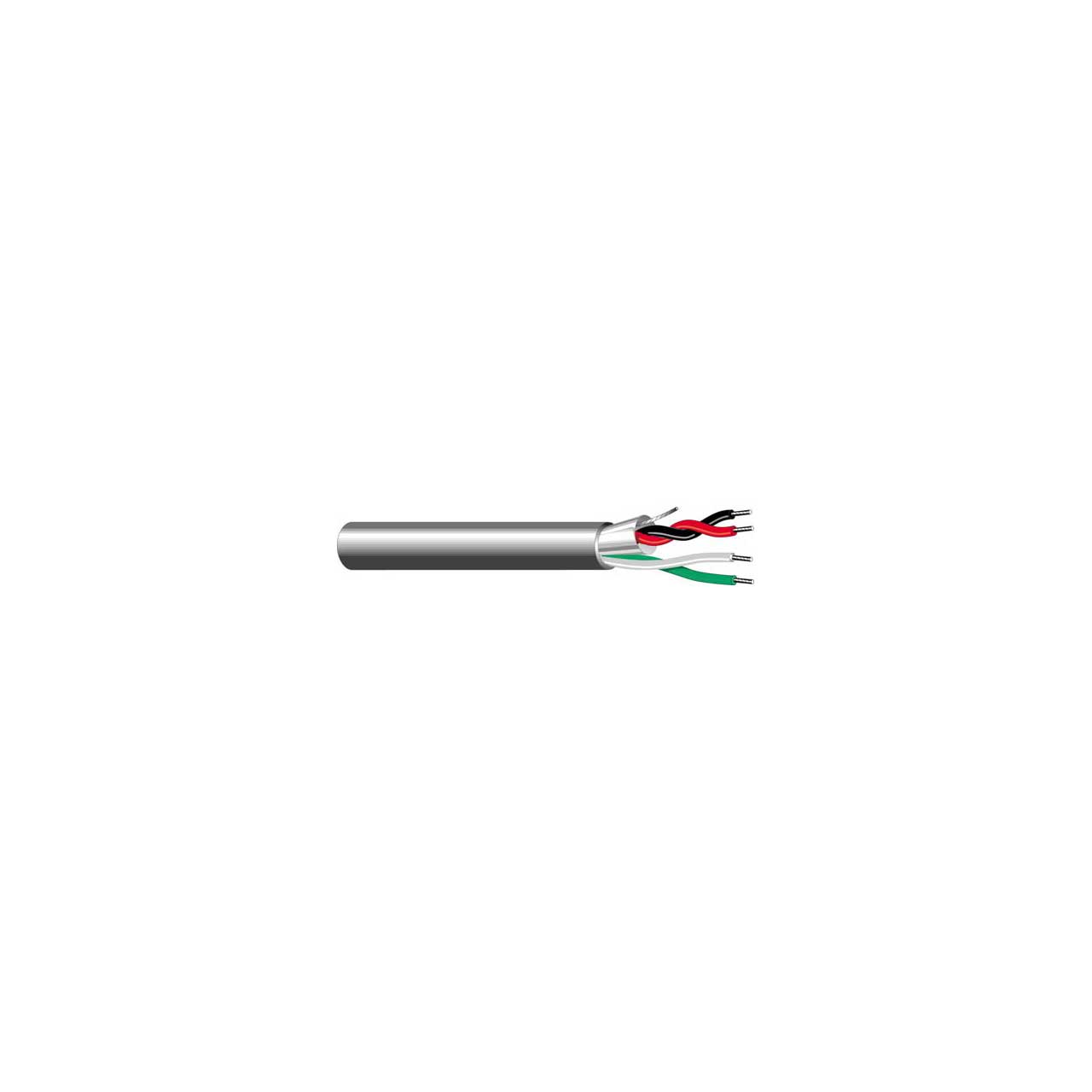

    20/4 Stranded bare copper conductors, shielded with an overall jacket.

    • Features:

      • Indoor within ducts, plenums, and other spaces used for environmental air for (Pro Audio, Intercom Systems, Security Systems, Sound, Background Music)


    • Specifications:

      • Conductor 20 AWG Bare Copper
      • Stranding 7x28
      • Insulation Material Flex Plenum PVC
      • Insulation Thickness 0.008'' Nom.
      • Number of Conductors 4
      • (2 Shielded)(2 Unshielded)
      • Shield 100% Aluminum Polyester Foil
      • Drain Stranded Tinned Copper
      • Jacket Material Flex Plenum PVC
      • Jacket Thickness 0.015'' Nom.
      • Overall Cable Diameter 0.180'' Nom.
      • Approximate Cable Weight 25 Lbs/1M' Nom.
      • Flame Rating NFPA 262 Flame Test


    • GTIN:

      0612825048923
