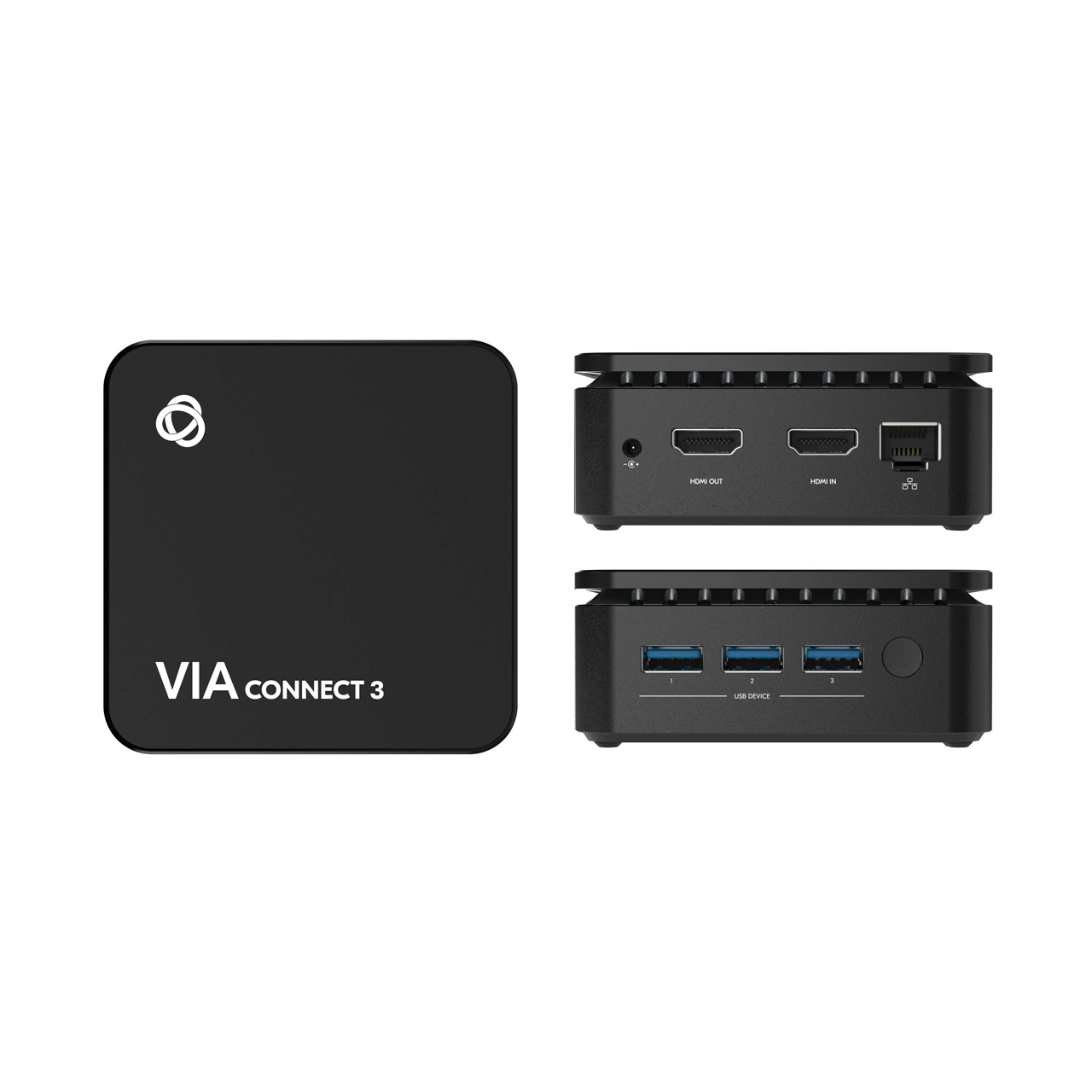

Kramer VIA CONNECT 3 Compact & Secure 4K30 Wireless Presentation / Collaboration Solution with HDMI & RJ45 IOs

VIA CONNECT 3 - Overview

• Features:

  • 3rd party security certification
  • Built-In Isolated Wi-Fi and LAN
  • Quick and Reliable Wireless Connectivity: A simple and intuitive user interface enables iOS, Android, Chromebook, PC, and Mac device users to instantly connect to a main display without a dongle. 2.4GHz/5GHz Wi-Fi and MIMO antennas establish and maintain a fast and reliable connection
  • Clientless Connectivity: Airplay, Miracast, join through browser
  • High Quality Video Streaming: Supports up to 4K resolution (using the VIA app Multimedia feature)
  • Optimized for Video Conferencing: Room devices driver feature allows users to wirelessly connect to the professional grade camera and AV in their meeting spaces easily and instantly
  • Calendar widget on the wallpaper for instant connectivity within one click
  • 3rd Party Web Applications: Run directly from the device without needing to use the application
  • Powerful Security Feature: 802.1x User authentication, 1024-bit encryption, dynamic room code.
  • Comprehensive Collaboration Functionality: Whiteboard, filesharing, View Main Display, chat, etc
  • Simultaneous Display: Four participants can simultaneously present content on the main display
  • Seamless Live Video Streaming: Stream live content from meeting rooms, classrooms and studios using RTMP/RTMPS to all the leading platforms, like YouTube™, Kaltura™, Panopto™ and more
  • Easy and Flexible Installation: With a super-compact 9x9cm form factor, it can be discreetly installed on the back of a display, projector or almost anywhere
  • Up to 4K@30 HDMI Wired Input: Enables hard-wiring and auto-switching for connecting computers, cameras, multimedia players, or other HDMI-compatible devices. Note: This input does not support HDCP-protected content
  • Wireless USB: Supports Microphone, Speaker & Camera
  • Cloud-Based Management: Seamlessly compatible with VIA Site Management (VSM)


• Specifications:

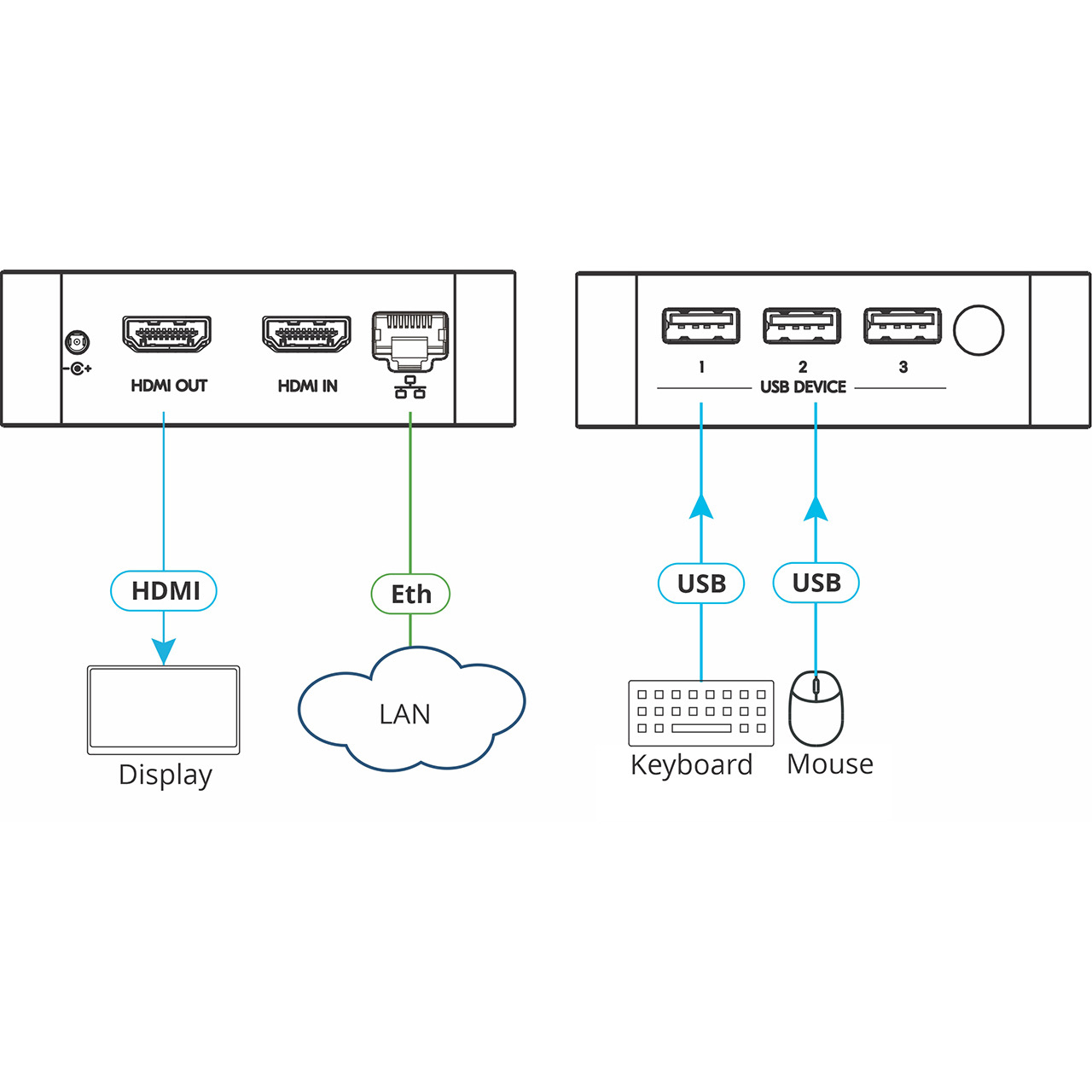

  Ports
  • Inputs:
    - 1x Ethernet
    - 3x USB 3.0
  • Outputs: 1 HDMI 2.0
  • Control Management: VSM on Cloud

    Video
  • Max Resolution: Up to 4K@30Hz for both Input & Output
  • Web Conferencing Cameras Tested with VIA Versa Feature:
    - Logitech: MeetUp, C270, BCC950, C525, Brio UHD PRO, C310, C922
    - Avaya: HC020, HC050
    - Huddly: GO
    - Minrray: MG100A
    - Microsoft: Livecam HD-3000
    - TedGem: 1080p
    - Vaddio: HuddleSHOT
    - Yealink: UVC80, UVC30ROOM
    - Bose: Videobar VB1
    - BIAMP: Devio SCR-20, Devio SCR-25
    - LUMENS: B10U, B11U, B2U
    - MAXHUB: UCS10
    - Aver: CAM340+, VB342+, CAM340+
    - Avonic: AV-CM44-VCUC-B PTZ
    - Konftel: C50 PTZ
  • Video Conferencing Apps Tested with VIA Versa Feature: Teams and Zoom
    **All brand names, product names, and trademarks are the property of their respective owners

    General
  • Networking: 1x Gigabit LAN Wi-Fi 802.11 ac/b/g/n dual band & Bluetooth
  • Operating System: Linux

    Power
  • Source: 12V DC
  • Consumption: 3.8A
  • Accessories Included: Power adapter

    Other
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -40°F - 158°F (-40°C - 70°C)
  • Humidity: 10% - 90%, RHL non-condensing
  • Regulatory Compliance (Standards Compliance): Safety: CE, FCC, UL, BIS
  • Enclosure:
    - Type: Aluminium cooling, fan with sink, Kensington lock
    - Dimensions: 3.54" x 3.54" x 1.42" (89.9mm x 89.9mm x 36mm)
  • Product Dimensions (WxDxH): 3.54" x 3.54" x 1.34" (9.00cm x 9.00cm x 3.40cm)
  • Product Weight: 0.6lbs (0.3kg) approx
  • Shipping Dimensions (WxDxH): 6.18" x 4.72" x 4.33" (15.70cm x 12.00cm x 11.00cm)
  • Shipping Weight: 2.0lbs (0.9kg) approx


• Item Includes:

  • 1x VIA CONNECT 3 Collaboration Device
  • 1x VESA mounting bracket
  • 1x VESA screw set
  • 1x Power cord
  • 1x Quick start guide
