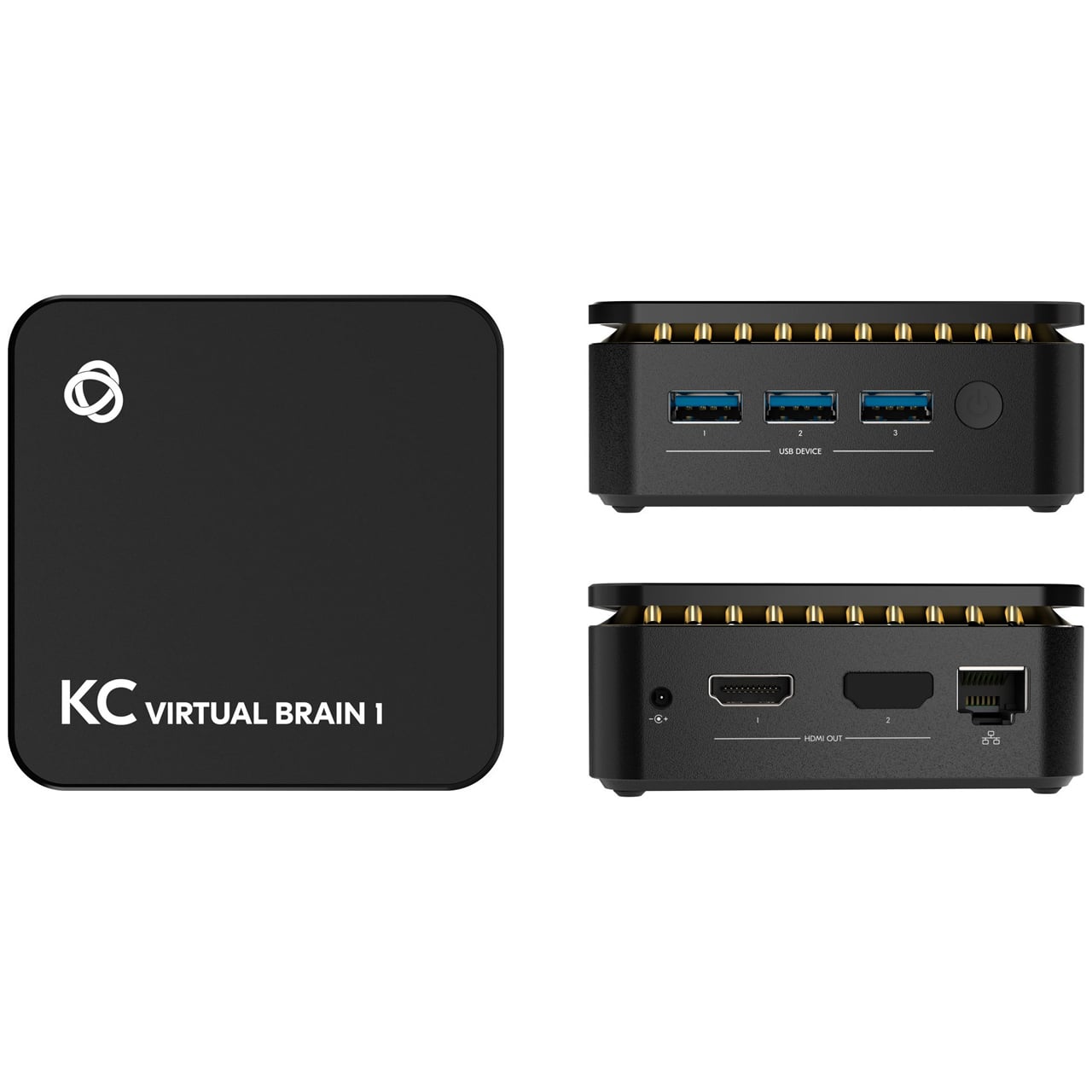

Kramer KC-VIRTUAL BRAIN1 Gen 2 Hardware Platform with 1 Instance of Kramer BRAINware

ITEM #: KR-VIRTLBRAIN1G2 MFG #: KC-VIRTUALBRAIN1 GEN 2

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,099.00

Our Price:

$879.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


KC-VIRTUALBRAIN1 GEN 2 - Overview

Simplified AV Installation - Control a room without installing a physical Brain!

The Kramer KC-Virtual Brain1 (Gen2) is a hardware platform with 1 instance of Kramer BRAINware software already installed on the device. The Gen2 model features enhanced processing capabilities and upgraded hardware components for improved performance and reliability. KC-Virtual Brain1 (Gen2) is designed to maximize the features and benefits of Kramer BRAINware for controlling 1 standard space (e.g. a standard space could include a scaler, monitor, lighting system, touch panel and keypad).

Kramer BRAINware is an enterprise-class, revolutionary, user-friendly, software application that enables you to execute all your room control actions straight from a computer without installing a physical Brain between the user interface and the controlled devices. Using the power of Kramer Control cloud-based control & space management platform, Kramer BRAINware enables you to operate multiple devices over Ethernet such as scalers, video displays, audio amplifiers, Blu-ray players, sensors, screens, shades, door locks, and lights.

With Kramer Control's intuitive drag & drop Builder - designing a system has never been easier! Install, configure and modify your control system without any prior knowledge in programming!

Typical Applications:
• Fully customizable UI.
• Replaces physical Brains.
• Enables controlling almost any device.
• Scalable & flexible control.
• Simple configuration.

  • Features:

    • Format Conversion: Use Kramer FC family of control format converters to enable controlling almost any device.
    • Fully Customizable UI: Using Kramer Control, easily personalize your control interface any way you like.
    • Space Controller: Controls any AV device with its corresponding logic.
    • Simple Configuration: Install and start using the platform in minutes with easy configuration.

  • Specifications:

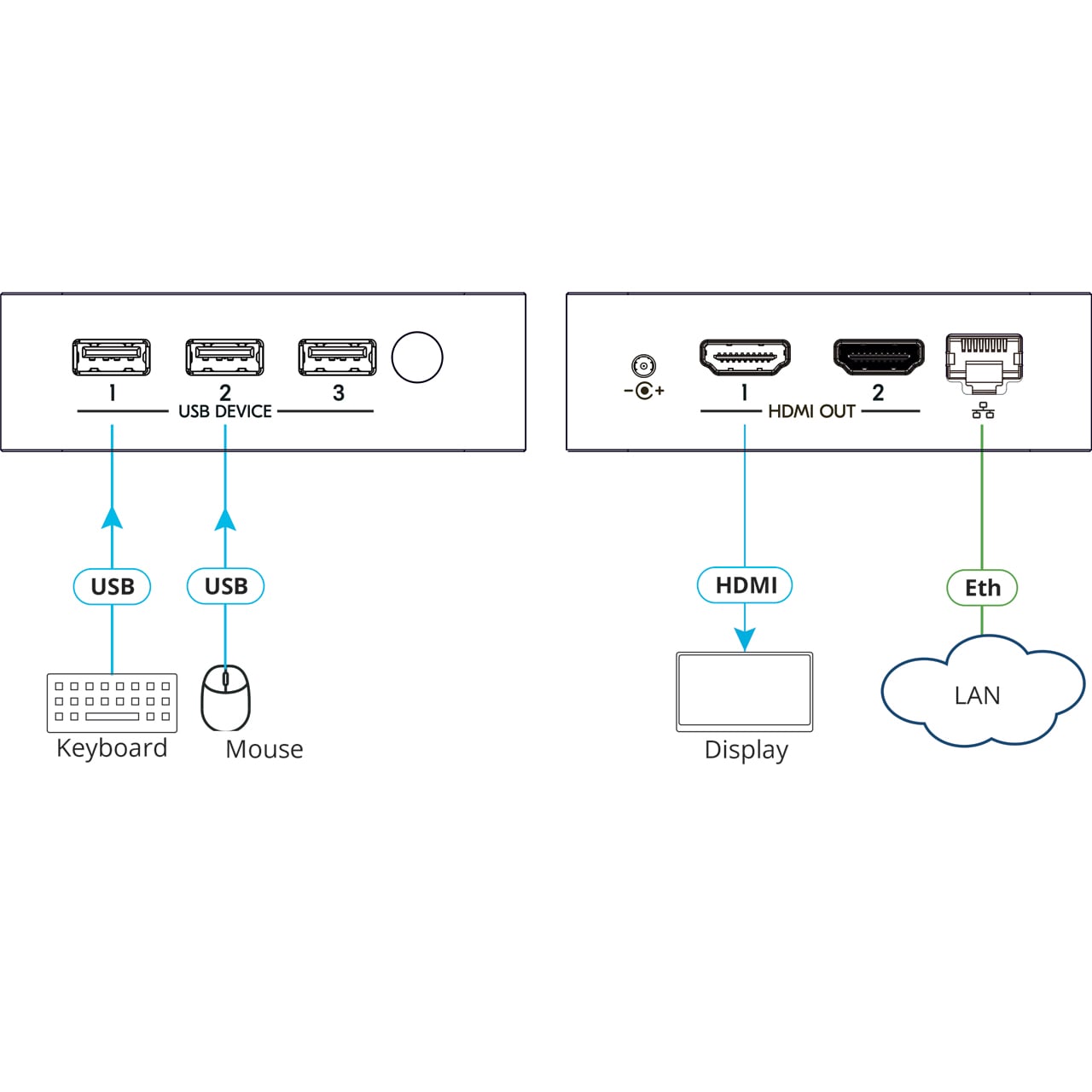

      Ports & Video
    • 1x Ethernet: On an RJ45 connector
    • 3x USB 3.0: On a female USB type-A connector
    • Outputs: 1x HDMI 2.0 On a female HDMI connector
    • Video: Up to 4K Output Max Resolution

      General
    • Operating System: Linux
    • Networking: 1x Gigabit LAN Wi-Fi 802.11 ac/b/g/n dual band & Bluetooth
    • Operating System: Linux

      Power
    • Source: 12V DC
    • Consumption: 3.8A

      Physical
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -40°F - 158°F (-40°C - 70°C)
    • Humidity: 10% - 90%, RHL non-condensing
    • Regulatory Compliance (Standards Compliance)
    • Safety: CE, FCC, UL, BIS
    • Type: Aluminum cooling, fan with sink, Kensington lock
    • Dimensions: 3.54" x 3.54" x 1.42" (89.9mm x 89.9mm x 36mm)
    • Product Weight: 0.4lbs (0.2kg) approx

  • Item Includes:

    • 1x Power adapter


KC-VIRTUALBRAIN1 GEN 2 - Required Accessories
