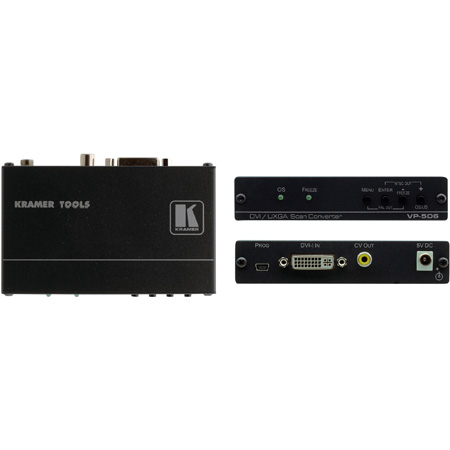

Kramer VP-506 DVI & Computer Graphics Multistandard Video Scan Converter with Built-In Proc-Amp

ITEM #: KR-VP-506 MFG #: VP-506

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.


Items similar to the KR-VP-506

VP-506 - Overview

Max. Resolution - UXGA & 1080p

The Kramer VP-506 is a high-quality scan converter for down-scaling DVI, computer graphics (VGA) and component video (YPbPr) to PAL or NTSC video. It supports VGA up to UXGA, as well as component resolutions up to 1080p.

Perfect for:
Multimedia, board rooms, and video conferencing.

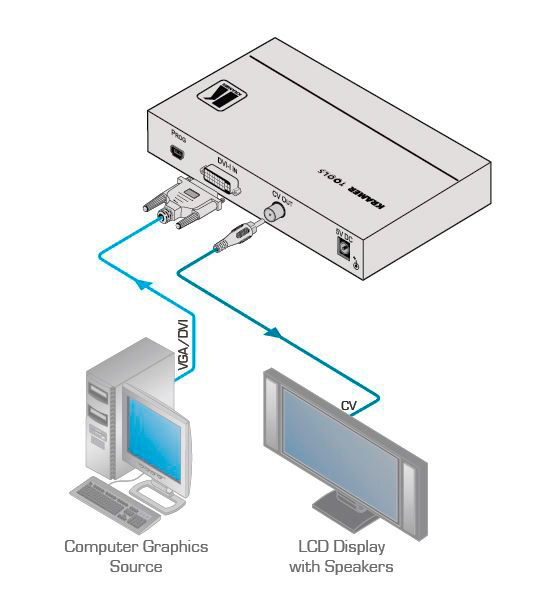

Any application where high-quality conversion of DVI data signals to video signals is required.

  • Features:

    • Max. Resolution - UXGA & 1080p.
    • HDTV Compatible Input.
    • Selectable Video Standards - PAL or NTSC.
    • Memory Locations - Saves and recalls up to four setups, including picture, input, output, zoom and advanced feature setups.
    • Built-In ProcAmp Features - Color, sharpness, contrast and brightness.
    • Control - Front panel buttons and OSD (on screen display).
    • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
  • Specifications:

    • INPUT
    • 1 DVI-I (DVI-D, VGA, YPbPr) on a 24-pin Molex connector

    • OUTPUT
    • 1 composite video, 1Vpp/75Ω on an RCA connector

    • Up to WUXGA/1080p

    • Front panel and OSD: ProcAmp video controls, freeze, underscan/overscan, 8 color bars

    • 5V DC, 540mA

    • 0° to +40°C (32° to 104°F)

    • -40° to +70°C (-40° to 158°F)

    • 10% to 90%, RHL non-condensing
  • Item Includes:

    • VP-506 Converter
    • Power supply
    • Mounting bracket
  • Warranty:

    • Limited 7 Year Warranty
  • GTIN:
