tvONE C2-2655 CORIO2 Scan Converter PLUS Down Converter - No SDI Input
  • tvONE C2-2655 CORIO2 Scan Converter PLUS Down Converter - No SDI Input
  • tvONE C2-2655 CORIO2 Scan Converter PLUS Down Converter - No SDI Input
  • tvONE C2-2655 CORIO2 Scan Converter PLUS Down Converter - No SDI Input

Questions? Ask a Markertek Expert:
800-522-2025 Email

tvONE C2-2655 CORIO2 Scan Converter PLUS Down Converter - No SDI Input

Manufacturer: tvONE

Item #: TV1-C2-2655   •   MFG #: C2-2655




Our Price:$2,290.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

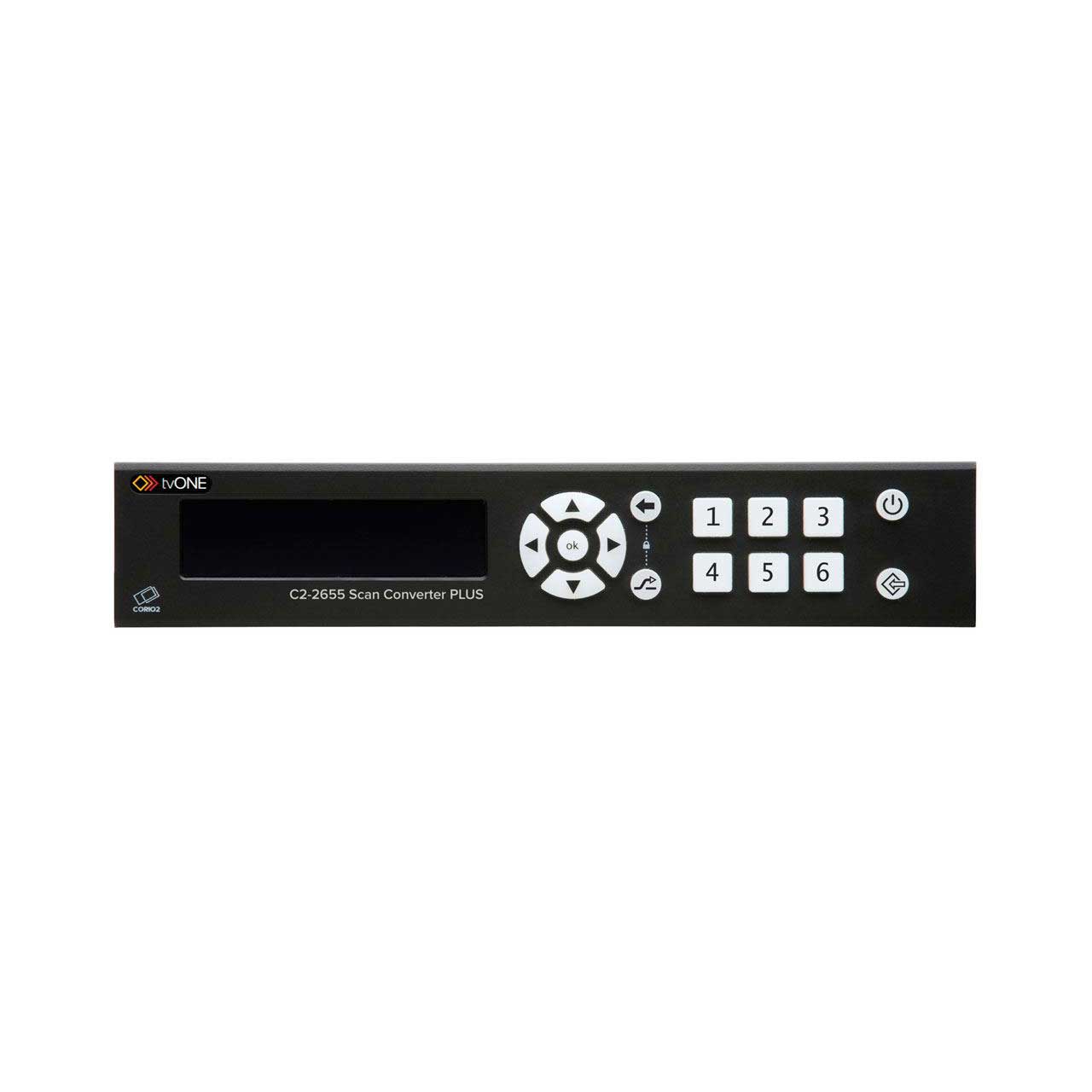

    The C2-2655 Scan Converter Plus is one of a new generation of high performance scalers that provides best-in-class video scaling and format conversion along with revolutionary, intuitive user interface tools. The crystal clear OLED display intuitively guides users through setup and control using color-modulated, backlit buttons. Alternatively, a graphic user interface+ for Windows can be used to set up and control the unit remotely via IP. RS232 is also provided as a direct control interface for 3rd party control systems.

    The video performance of the C2-2655 is based on tvONE's exclusive CORIO2 technology, which provides high quality bi-directional conversion and switching between a wide variety of analog and digital video formats. Living up to its designation as a "Scan Converter" the C2-2655 supports HDMI, DVI, Composite Video, YC, YUV, YPbPr or RGB, on both inputs and outputs, and SD/HD/3G-SDI on output only and the signal parameters of the incoming video may be adjusted. The high resolution RGB/YPbPr output is selectable at virtually any HDTV resolution and NTSC, PAL, PAL-M, and PAL-N standards are all supported. Crisp, clear images are ensured by a high sampling rate and advanced Digital Flicker Elimination circuitry on CV & YC outputs, while full bandwidth chroma sampling ensures faithfully reproduced, high resolution colors. Motion compensation, diagonal interpolation and a 3:2 Pull-down feature provide for the best possible NTSC image quality, while temporal interpolation refines frame-rate conversion by merging successive frames.

    Twelve user-defined presets are readily available for instant, on-the-fly adjustment to diverse customized applications.

    tvONE's Calibrate feature automatically sizes and positions computer images to fit exactly on the video display, and the 10X Variable Zoom can enlarge and position any part of an input to fill the entire video output display. Variable Shrink with as much as 90% size reduction allows almost any image to fit on the tiniest screen.

    Features:
    Up/Down/Cross Conversion PC to Video
    Digital Inputs: Universal DVI*, HDMI (DVI 1.0, HDCP 1.4)
    Analog Inputs: YUV/YPbPr, RGB/YPbPr, CV, YC
    Digital Outputs: SD/HD/3G-SDI, Universal DVI*, HDMI (DVI 1.0, HDCP 1.4)
    Analog Outputs: Universal DVI* (RGB/YPbPr/YUV), CV, YC
    Analog Input: PC to 1920x1080, HDTV to 1080p/60
    Analog Output: PC to 1024x768, HDTV to 1080p/60
    HDMI & DVI Input : PC to 1920x1080, HDTV to 1080p/60
    HDMI & DVI Output : PC to 1024x768, HDTV to 1080p/60
    Supports: NTSC, PAL, PAL-M, PAL-N
    Motion Compensation & 3:2 Pulldown
    Temporal Interpolation & Diagonal Interpolation
    Automatic Incoming Resolution Detection
    Calibrate- Automatic picture sizing of PC inputs
    4:4:4 Full bandwidth Chroma Sampling for RGB sources.
    4:2:2 for YC and CV sources
    HDMI YUV support for either 4:4:4 or 4:2:2 sampling
    Video signal parameter adjustments
    Integral 4x1 Stereo Analog Audio Routing Switcher, fully integrated with digital audio
    Stereo Audio Embedding on capable outputs (Universal DVI*, HDMI, SDI)
    RS-232 and IP Interface for Control Software
    Variable Image Zoom to 10X and Shrink to 10%
    Genlock
    Framelock
    PIP, Chromakey and Lumakey
    Optional Single/Dual Rackmount Kit


    • Specifications

      • Video Input
      • Television Standards: NTSC, PAL, PAL-M, PAL-N, SECAM
      • Composite Video: 1x via BNC & 1x via Universal DVI
      • YC (S-Video): 1x via 4-Pin Mini-DIN & 1x via Universal DVI
      • HDTV: 1x via HDMI & 1x via Universal DVI
      • Computer Inputs
      • Signal Type: 1x Analog via PC/HD HD15, 1x Universal DVI*
      • Format: RGBHV, RGBS, RGsB, YPbPr, YUV
      • Analog Signals: PC to 1920x1080, HD to 1080p/60
      • DVI & HDMI signals: PC to 1920x1200, HD to 1080p/60
      • Video Outputs
      • Television Standards: NTSC, PAL, PAL-M, PAL-N
      • Composite Video: 1x via BNC
      • YC (S-Video): 1x via 4-PIN Mini-DIN
      • YUV, YPbPr: 1x via Universal DVI
      • HDTV: 1x via HDMI
      • SD/HD/3G-SDI: 1x via BNC
      • Computer Outputs
      • Signal Type: 1x Universal DVI* & 1 x HDMI
      • Format: RGBHV, RGBS, RGsB, YPbPr
      • Analog Signals: PC to 1024x768, HD to 1080p/60
      • DVI & HDMI Signals: PC to 1024x768, HD to 1080p/60
      • Audio Input/Output
      • Inputs:
      • - 3x Unbalanced via Terminals,
      • - 1x Unbalanced via 3.5mm jack
      • - 1x HDMI, 1x Universal DVI
      • Outputs:
      • -Unbalanced via Terminals,
      • - 1x HDMI, 1x Universal DVI, 1x SDI
      • De-embedding support: 1 stereo pair at 32 kHz, 44.1 kHz, 48kHz from HDMI
      • Embedded support: 1 stereo pair at 48kHz
      • Control Methods
      • Front Panel: via Front Panel Buttons & OSD
      • RS-232 Interface: via D9 Female Connector
      • IP Interface: RJ45 Connector
      • Control Software included
      • Mechanical
      • Size (H-W-D): 42 x 218 x 189mm (1.63" x 8.6" x 7.4")
      • Weight (Net): 1.26 Kg (2.78 lbs) excluding PSU

    • Item Includes

      • 1x Operations Manual on USB stick
      • 1x PC Control Software (Microsoft Vista SP2 and above)
      • 1x Quick Start Guide
      • 1x Universal Power Supply ('brick' type)
      • 1x Regional Power Cable

    • Warranty

      • Limited 5 Years Parts and Labor
