Kramer VS-66UHD 6x6 4K60 4:2:0 Matrix Switcher
  • Kramer VS-66UHD 6x6 4K60 4:2:0 Matrix Switcher
  • Kramer VS-66UHD 6x6 4K60 4:2:0 Matrix Switcher
Questions? Ask a Markertek Expert:
800-522-2025 Email

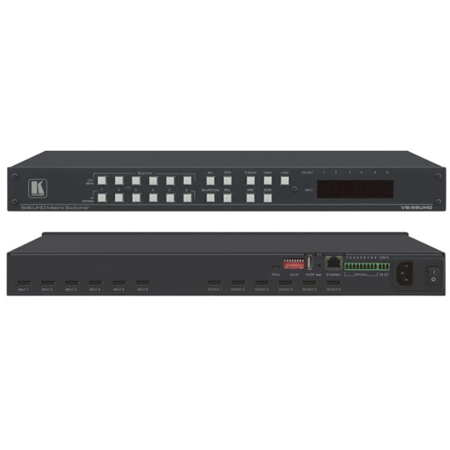

Kramer VS-66UHD 6x6 4K60 4:2:0 Matrix Switcher

Manufacturer: Kramer

Item #: KR-VS-66UHD   •   MFG #: VS-66UHD


List Price:$3,883.00
Our Price:$3,106.40

free ship
Availability: In Stock
Item is Available for immediate shipping from our warehouse.


    California Residents:
    Cancer and Reproductive Harm -

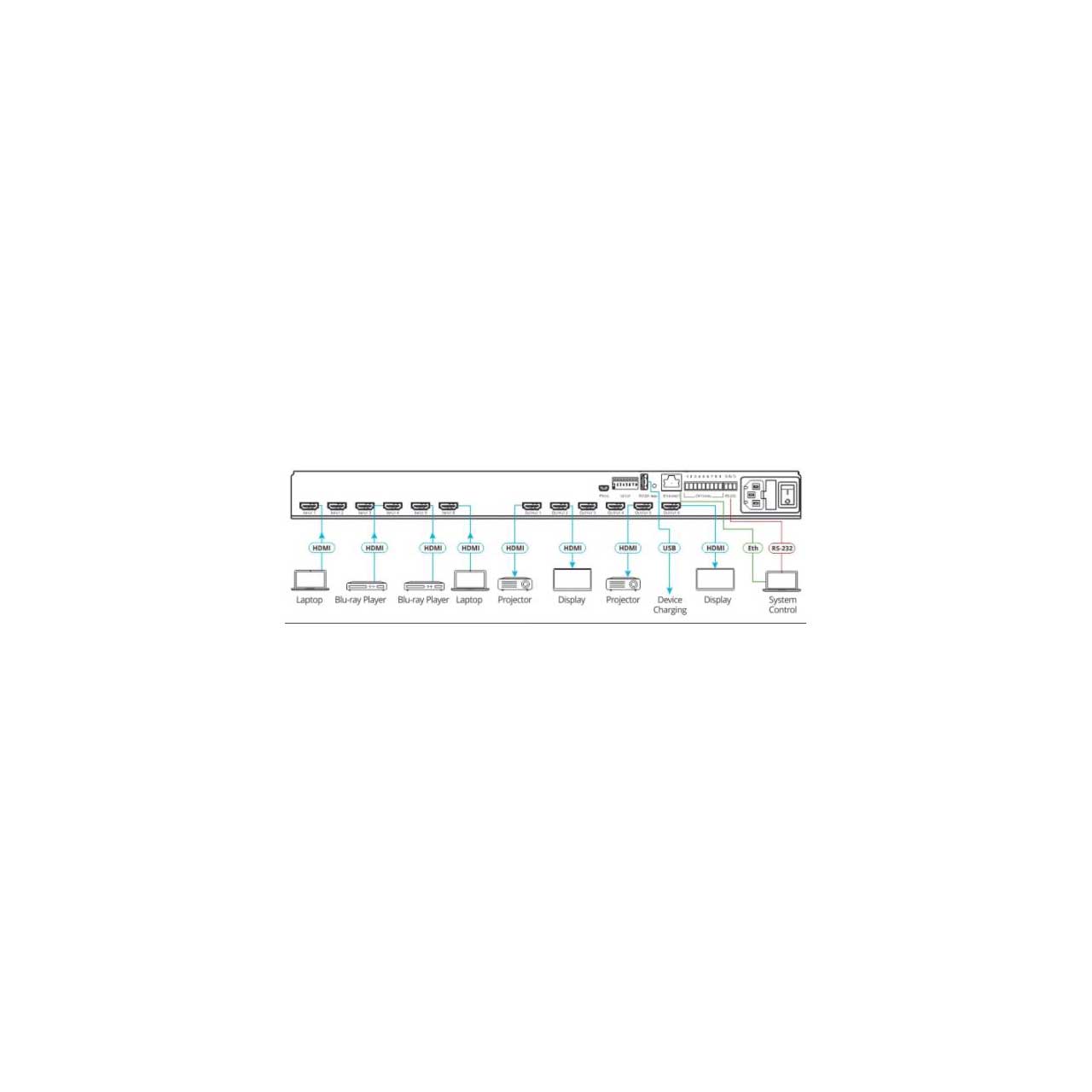

    The VS-66UHD is a high-quality 6x6 matrix switcher for [email protected] (4:2:0) HDMI signals and embedded audio. It reclocks and equalizes the signals and can route any one of six HDMI, HDCP-compliant sources (selectable) to any or all outputs simultaneously. VS-66UHD offers a flexible audio scheme where any HDMI digital audio input can be routed to any HDMI digital audio output in addition to ARC support to produce an equivalent 12x9 audio matrix.

    • Features

      • Resolutions up to [email protected] (4:2:0)
      • Highly flexible independent audio matrix
      • Step-In over HDMI
      • Active source detection for priority, last-connected automatic and manual switching
      • Size - Standard 19" (1U). Rack "ears" included.
    • Specifications

      • 1 RS-232 Port: On a 3-pin terminal block connector
      • 1 Ethernet Port: On an RJ-45 connector
      • 1 USB Port: On a USB-type A connector for powering an external device
      • Standards Compliance: HDMI 1.4 and HDCP 1.4
      • Control: Front panel buttons, RS-232, Ethernet remote connection
      • Product Dimensions: 19" x 9.34 x 1U W, D, H
      • Product Weight: (5.3lbs)
      • Shipping Dimension: (20.67" x 12.99" x 4.21" ) W, D, H
      • Shipping Weight: (7.3lbs)
      • Power Consumption: 500mA
      • Storage Temperature: -40° to +70°C (-40° to 158°F)
      • Humidity: 10% to 90%, RH (non-condensing)
    • GTIN:
