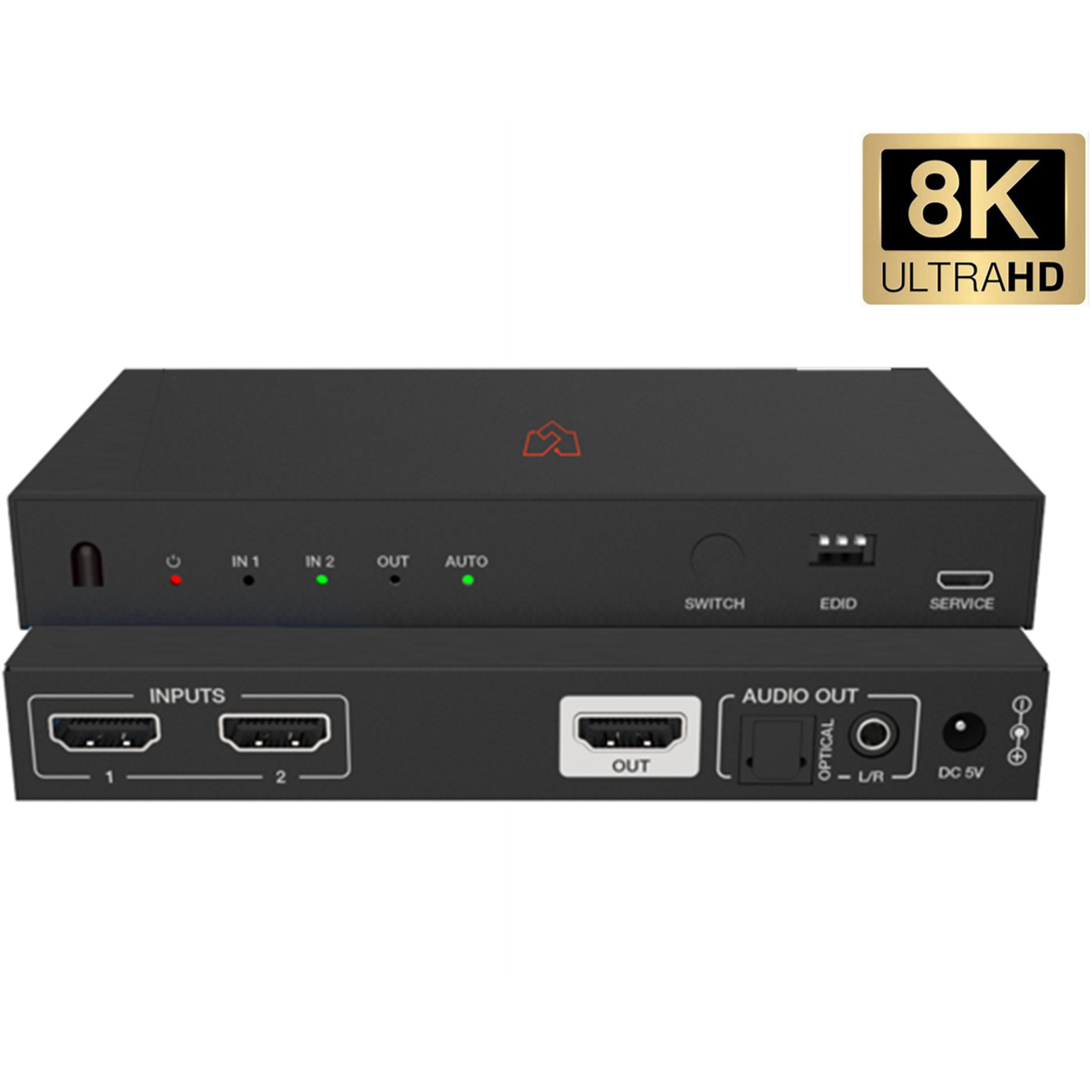

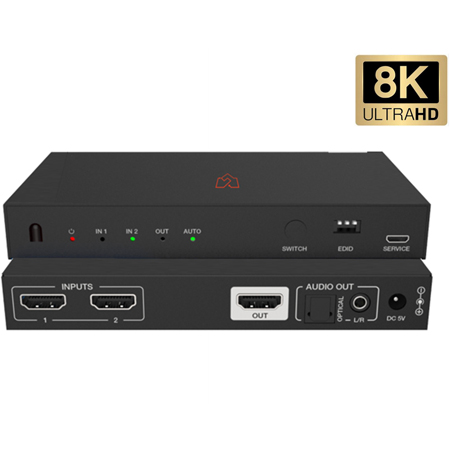

VigilLink VLSW-21H21 2x1 48Gbps HDMI 2.1 8K Switch - HDMI 2.1 and HDCP 2.3 Compliant

VLSW-21H21 - Overview

• Features:

  • HDMI 2.1 and HDCP 2.3 compliant
  • Supports 40Gbps video bandwidth
  • Supports video resolution up to 8K @ 60Hz 4:2:0 10bit, 8K @ 30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
  • VRR, FVA, ALLM supported
  • Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
  • Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • Built-in Equalizer, Retiming and Driver
  • Advanced EDID management
  • Supports audio de-embedding function (output through the optical and analog port)

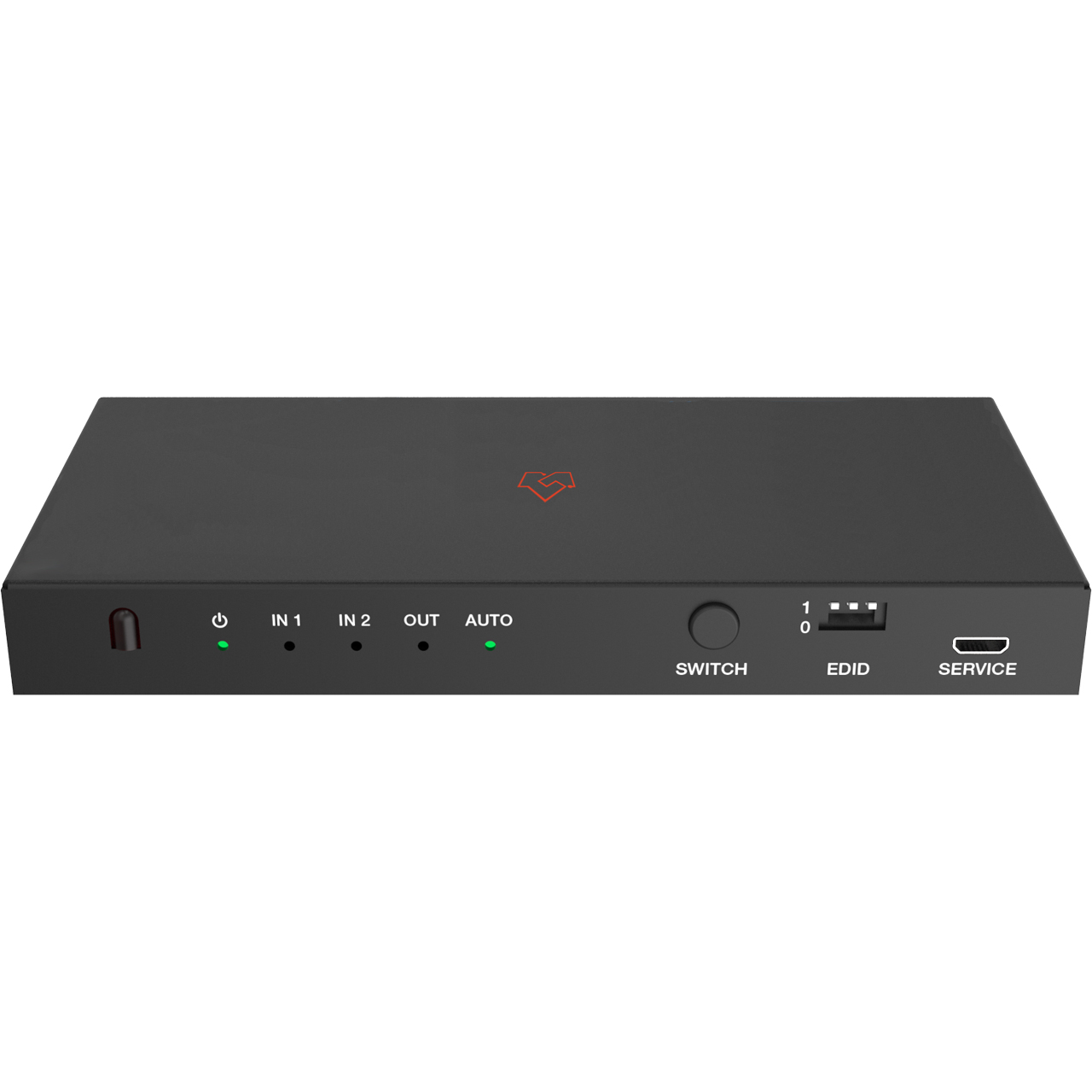

  • Supports IR remote control and front panel button switching
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 40Gbps
  • Video Resolution: Up to 8K @ 60Hz 4:2:0 10bit, 8K @ 30Hz 4:4:4 10bit, 4K @ 120Hz 4:4:4 10bit
  • Color Depth: 8/10/12-bit
  • Color Space: RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0
  • Audio Formats:
    - HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    - Audio De-embedding Output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH/Analog: PCM 2.0
  • ESD Protection: Human-Body Model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

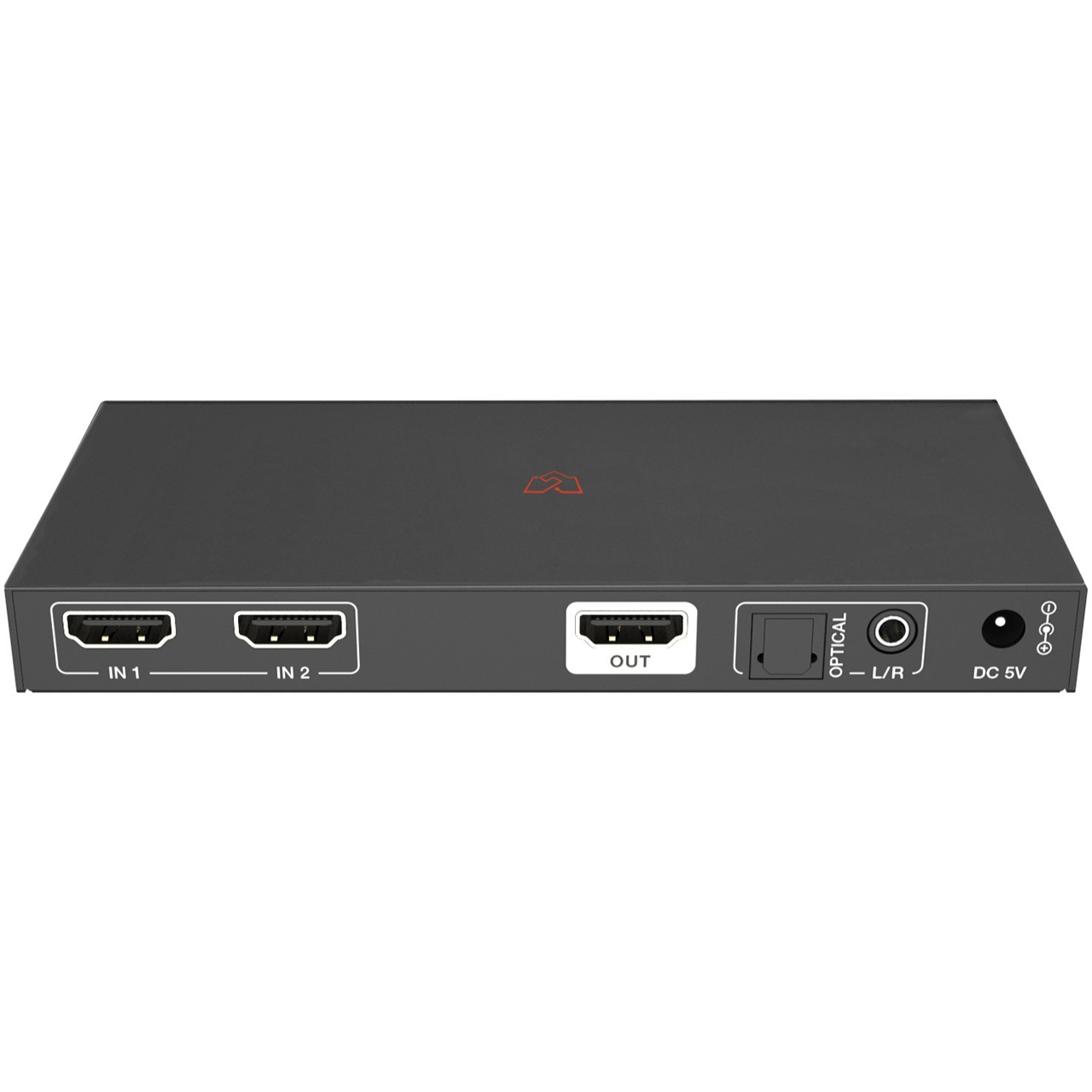

    Connections
  • Input: 2x HDMI IN (Type A, 19-pin female)
  • Outputs:
    - 1x HDMI OUT (Type A, 19-pin female)
    - 1x OPTICAL (S/PDIF)
    - 1x L/R (3.5mm Stereo Mini-jack)
  • Control: 1x SERVICE (USB Type C, Update port)

    Mechanical
  • Housing: Metal enclosure
  • Color: Black
  • Dimensions: 5.71" x 2.68" x 0.67" (145mm x 68mm x 17mm)
  • Weight: 0.60lbs (268g)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60Hz
    - Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 5.25W (Max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)

    Recommended HDMI Cable (In/Out)
  • 8K: 10ft (3m) (Ultra HDMI 2.1)
  • 4K60: 26ft (8m) (HDMI 2.0)
  • 4K24: 39ft (12m) (HDMI 1.4)
  • 1080p: 49ft (15m) (HDMI 1.4)
    **The use of the "Premium High-Speed HDMI" is highly recommended.


• Item Includes:

  • 1x 8K HDMI 2x1 Switcher
  • 1x IR Remote
  • 1x 5V/2A Multinational Power Supply
  • 1x User Manual


• Warranty:

  • 6 Years
