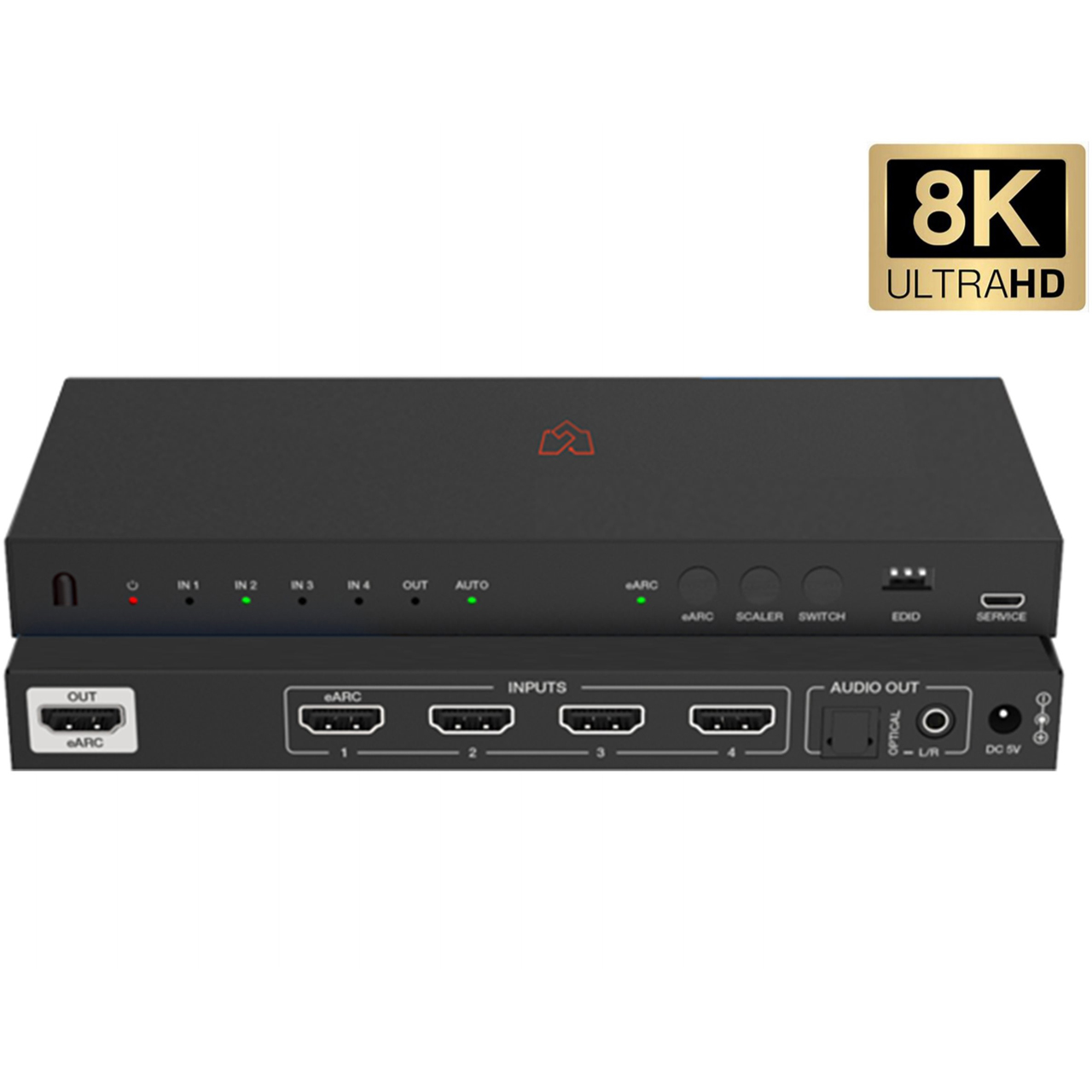

VigilLink VLSW-41H21A 4x1 48Gbps 8K UHD HDMI Switch with Audio De-embedded - HDMI 2.1 and HDCP 2.3 Compliant

VLSW-41H21A - Overview

• Features:

  • HDMI 2.1 and HDCP 2.3 compliant
  • Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
  • Video resolution is up to 8K @ 60Hz 4:2:0 12bit, 8K @ 30Hz 4:4:4 12bit, 4K @ 120Hz 4:4:4 12bit
  • HDMI 2.1 protocol: VRR, ALLM, QMS, QFT, SBTM are supported
  • Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
  • Supports HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through

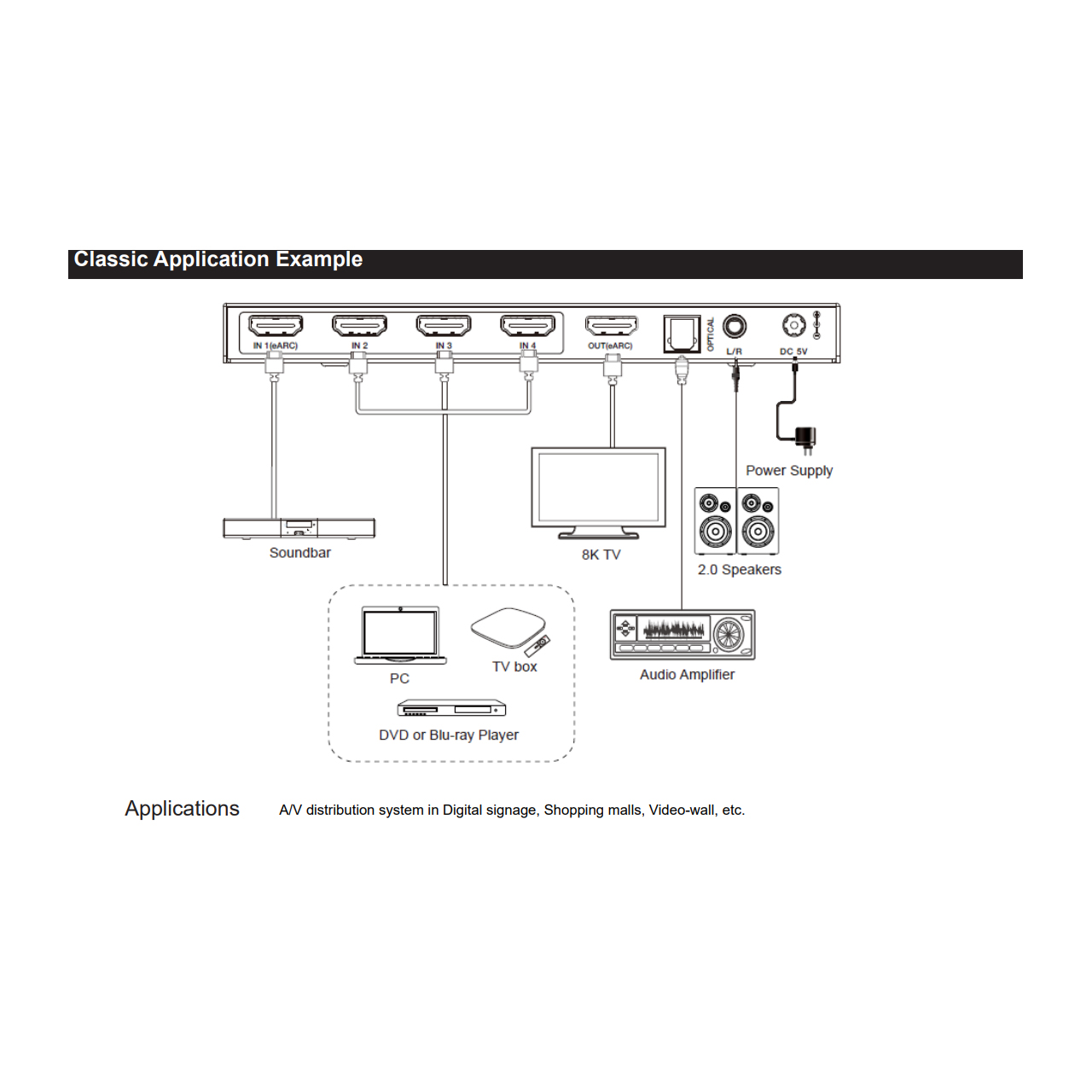

  • Features 4 x HDMI inputs routed to 1 x HDMI output
  • Supports HDMI input and TV eARC audio de-embedded to SPDIF and L/R audio output
  • Supports HDMI input and TV eARC audio to output to SONOS ARC & Beam or any eARC soundbar
  • Supports CEC control from TV at output to source at input
  • Supports CEC volume control from TV to any eARC sound system
  • Supports advanced EDID management


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
  • Video Resolution: Up to 8K @ 60Hz 4:2:0 10bit, 8K @ 30Hz 4:4:4 10bit, 4K @ 120Hz 4:4:4 10bit
  • Audio/Video Latency: No Latency
  • Color Depth: 8/10/12-bit
  • Color Space: RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
  • Audio Formats:
    - HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
    - eARC Audio Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
    - Audio De-embedded Outputs: Optical: LPCM 2.0CH/Dolby/DTS 5.1CH/Analog: LPCM 2.0CH
  • ESD Protection: Human-Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Connections
  • Input: 4x HDMI IN (Type A, 19-pin female)
  • Outputs:
    - 1x HDMI OUT (Type A, 19-pin female)
    - 1x OPTICAL (S/PDIF)
    - 1x L/R (3.5mm Stereo Mini-jack)
  • Control: 1x SERVICE (USB Type C, Update port)

    Mechanical
  • Housing: Metal enclosure
  • Color: Black
  • Dimensions: 6.30" x 2.68" x 0.71" (176mm x 68mm x 18mm)
  • Weight: 0.69lbs (315g)
  • Power Supply:
    - Input: AC 100V - 240V 50/60Hz
    - Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 2.5W (Max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)

    Recommended HDMI Cable/Resolution/Distance
  • Ultra HDMI 2.1 Cable: 8K60 - 6.6ft (2m)
  • HDMI 2.0 Cable: 4K60 - 26ft (8m), 4K24 39ft (2m)
  • HDMI Cable: 1080P - 49ft (15m)
    **The use of the "Premium High-Speed HDMI" is highly recommended.


• Item Includes:

  • 1x 8K HDMI 4x1 Switcher
  • 1x 5V/1A Multinational Power Supply
  • 1x IR Remote
  • 1x User Manual


• Warranty:

  • 6 Years
