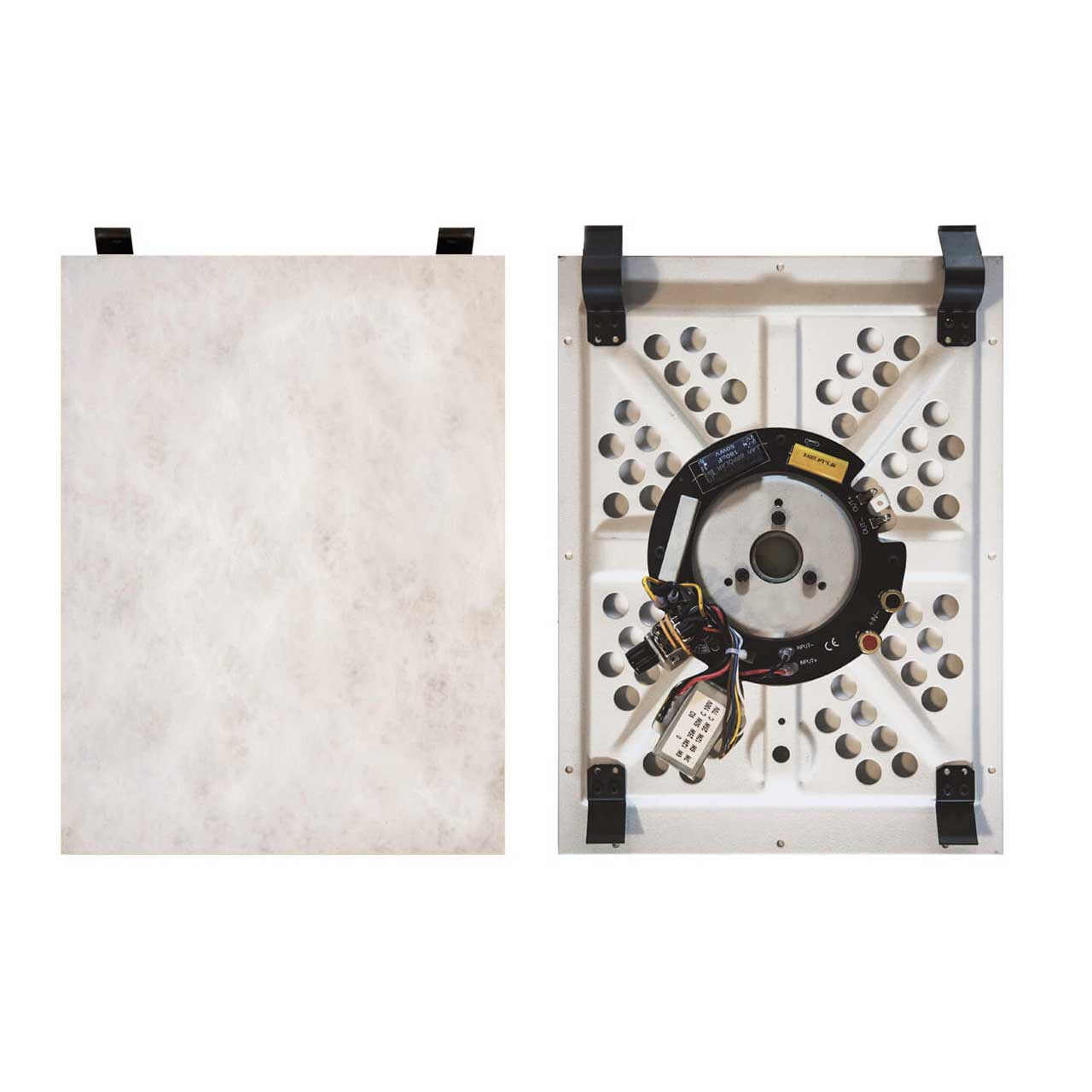

Kramer YARDEN-IH-1 Hidden In-Wall Speaker

YARDEN IH-1 - Overview

• Features:

  • Type - In-wall hidden speaker.
  • Drive Units - Polypropylene flat membrane, 2" voice coil, double magnet neodymium motor.
  • Frequency Response - 120Hz to 20kHz @±3dB.
  • Transformer Taps - 8O/70V/100V.
  • Sensitivity - 83dB, 1W @1m.
  • Power Handling - 40W RMS, 90W continuous program.
  • Crossover - 2nd level @120Hz, high pass.
  • Mounting Brackets - Equipped with special "insert and drop" brackets for quick, easy and intuitive installation.


• Specifications:

  • DESCRIPTION
  • Hidden in-wall speaker


  • FREQUENCY RESPONSE
  • 120Hz to 20kHz @±3dB


  • DRIVE UNITS
  • Polypropylene 1.34mm flat membrane, 2" voice coil, double magnet Neodymium motor


  • VOICE COIL DIAMETER
  • 50mm


  • VOICE COIL WIRE
  • Hexatech™ aluminum


  • IMPEDANCE
  • 8Ω (transformer tap in off position)


  • TRANSFORMER TAPS
  • 70V-25W/12W/6W/3W/Off (Lo-Z), 100V-50W/25W/12W/6W/Off (Lo-Z)


  • SENSITIVITY
  • 83dB SPL, 1W@1m


  • MAX SPL
  • Continuous: 97dB, peak: 100dB


  • POWER HANDLING
  • 90W (40W RMS)


  • CROSSOVER FREQUENCY
  • 6dB - 120Hz high pass


  • RESONANCE FREQUENCY
  • 95Hz


  • INPUT CONNECTOR
  • Terminal block


  • MATERIALS
  • Steel body


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • INSTALLATION CLEARANCE
  • Mounting depth: 5.7cm (2.2")


• Item Includes:

  • YARDEN-IH-1 Hidden In-Wall Speaker (1)


• Warranty:

  • Standard 1 Year Warranty


• GTIN:

  7291063072896
