Kiloview N20 4K UHD HDMI 2.0/NDI Bi-Directional Converter Encoder/Decoder
  • Kiloview N20 4K UHD HDMI 2.0/NDI Bi-Directional Converter Encoder/Decoder
  • Kiloview N20 4K UHD HDMI 2.0/NDI Bi-Directional Converter Encoder/Decoder
  • Kiloview N20 4K UHD HDMI 2.0/NDI Bi-Directional Converter Encoder/Decoder
  • Kiloview N20 4K UHD HDMI 2.0/NDI Bi-Directional Converter Encoder/Decoder
  • Kiloview N20 4K UHD HDMI 2.0/NDI Bi-Directional Converter Encoder/Decoder

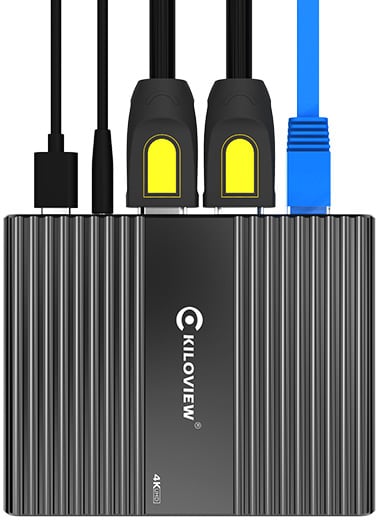

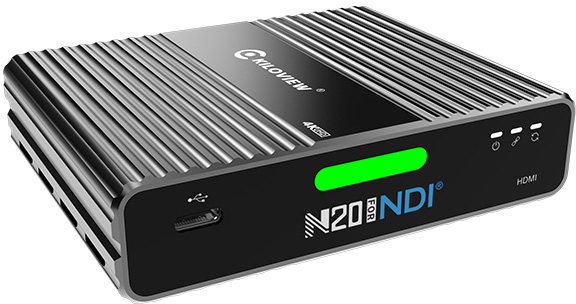

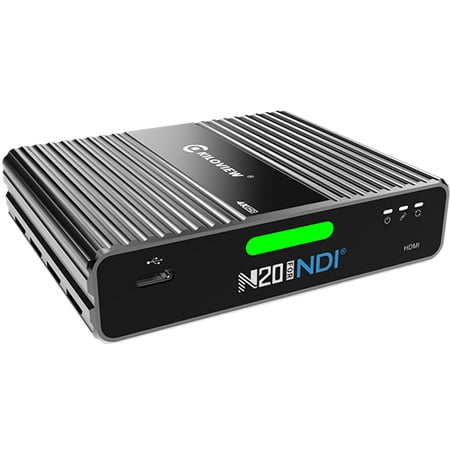

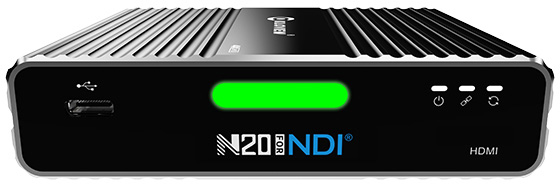

Kiloview N20 4K UHD HDMI 2.0/NDI Bi-Directional Converter Encoder/Decoder

Manufacturer: Kiloview

Item #: KV-N20   •   MFG #: KV-N20



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the KV-N20

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





Kiloview KV-N20 for NDI supports up to UHD 4Kp60 video input (Encoder) or 4K/60 video output (Decoder). This converter is small and compact enough to put in your pocket with the overall size of 100*80*24mm. It features an HDMI2.0 input and HDMI2.0 loop through for view on the monitor while NDI streaming, or HDMI 2.0 output while decoding. A tally system with a big tally light is built-in for indicating which camera is in program or preview. It also has the 3.5mm audio input/output which supports intercom (a Kiloview software required).

Kiloview N20 for NDI has a wide DC input range from 5V to 18V, so it can be easily powered by USB, power bank or camera battery, it can also be powered over Ethernet (PoE). A threaded screw camera mount is provided for your mounting on a camera. PTZ Control over USB adapter/Ethernet is supported.

The N20 for NDI is also compatible with Kiloview IMS software to help with the device management, NDI source management, remote configuration and upgrading, etc.

Applications:
IP production for UHD video program
Project video to the wall at low-latency
Video transmission at low-latency


  • Features

    • All NewTek NDI® enabled encoding or streaming software supported
    • Bi-directional converting, up to 4Kp60 NDI encoding/decoding (self-defined) supported
    • 1x HDMI input, 1 x HDMI loop-through or decoding output
    • HDMI video input/output with embedded audio
    • Wide DC power input range from 5V-18V to make it easy powered by USB, power bank, etc
    • 3.5mm audio Input/output and Intercom supported (Kiloview Software required)
    • Compatible with Kiloview IMS software for device and source management
    • Optional control cable/Ethernet for PTZ control over Visca / Visca over IP / Pelco etc supported
    • Customization available for other unlisted PTZ protocols

  • Specifications

    • Model Number: N20 for NDI®
    • Video Input: 1*HDMI
    • Video Output: 1*HDMI
    • Analog Audio: 1*3.5mm Headphone (Out) Microphone (Input)
    • Network: 1*RJ45 (with POE) 100/1000Mbps Ethernet
    • Video Formats: Up to UHD 4Kp60 (Downward compatiable with SD/HD/VESA and custom resolution)
    • NDI® Encoding and Decoding: 1xNDI® encoding or 1x NDI® decoding
    • NDI® CODEC Features: YCbCr 4:2:2 HD video encoding, typical bitrate: 250Mbps @4Kp60,125Mbps @1080p60
    • LED Indicators: Tally, power indicator, connection status indicator
    • Power Supply Modes: DC 5-18V, POE supported
    • Compatible Software: NewTek NDI®, OBS Studio, XSplit, vMix, VIDBlasterX, Wirecast, mimoLive and streamstar
    • Intercom: Support (equipped with Kiloview software)
    • PTZ Control: Support
    • DHCP: Support
    • Management: WEB page/IMS remote management
    • Dimensions: 3.94 x 3.15 x 1.10" (100 x 80 x 28mm)
    • Power Consumption: 6W
    • Working Temperature: 68° to 113°F (20° to 45°C)
    • Storage temperature: -4° to 158°F (-20° to 70°C)

  • GTIN:

    0653559999440
