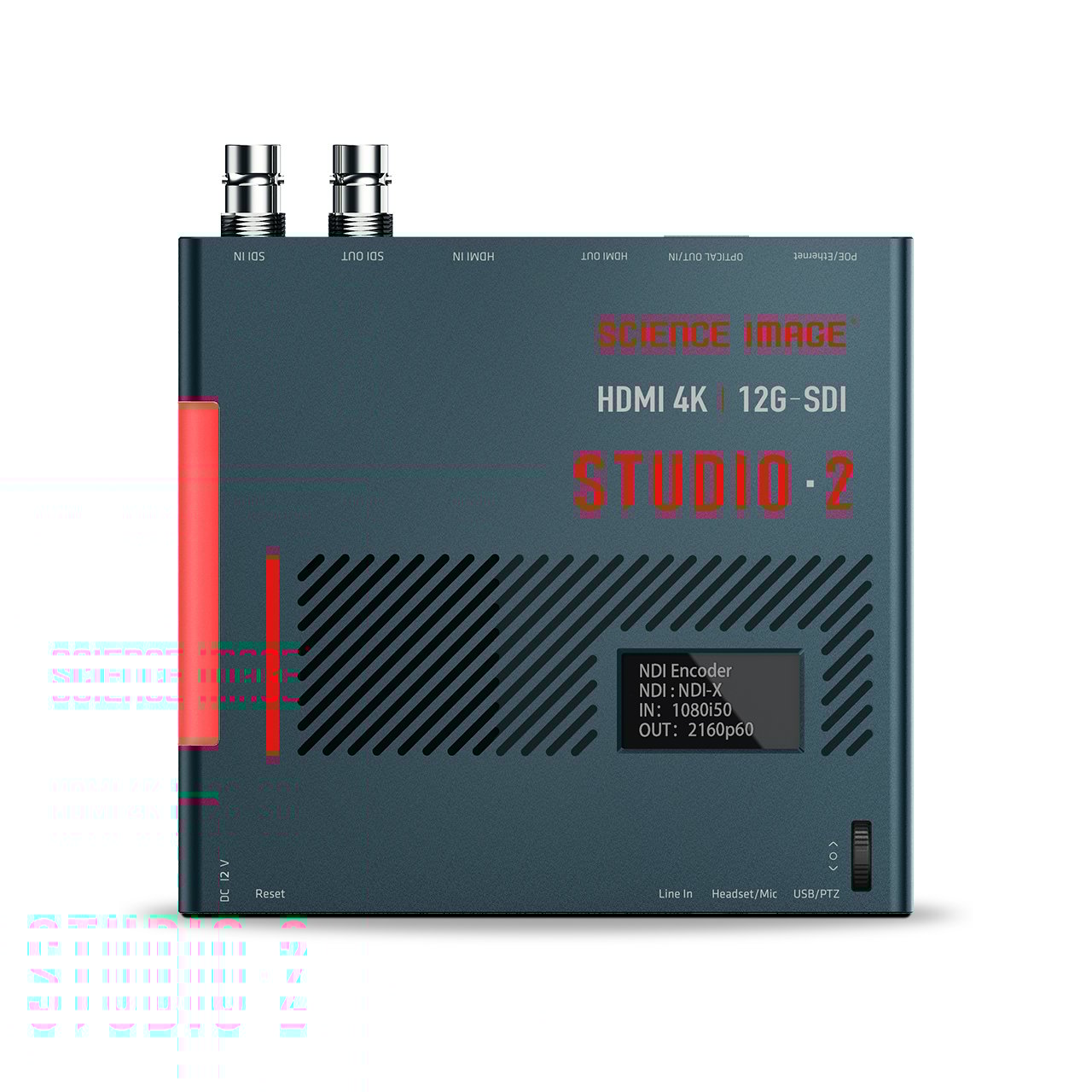

Science Image STUDIO 2 Bi-Directional Full NDI Encoder & Decoder - 12G SDI Optical Transceiver - UpDownCross Conversion

ITEM #: SCI-STUDIO2 MFG #: STUDIO2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,099.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    STUDIO2 - Overview

    The Science Image Studio 2 is a powerful product, it combines frequency conversion and optical transceiver in one tiny device. It is the upgraded version of NDI Studio 4K SH with an intelligent scroll wheel. Perfect for live broadcast, variety show recording, large events, and video conferences, providing users with excellent AV experiences.

    Support At Least 27 Types Of SMPTE Formats - Multiple Functions, Efficient Inter-Convert
    Studio 2 provides up and down conversion in 27 formats (from HD to UHD), the maximum 3840x2160p60. Supports up to 12G-SDI/HDMI 4K60 inter-conversion and output. The user can choose the output format with just a click.

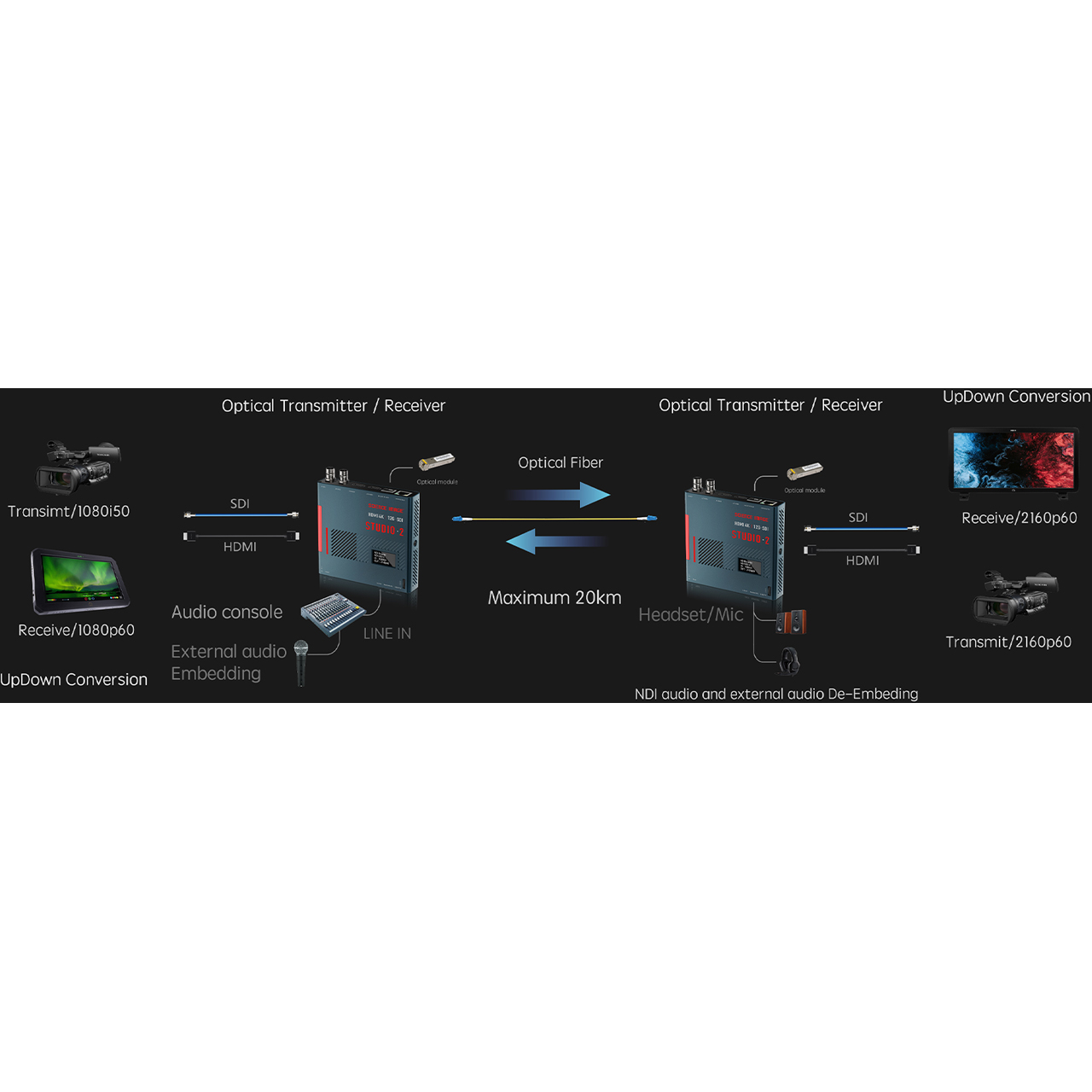

    Optical Transceiver - Ultra Long Distance Transmission
    Featuring a 12G SDI optical transceiver interface, you can simultaneously transmit and receive 3G/6G/12G-SDI and HDMI 4K videos, and support maximum 20km transmission. The web UI is equipped with an optical transceiver switch, allowing users to freely choose HDMI optical transceiver or SDI optical transceiver in the web UI.

    An Intelligent Scroll Wheel
    The intelligent scroll wheel allows you to use your finger to scroll up and down and access the menu and manage settings, no need to enter the web UI.

    Scroll Wheel Controls:
    -Encoder/Decoder setting
    -SDI/HDMI input priority setting
    -Optical transceiver function transmitting and receiving settings
    -Free selection of output resolution format

    Flexible Deployment, Convenient And Practical
    Flexible deployment on the front end or display/control terminal according to different scenes on site. It's an optical transceiver and an SDI/HDMI bidirectional converter, one machine for multiple purposes, reducing system cost.

    Broadcast Level,Reliable And Stable
    It Supports 12G-SDI/HDMI 2.0 and SMPTE/ITU international broadcast standard formats, is compatible with multiple sampling formats (444,422,420) and accurate and fast signal recognition. Adopt Xilinx FPGA SOC hardware, internal design and embedded Linux system, ensure the program running stably, not influenced by the external complex environment.

    Compatibility And Stability
    Support SMPTE video source, compatible with the video from most equipment. Open to most software and browsers, truly plug and play. Studio 2 meets industrial standard, which ensure it works durably and reliably.

    • Features:

      • Bi-Directional Full NDI Encoder & Decoder - HDMI 4K/12G-SDI
      • Optical Transceiver
      • UpDownCross Conversion - 12G-SDI/HDMI 4k
      • Scroll Wheel Control
      • Audio Embedded/De-Embedded/Intercom
      • Broadcast quality

    • Specifications:

      • SDI Video Format
      • 1.5G/3G-SDI HD Video Format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
      • 6G/12G-SDI/Ultra HD /4K Video Format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • SDI Specification: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10

        HDMI Video Format
      • HD Video Format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
      • 4K Video Format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling Rate: TV standard 48kHz
      • SDI Color Accuracy: 4:2:2 and 4:4:4
      • SDI Color Space: REC 709: BT2020
      • HDMI Color Space: REC 709: BT2020
      • HDMI Color Accuracy: YUV 4:2:2 and RGB 4:4:4

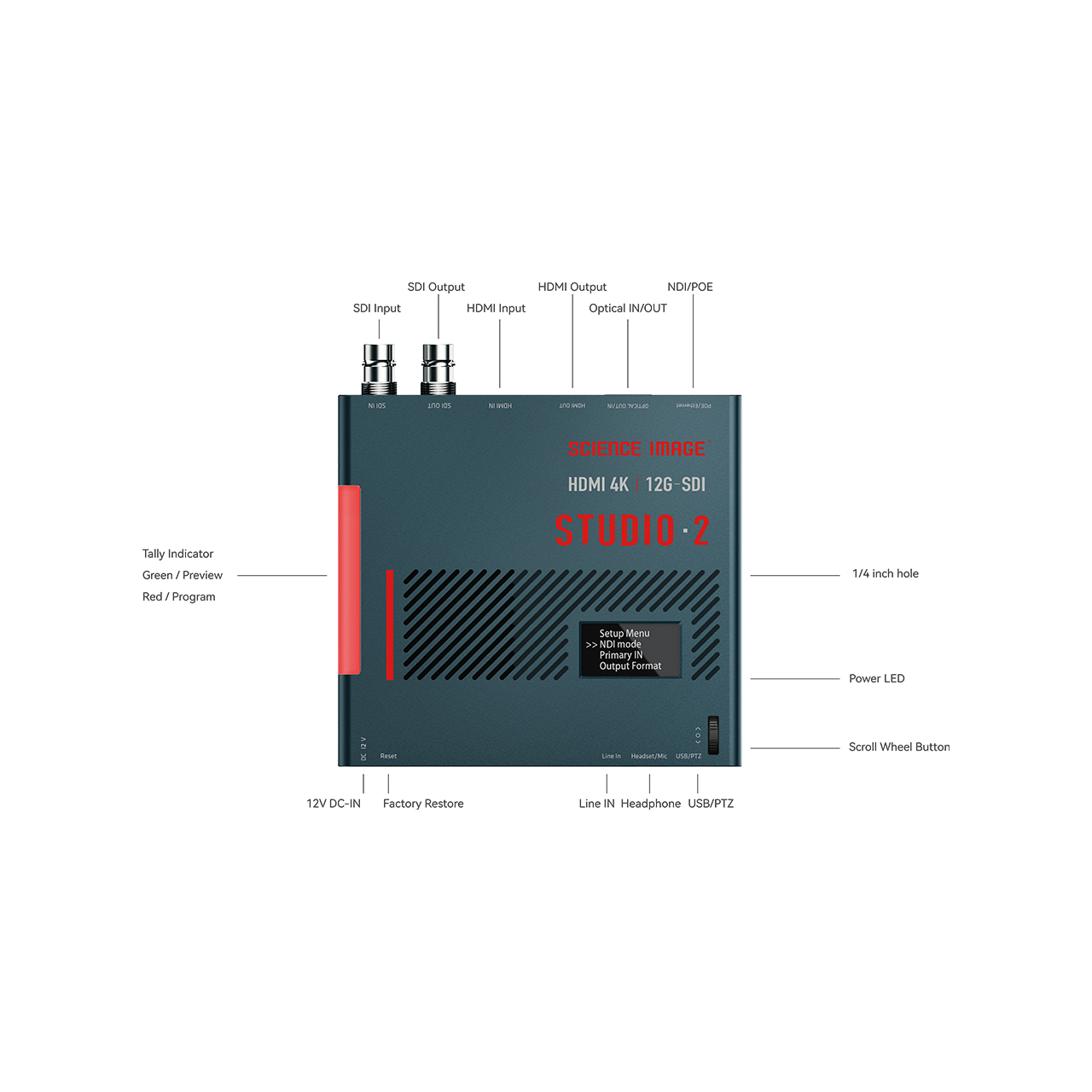

        Interface
      • SDI Video Input: 1x 1.5G/3G/6G/12G-SDI, adaptive input, automatic switching
      • SDI Video Output: 1x 1.5G/3G/6G/12G-SDI, adaptive output, automatic switching
      • HDMI Video Input: 1x HDMI 2.0 Type A interface supports up to HDMI 4K60p input, backward compatible
      • HDMI Video Output: 1x HDMI 2.0 Type A interface supports maximum HDMI 4K60p output, backward compatible
      • Optical Fiber Input and Output: 1x SMPTE optical fiber SFP socket, 12G-SDI optical Transceiver modules
      • RJ45 Gigabit Ethernet Port: 1x RJ45 Gigabit Ethernet interface, used to control and set equipment parameters and input and output NDI signals
      • LINE IN Audio Input Port: 1x LINE IN 3.5mm audio input port for external analog audio embedding
      • MIC Intercom Input and Output Port: 1x Mic 3.5mm audio input and output port (De-Embeded), used for NDI Intercom (with DynaControl software required)
      • USB 2.0 Type A Port: 1x USB 2.0 Type A interface, used to control a third-party PTZ camera

        Display
      • 1.3 inch OLED screen: 1x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate
      • Large Size TALLY Light Guide Block: Large-size semi-transparent matt TALLY light guide block, which can display three TALLY states transmitted through NDI in real time: Green/Preview, Red/Program

        Other
      • Network and Requirements: Gigabit Ethernet switch and Gigabit Ethernet card
      • Software, Operating System, Support Platform: Built-in Linux, application control software ScienceImage DynaControl
      • Size: 4.92" x 4.52" x 0.94" (125mm x 115mm x 24mm)
      • Weight: 13.1oz (370g)
      • Operating Temperature: 41°F - 104°F (5°C - 40°C)
      • Storage Temperature: -4°F - 140°F (-20°F - 60°F)
      • Relative Humidity: 0% to 90% non-condensing

        Power Supply
      • Power Supply Requirements: Two power supply modes: 9-18V DC and POE+
      • Power Consumption: 25W

    • Item Includes:

      • 1x FLOW 2
      • 1x Quick start manual
      • 1x 12V universal power supply (includes four sets of international conversion plugs)

    • Warranty:

      • 3 year limited
