Magewell 62300 Pro Convert IP to USB 1-Channel IP Decoder to USB-C - 1080p60 - NDI High Bandwidth/HX2/HX3/H.264/H.265

Name: Magewell 62300 Pro Convert IP to USB 1-Channel IP Decoder to USB-C - 1080p60 - NDI High Bandwidth/HX2/HX3/H.264/H.265
Brand: Magewell
SKU: MGW-62300
Price: 349.00 USD
Availability: PreSale

ITEM #: MGW-62300 MFG #: 623000000

Magewell

Our Price:

$349.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

623000000 - Overview

From IP Stream to USB, No Extra Software

Magewell Pro Convert IP to USB is a plug-and-play device designed for conference rooms and production studios. It allows users to bring an NDI® feed or other IP stream into software over a USB interface.

Ensured High-Quality AV Performance
By offloading the decoding process to the device itself, Pro Convert IP to USB significantly reduces the burden on the host system's CPU or GPU, making high-quality IP video up to 1920x1080 at 60fps easily accessible in users' software without affecting the overall system performance.

Versatile Remote Control
Pro Convert IP to USB allows users to control PTZ cameras remotely via NDI® or Visca over UDP protocols, providing greater control over camera positioning and operation. It can also be used with Magewell's optional Control Hub software, allowing systems integrators and IT administrators to achieve streamlined, centralized management. Additionally, Magewell offers comprehensive API support, enabling enhanced customization and integration capabilities.

NDI® is a registered trademark of Vizrt NDI AB.

Features:
- Capture one network video source into software at resolutions up to 1080p60
- Supports NDI High Bandwidth, NDI HX2, or NDI HX3 sources or H.264/H.265 streams in protocols including RTMP, RTSP, RTP, UDP, SRT and HTTP
- Supports uncompressed YUY2/NV12 video output up to 1080p60, and MJPEG video output up to 1080p30 (USB 2.0)
- Supports 2-channel 16-bit, 48KHz audio output
- Supports DHCP for automatic network configuration
- Control PTZ cameras via NDI or Visca over UDP through the web UI
- It is configurable to capture the video as content or camera into Zoom software
Specifications:
- Max Output UVC: 1080p60 YUY2/NV12
  - Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.): 1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 60/59.94/50/48/40/30/29.97/25/24/20/15
- Max Output UVC: 1080p30 MJPEG
  - Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.): 1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 30/29.97/25/24/20/15
- UAC: 2-channel, 16-bit, 48KHz

  Decoding Capabilities
- Decoding 1 stream of NDI High Bandwidth/NDI HX2/NDI HX3/RTMP/RTSP/RTP/UDP/SRT/HTTP at up to 1080p60
- Decoding H.264/H.265
- Supports NDI 6

  Configuration Management
- Register with Control Hub
- Remote control via WebUI and Control Hub
- Web UI enables users to easily check and set the process-and-capture parameters, upgrade firmware and export info for troubleshooting
- Provide HTTP APIs
- Support USB NET

  PTZ Control
- Control PTZ cameras using protocols of NDI and Visca over UDP

  Host Interface

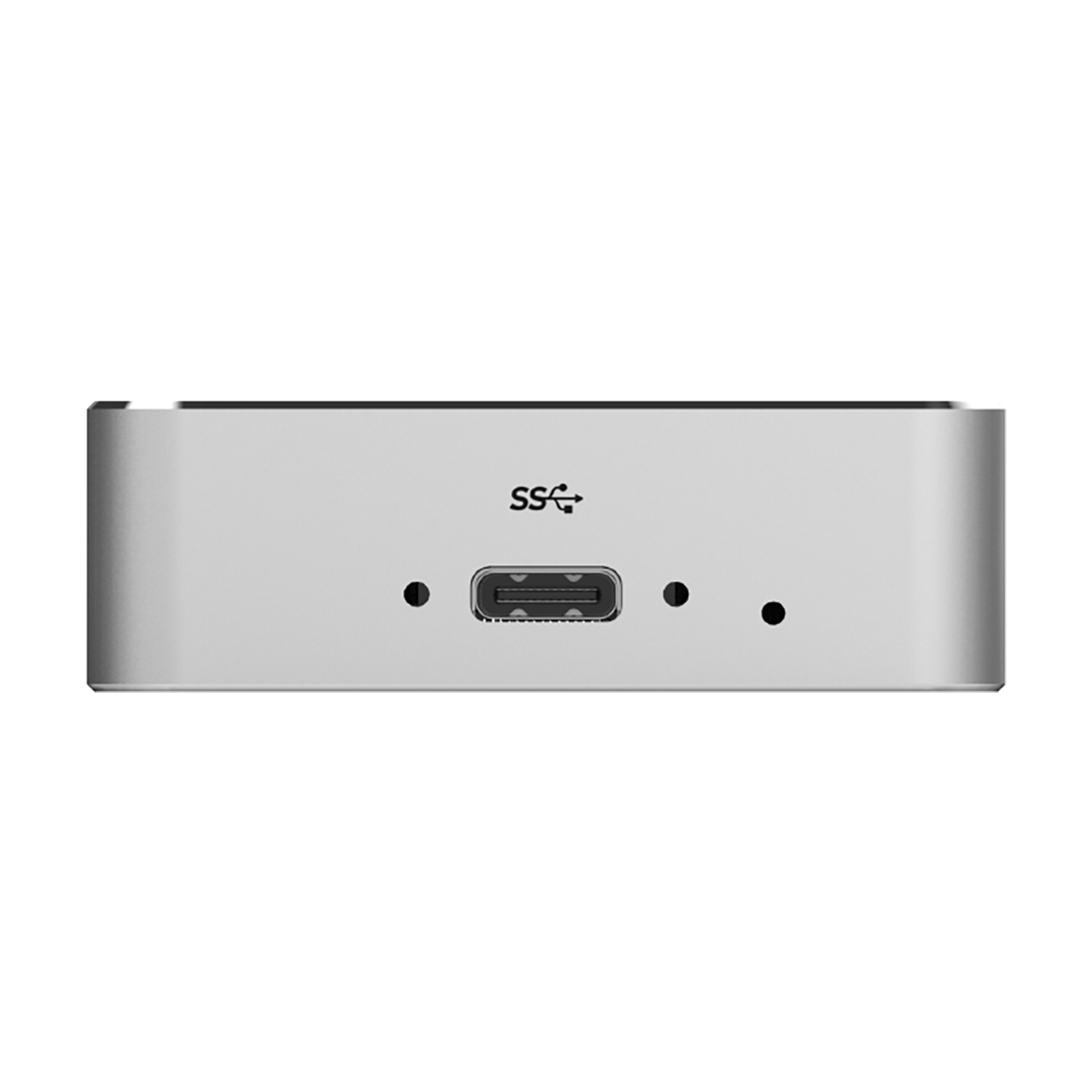

- USB 3.0 (5 Gbps) Type-C:
  - 5V/1A power supply
  - USB NCM

  Network Connections

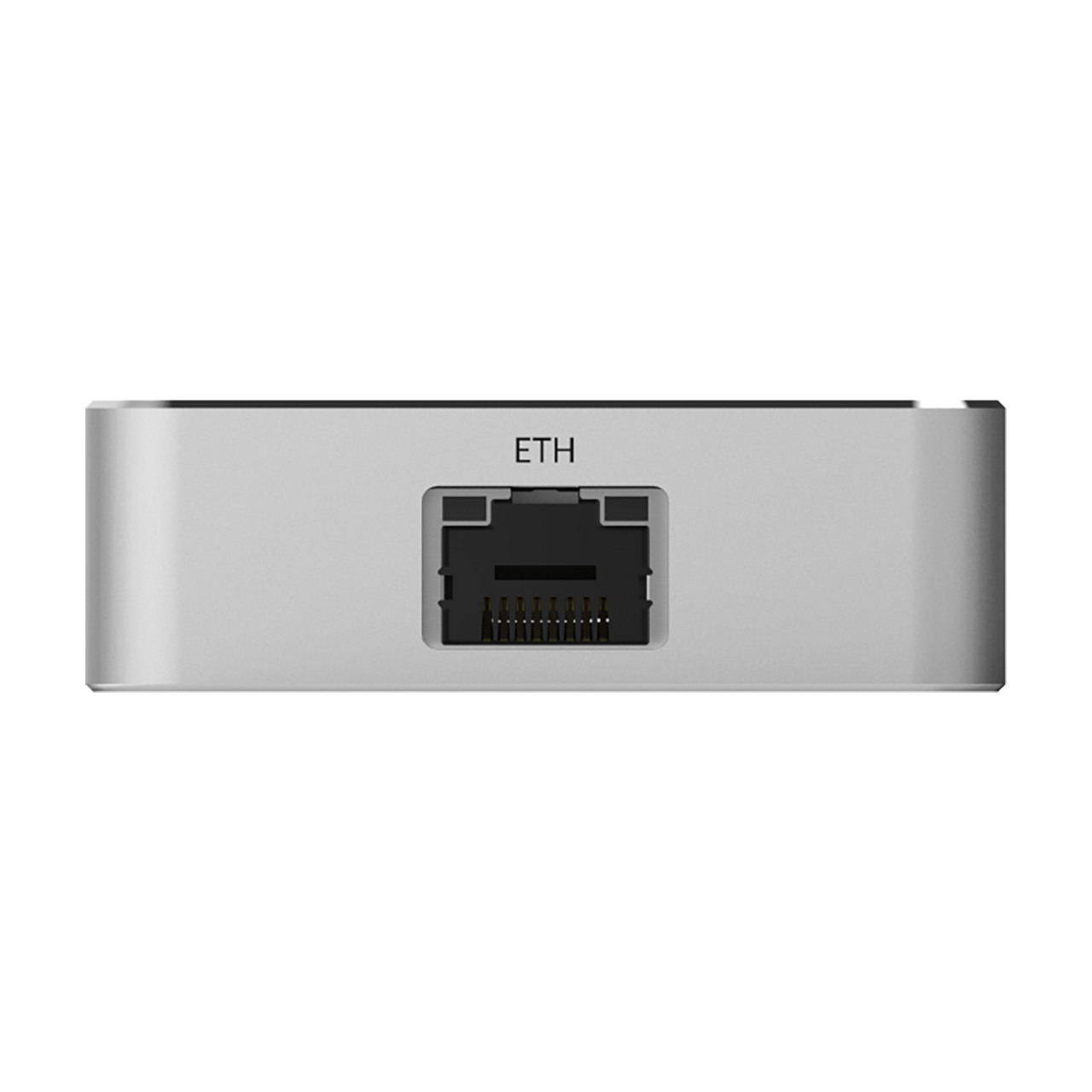

- Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T

  Recommended OS
- Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
- Linux x86, x64 & ARM architecture, with 2.6.35 and above
- Mac OS X 10.9 and above
- macOS 10.12 and above

  Supported Software
- Zoom Rooms
- Microsoft Teams
- VLC
- OBS Studio
- XSplit
- QuickTime Player
- vMix
- Any other software that can detect USB webcam

  LED Indicators
- Status LED Indicates: Power supply: on/off

  Form Factor
- Dimensions (LxWxH): 3.8622" x 2.2354" x 0.7087" (98.1mm x 56.78mm x 18mm)

  Power Consumption
- 5V Max Current: ~ 1A
- Max Power Consumption: ~ 3.8W

  Working Environment
- Operating Temperature: 32°F - 122°F (0°C - 50°C)
- Storage Temperature: -4°F - 158°F (-20°C - 70°C)
- Relative Humidity: 5% - 90% non-condensing
Item Includes:
- 1x Pro Convert IP to USB
- 1x USB Type-C to USB Type-A cable
- 1x USB Type-C to USB Type-C cable
- 1x Quick Start Quide
