The Kiloview N40 Plus 4K HDMI-to-NDI converter is a bi-directional device that supports 4Kp60 HDMI video encoding to NDI High Bandwidth with loop-through for monitoring, as well as decoding NDI High Bandwidth to 4K HDMI video output.
Equipped with advanced features like PoE, a built-in Tally/LCD screen Tally, PTZ control, 3.5mm audio mic input, 16-channel audio support, and intercom functionality, N40 Plus is the ultimate solution for seamlessly entering the world of NDI!
Why NDI?
The NDI protocol is a high-performance standard that enables anyone to use real-time, ultra-low-latency video on existing IP video networks.
NDI Webcam Input
Easily designate Kiloview NDI encoders as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, Teams and more using the free NDI® webcam input tool.
Real 4K, Really Professional
Featuring HDMI 2.0 interfaces, N40 Plus support true 4Kp60 video input, converting it to NDI High Bandwidth with loop-through for monitoring. They also enable NDI High Bandwidth to 4K HDMI output, delivering exceptional image quality as true 4K NDI converters.

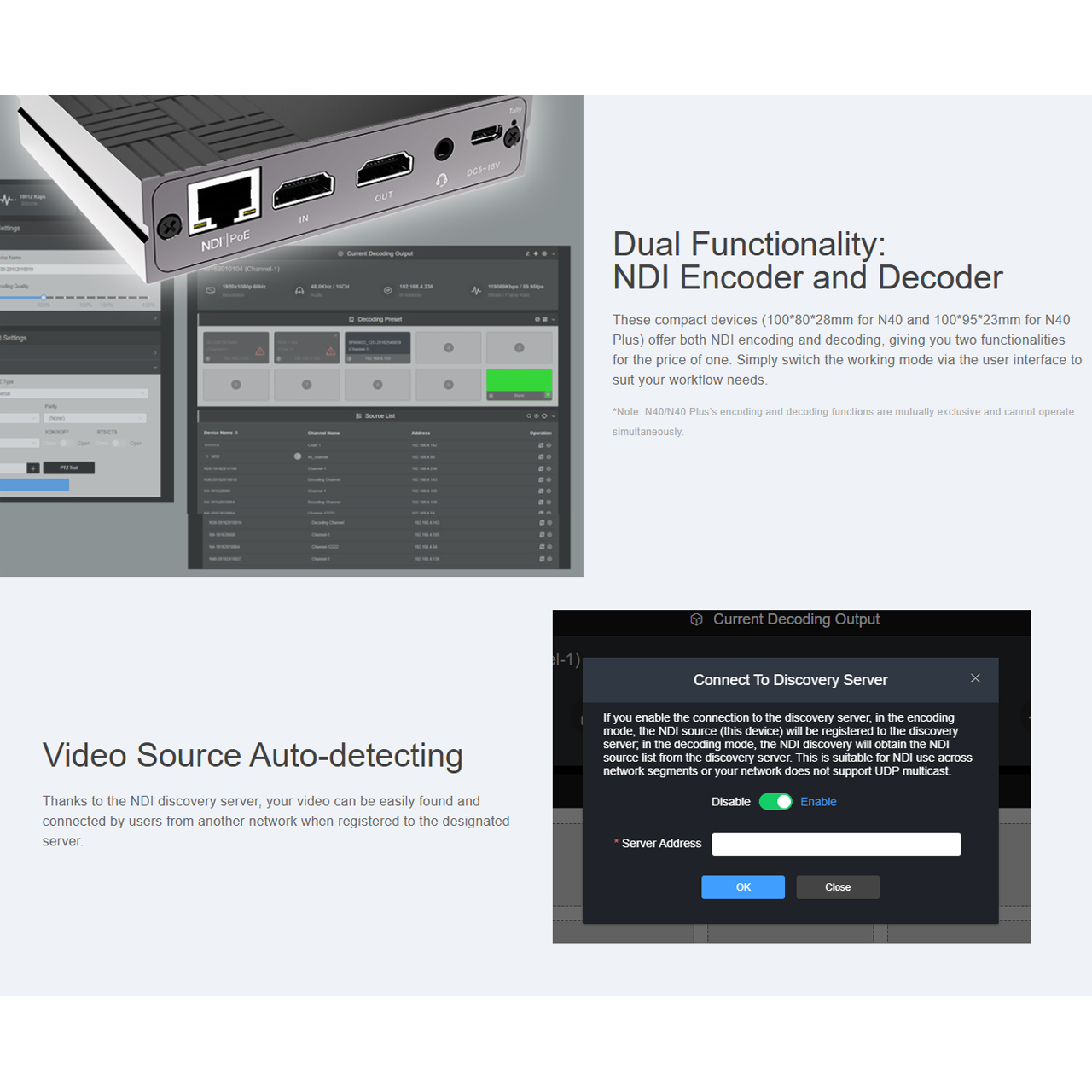

Dual Functionality: NDI Encoder and Decoder
This compact device offers both NDI encoding and decoding - giving you two functionalities for the price of one. Simply switch the working mode via the user interface to suit your workflow needs.
Please Note: N40 Plus's encoding and decoding functions are mutually exclusive and cannot operate simultaneously.
Audio Intercom
Kiloview N40 Plus supports 3.5mm analog audio mic in or embedded audio. It also supports voice intercom by USB headset with Kiloview Intercom server.
Video Source Auto-Detecting
Thanks to the NDI discovery server, your video can be easily found and connected by users from another network when registered to the designated server.
Seamless Switching without Lagging
In decoding mode, Kiloview's unique technology ensures there will be no lag when switching between output NDI videos.
Control with USB Keypad
In decoder mode, you can preset the NDI sources from number 0-9. When your keypad is ready, you can easily choose the output source with a single press.
You can even use the USB Keypad to control a PTZ camera - the most affordable PTZ Keyboard you can get.

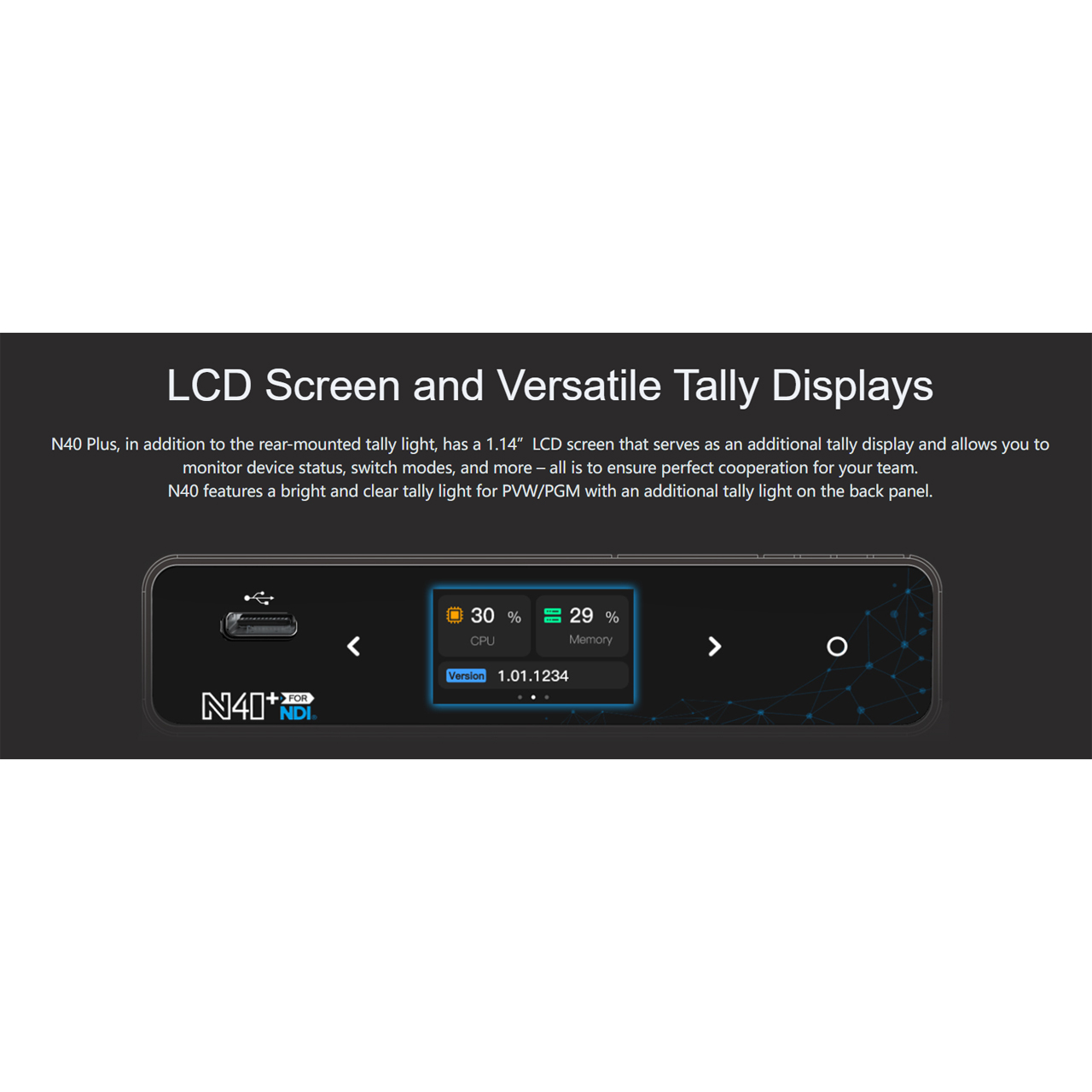

LCD Screen and Versatile Tally Displays
N40 Plus, in addition to the rear-mounted tally light, has a 1.14" LCD screen that serves as an additional tally display and allows you to monitor device status, switch modes, and more - all is to ensure perfect cooperation for your team. N40 features a bright and clear tally light for PVW/PGM with an additional tally light on the back panel.
PTZ Control
Kiloview N40 Plus supports PTZ control via USB to serial RS232/485/422, as well as IP-based PTZ control, requiring no additional cables.

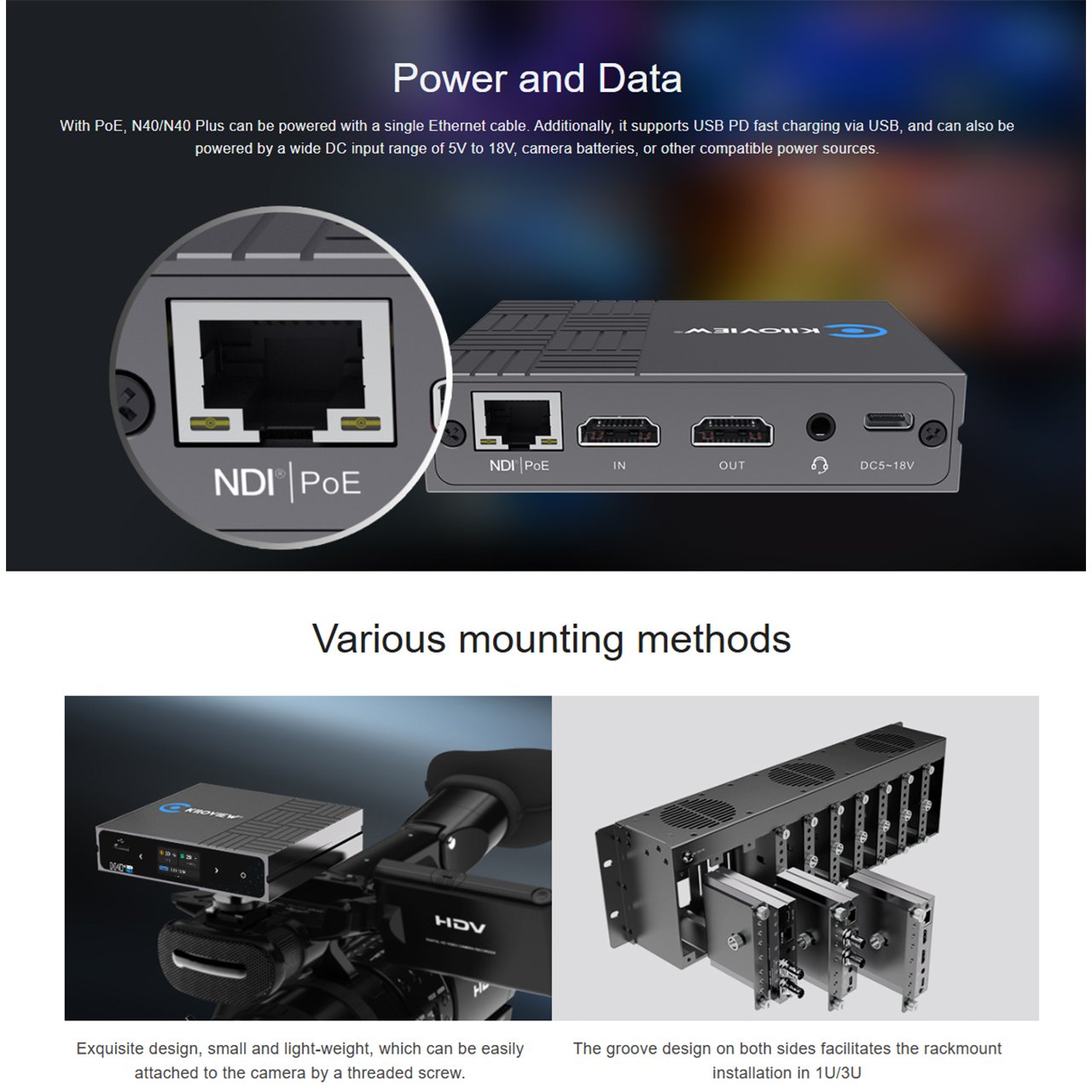

Power and Data
With PoE, N40 Plus can be powered with a single Ethernet cable. Additionally, it supports USB PD fast charging via USB, and can also be powered by a wide DC input range of 5V to 18V, camera batteries, or other compatible power sources.
Compatible with:
- TriCaster
- vMix
- OBS and other platforms
So your video production can be carried out anytime, anywhere!
