    N6 - Overview

    The Kiloview N6 HDMI/NDI is a bi-directional converter for HDMI to both NDI and NDI|HX with a loop through for viewing on a monitor. The N6 is the first NDI converter based on NDI SDK 5.0 which can handle both NDI and NDI|HX, encoding and decoding. Featuring powerful functions like PoE, a built-in big tally light, PTZ control, 3.5mm audio line in/out, multi-channel audio, intercom functions, and more the N6 is the easiest way to get access to NDI 5.0.

    What's New in NDI 5.0?
    NDI Bridge - A free NDI tool to form a secure bridge between any NDI network regardless of location, making NDI transmission over LAN, WAN or public internet possible.
    NDI Remote - Based on WebRTC, it allows anyone using just a URL to contribute live audio and video to another point anywhere in the world.
    Reliable UDP - The key difference between NDI 5 and previous versions is that it makes connections more resilient.
    Support for ARM - Billions of devices NDI enabled

    *Please Note: The N6 can be used as either an encoder or a decoder but not simultaneously at this time. Please check for future updates on this feature.

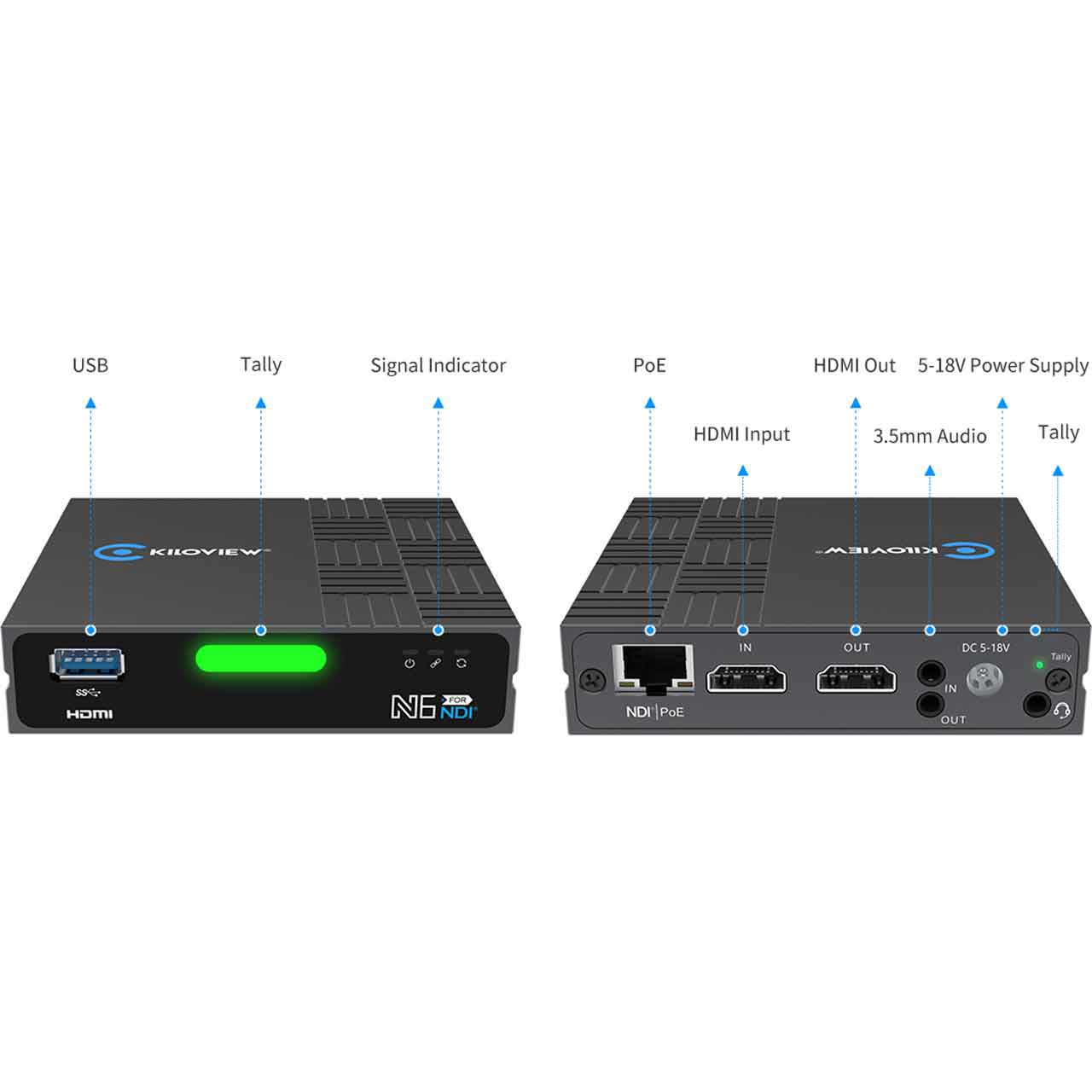

    • Features:

      • NDI and NDI HX encoder/decoder
      • NDI SDK 5.0
      • 1x RJ45 + PoE
      • Tally Light
      • 3.5mm analog audio line in/out
      • Intercom supported
      • PTZ Control via USB/Ethernet
      • DC 5V-18V power supply
      • Compact design
      • All NewTek NDI enabled encoding or streaming sotware supported;
      • Newtek NDI, OBS, Xsplit, vMix VidBlaster, Wirecast MimoLive, Streamstar
    • Specifications:

      • Model: N6
      • Video input: 1x HDMI
      • Video output: 1x HDMI(Loop or decoding output)
      • Audio port: 1x 3.5mm Line In 1x 3.5mm Line Out 1x 3.5mm Mic
      • Network: 1x RJ45 1000Mbps Ethernet port (with PoE)
      • Video resolution: Up to 1080p60 (backward compatible with SD/HD/VESA)
      • NDI® codec capacity: 1x FULL NDI® and 1x NDI®|HX
      • NDI®CODEC feature: FULL NDI HD encoding, typical bitrate: 125Mbps@1080p60
      • LED indicator: Tally light, power light and status connection light
      • Power: PoE, DC, D-Tap (camera) optional. 5-18V wide range supported
      • Voice intercom: Customization
      • PTZ control: Network PTZ and Serial Port
      • DHCP: Support
      • Management: WEB page
      • Power consumption: 6w
      • Operating temperature: -20~45c (Storage temperature: -20~70)
      • Dimension: 100/80/24 mm (3.94"x3.15"x0.94")
