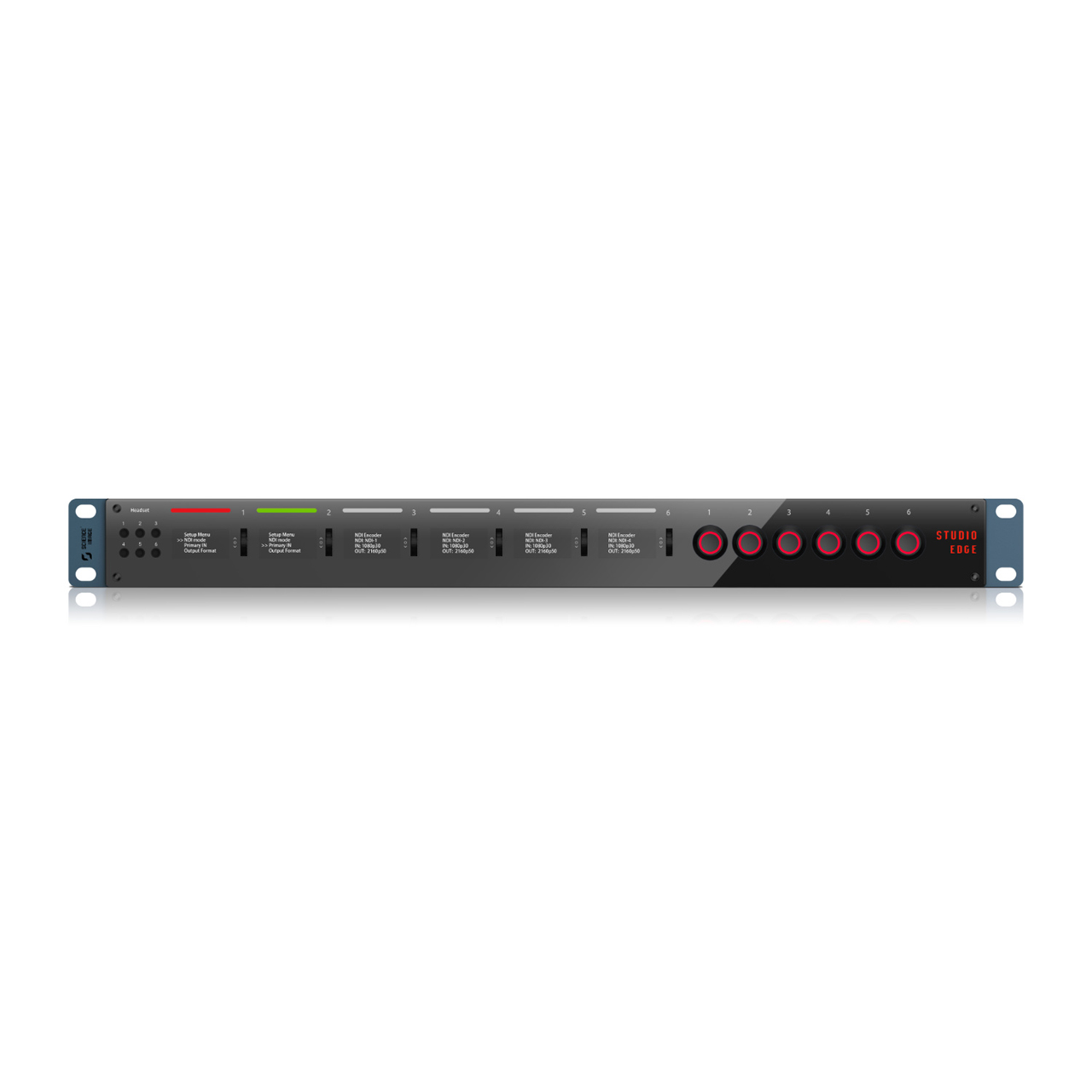

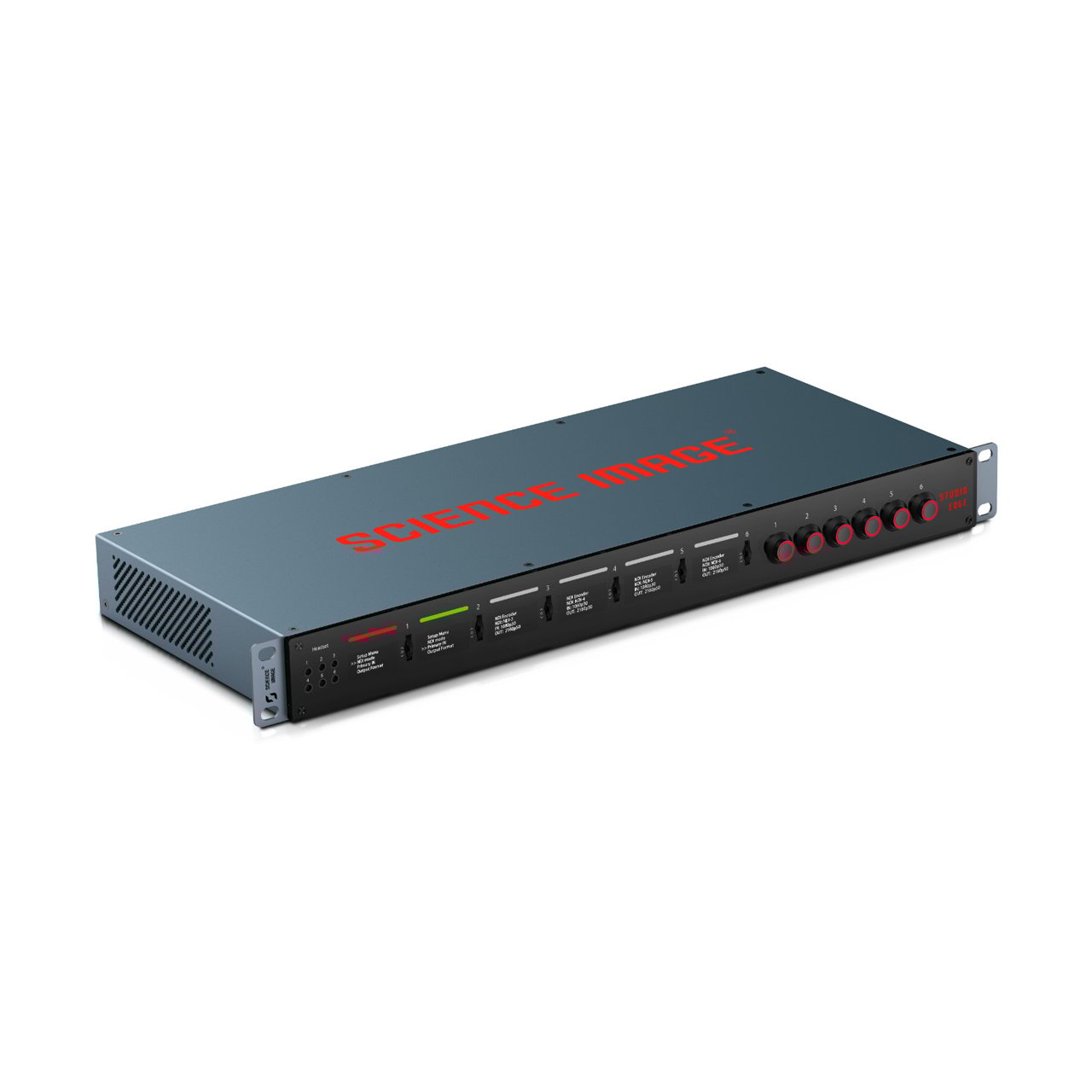

Science Image Studio Edge 6-Channel Rackmount Bi-Directional High-Bandwidth NDI Converter w/ 4K HDMI 2.0 & 12G-SDI I/Os

SI-STUDIOEDGE6 - Overview

• Features:

  • 6-Channel Rack-mount Full NDI Converter with Fiber TX/RX and Analog Audio In/Out
  • Bi-Directional High-Bandwidth NDI Encoder & Decoder
  • Up/Down/Cross Conversion of 27 formats
  • Video I/O: 6x 12G-SDI Inputs & Outputs, 6x HDMI 2.0 Inputs & Outputs, up to 2160p60
  • Audio I/O: 6x 3.5mm stereo headphone outputs, 6x 3.5mm stereo line-in inputs
  • Display: 6x 1.3-inch OLED screens with status, video format, IP address, etc.
  • Control: 6x Scroll wheel buttons for direct menu operation, Web UI control
  • Tally: 6x Tally LEDs compatible with NDI tally signals
  • Audio function: Audio Embed/De-Embed from stream, 2-way Intercom per channel
  • Network: 6x RJ-45 Gigabit Ethernet, 6x optical fiber SFP+ interfaces (for optional 12G-SDI transceiver)
  • Power: AC power input, 6x LED illuminated power buttons
  • SMPTE ST 2110 support


• Specifications:

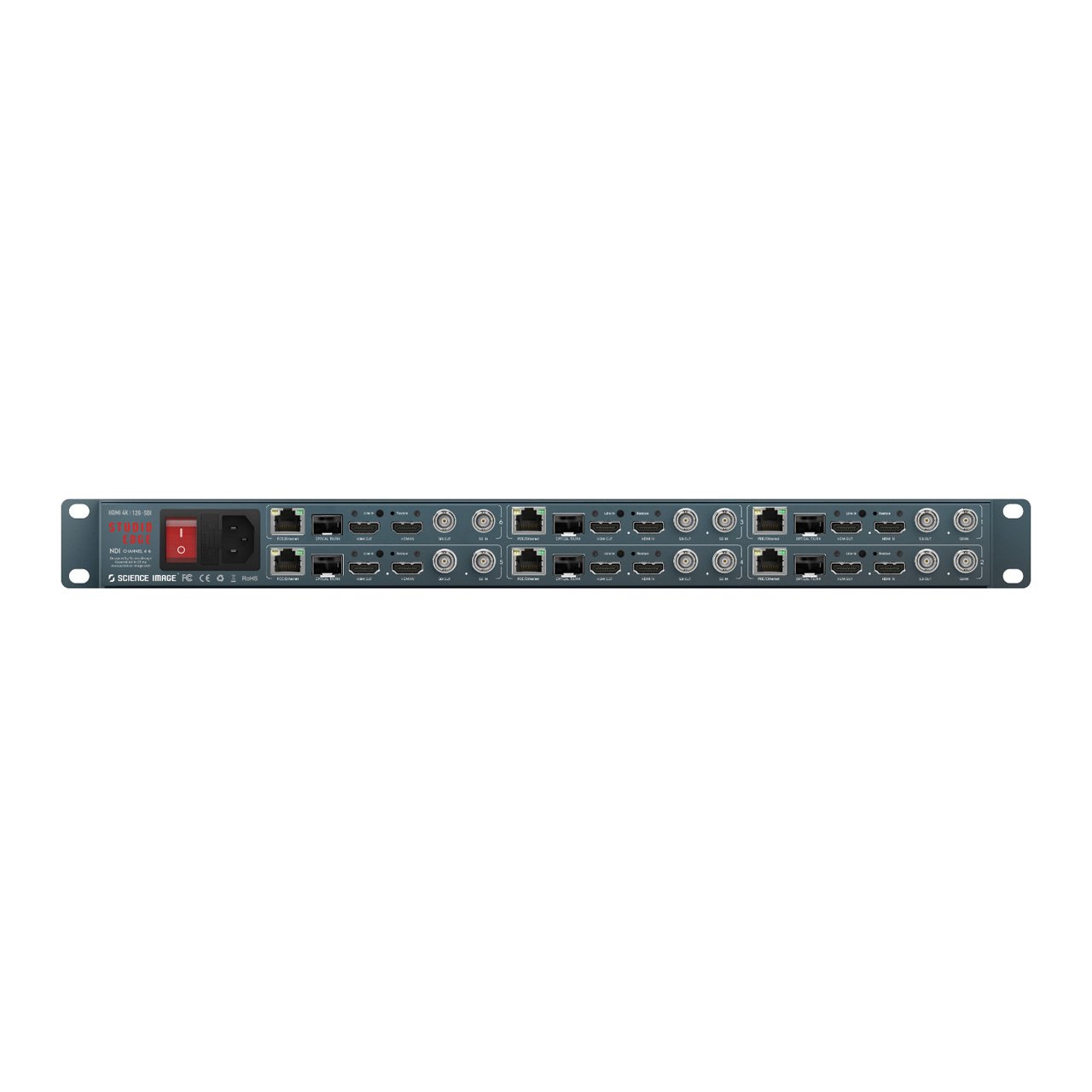

  Interfaces
  • MIC Input/Output: Mic 3.5mm audio input/output interfaces meant for audio output after de-embedding SDI and HDMI video sources as well as the audio input/output of intercom.
  • RJ-45 Gigabit Ethernet: RJ-45 Gigabit interfaces
  • Optical Fiber Input and Output: SMPTE optical fiber/SFP optical fiber sockets
  • Line-in Audio Input Port: 3.5mm LINE IN audio input ports for external analog audio embedding.
  • HDMI Video Output: HDMI 2.0 outputs
  • HDMI Video Input: HDMI 2.0 inputs
  • SDI Video Output: 3G/6G/12G-SDI outputs
  • SDI Video Input: 3G/6G/12G-SDI outputs
  • Power Supply: 3-in-1 AC socket, wide voltage input ranging from 100V to 240V, centralized power supply, built-in leakage protection and independent switch for each channel.

    Channel Parameters:
  • SDI /HD/HDMI Video Formats: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
  • 6G/12G-SDI/Ultra HD/4K Video Formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • SDI Standards: SMPTE ST 2110, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE2082-1, SMPTE 2082-10
  • Display: 1.3 inch OLED screen
  • High-Bandwidth NDI Encoding: Supports NDI encoding ranging from HD/3G-SDI to 4K60/12G-SDI
  • Scroll Wheel Button: Supports configuring NDI encoding/decoding mode, SDI/HDMI input priority and output's resolution format, as well as optical transceiver
  • High-Bandwidth NDI Decoding: Supports NDI decoding ranging from HD/3G-SDI to 4K60/12G-SDI
  • Optical Transceiver: T1 optical module required to jointly function as transmitting end or receiving end; transmitting/receiving mode configurable via scroll wheel button/WebUI/DynaControl; remotest transmitting range up to 20KM.
  • Network Configuration: Support the inter-conversion among TCP (multi-connection), TCP (single connection), UDP and RUDP.
  • Tally: TALLY status display in real time: green as PVW and red as PGM.
  • Camera PTZ Control: Protocols supported: VISCA, PELCO-P and PELCO-D
  • Firmware Upgrading: Firmware upgrading via Web UI.


• Warranty:

  • 3 Year Warranty


• GTIN:

  6974658120233
