RMG-300 V2 - Overview

Easily Bridges Most IP Protocols

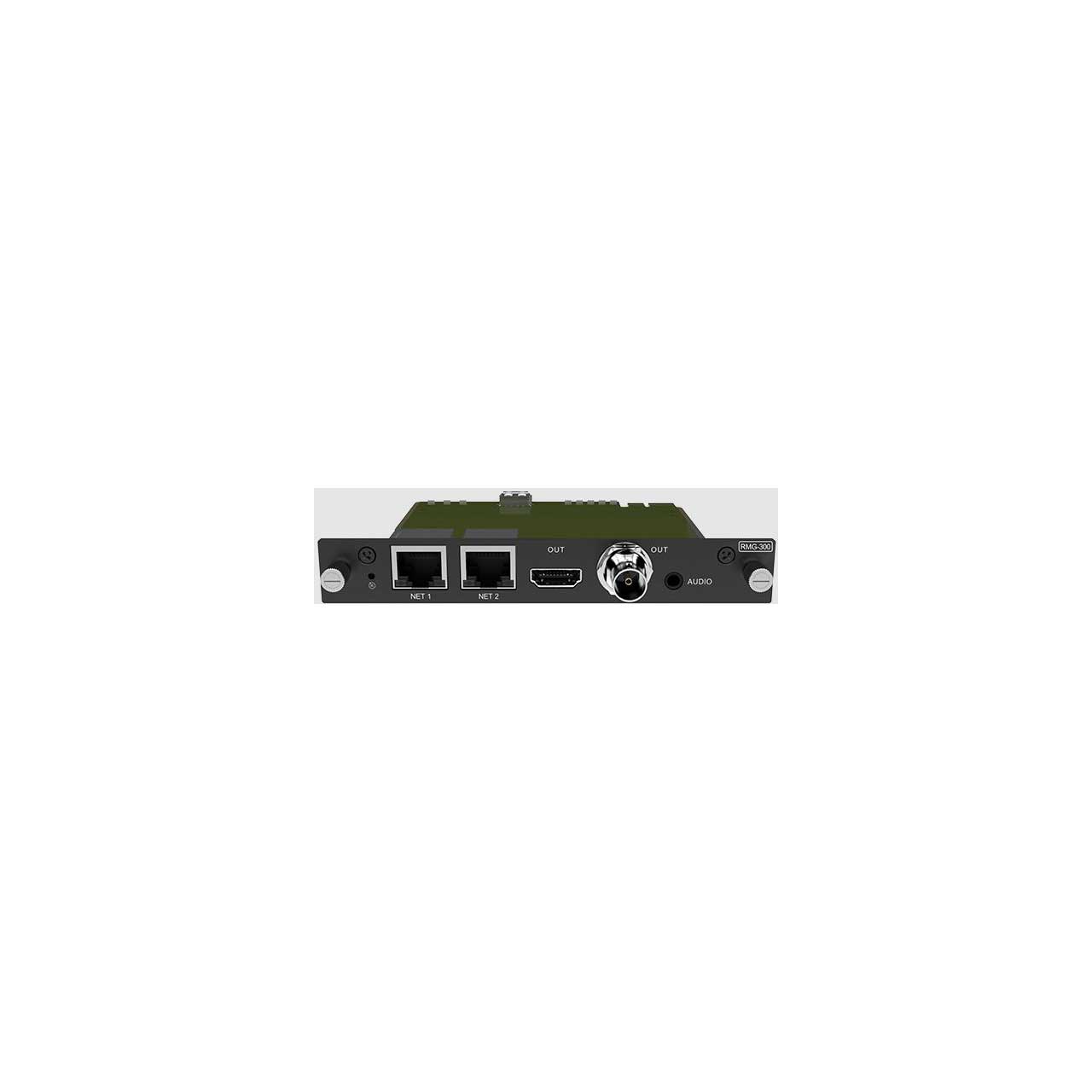

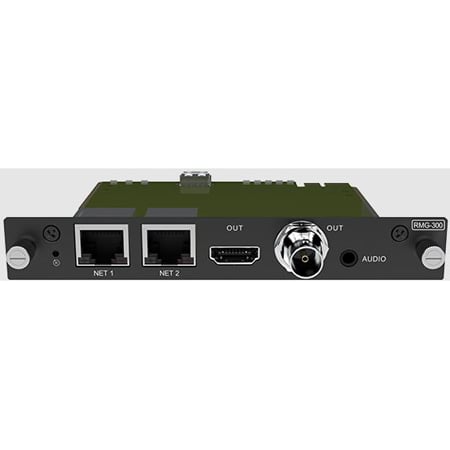

The Kiloview RMG300 V2 is a card form high-performance media gateway, part of the Kilioview Cradle System. It integrates functions such as multi-channel video decoding between NDI|HX, SRT, RTMP, RTSP, TS-UDP, and HLS to SDI and HDMI. It can do so with the same or different content, multi-view output and streaming, video image segmentation, protocol cross conversion, stream media and distribution services.

MG300 is compatible with NDI®|HX (2.0) , SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc. It supports the decoding with all those different protocols, at the same time supports up to 9 protocols cross conversion. Each input stream is converted into 4 same or different protocols output.

Cradle supports the most IP media protocols like SRT/RTMP/RTSP/UDP/HTTP/HLS and benefits NDI® HX version optional. So, a Cradle can be applied to many business scenarios.

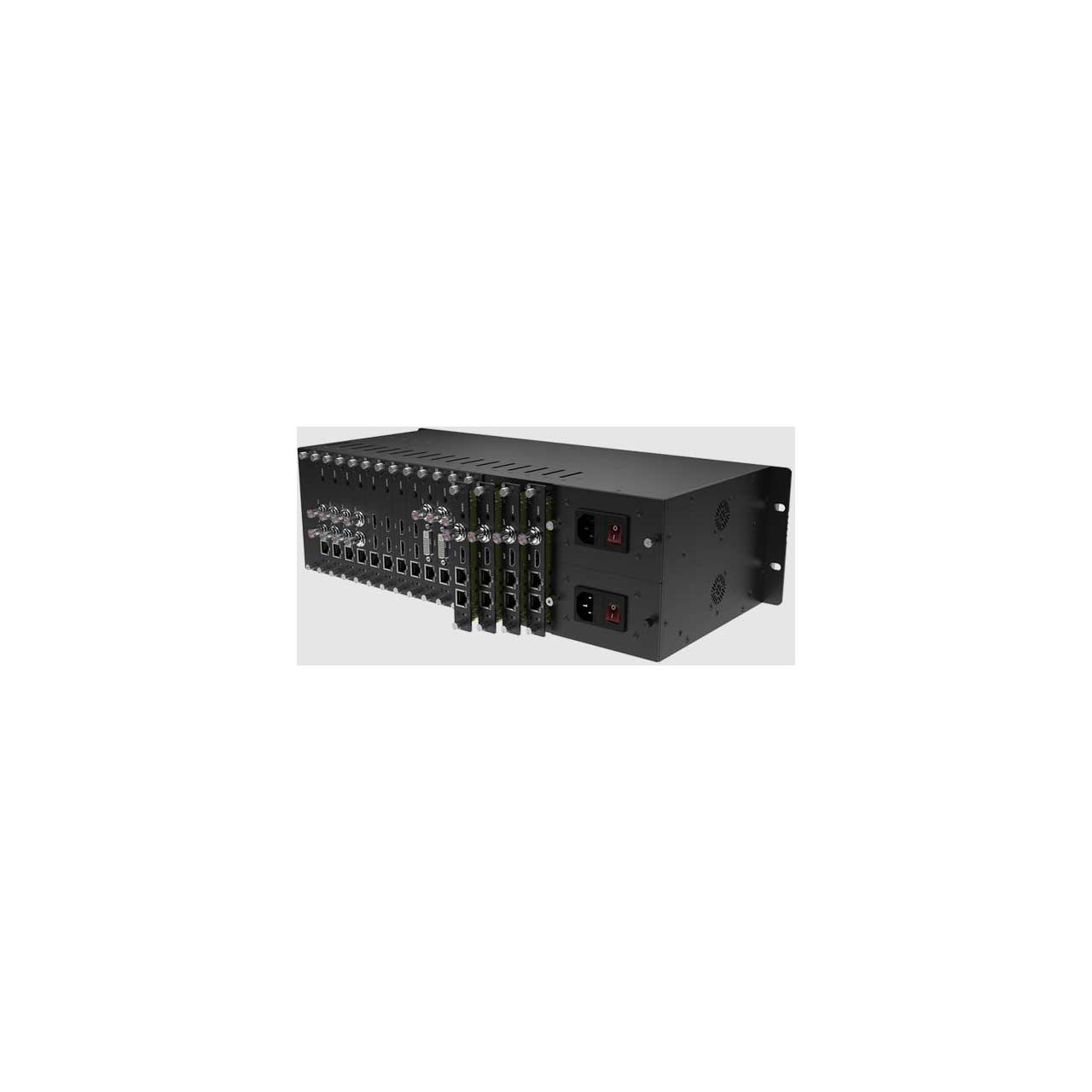

Please note! Module only. Chassis sold separately.

Features:
- Protocol converter
- Powerful IP Stream Function
- Media Server - Supports up to 50 concurrent access for streams distribution/live streaming
- H.264/H.265 Transcoder
- Decoder - decoding up to 4K H.264/ H.265 IP streams
- Low Latency and High Quality
- RTMP Server Supported
- Dual Output, Same or Different
- Customize Your Output Display
- Video Previewing Function
Specifications:
- Network: 2 100M/1000M RJ45 adaptive Ethernets
- Decoding output: 1 SD/HD/3G-SDI, up to 1080P 60Hz / 1 HDMI, up to 3840x2160@60Hz
- Analog audio output: 1x3.5mm Line out
- Analog audio input: 1x3.5mm Line in
- USB: 1xUSB 3.0 Type-A
- Access protocol: NDI-HX/SRT/RTSP/RTMP/TS-UDP/HTTP, (NDI|HX means NDI|HX Version 2.0, SIP/ONVIF (customize)
- Output protocol: NDI|HX 2.0/SRT/RTSP/RTMP/TS-UDP
- Protocol conversion: 9 channels1080P video conversion
- Streaming distribution: 50 channels of RTSP, 36 channels of RTMP/SRT (Not more than 800Mbps)
- Live streaming: 9 channelsx4 channel 1080P
- Number of decoding: 4K 30Hz H.264/H.265: up to 4 simultaneous channels / 1080P 50Hz/60Hz H.264/H.265: up to 8 simultaneous channels / 1080P 30, 1080i 50/60Hz, 720P and below H.264/H.265:up to 9 channels simultaneously
- Video decoding standard: H.264, H.265
- SDI output format: 1080P60/59.94/50,1080P30/29.97/25/24/23.98,1080i60/59.94/50.720P60/ 59.94/50, 576i50, 480i60
- HDMI output format: 4K 3840x2160@60/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50 Compatible with VESA standard format
- Video rate range: 128Kbps ~ 40Mbps
- Audio decoding: AAC G.711 (aLaw/uLaw)
- Audio rate range: AAC: 8Kbps ~ 320Kbps G.711: 64Kbps
- Decoding delay: =200ms
- Split display style: Support 1/2/3/4/5/6/7/8/9 splitting; Support re-encoding the splitted and recombined video for live streaming/ transmission. The image supports up to 1080P60 H.264 encoding.
- Management interface: Web
- Remote management: Support
- Remote firmware upgrade: Support
- Operating temperature: -25 ~ 60°C
- Dimension & weight: 140x105x28mm (5.5"x4.1"x1.1"/380g/13.4oz)
- Power consumption: =6W
- Power supply: 12V/1A
- Remark: NDI|HX means NDI|HX Version 2.0
Item Includes:
- 1x Kiloview RMG-300-V2 Cradle Series Media Gateway Module Card
Warranty:
- One Year Warranty (extended warranty available with registration)
