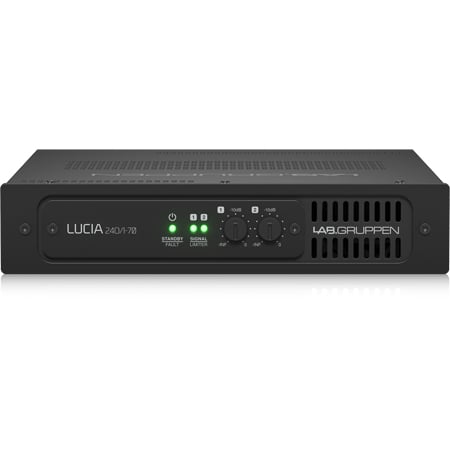

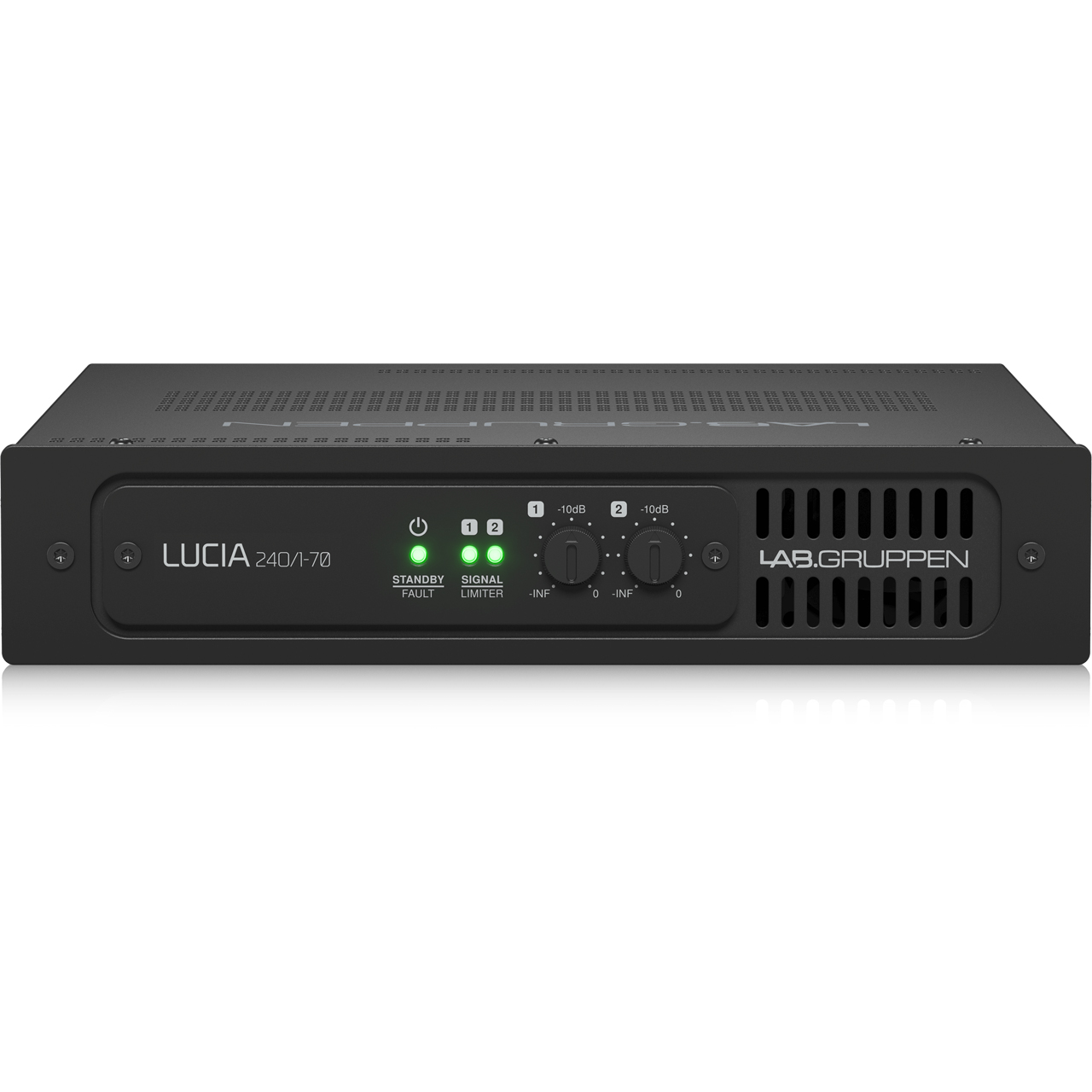

Lab Gruppen LUCIA 240/1-70 Compact Mono 240W Power Amplifier for High-Impedance 70V Installation Applications

ITEM #: LAB-LUCIA2401-70 MFG #: LUCIA 240/1-70

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$749.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


LUCIA 240/1-70 - Overview

The Lab Gruppen LUCIA 240/1-70 incorporates ease of install with 240 W of decentralized power in a compact energy star compliant amplifier.

Great Sound, Flexibility and Ease of Use
Lab Gruppen's innovative LUCIA (Localized Utility Compact Intelligent Amplification) brings superior audio performance and extraordinary flexibility to a decentralized approach in AV systems design. Power, processing, control and I/O are conveniently placed exactly where they are needed. In many AV applications requiring consistently outstanding performance, LUCIA offers a logical, cost-efficient and scalable solution that often eliminates the complications and added expense of a centralized equipment room. LUCIA amplifiers incorporate a digital, firmware-controlled front end coupled to a robust, durable and highly efficient Lab Gruppen output stage, all of which make LUCIA the best-sounding and most reliable compact amplifier in its category.

Fits in Anywhere

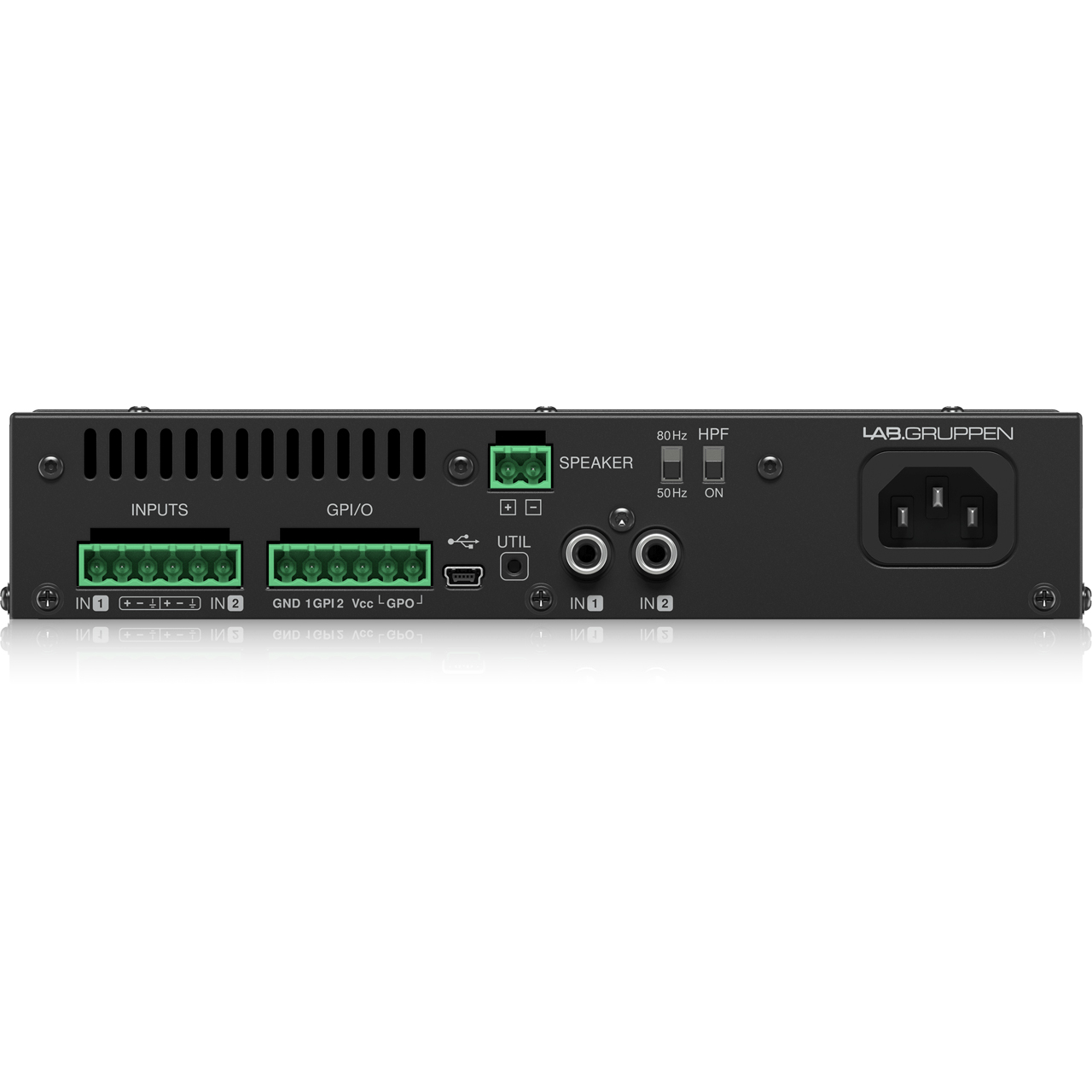

LUCIA 240/1-70 has been designed and engineered for quick installation and easy setup. The supplied wall-mount bracket enables discreet on-wall location (such as behind video displays), but the ultra-compact form factor also allows easy placement virtually anyplace - whether next to a projector or integrated into a reception counter, podium & lectern or bar area. All input and output connections are on Euroblock screw terminals (with parallel unbalanced RCA connectors), and level setting is available on front-panel potentiometers. Advanced circuitry protects the amplifier and connected loudspeakers from potential damage caused by clipping, thermal overload, or extreme low line voltage.

  • Features:

    • Compact mono amplifier which offers 240 W for high impedance speakers on 70 V distribution lines
    • Efficient Class-D amplifier with low distortion and minimal heat dissipation
    • Comprehensive on-board DSP with loudspeaker processing and innovative features which enhance performance and simplifies system design and commissioning
    • Configuration software wizard for initial set-up and advanced editor for preset configuration (LUCIA connection via USB) available for Windows and Mac
    • Energy efficient with Energy Star certification for supreme green credentials and exceptionally low lifetime running costs
    • Automatic Dynamic Loudness Contouring adapts to optimize performance at any output level
    • Comprehensive DSP features with per-channel presets for high-pass filter, parametric EQ, multi-band compressor and look-ahead limiter
    • Optimized presets available for a wide range of loudspeaker models for fast configuration
    • Enhanced Bass Profile for extended LF response with small loudspeakers
    • Compact form factor in a half-rack, 1U chassis with supplied bracket for discreet on-wall mounting
    • Universal power supply supports 100 - 240 V AC at 50 or 60 Hz
    • Balanced high quality analog inputs and amplifier outputs on detachable screw terminals
    • Parallel analog input on unbalanced RCA connectors with optimized gain for mobile and other unbalanced sources

  • Specifications:

      General
    • Number of Amplifier Channels: 1
    • Max Total Output All Channels Driven: 240W
    • Max Output Voltage: 100V peak
    • Max Output Current: 7 Arms

      Performance
    • 70V: 240W
    • 100V: 120W
    • 16Ω: 240W
    • Signal to Noise Ratio: > 100A

      Gain, Sensitivity and Limiters
    • VPL: 100 Vpeak
    • Sensitivity, Balanced Input: 4dBu/1.23 Vrms
    • Sensitivity, RCA Input: -2dBu/0.62 Vrms
    • Input Headroom for Clip, Balanced 2: 12dBu/3.09 Vrms
    • Input Headroom for Clip, RCA 2: 6dBu/1.55 Vrms

      Connectors and Buttons
    • Input Connectors (per ch.): 3 - pin detachable screw terminals, electronically balanced
    • Input Connectors (ch. 1 & 2): Unbalanced RCA type
    • Output Connector: 2 - pin detachable screw terminal
    • GPI 3: 2 channels of voltage sense type. 4 pins in a detachable screw terminal. Default functionality is output level for GPI1 and wake up from stand by for GPI2
    • GPO (power state output) 3: Contact closure type, 2 pins in a detachable screw terminal Default for external monitoring of fault/protection/power off
    • USB: For firmware update and configuration of the signal processing and altering the default functions of the GPI ports
    • High Pass Filter: This filter is in series with the other filters in the DSP and it is controlled with switches on the back. Settings OFF/50Hz/80Hz.
    • Level Adjustment (per Input): Front panel potentiometer, detented from -inf to 0dB
    • RS232: Can be controlled and monitored by third parties via RS232 using both the GPI pins

      Power
    • Nominal Voltage: 100V - 240V AC
    • Operating Voltage: 85V - 265V AC
    • Standby Consumption: < 1W
    • Mains Connector: IEC inlet
    • Cooling: One fan, no filter required, front to rear airflow, temperature controlled speed. Can stay off if the sustained power average stays below 12W and the ambient temperature is below 77°F (25°C)
    • Auto Mode: The power state is controled automatically by the audio signal

      Physical
    • Dimensions: 8.5" x 1.73" x 11" (216mm x 44mm x 280mm)
    • Weight: 4.2lbs (1.9kg)
    • Finish: Black aluminum front and black steel chassis

  • Item Includes:

    • 1x Lab Gruppen LUCIA 240/1-70 Compact Mono 240W Power Amplifier
    • 1x Power Cord
    • 1x 6-Pin Block Input Connector
    • 1x 6-Pin GPI Block Input / Output Connector
    • 1x 2-Pin Block Speaker Output Connector

  • Warranty:

    • 5 Year Limited Warranty
