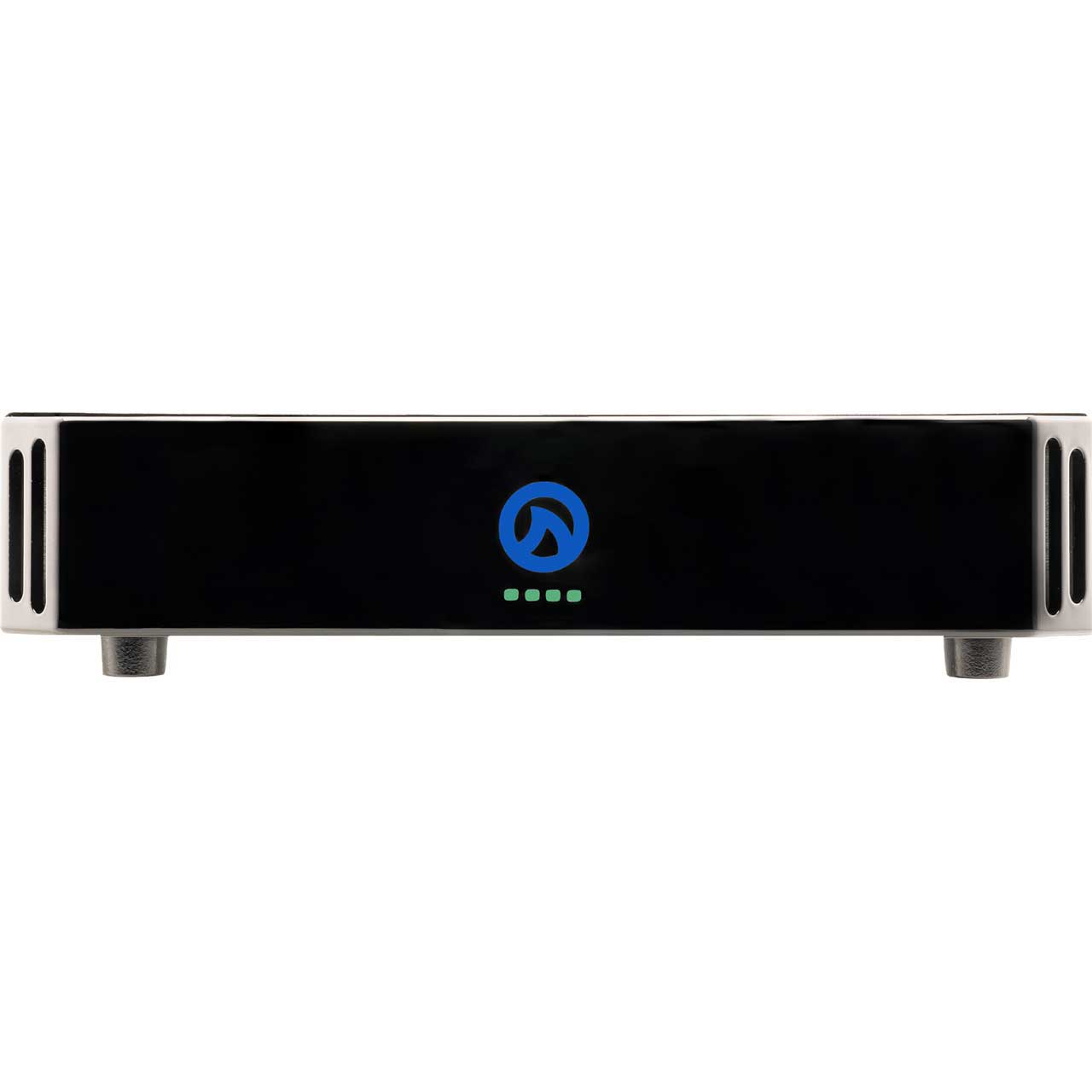

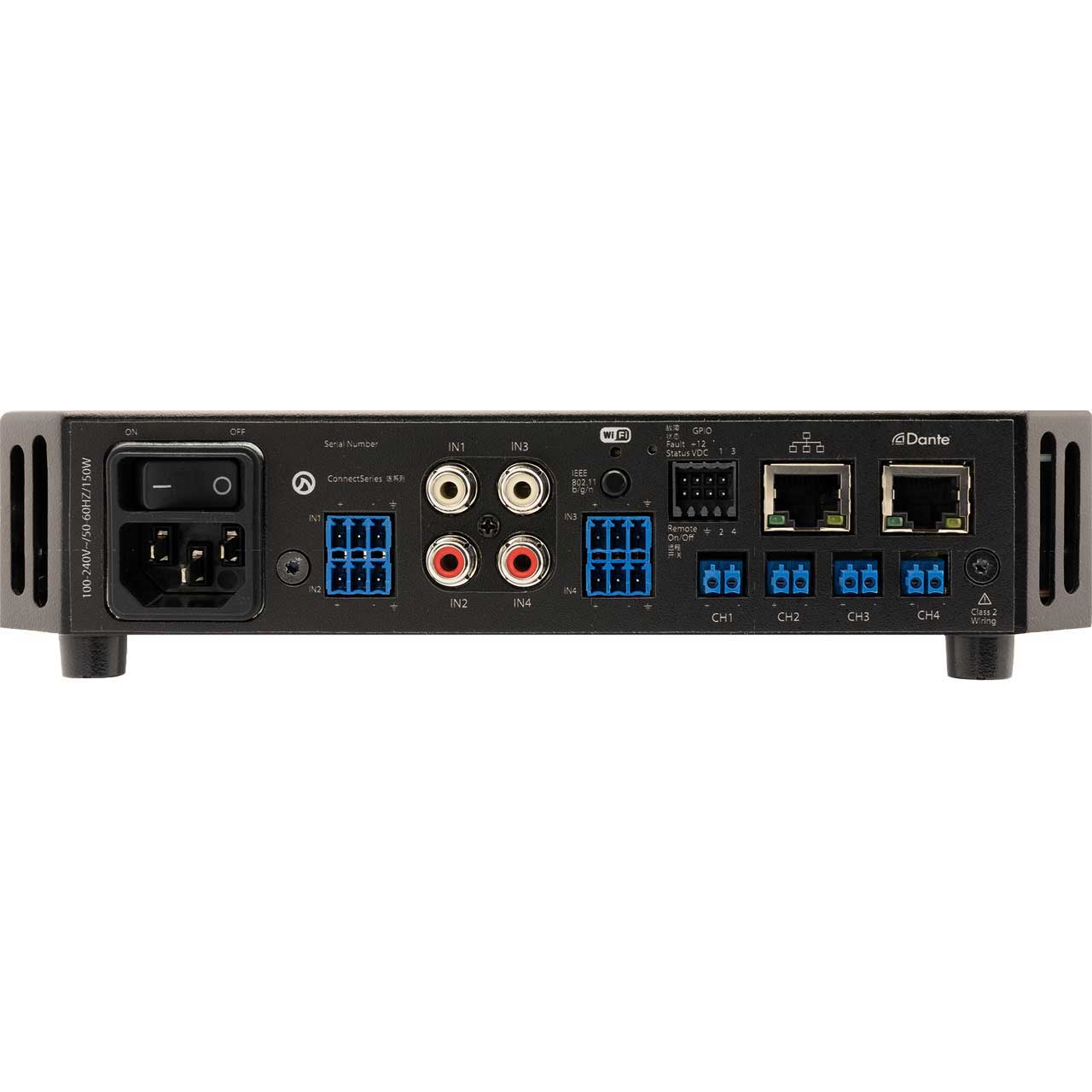

LEA Pro Network CONNECTSERIES 34 4-Channel 30-Watt Smart Amp with Cloud-Based IoT Functionality

CONNECTSERIES 34 - Overview

• Features:

  • 3 Ways to Connect: Built-in Wi-Fi Access Point, Existing Wi-Fi Network, Local Area Network (LAN)
  • Web Browser-Based UI: Works on any web browser on any device with no software downloads
  • Cloud Control: Remote control and monitoring from anywhere in the world — no VPN needed.
  • Direct Low-Z and Hi-Z: 70V or 100V selectable per channel
  • Smart Power Bridge: Double the power any any single channel without sacrificing other amp channels
  • Universal Switch-Mode Power Supply: Operation from 100VAC - 240VAC +/-15%
  • Analog Balanced or Unbalanced Inputs: Fully routable balanced or unbalanced RCA analog inputs via input matrix and input mixer in Web UI, SharkWare, or Cloud platform
  • 96 KHz Analog Devices DSP: Input Routing, 48dB/Oct crossover filters, 8 Parametric EQ filters, User-adjustable speaker limiters, Real-time load monitoring
  • External I/O Port: For Remote ON/OFF and Fault Monitoring
  • Highly Efficient Class-D Output Stage: For low AC Current Draw


• Specifications:

  • Audio Specifications:
  • Inputs:
    Analog: 4 Balanced Inputs with user selectable 26dB, 34dB, and mic level input sensitivity, 4 unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity
  • THD+N: 0.1% (20Hz to 20kHz)
  • Frequency Response: 20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
  • Signal to Noise Level: 102dB (20Hz to 20kHz referenced to 8Ω)
  • Crosstalk: 70dB (20Hz to 20kHz)
  • Amplifier Output Classification: Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel

    DSP:
  • DSP Architecture: Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
  • Input Matrix: Routable matrix; any input to any output with primary and secondary input priority
  • Crossovers: Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
  • Parametric EQ: 8 Band Parametric EQ per channel
  • Output Delay: 100ms per channel
  • Output Protection: DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
  • User Adjustable Limiting: Peak Voltage and RMS Voltage
  • Load Monitoring: Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources

    Control, Monitoring, Networking:
  • User Interface: Web Browser User Interface, 3rd Party API control, Cloud Control, or SharkWare
  • External I/O:
    External I/O In: Toggles Remote On/Off
    External I/O Out: Indicates Amplifier Health
    4 general Purpose input and output pins for general input

    Operation:
  • AC Mains: 100VAC - 240VAC +/- 15% 50Hz or 60Hz
  • Power Supply: Universal Switch Mode Power Supply

    Physical Spec:
  • Dimensions (L X W X H):
    Product: 11.82" x 8.58" x 1.71" (300.11mm x 218mm x 43.5mm)
    Shipping: 18" x 11" x 2.75" (457.2mm x 300mm x 69.85mm)
  • Weight: 7lbs / 4.1kg
  • Cooling:
    Front to Rear Variable Fan Speed Cooling
    Fan Noise at idle: 50dB @ 1m
    Fan Noise at 50%: 57dB @1m
    Fan Noise at full speed: 63dB @ 1m


• Warranty:

  • U.S. Customers can register your product to extend your warranty to 6 years, and 5 years internationally.


• GTIN:

  0850011348291
