QSC SPA2-200 2 Channel 200 Watt Audio Power Amp - 1RU - 1/2 Rack Space

ITEM #: QSC-SPA2-200 MFG #: SPA2-200

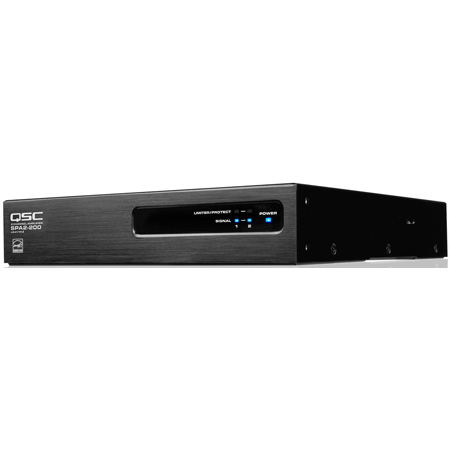

Primary Image

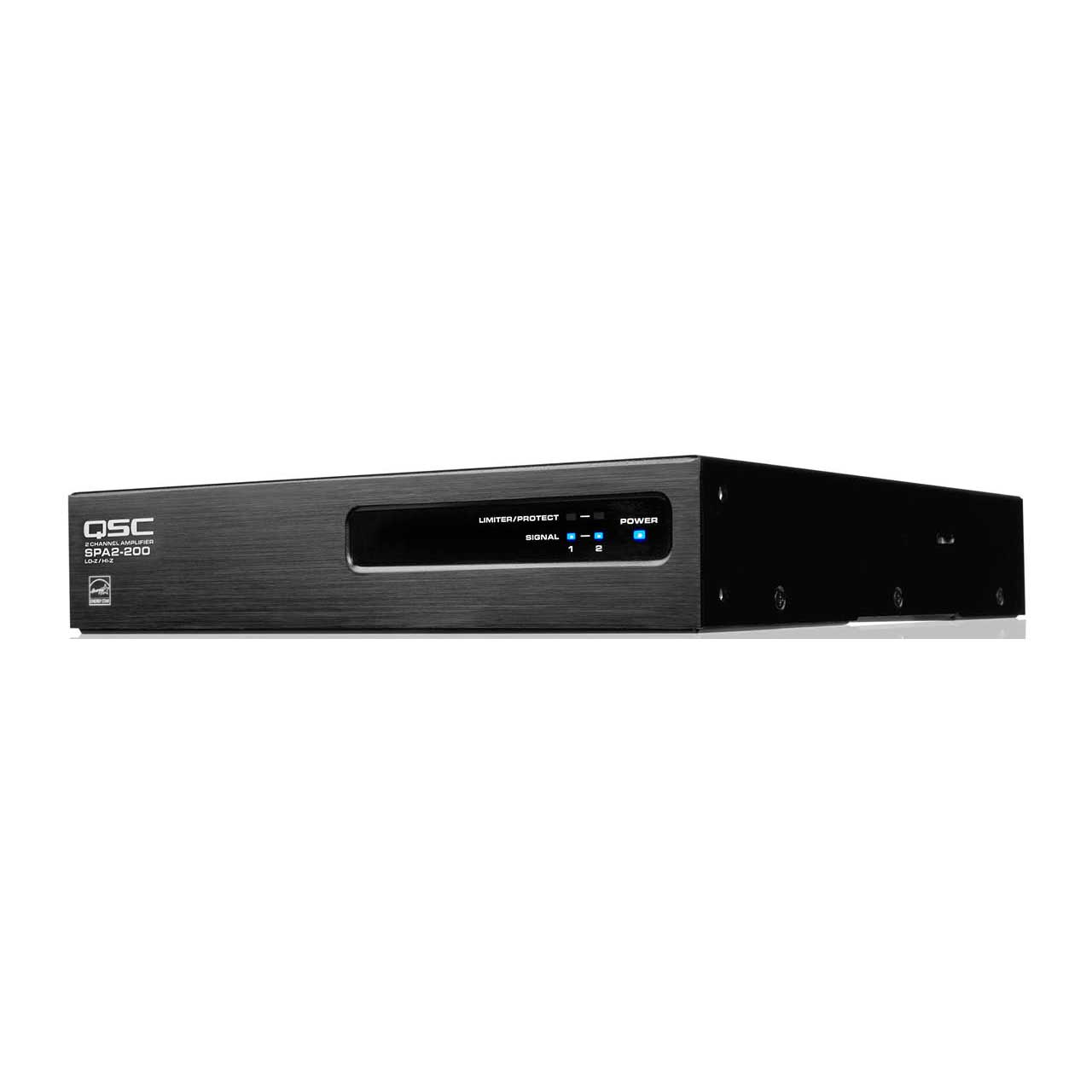

  • Product Image Thumbnail 1 of 4

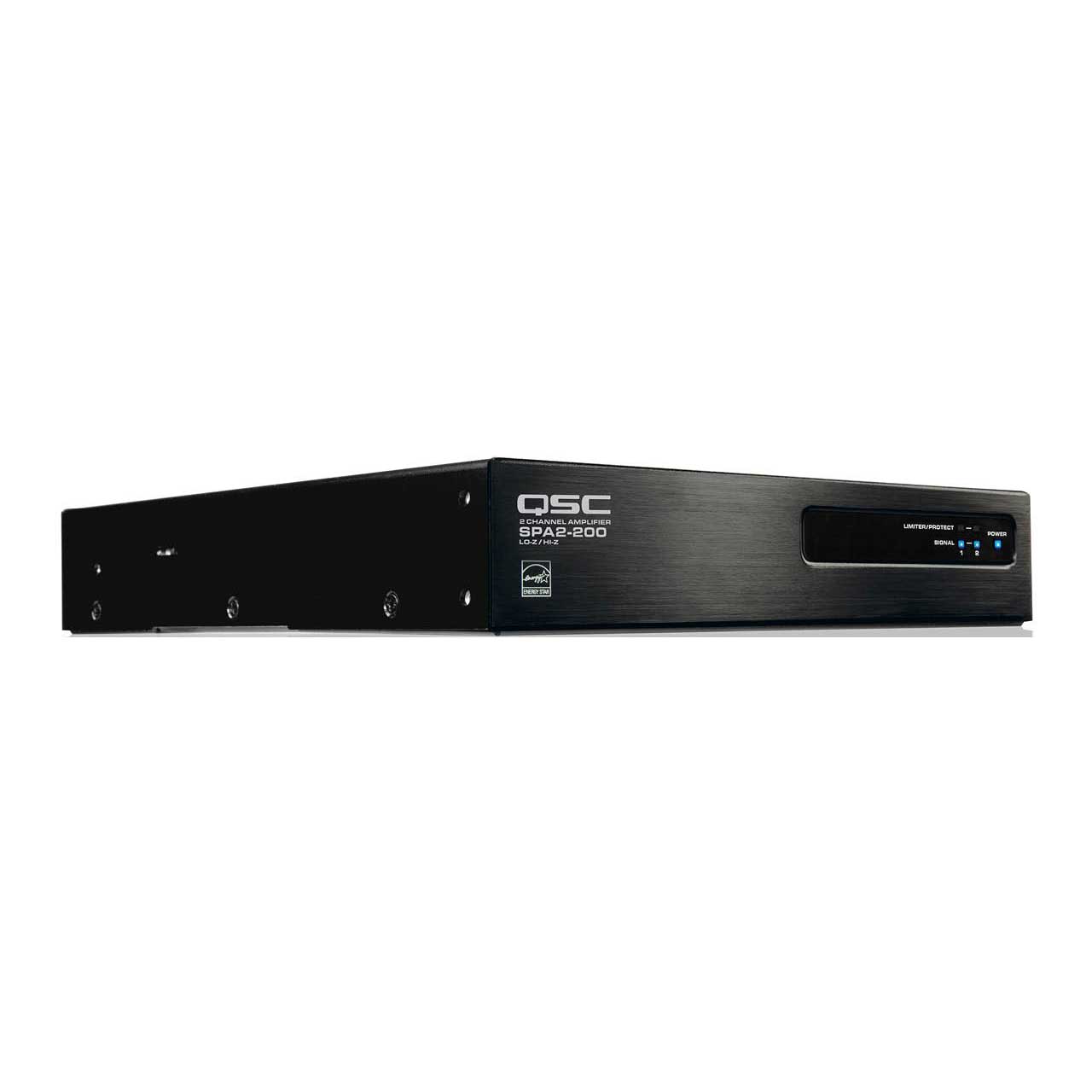

  • Product Image Thumbnail 2 of 4

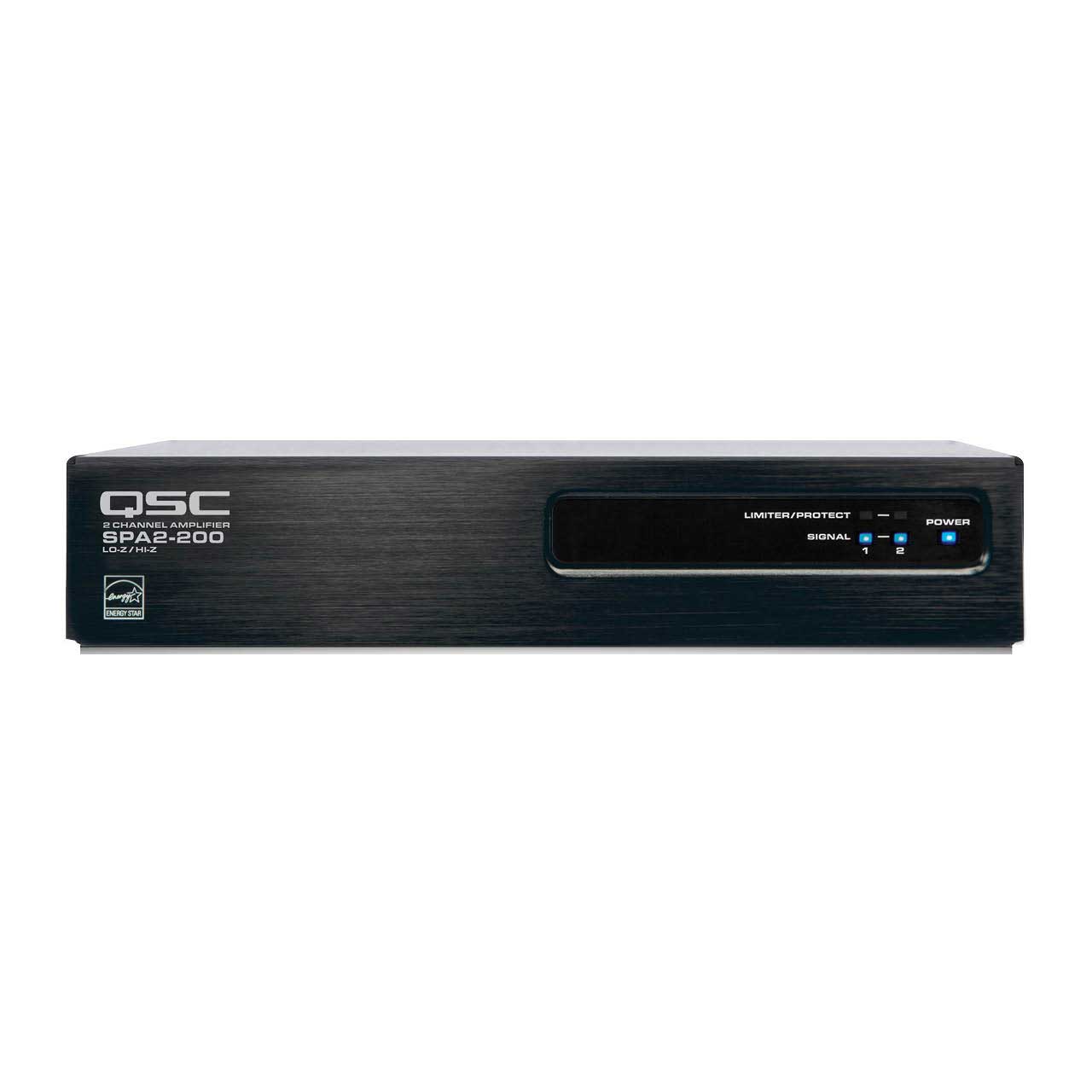

  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$825.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    SPA2-200 - Overview

    For higher power the SPA2-200 two channel amplifier delivers up to 200 watts rms per channel into 4Ω or 8Ω; the two channels can also be bridged providing up to 400 watts rms into 4Ω or 8Ω. When the channels are bridged they can be switched into 70V or 100V direct drive mode providing up to 350 watts rms into a mono 70V or 100V output. Like the other SPA models, an 80Hz highpass filter is engaged when in 70V or 100V mode.

    • Features:

      • Up to 200W per channel into 4Ω and 8Ω
      • ENERGY STAR® qualified amplifier
      • Bridgeable outputs for higher power
      • Auto-Ramp provides quiet startup and power-down
      • Rack-mountable 1U, half rack width enclosure

    • Specifications:

      • Stereo Mode Watts Per Channel: 8Ω dynamic, both channels driven - 200W; 4Ω dynamic, both channels driven - 200W
      • Bridged Mode Watts Per Channel: 8Ω & 4Ω - 400W; 70V & 100v - 350W; Signal to Noise (A weighted, 20Hz-20kHz) - >100 dB; Input Sensitivity - 1.23Vrms (+4dBu); Maximum Voltage Gain: 25.0dB
      • Frequency Response (20Hz - 20kHz): Frequency Response (20Hz - 20kHz)
      • Input Impedance: >10 kΩ (balanced), >10 kΩ (unbalanced)
      • Maximum Input Level: 12.3V (+24dBu)
      • Highpass Filter: Switchable 80Hz when Bridged in 70V & 100V
      • Front Panel Indicators: Power, per channel Signal, per channel Protect/Limit
      • Controls: 4Ω/8Ω/70V Bridge Highpass On/100V Bridged Highpass On per channel pair
      • Dimensions (HxWxD): 1.7" x 8.7" x 9.5"/1RU
      • Weight (Net): 4lbs

    • Item Includes:

      • Power cable
      • Quick start guide
      • Connector kit
      • Rack mount ears
      • Mounting brackets

    • GTIN:

      0684284068491


    SPA2-200 - Required Accessories
