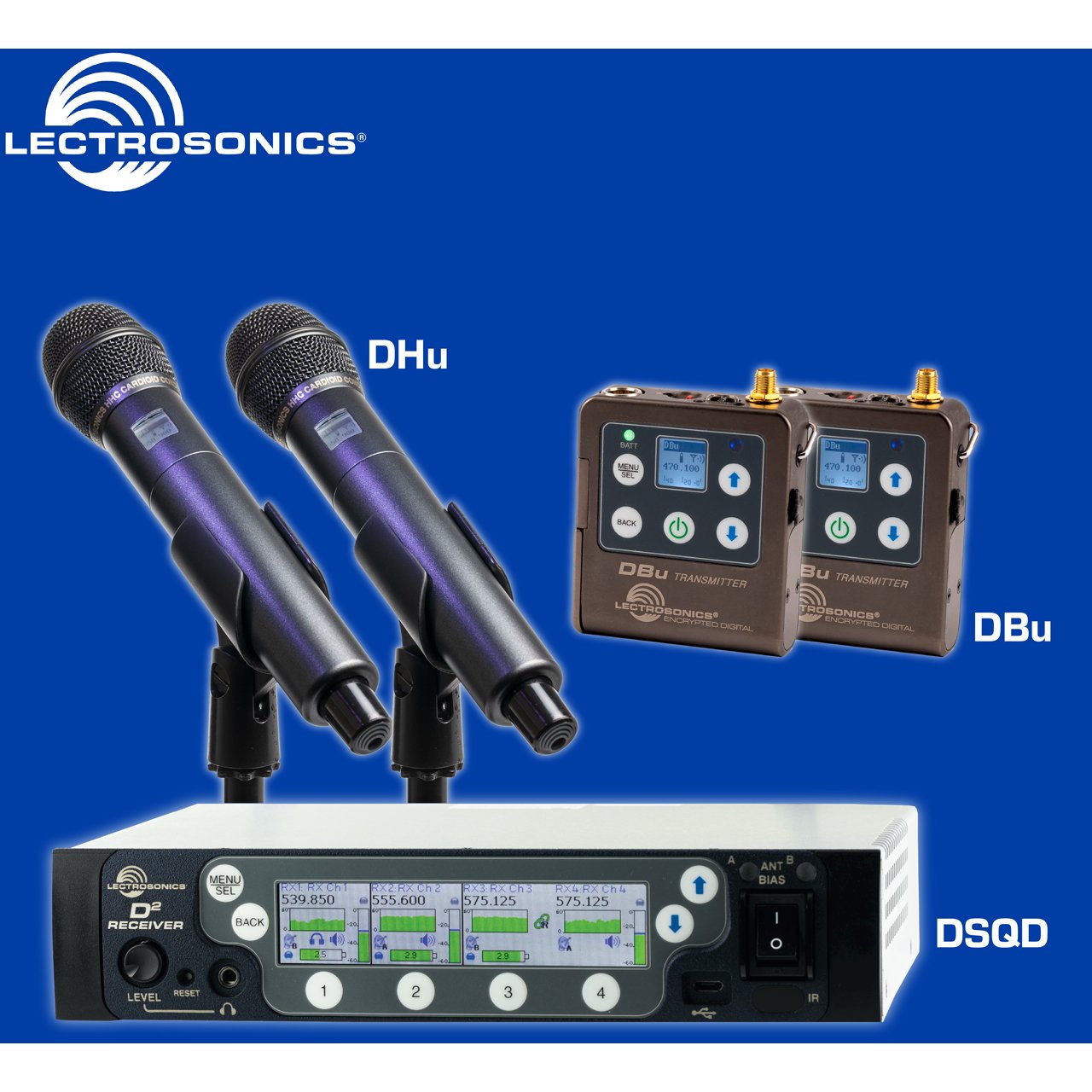

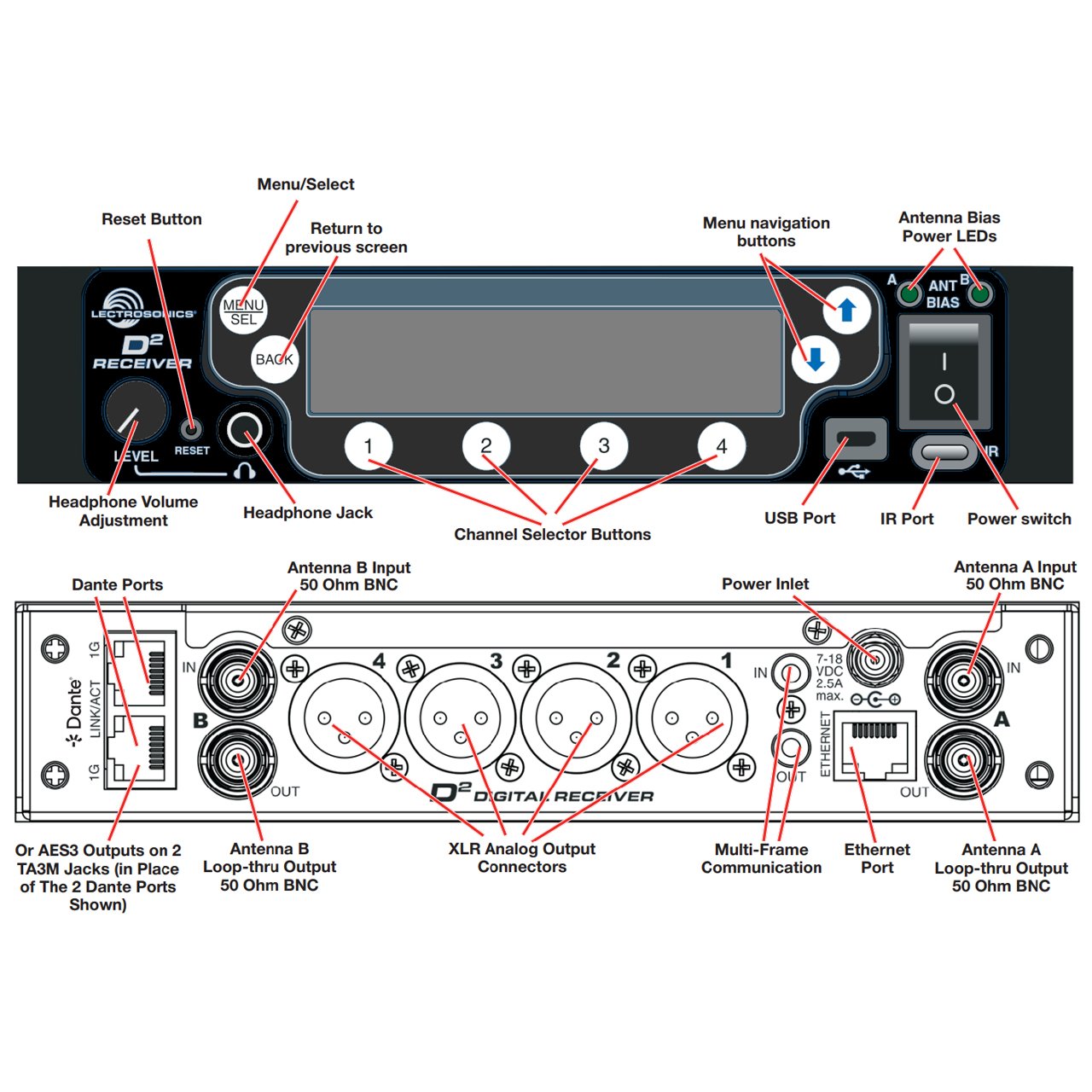

The Lectrosonics DSQD is a half rack receiver with analog and digital Dante® network audio outputs that utilize Lectrosonics signature digital architecture with remarkable audio quality and ultra-low latency. The receiver includes an extended operating range rivaling the best analog and Digital Hybrid Wireless ® systems with continuously tunable tracking filters covering 470.100MHz - 614.375MHz. Antenna ports on the rear panel accept input from remote antennas, with a "loop-thru" output to another mainframe using the internal multi coupler.
The Lectrosonics DBu transmitter is a 4th generation design with specially developed, high-efficiency digital circuitry for extended operating time on two AA batteries. The transmitter can tune in coarse or fine steps across the UHF television band from 470MHz - 608MHz (470MHz - 614MHz for export versions), with a selectable output power of 25mW or 50mW. The pure digital architecture enables AES 256-CTR encryption for high-level security applications.
Please Note: the DBu has a TA5M connection. All Lavalier or Headset microphones would require a Switchcraft 5-pin locking (TA5F) connection.

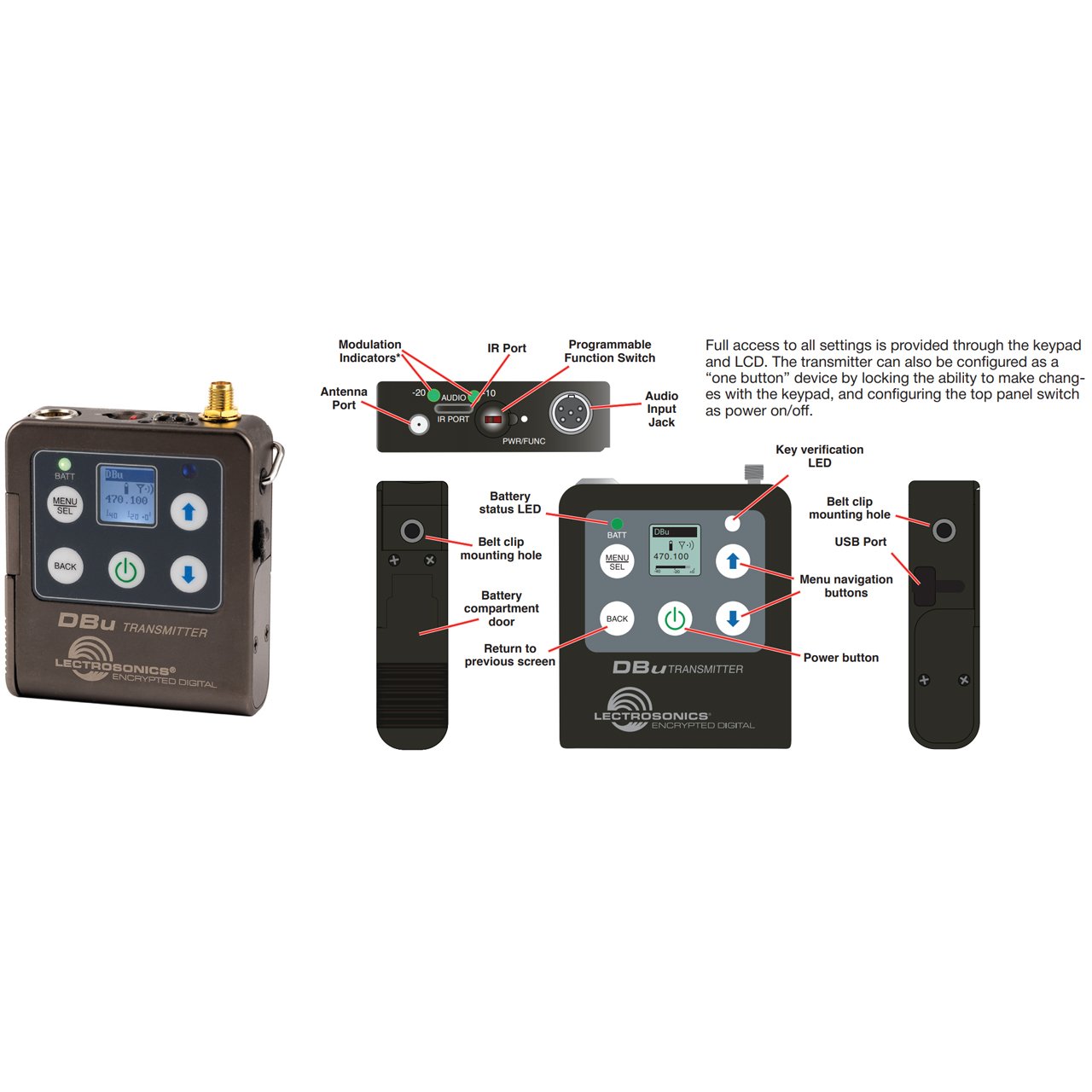

The top panel contains the antenna jack, audio input level LEDs, the programmable function switch and the audio input jack. The LEDs provide red/green indications of the audio level from -20dB to the onset of limiting to enable accurate input gain adjustment. The programmable switch can be configured as a mute switch, a power on/off switch, talkback, or be bypassed.
The Lectrosonics DHu Digital Encrypted handheld transmitter represents a versatile solution for a variety of wireless microphone applications including live performance, broadcast, AV rental and houses of worship. The design incorporates advanced features to provide high-quality speech and vocal reinforcement.

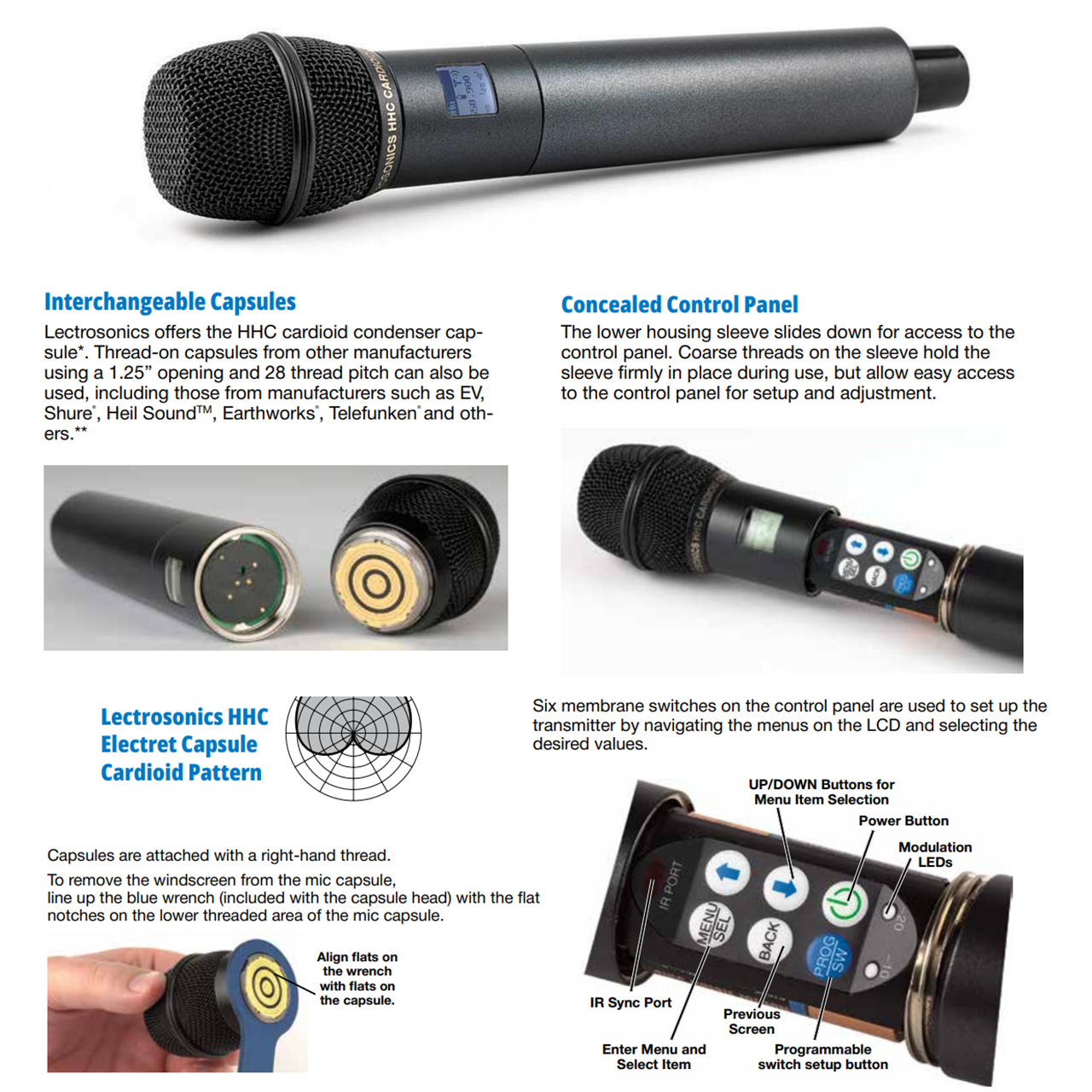

Interchangeable Capsules
Lectrosonics offers the HHC cardioid condenser capsule (included). Thread-on capsules from other manufacturers using a 1.25" opening and 28 thread pitch can also be used, including those from manufacturers such as EV, Shure, Heil Sound, Earthworksr, Telefunken and others.
