Lectrosonics IFBR1B-B1 UHF Multi-Frequency Belt-Pack IFB Receiver - 537.600 - 614.375 Mhz - (No Charger)

ITEM #: LEC-IFBR1B-B1 MFG #: IFBR1B-B1

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$1,150.00

Our Price:

$829.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    IFBR1B-B1 - Overview

    Wireless IFB (interruptible fold back) systems are used for talent cueing and crew communications in broadcast and motion picture production. In other cases, the IFB system is used by directors and other management to monitor program audio during a production. The Lectrosonics IFBR1B-B1 537.600 - 614.375 Mhz receiver provides simplicity and flexibility in a package that is intuitive for untrained users to operate. Despite its tiny size, the new IFBR1B receiver offers excellent performance on par with all of Lectrosonics' IFB products.

    The design uses +/-20 kHz FM deviation for efficient use of the bandwidth, with compandor noise reduction circuitry for an excellent signal to noise ratio. A supersonic Pilot Tone signal controls the audio output squelch to keep the receiver silent when no transmitter signal is received.

    The incoming RF signal is filtered and amplified, then mixed down to the IF frequency with a microprocessor controlled synthesizer. If a monaural earpiece is connected, this condition is automatically accommodated, with no loss of audio output power or battery life. Full output power is available with either type of connector, without the power losses that result from a resistive circuit design. The headphone cable doubles as the receiving antenna.

    The receiver will drive a wide variety of earbuds, headphones and induction neck loops at substantial levels, with loads from 16 Ohms to 600 Ohms.

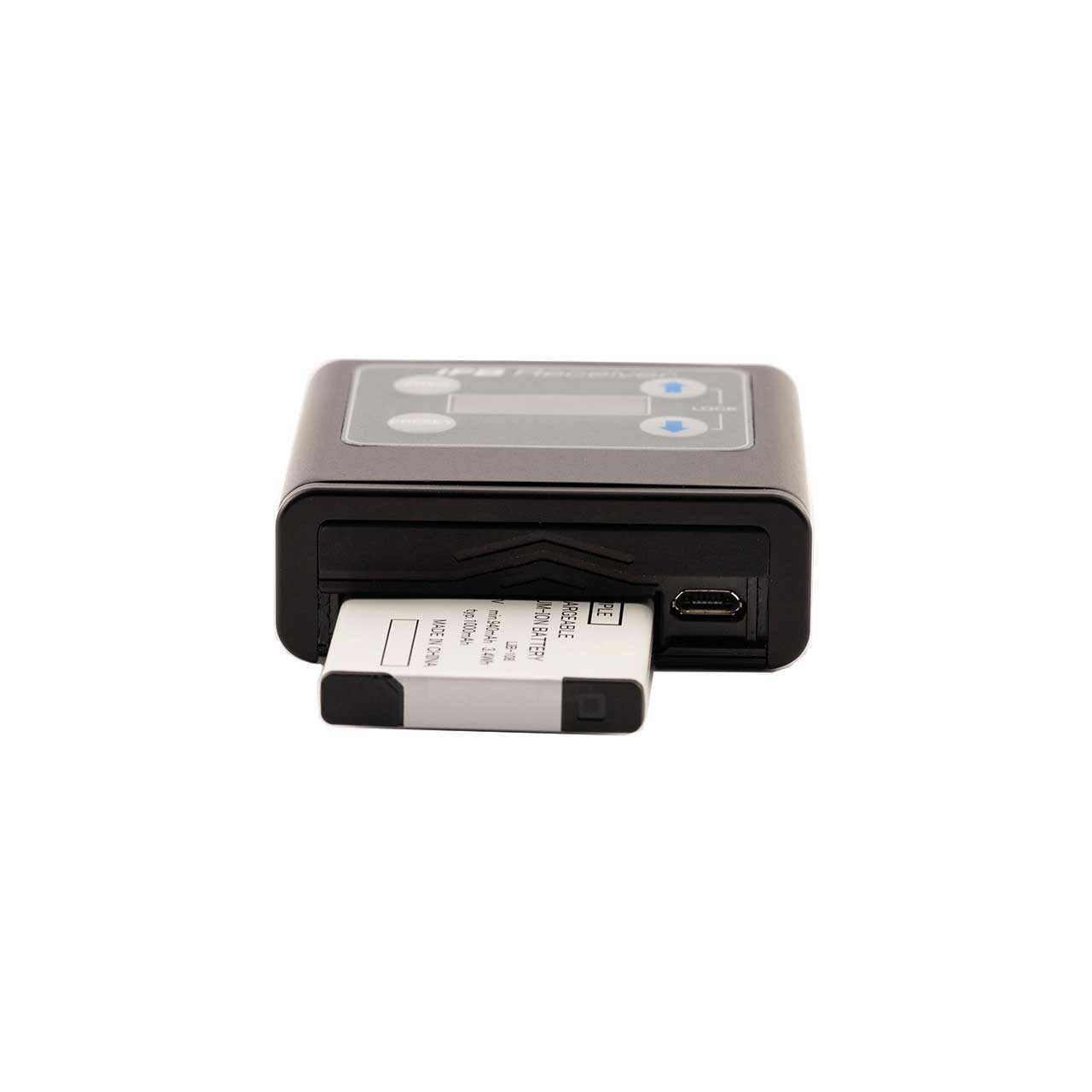

    The IFBR1B is housed in a rugged aluminum package. A wire beltclip is included and provides a secure mounting on a wide variety of belts, pockets and fabrics. An optional "clamp style" spring-loaded belt clip is also available: the IFBR1BBCSL. The IFBR1B is powered for over 8 hours by a removeable, rechargeable LB-50 lithium ion battery.

    Note: The IFBR1B does not ship standard with the single battery charger. To order this unit with a charger, order as a kit: LEC-IFBR1B-B1KIT. The IFBR1B can be dock charged without removing the battery with the optional CHSIFBR1B.

    • Features:

      • Stores up to 10 frequency presets in memory
      • LCD interface for programming and operation
      • High sensitivity for extended operating range indoors or outdoors
      • USB port for firmware updates
      • Compact, rugged machined aluminum housing
      • Attached battery door
      • 8+ hours battery life with removable LB-50 Li-ion
      • Dock chargeable with optional CHSIFBR1B

    • Specifications:

      • Operating Frequency (MHz): Band B1: 537.600 - 614.375 Mhz
      • Frequency Selection Steps: 25 kHz or 100 kHz, selectable
      • Sensitivity: 1 uv (20 dB SINAD)
      • Signal/Noise Ratio: 95 dB A-weighted
      • Squelch Quieting: 90 dB
      • AM Rejection: 50 dB, 10 uV to 100 mV
      • Modulation Acceptance: ±20 kHz
      • Spurious Rejection: Greater than 70 dB
      • Operating Temperature Range: -20 to 45 degrees C.
      • Third Order Intercept: 0 dBm
      • Frequency Response: 100 Hz to 10 kHz, (+/-1 dB)
      • Audio Output: 1V RMS into 50 ohms minimum
      • Antenna: Headphone cable
      • Min. Headphone Impedance: 16.0 Ohms
      • Programmable Memory: 10 frequencies can be stored as presets

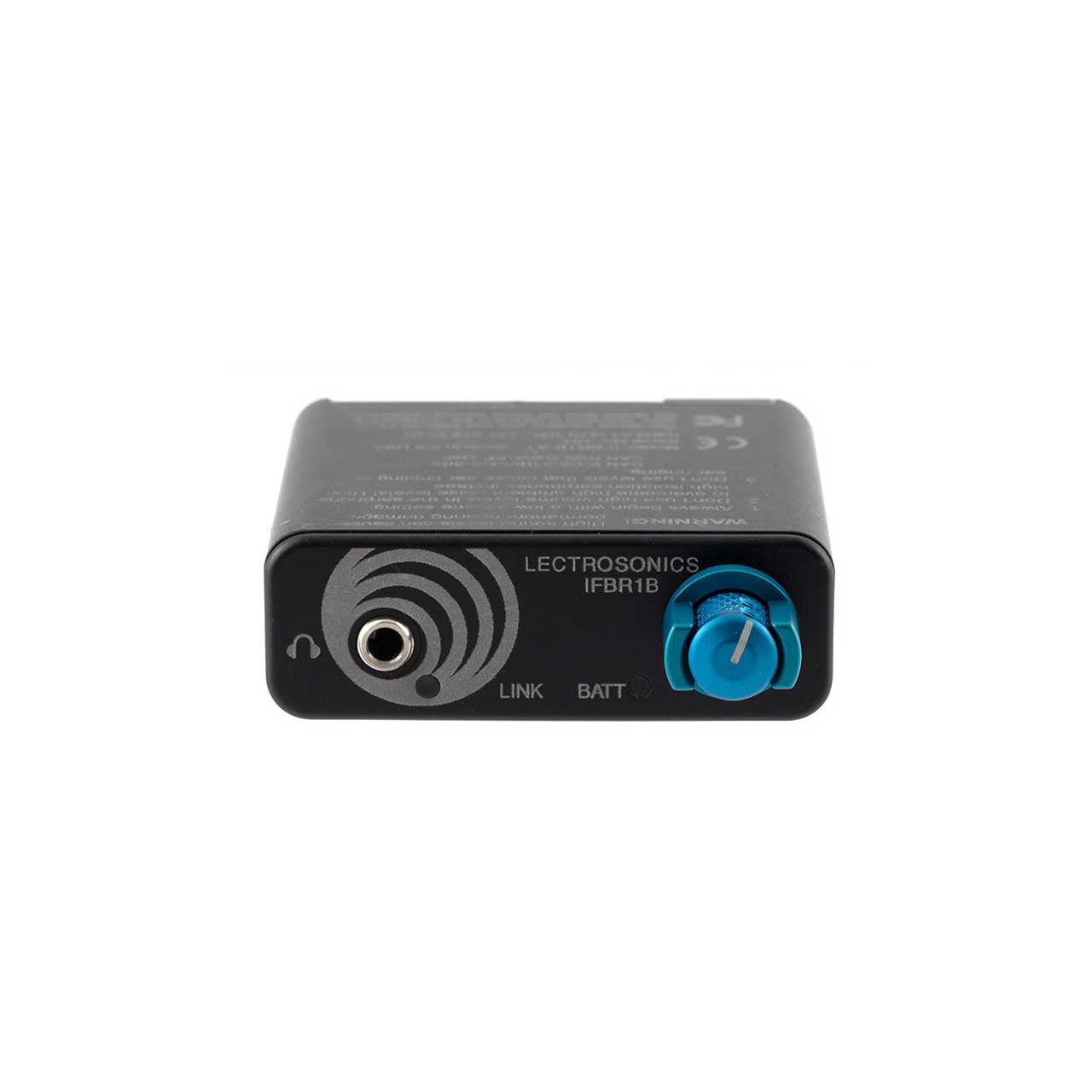

      • Top Panel Controls: Single knob controls Audio Output Level and Power On

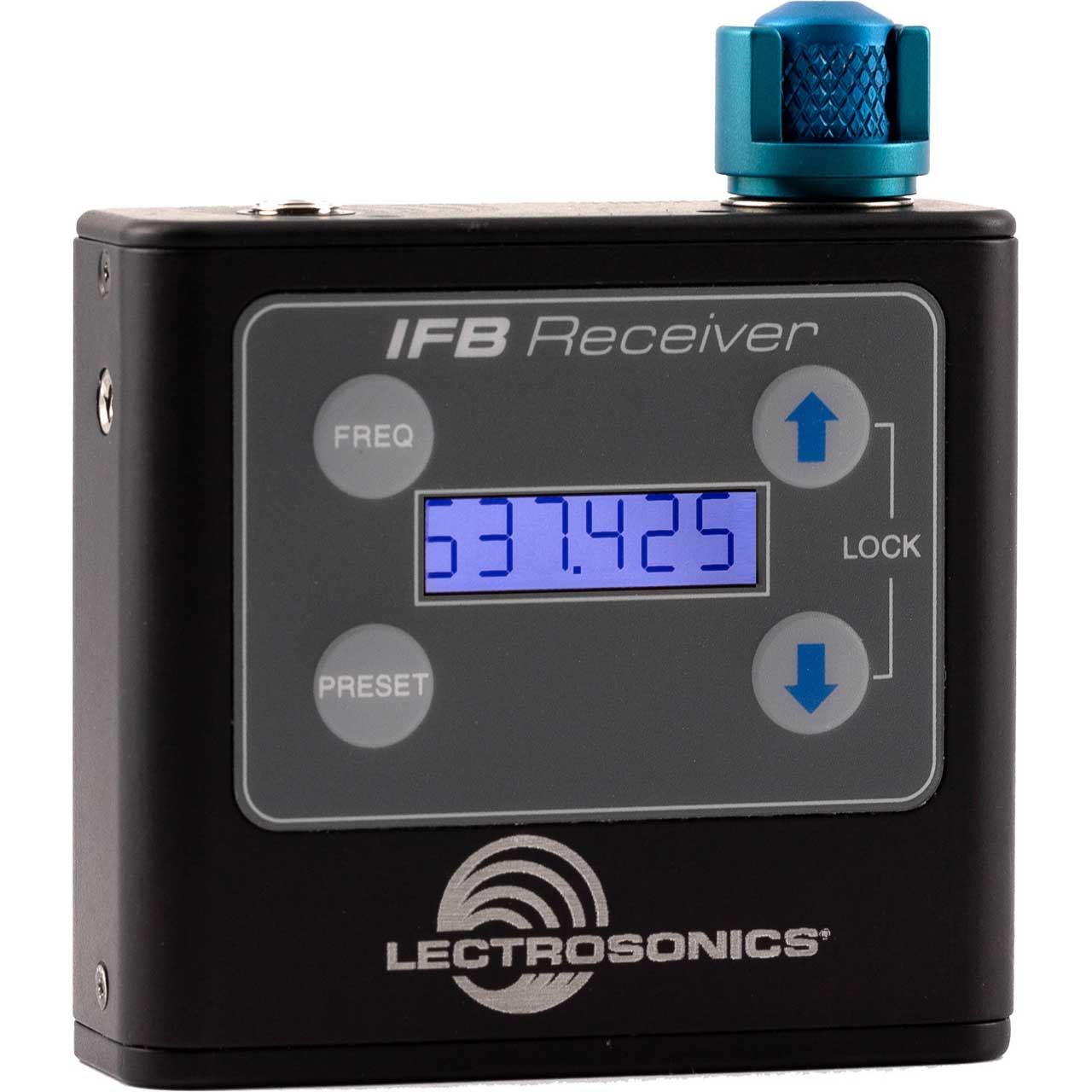

      • Side Panel Controls: Membrane switches with LCD interface for Frequency Selection and Preset function
      • Indicators: Multi-color LED indicator for power on and battery status
      • Battery: LB-50 Li-ion 3.6 V 1000 mAH
      • Battery Life: 8 hours per charge with LB-50 Li-ion battery
      • Current consumption: 120 mA
      • Weight: 3.4 oz (with battery and wire belt clip)
      • Size: 2.8 x 2.4 x 0.8 in. 71.1 x 70.0 x 20.3 mm

    • Item Includes:

      • 1x Lectrosonics IFBR1B-B1 UHF Multi-Frequency Belt-Pack IFB Receiver
