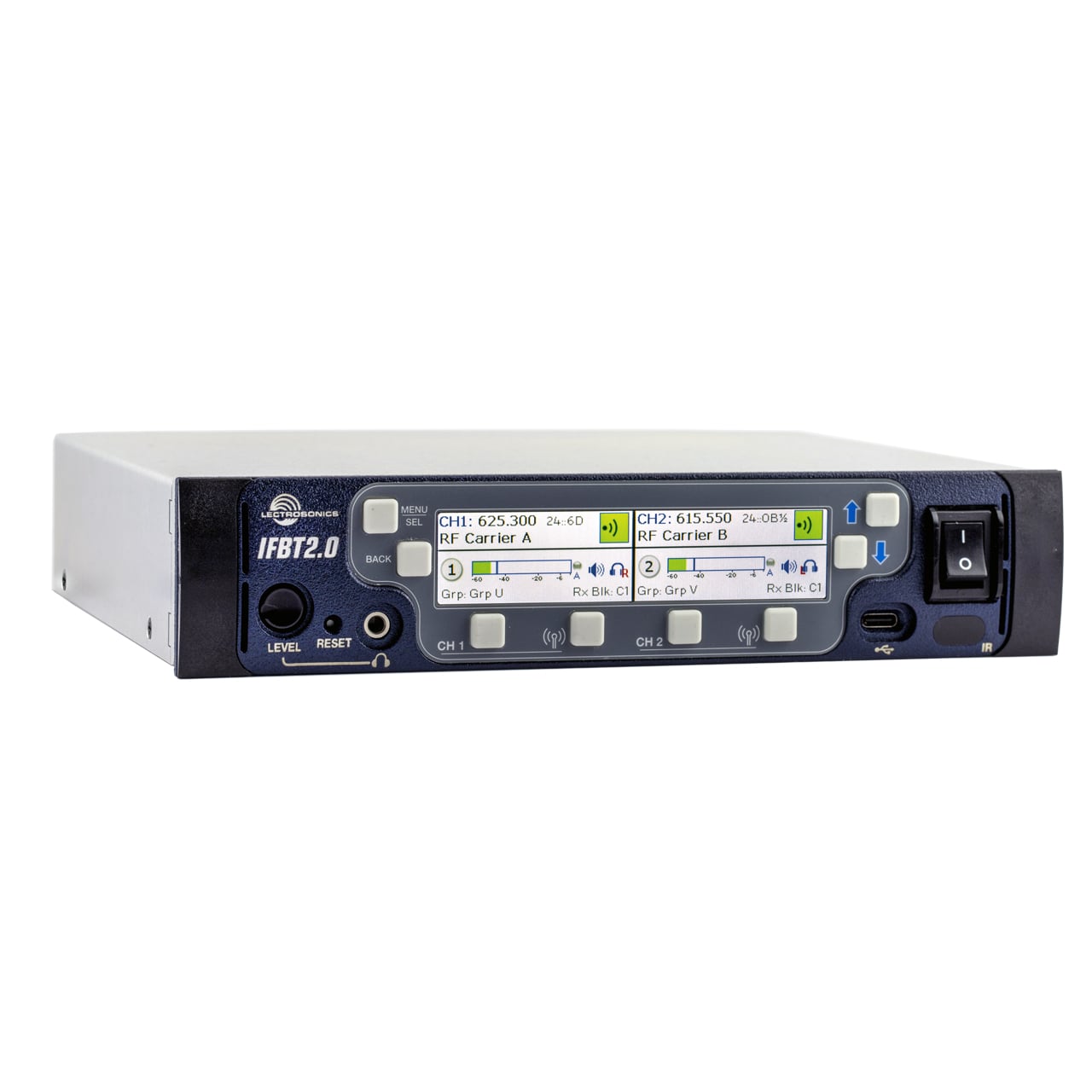

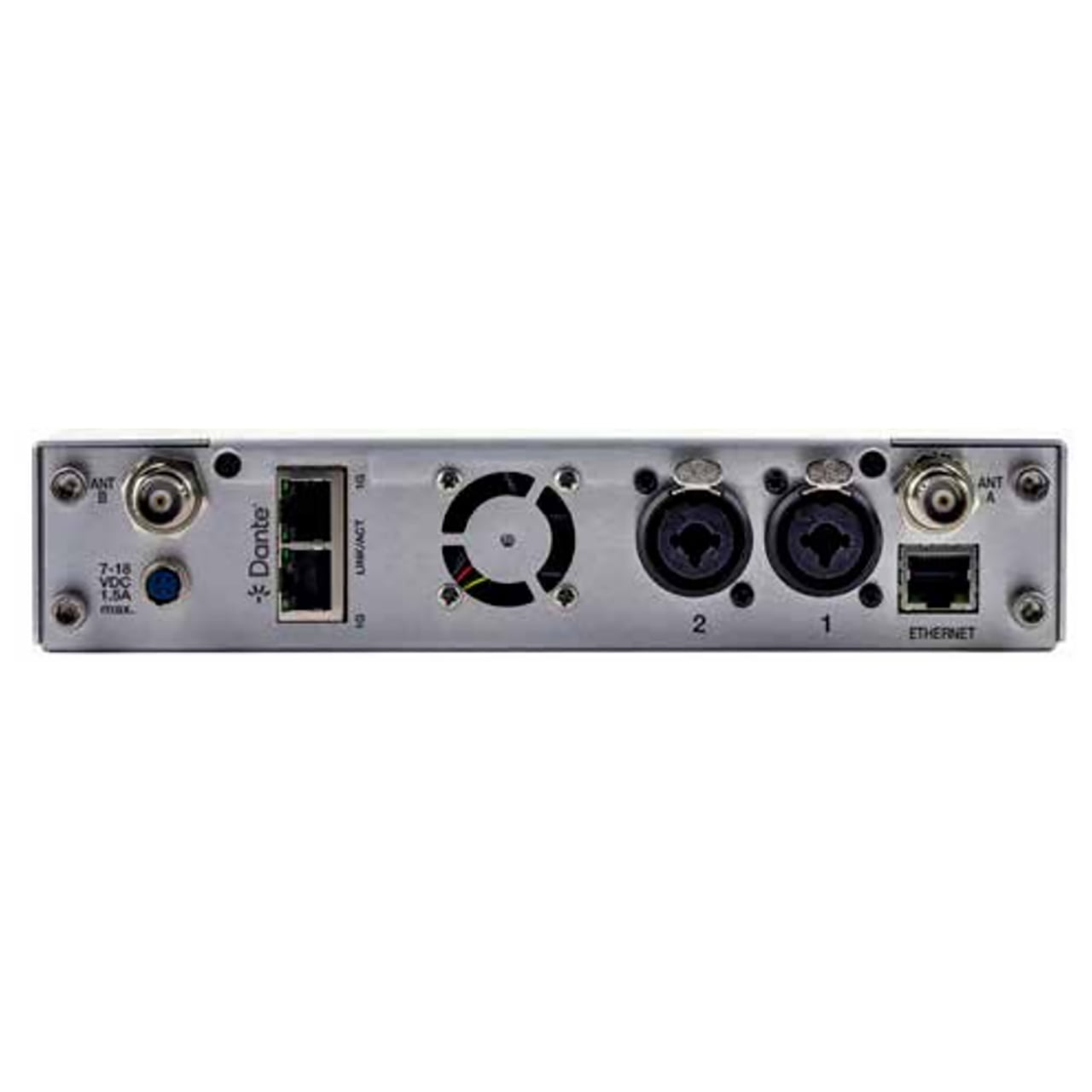

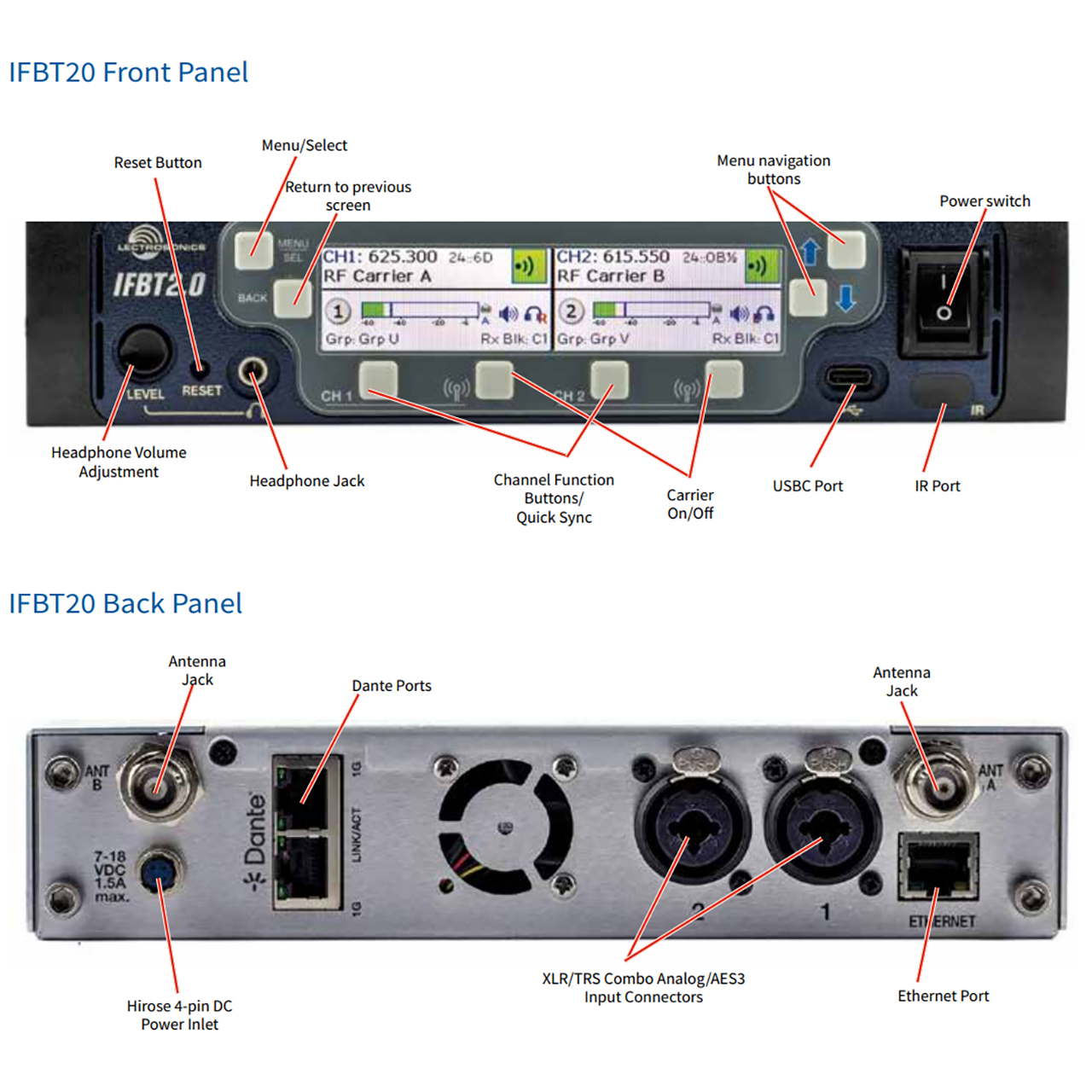

The Lectrosonics IFBT2.0 is designed with broadcast studios and location sound mixing carts in mind with a ½ rack, dual-channel transmitter, equaling the rack density of the older T4 units. The IFBT2.0 has enhanced, menu-selectable input connectivity including analog line and mic level, Dante™ and AES digital, Clear-com, and RTS. The inputs are compatible with "wet" signals, allowing for use with connections where DC is present on the audio lines. The new unit also includes USB-C and Ethernet connections for use with Wireless Designer software for system monitoring, frequency coordination, and setup.
The IFBT2.0 offers IFB and NU/EU Hybrid compatibility modes for use with all prior Lectrosonics IFB receivers including IFBR1, IFBR1A, IFBR1B, IFBR1C (IFBlue) units, along with any Hybrid receiver from Venue and Venue 2 to UCR411a, R400a, and LR, and any Digital receiver with Hybrid compatibility including DCR822, DSR, DSR4, M2Ra, and DSQD.
The Circulator/Isolator in the RF output on each channel acts as a one-way valve for RF, preventing external signals from entering the transmitters. This greatly reduces the generation intermodulation products, allowing for tighter frequency coordination, even with higher RF powers. The IFBT2.0 offers user selectable RF power settings at 10, 25, 50, 100, and 250mW (North American versions), and 10, 25, and 50mW (EU versions).
While designed for use as a primary IFB base-station transmitter for broadcast studios and film/TV sets, the IFBT2.0 is equally at home as an audio point-to-point audio transmitter with excellent audio fidelity using NU/EU Hybrid compat mode (flat from 40Hz - 20kHz, with no audio companding).
