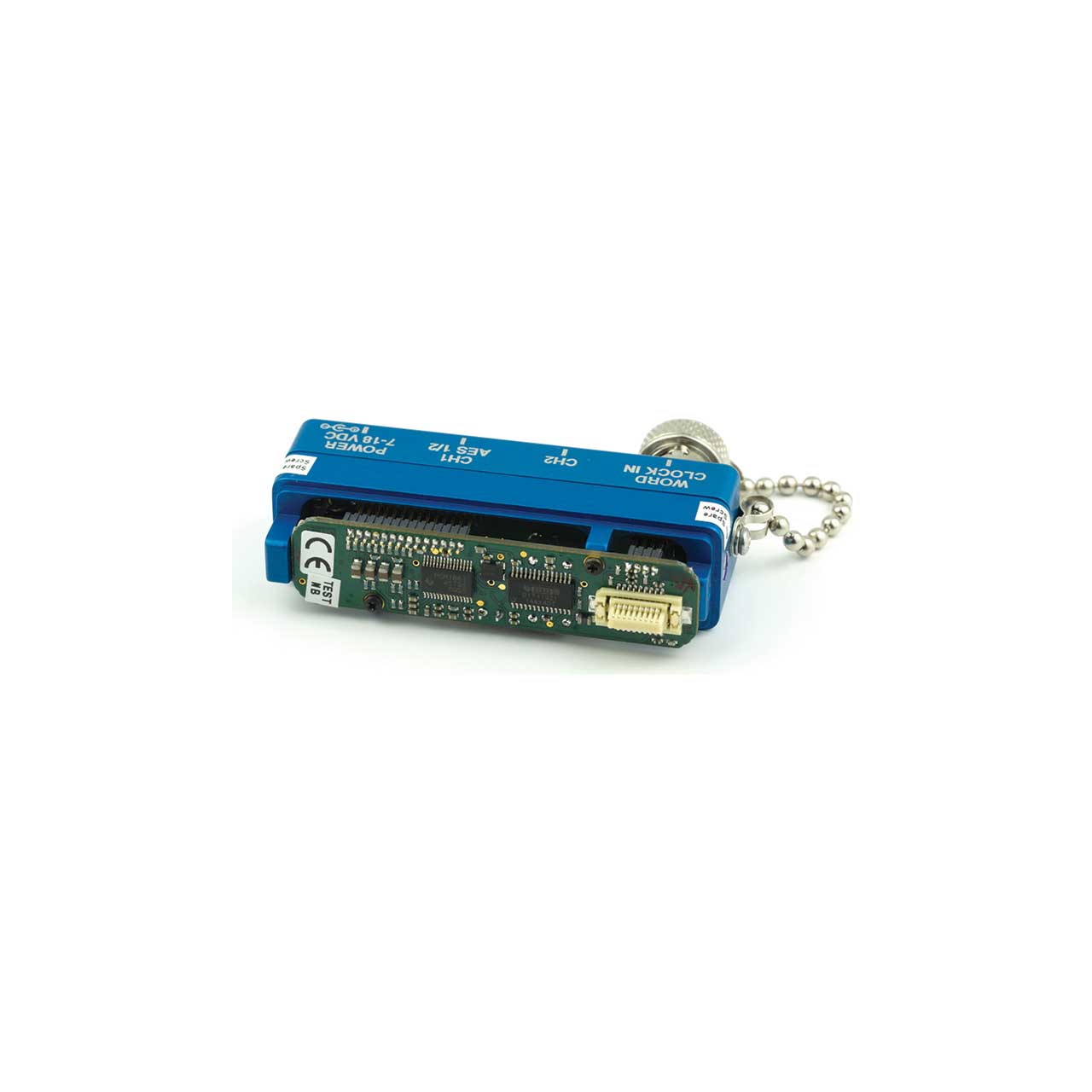

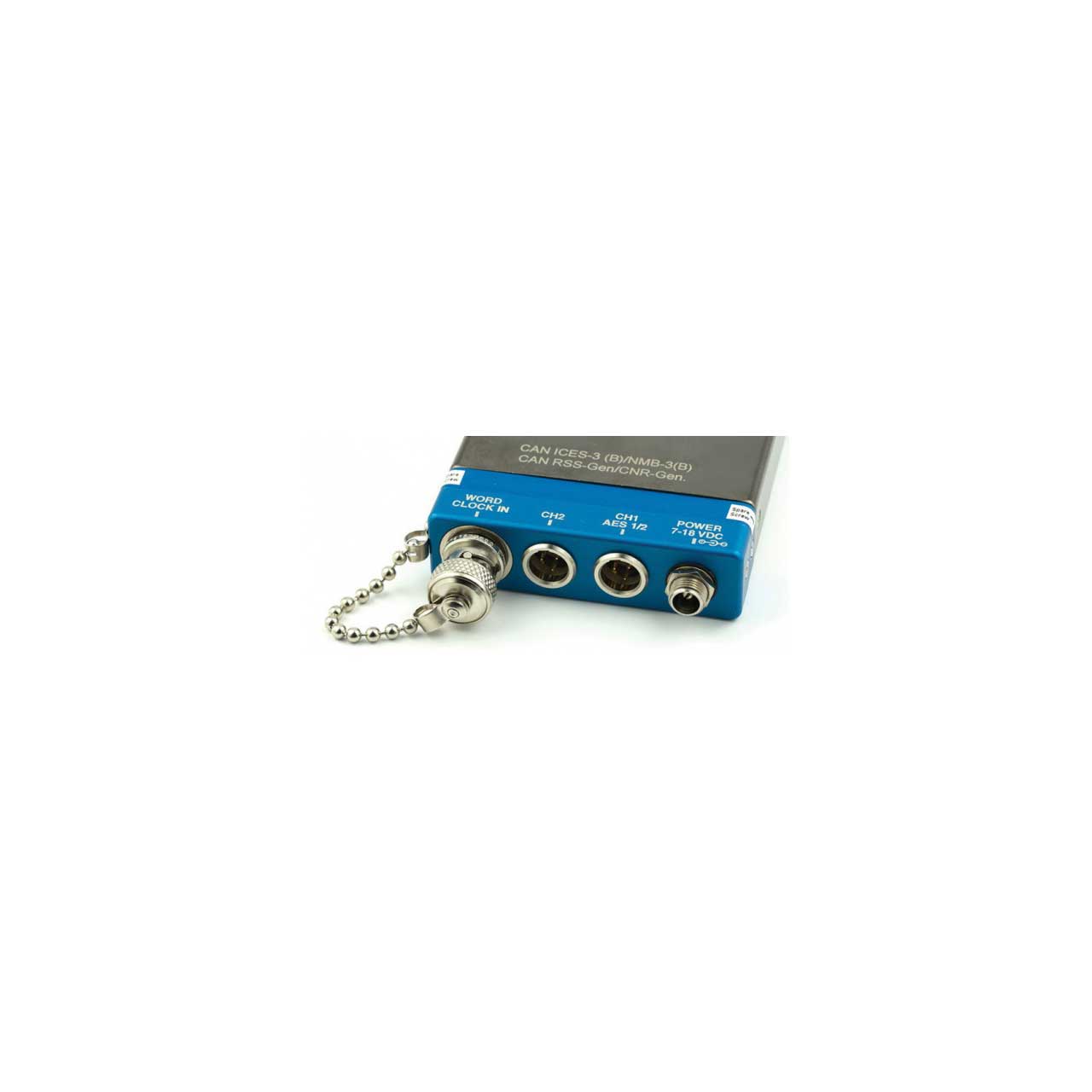

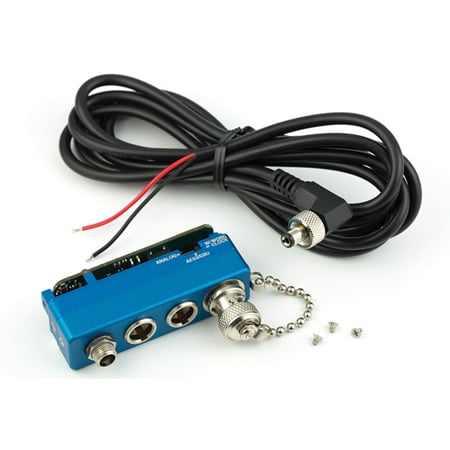

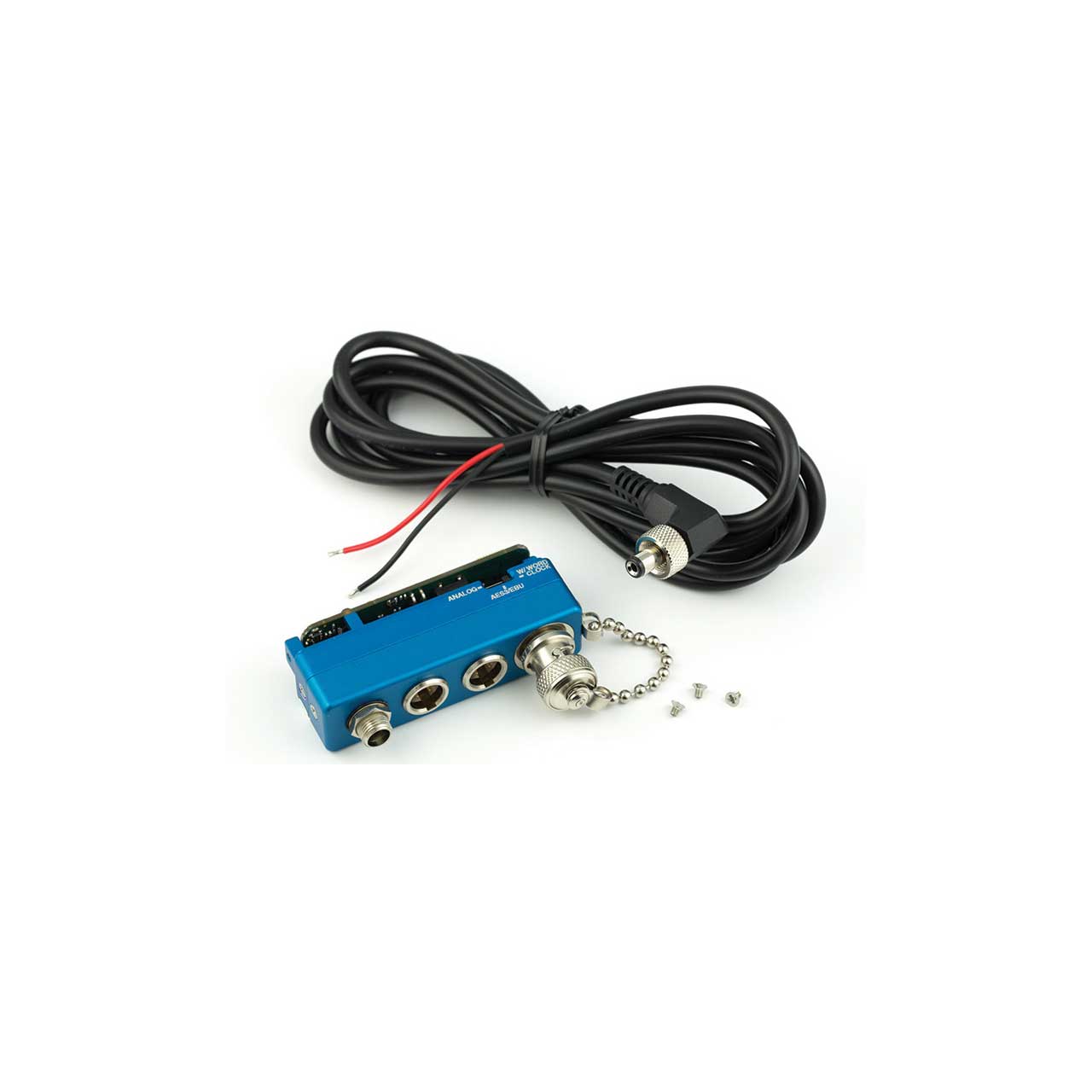

Lectrosonics SRAES3 SR End Plate Adapter with AES3 Outputs


  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:


Our Price:


Availability: Direct Ship from manufacturer, contact us for availability
iAvailability Description Popup

    SRAES3 - Overview

    The output of any SR Series receiver can be delivered in analog or digital audio formats using the Lectrosonics SRAES3 adapter. The unit will work with all receiver versions to provide audio in the following formats:

    - AES3 digital audio at 48 kHz sampling with an internal clock
    - AES3 digital audio with an external word clock at 44.1, 48 or 96 kHz sampling
    - Balanced analog audio from - 50 dBu to +5 dBu in 1 dB steps

    The standard multi-pin interface is the same on all SR Series receiver output adapters. The housing is machined from a solid aluminum billet for ruggedness.

    A 75 ohm termination of the word clock connection is applied by a jumper, installed by default at the factory.
