Lectrosonics WM-19 Water-Tight Transmitter 2 AA Variable RF Power with Mic - Block 19
  • Lectrosonics WM-19 Water-Tight Transmitter 2 AA Variable RF Power with Mic - Block 19
  • Lectrosonics WM-19 Water-Tight Transmitter 2 AA Variable RF Power with Mic - Block 19
  • Lectrosonics WM-19 Water-Tight Transmitter 2 AA Variable RF Power with Mic - Block 19
  • Lectrosonics WM-19 Water-Tight Transmitter 2 AA Variable RF Power with Mic - Block 19

Questions? Ask a Markertek Expert:
800-522-2025 Email

Lectrosonics WM-19 Water-Tight Transmitter 2 AA Variable RF Power with Mic - Block 19

Manufacturer: Lectrosonics

Item #: LEC-WM-19   •   MFG #: WM-19



List Price:$2,120.00
Our Price:$1,499.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

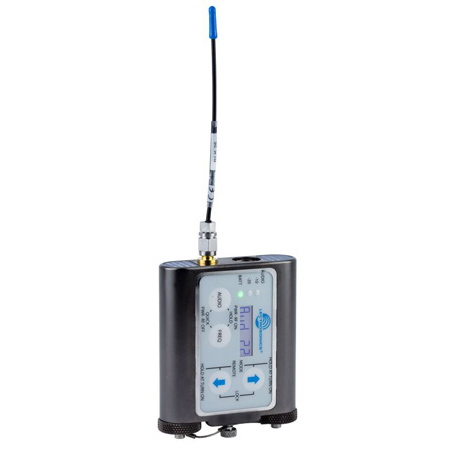

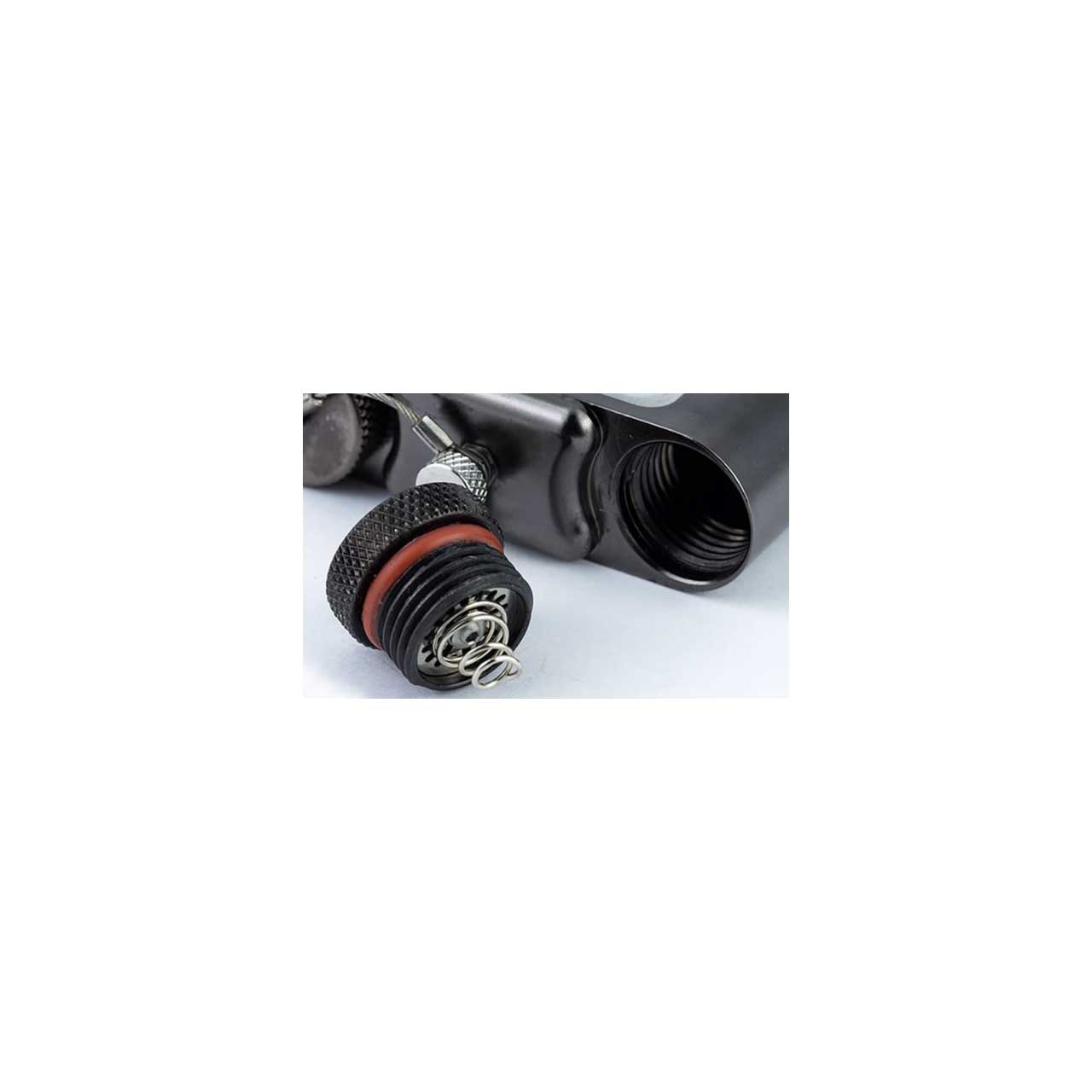

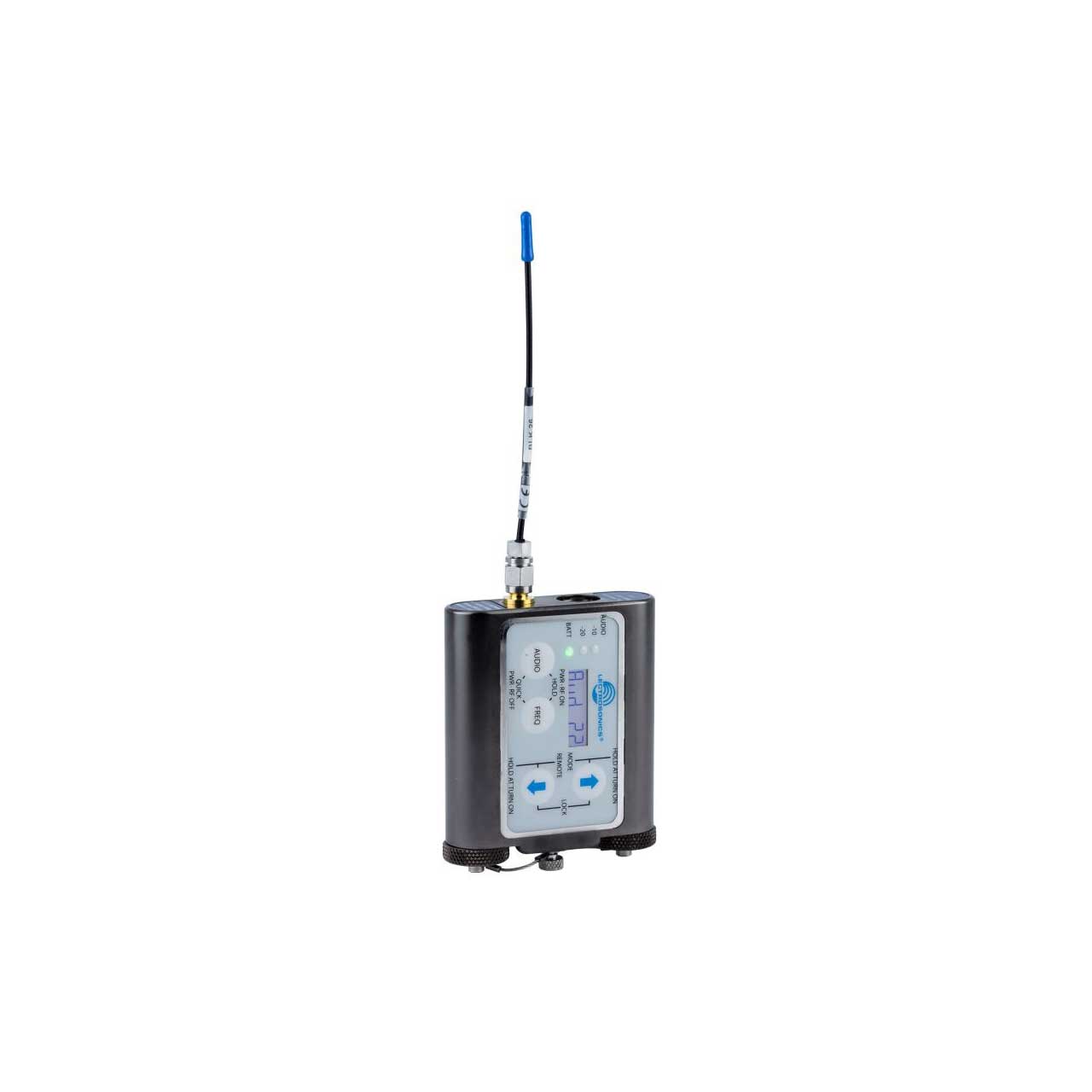

    The WM Block-19 transmitter is designed to resist damage when used in wet or dusty conditions and also offer a comprehensive feature set that makes it equally at home in film and television production and on stage. A solid machined aluminum housing with a corrosion resistant finish hosts dual battery compartments, a moisture sealed control panel with backlit LCD and enlarged membrane switches. Recessed seats for the O-rings in the battery caps and input jack allow the caps and mic connector to be tightened securely without excessive deformation of the O-rings.

    The antenna is made of an extremely durable, multistrand alloy that will withstand heavy abuse. It is mounted with a compression sealed strain relief that prevents dust and moisture from entering the housing. As the first stage in the signal processing chain, the input preamp section includes very high quality, low noise components with a wide range of gain adjustment in 1 dB increments and a DSP-controlled input limiter. Dual color LEDs on the control panel accurately indicate audio input level for precise gain adjustment. Easily accessed screens on the LCD simplify setup and adjustments.

    The DSP-based design works with all Digital Hybrid receivers, and is backward compatible for use with Lectrosonics 200 Series, 100 Series, IFB receivers and some other brands of analog wireless receivers.


    • Specifications

      • Operating Frequency: Block 19 - 486.400 - 511.900 MHz
      • Channel Spacing: 100 kHz
      • Frequency selection: Control panel mounted membrane switches
      • RF Power output: Switchable; 50, 100 or 250 mW
      • Compatibility Modes (6) Digital Hybrid Wireless (400 Series), 200 Series, 100 Series, Mode 3, Mode 6, IFB
      • Pilot tone: 25 to 32 kHz; 5 kHz deviation (in 400 Series Hybrid Mode)
      • Frequency stability: ± 0.002%
      • Deviation: ± 75 kHz max. (in 400 Series Mode)
      • Spurious radiation: 60 dB below carrier
      • Equivalent input noise: -125 dBV, A-weighted
      • Dynamic mic Input Level: 0.5 mV to 50 mV before limiting. Greater than 1 V with limiting.
      • Electret lavaliere mic Input Level: 1.7 uA to 170 uA before limiting. Greater than 5000 uA (5 mA) with limiting.
      • Line level input: 17 mV to 1.7 V before limiting. Greater than 5 V with limiting
      • Dynamic mic Input Impedance: 300 Ohms
      • Electret lavaliere Input Impedance: Input is virtual ground with servo adjusted constant current bias
      • Line level Input Impedance: > 2.7 k Ohms
      • Input limiter: Soft limiter, 30 dB range
      • Bias voltages: Selectable; 2V, 4V and Off
      • Gain control range: 44 dB; panel mounted membrane switches
      • Modulation indicators: Dual bicolor LEDs indicate modulation of -20, -10, 0, +10 dB referenced to full modulation

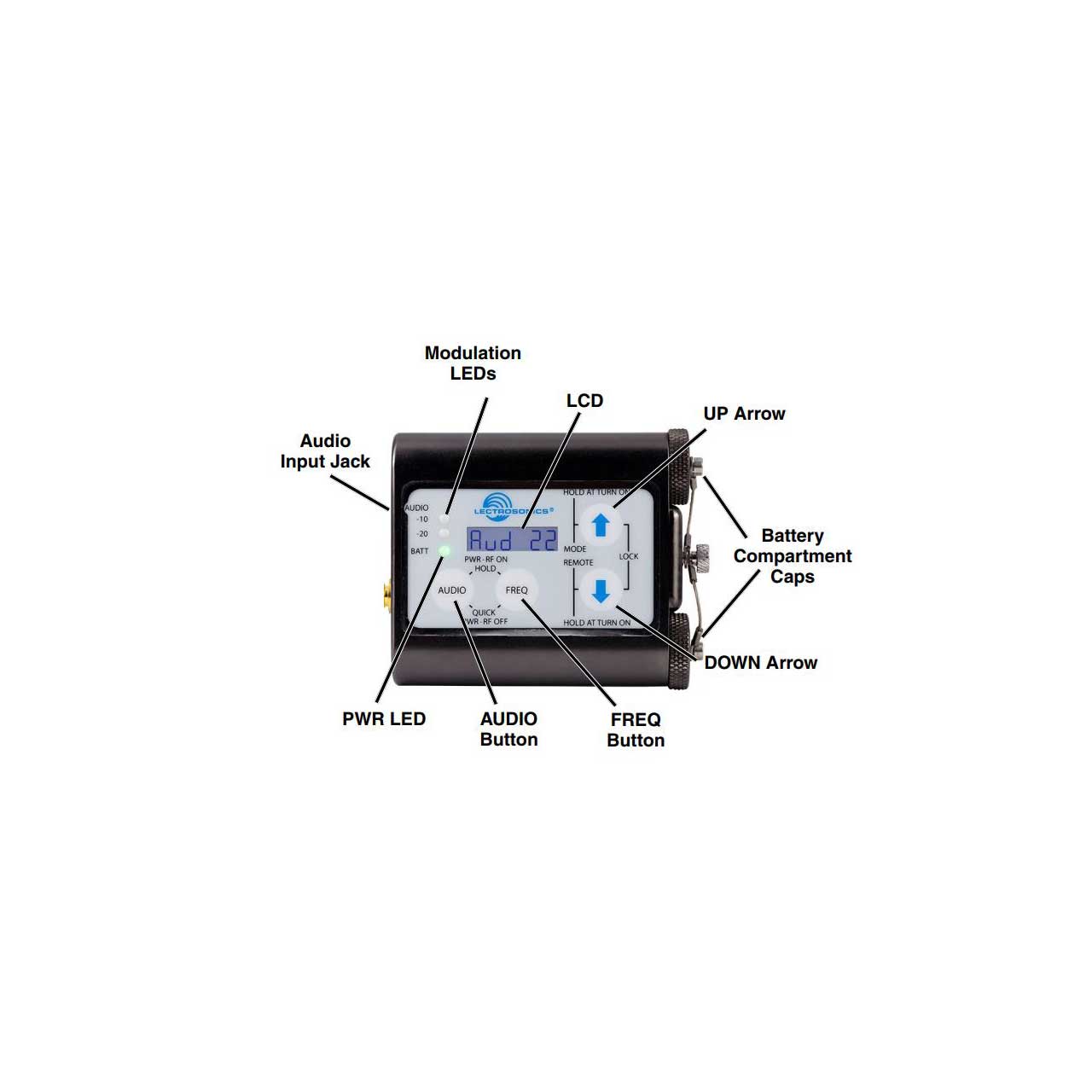

      • Controls: Control panel with LCD and four membrane switches
      • Low frequency roll-off: Adjustable from 35 to 150 Hz
      • Audio Frequency Response: 35 Hz to 20 kHz, +/-1 dB (Low frequency roll-off is adjustable)
      • Total Harmonic Distortion: 0.2% typical (400 Series mode)

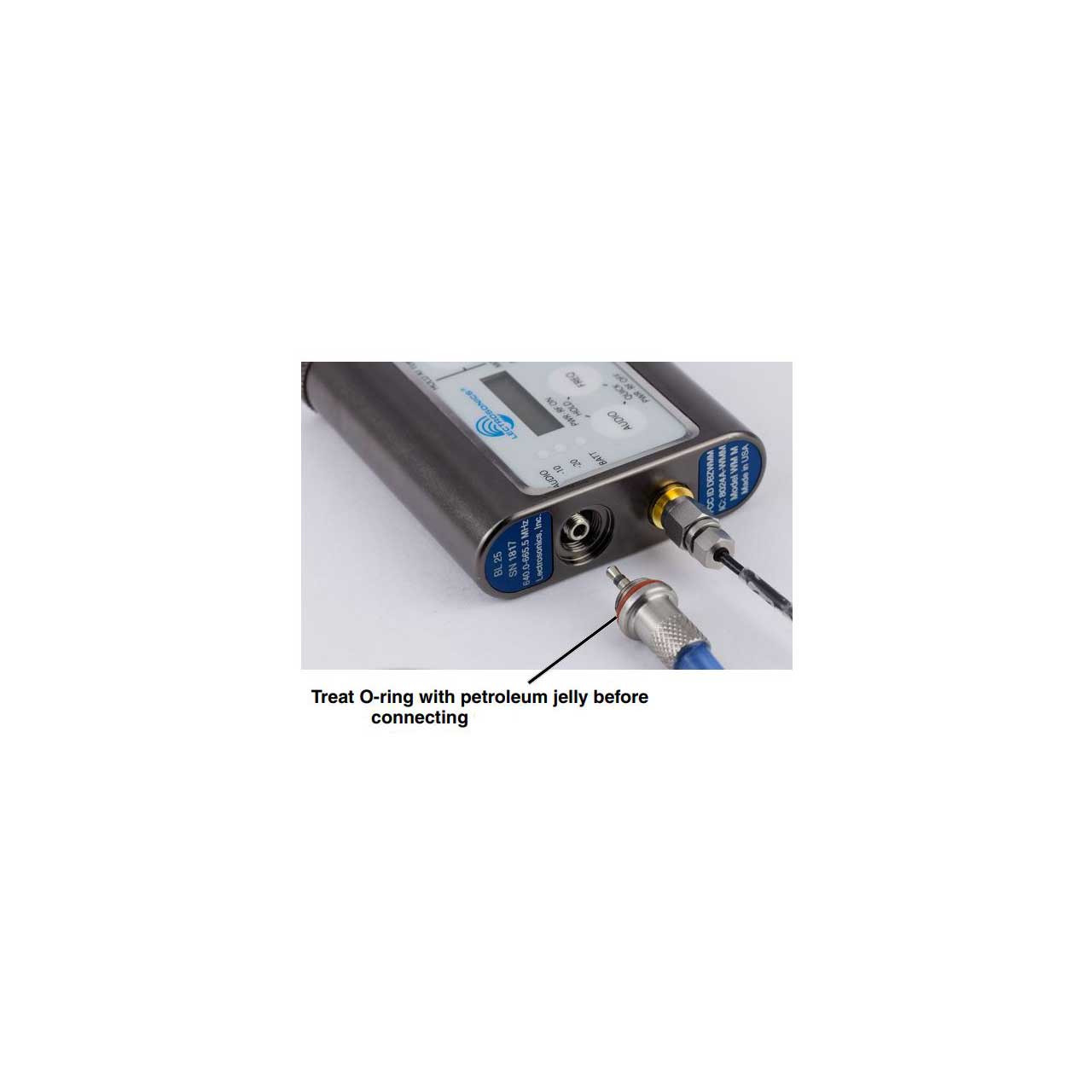

      • Audio Input Jack: 2.5 mm locking micro; threaded for stainless sleeve on WP connector
      • Antenna: Flexible, unbreakable steel cable
      • Batteries: 1.5 Volt AA lithium
      • Weight: 5.33 oz.. (151 grams) with lithium batteries
      • Housing Dimensions: 2.98 x 2.55 x 0.77 inches (including battery caps)
      • Emission Designator: 180KF3E
