DB100NP-AFF-S3 - Overview

PowerHOUSE Power Distribution Unit

100 Amp Pagoda to L21-20 Receptacles.100A 120/208 VAC, (1) Set of (5) 16 Series Cam-type, Single Pole Males (Inlets) to (5) NEMA L21-20 Locking Receptacles (Outlets), Pagoda.The PowerHOUSE line of Power Distribution Units (PDUs) meet stringent requirements for either indoor or outdoor site applications

Lex Products offers a full range of portable power distribution units including boxes, boards and panels, specifically engineered for indoor and outdoor use. Being that Lex Products is a leading North American manufacturer of innovative power distribution systems and lighting solutions for demanding markets including industrial, military and entertainment, all products are subjected to rigorous testing and designed to meet and exceed the strictest safety codes. Lex Products distribution boxes range from 20-800 Amps and are known for their unprecedented durability, safety and reliability. Whether you need a power distribution box for backup power, emergency relief or indoor/outdoor events, Lex Products has you covered.

Lex Products PowerHOUSE and PowerRack portable distribution boxes are cULus listed and ready to deliver fail-safe, convenient, long lasting products for the entertainment, industrial, and military industries that need durable and innovative power they can rely on.

Markets Served: Live Events, Convention Centers, Industrial

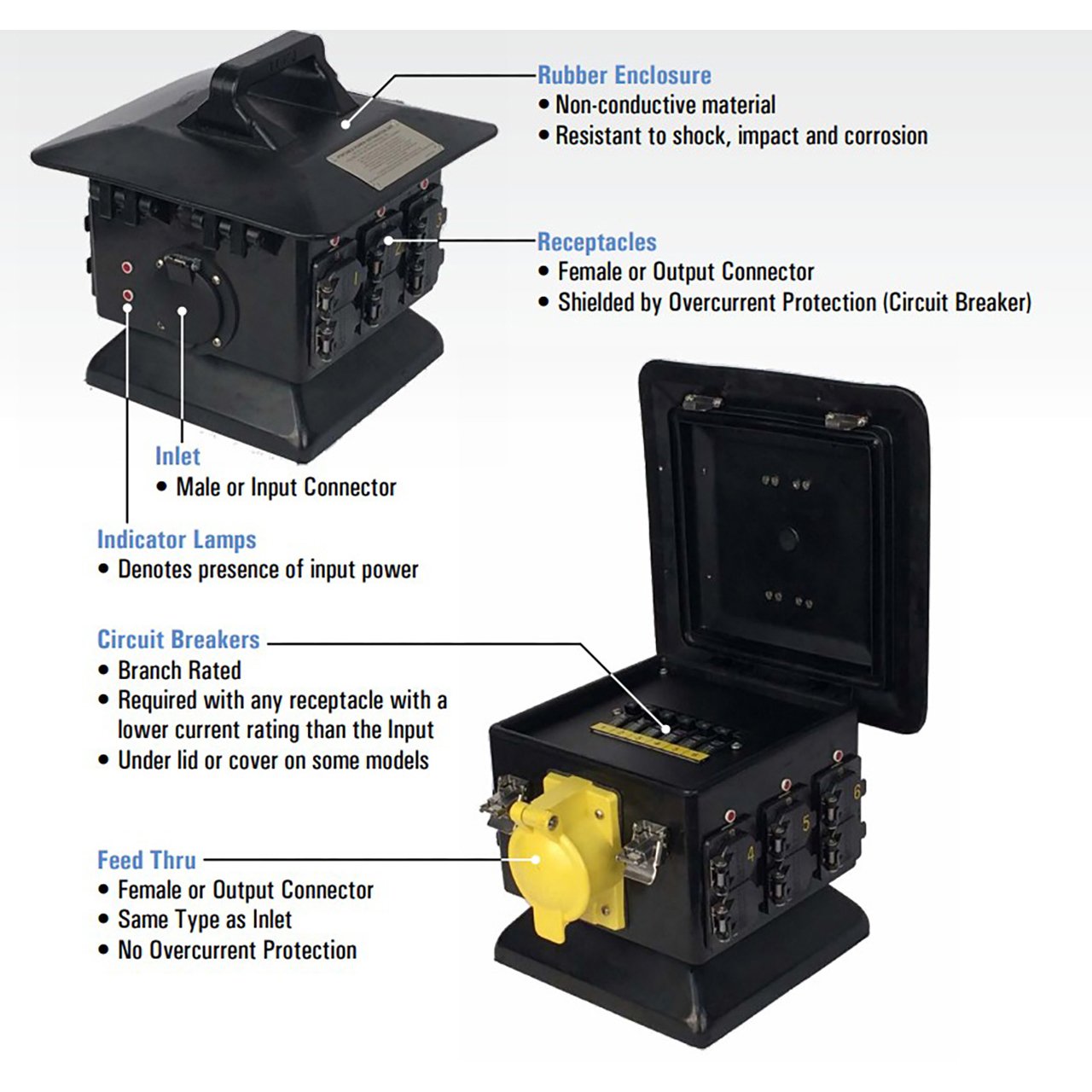

  • Features:

    • This box may be powered from a generator, a panel or a larger distribution box
    • This distribution box can be used at outdoor events to provide 20 Amp, 3-phase locking receptacle power
    • The locking receptacles help ensure positive connection and prevent disconnecting under load
    • The receptacles can be used to power lights, effects and audio equipment
    • Heavy duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion

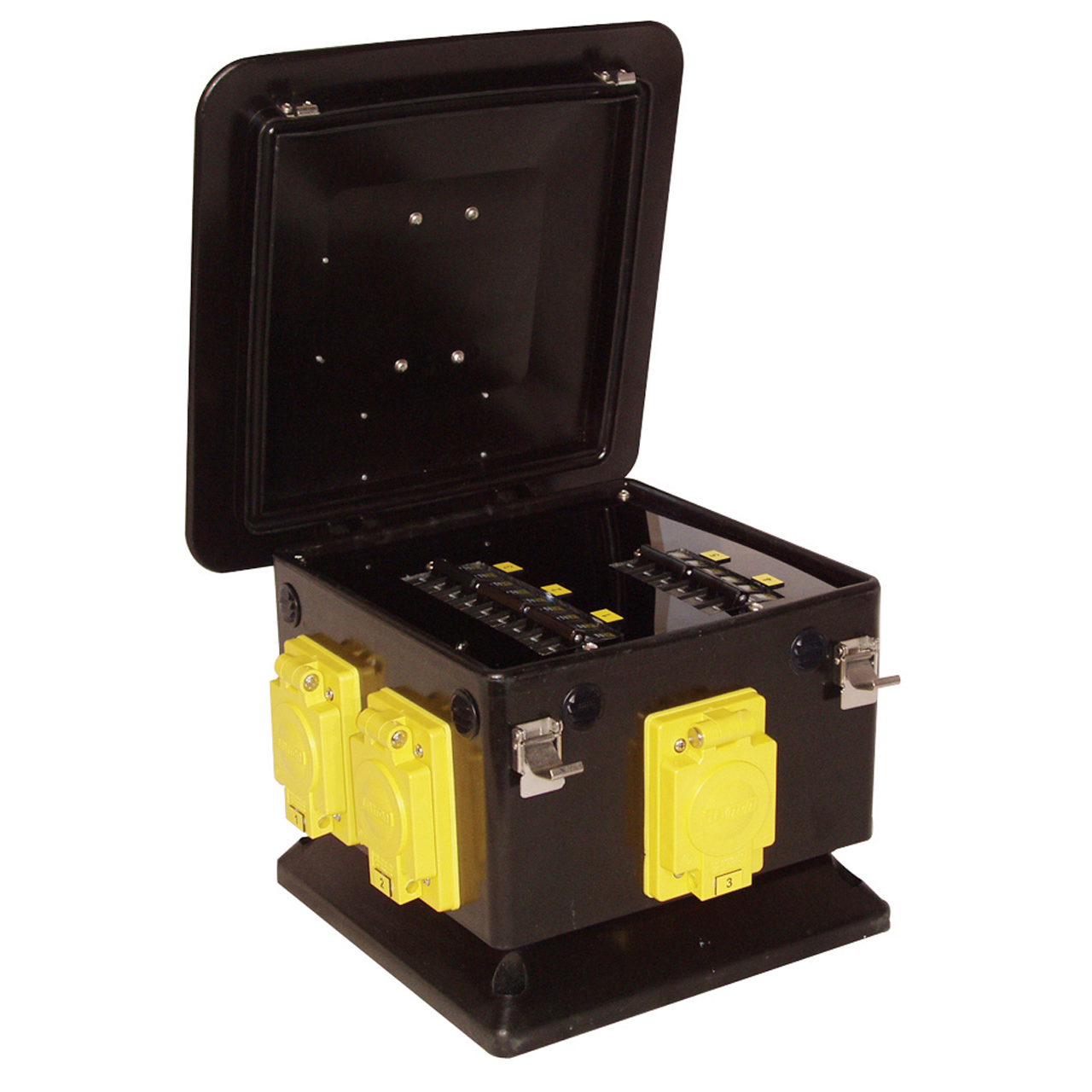

    • Circuit breakers are mounted under hinged lid for enhanced safety
    • Stackable and compact for easy storage and portability
    • Elevated base keeps receptacles above ground level


  • Specifications:

    • Rating: 100 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
    • Environmental Rating: NEMA 3R (Weather Resistant)

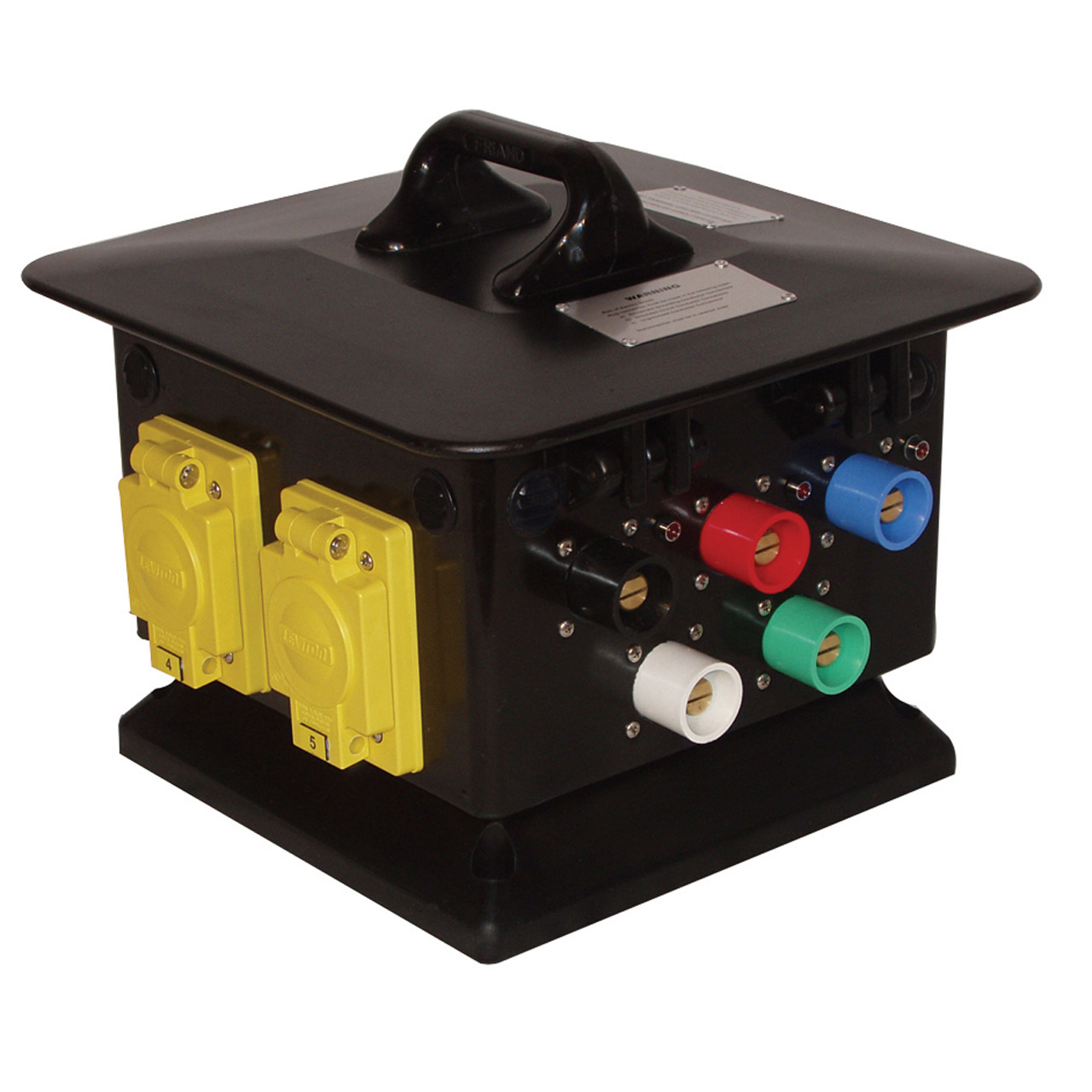

    • Input: (1) set of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, color-coded inlets, cover doors, panel mount
    • Feed Thru: None
    • Main Breaker: None
    • Output: (5) NEMA L21-20 , 20 Amp, 4-pole, 5-wire, 120/208Y VAC, locking receptacles, cover doors, panel mount
    • Overcurrent Protection: (5) 20 Amp, 120/208Y VAC, triple-pole, hydraulic magnetic, branch-rated circuit breakers
    • Enclosure Type: Pagoda
    • Dimensions: 14.25"L x 14.25"W x 14.15"H
    • Weight: 32.0 lbs
    • Agency Approval: cULus Listed
