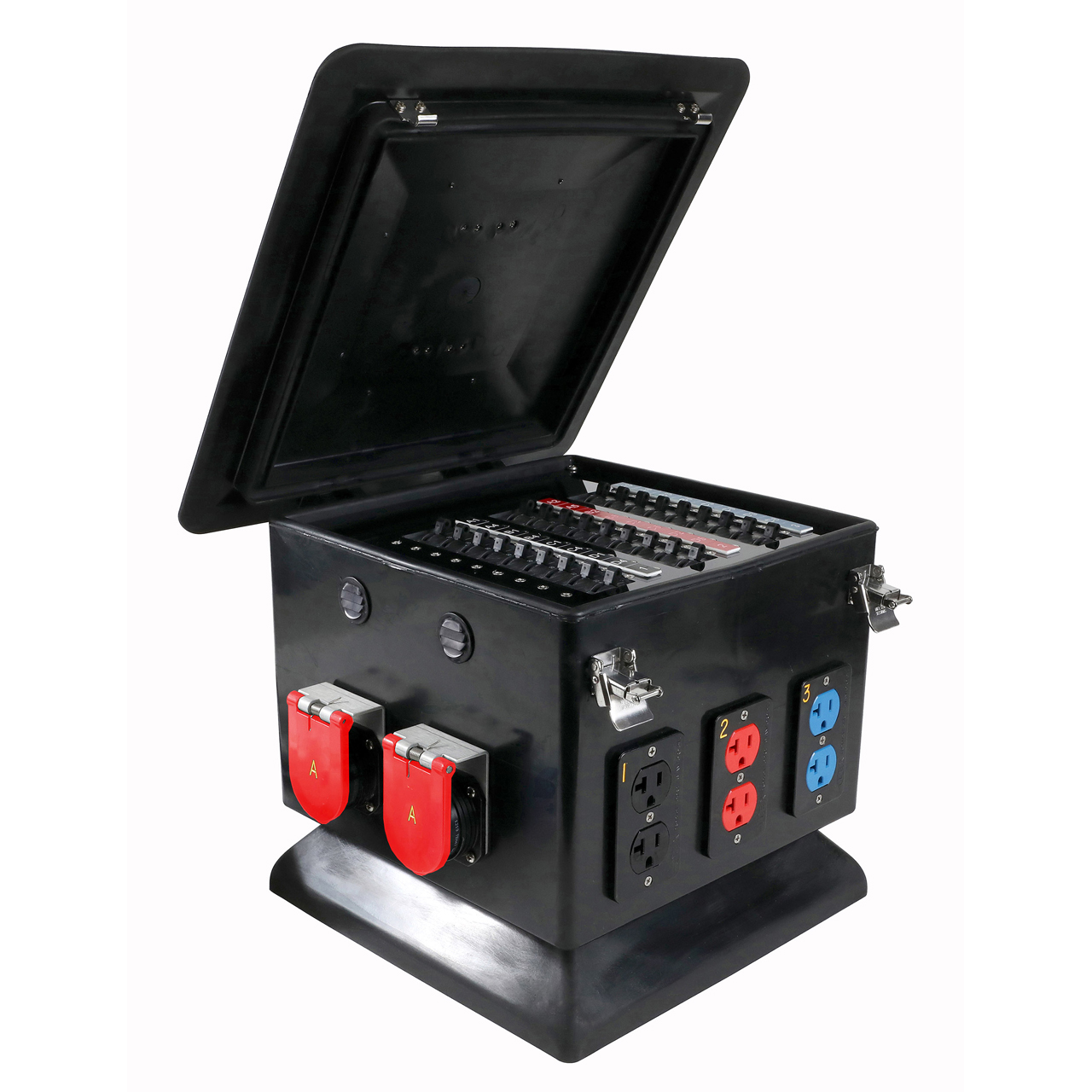

Lex PH180A1-N1J-24BF3CC 100A 120/208 VAC Video Box Power Pagoda

PH180A1-N1J-24BF3CC - Overview

• Features:

  • Fed from a panel or generator, this box provides overcurrent protected power for four multi-cable connections.
  • This box is typically used with multiple non-dimmed circuits. Provides four outputs for industry standard 6-circuit lighting multi-cable in addition to three duplex receptacles for convenience power.
  • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion.
  • Circuit breakers are mounted under hinged lid for enhanced protection
  • Stackable and compact for easy storage and convenient portability.
  • Elevated base keeps receptacles above ground level.
  • Reverse neutral and ground option helps prevent mis-mating for enhanced safety.


• Specifications:

  • Rating: 200A
  • Environmental Rating: NEMA Type 1 (Indoor Use)
  • Input: Set of 5x 16 Series Cam-type, 400 Amp, single pole, 600V, color-coded
  • Feed Thru: None
  • Output:
    - 4x LSC19 19-Pin, 20 Amp, 2-Pole, 3-Wire, 208 VAC receptacles, panel mount
    - 3x NEMA 5-20, 20 Amp, 2-Pole, 3-Wire, 125 VAC, duplex receptacle, panel mount
  • Overcurrent Protection:
    - 3x 20 Amp, 125 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers
    - 12x 20 Amp, 208 VAC, double pole, hydraulic magnetic, branch-rated circuit breakers
  • Enclosure Type: Pagoda
  • Dimensions (LxWxH): 14.25" x 14.25" x 14.15"
  • Weight: 39.0lbs
  • Agency Approval: cULus Listed
