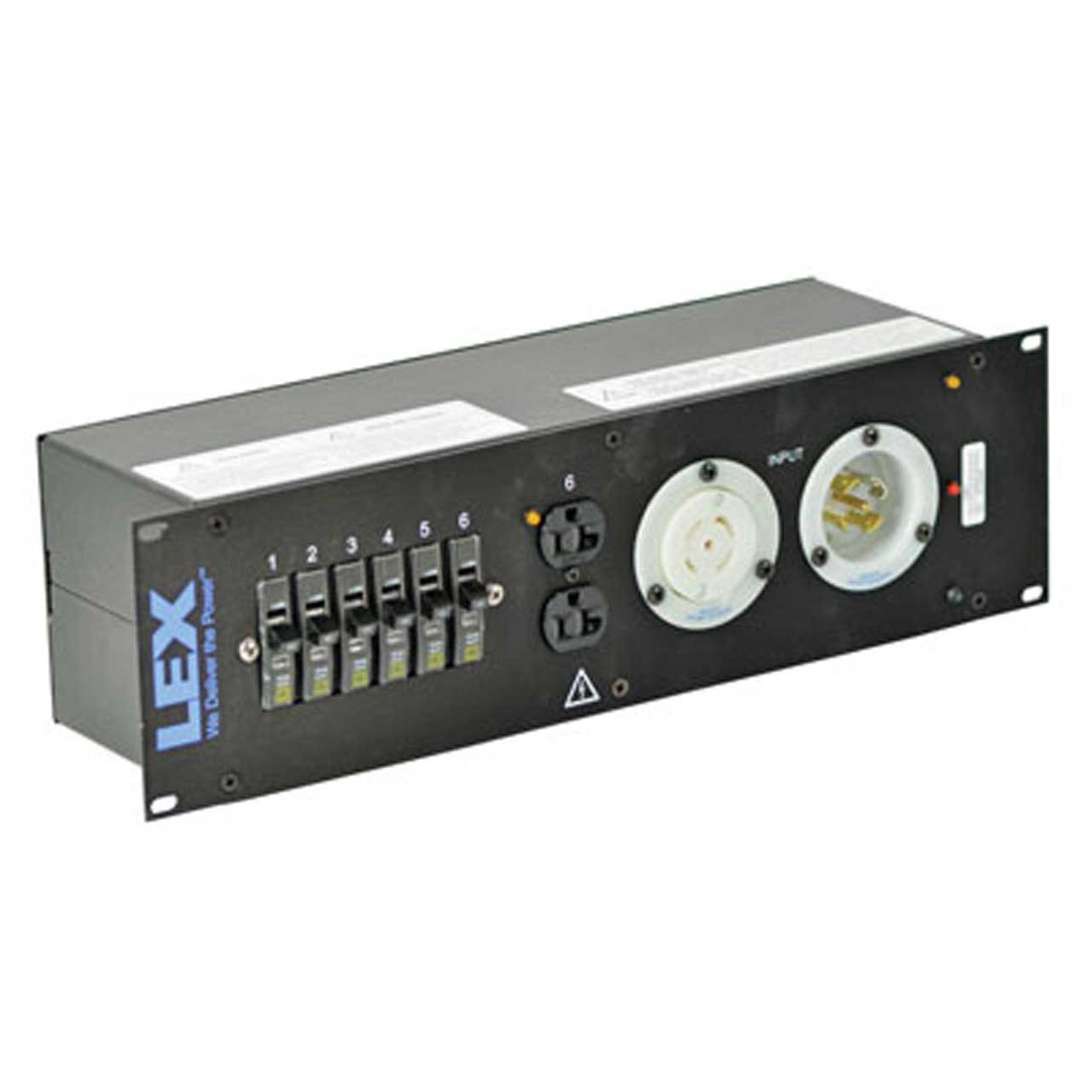

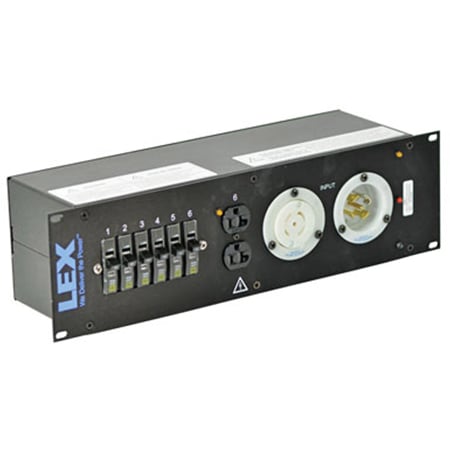

Lex PRM3IN-5CC2DC Rack Mount Power Distribution - 3RU - L21-30 In/Thru Front - (2) L5-30 Locking Receptacles Rear

PRM3IN-5CC2D - Overview

• Features:

  • Modules mount in standard 19" permanent and rolling racks
  • Modules are fully enclosed making them portable
  • Easy to install for range of needs
  • Branch-rated circuit protection
  • Indicator lights included for clear presence of power
  • Laser etched numbers for easy circuit identification
  • Anodized black metal construction is lightweight and durable to withstand years of use


• Specifications:

  • Rating: 30 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
  • Environmental Rating: NEMA Type 1 (Indoor Use)
  • Input: 1x NEMA L21-30, 30 Amp, 4-pole, 5-wire, 120/208Y VAC, locking inlet, panel mount
  • Feed Thru: Yes
  • Main Breaker: None
  • Output: 2x NEMA L5-30, 30 Amp, 2-Pole, 3-Wire, 125 VAC, locking receptacles, panel mount; 5x NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount
  • Overcurrent Protection: 2x 30 Amp, 125 VAC, single-pole, thermal magnetic, branch-rated circuit breakers; 4x 20 Amp, 125 VAC, single-pole, thermal magnetic, branch-rated circuit breakers
  • Enclosure Type: Rack Mount Box
  • Dimensions: 5.25"L x 19.00"W x 5.25"H
  • Weight: 12.0 lbs
  • Agency Approval: cETLus Listed
