Lightronics AE4020 Unity Architectural Dimmer Expander Module
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

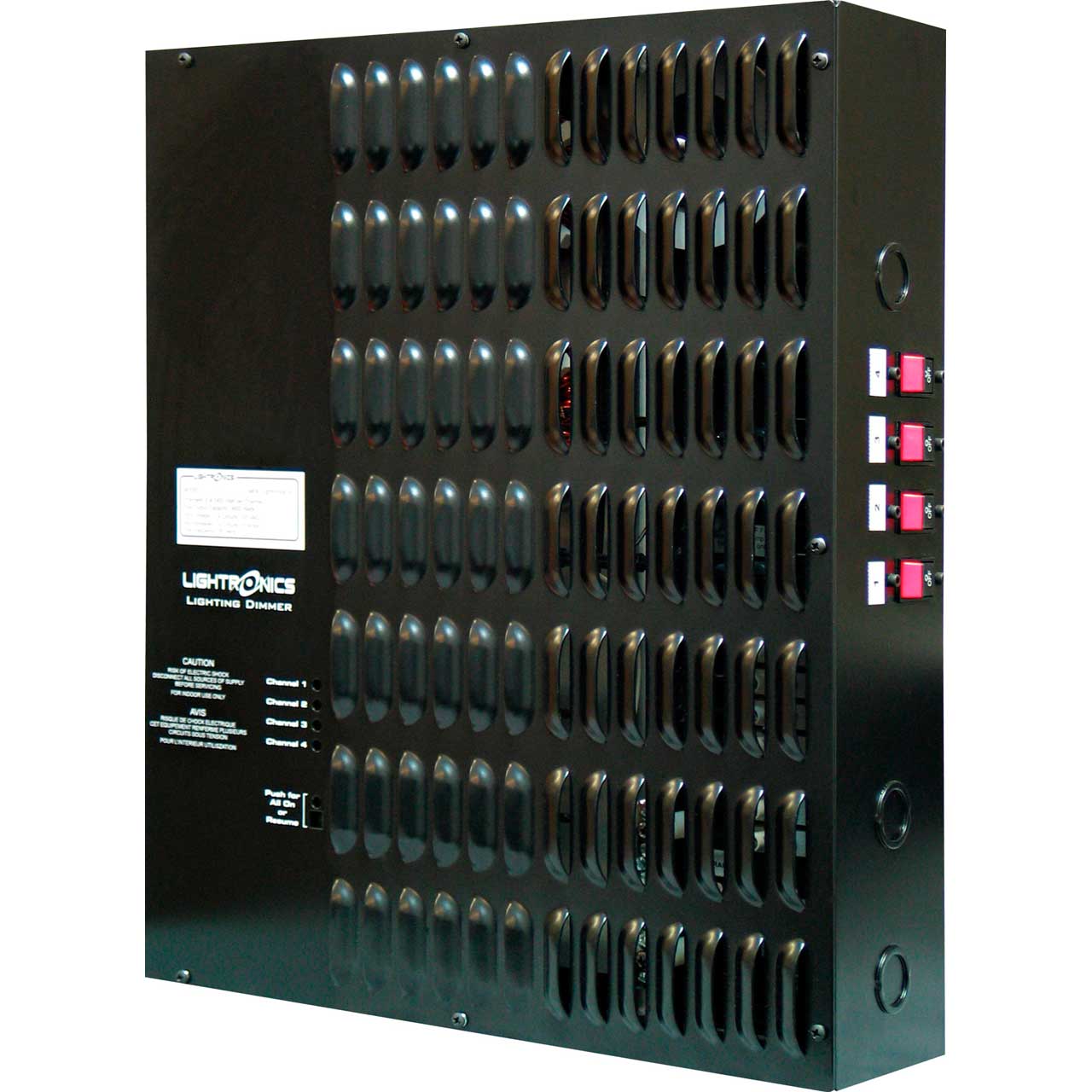

    Lightronics AE4020 Unity Architectural Dimmer Expander Module

    Manufacturer: Lightronics

    Item #: LGT-AE4020   •   MFG #: AE4020


    List Price:$1,295.00
    Our Price:$971.25

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    Flexible, powerful, and affordable, this easy to install and use architectural system is equally at home in churches, schools, theaters, hotels, etc.

    The AE4020 is a four channel add on product for the AR1202 Unity Architectural dimmer. It provides control for incandescent lighting fixtures and 2 wire dimmable fluorescent lighting ballasts. The AE4020 provides four 2400 Watt channels of dimmed 120VAC. It is controlled by a interface with the AR1202 control circuitry. The AR1202 uses its four auxiliary channels (13 – 16 ) to control the AE4020.

    • Features

      • 4 Dimmable Circuits
      • Operation Integrated with AR1202
      • Zero Crossing Solid State Switching
      • AR1202 / AR602 Interface Cable Provided
      • Unit can be supplied as a 2 Channel Expander Module AE2020
    • Specifications

      • Circuits/Capacity: 4 at 2400 Watts each
      • Power Input: 4 Hots of 120VAC, 20 Amps each + Neutral and Ground
      • Circuit Breakers: 20 Amp Fast Acting Magnetic
      • Cooling: Integral Heat Sink
      • Control Wiring: 12’ Harness provided
      • Control Sources: Pulse Width Modulated Signals from AR-1202RTC
      • Output Signal: 4 circuits of dimmed 120VAC, 20 Amps
      • Size: 18.5”H x 15”W x 4”D
      • Weight: 10 Pounds
