    TL4008-DMX01 - Overview

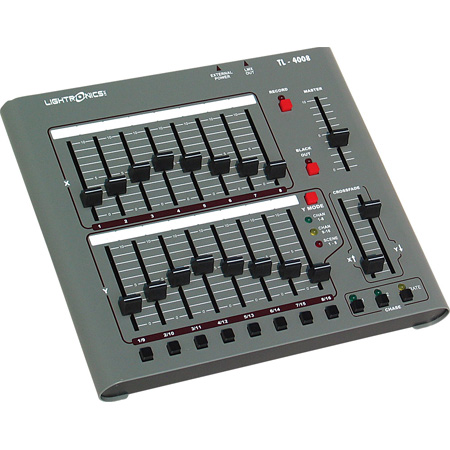

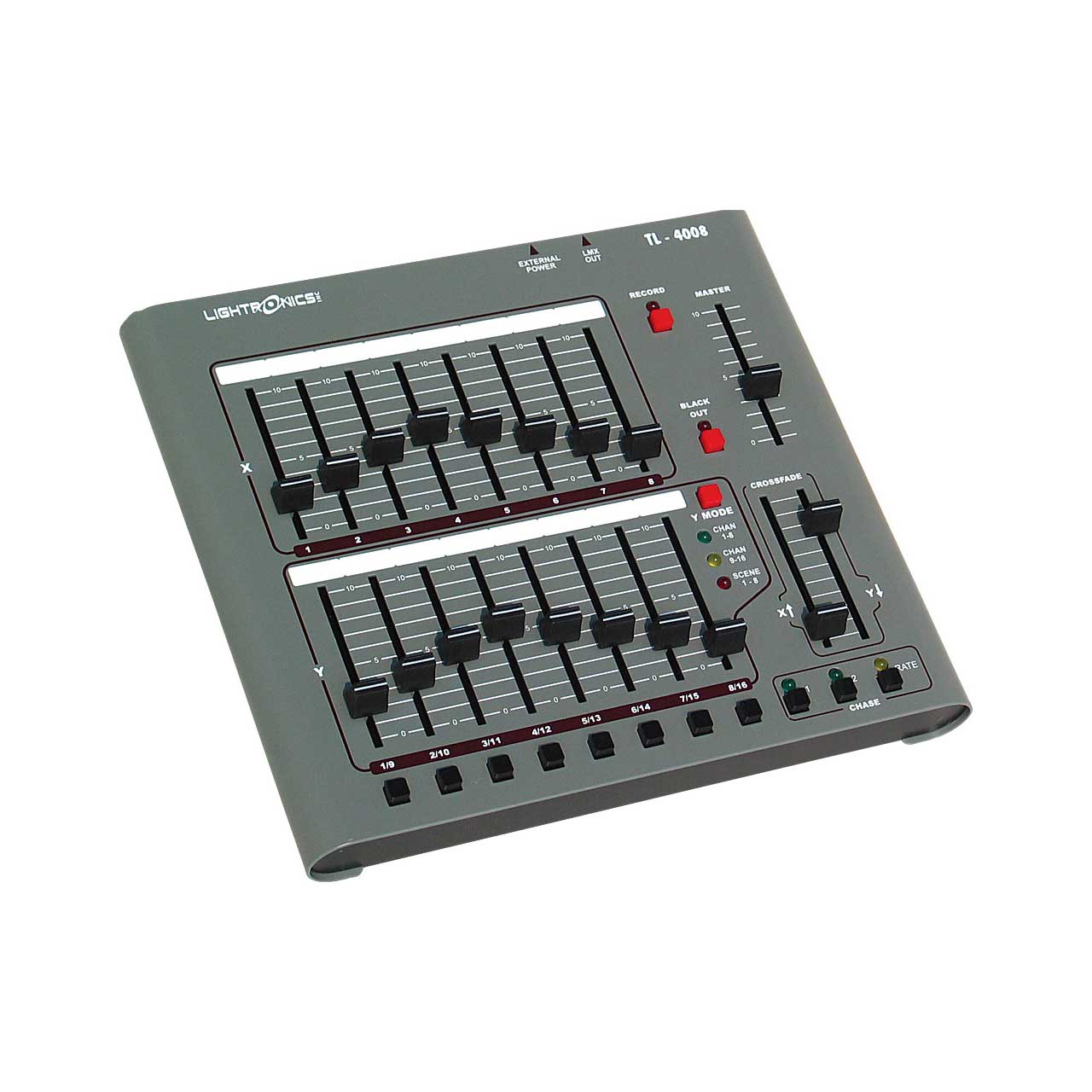

    The TL-4008 is a portable, compact, digital lighting controller. It provides 16 channels of industry standard multiplex control on a 3 wire cable. It can provide USITT DMX-512 as an option. The unit operates in one of three basic modes which enables you to have 2 manual 8 channel scenes, one manual 16 channel scene, or one 8 channel manual plus 8 preset programmable scenes. Split crossfader control enables full fade versatility. Momentary (bump) buttons enable instant channel turn on. The two 40 step chases are user programmable and can be run together to create complex patterns.Version LGT-TL4008-DMX01 availble using pull-down menu above.

    Other features include a master fader, blackout function, and control of the chase rate.

    • Features:

      • LED Compatible
      • 16 Channels
      • 8 Scenes
      • 2 Programmable Chases
      • LMX-128 Protocol
      • Optional DMX-512
      • Optional Wireless DMX (stand alone)
    • Specifications:

      • Channels: 16 or 8
      • Chase: 12 Programmable, 40 Steps each, Steps will Store Scenes
      • Operating Modes: 8 Channels x 2 Scenes, 16 Channels x 1 Scene, 8 Channels + 8 Preset Scenes
      • Memory: Non Volatile - Scenes and Chases Retained when Unit Powered Off
      • Scenes: 8 Scenes, 16 Channels each
      • Control Protocol: LMX-128 (3 pin multiplex), DMX-512 Optional
      • Power Requirements: Phantom Power: 18VAC or +15VDC, 400ma, External Power: 13 - 25VAC or VDC, 400ma
      • Size: 10.25"W x 9.25"D x 2.5"H
      • Weight: 4.3 Pounds
