Lightonics SR516D Desktop Architectural Controller

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

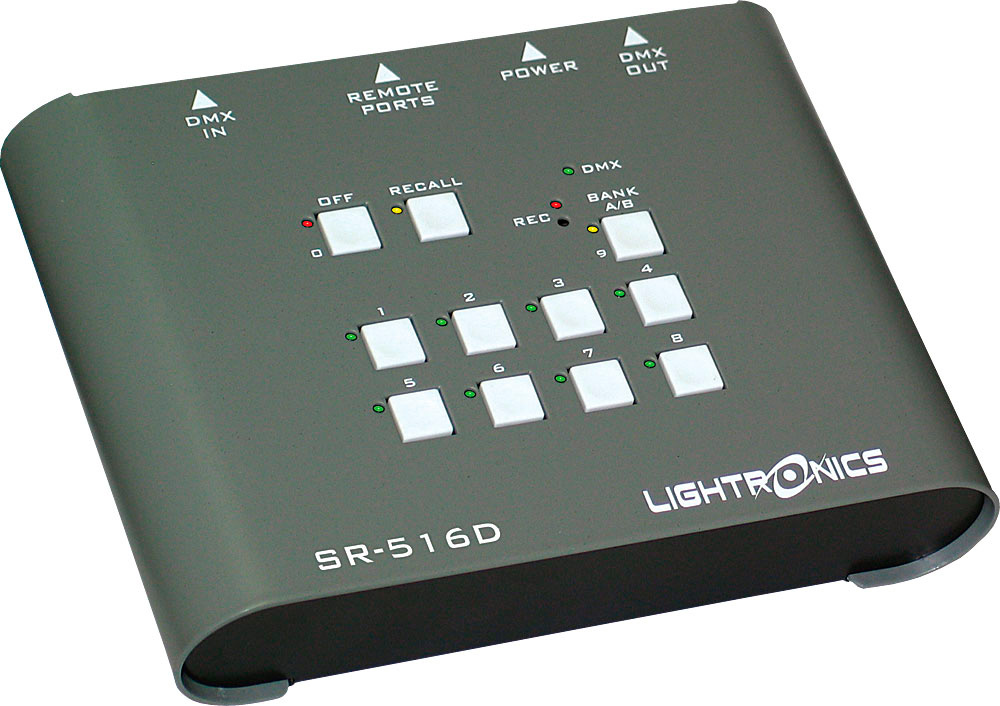

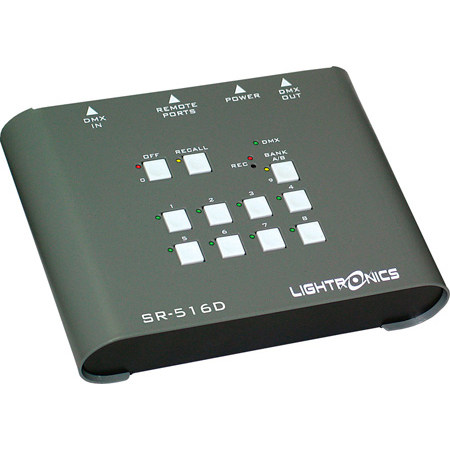

    Lightonics SR516D Desktop Architectural Controller

    Manufacturer: Lightronics

    Item #: LGT-SR516D   •   MFG #: SR516D



    List Price:$999.00
    Our Price:$749.25

    free ship


    Availability:
    Direct Ship from manufacturer, contact us for availability
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      With our NEW inexpensive SR516 Unity Architectural Controller, adding Remote Wall Station Control to your existing DMX Dimming System has never been easier. The SR516 provides control of your house and stage lights from multiple locations. Additional SR516 features include: Show Mode Station Lockout via DMX, Emergency Bypass Relay, Retain previous Scenes from Power Off, Non-volatile Scene Memory, Mutually Exclusive Scene Grouping, Last Scene Recall, Record from Live DMX, 3 Configurable Contact Closures, 2 Gang Wall Box Installation.


      • Features

        • DMX-512 Pile-On Operation
        • 16 Scenes w/ Fade Times to 99 Minutes
        • Multiple Remote Station Control
        • Show Mode Station Lockout via DMX
        • SCENE GROUPING - mutually exclusive
        • Last Scene Recall
        • 3 Configurable Contact Closures
        • Desktop Version

      • Specifications

        • Protocol: USITT DMX-512
        • Dimmer Channels: 512
        • Total Number of scenes: 16 (2 banks of 8 scenes each)
        • Scene fade times: Up to 99 min. User settable per scene
        • Controls and Indicators: 8 Scene Select, Bank Select, Blackout, Record, Recall. LED indicator for all functions and DMX status.
        • Recording: "Snapshot" from live console input
        • Record Lockout: Global Recording Lockout
        • Memory: Non volatile with a minimum 10 year data retention.
        • Memory Type: Flash
        • Power: 12 - 16 VDC
        • Connectors: DMX: 5 Pin XLR's
        • Remotes: DB9 (Female)
        • Remotes Cable Type: 2 pair, low capacitance, shielded data cable (RS-485).
        • Remotes Communication: RS-485, 62.5 Kbaud, bidirectional, 8 bit, micro controller network.
        • Power Supply: 12 VDC supplied by wall adapter
        • Dimensions: 7" W X 5" D X 2.25" H
        • Weight: 1.75 Pounds
