Lightronics XC40 DMX Portable Dimmer

ITEM #: LGT-XC40 MFG #: XC40

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$400.00

Our Price:

$300.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

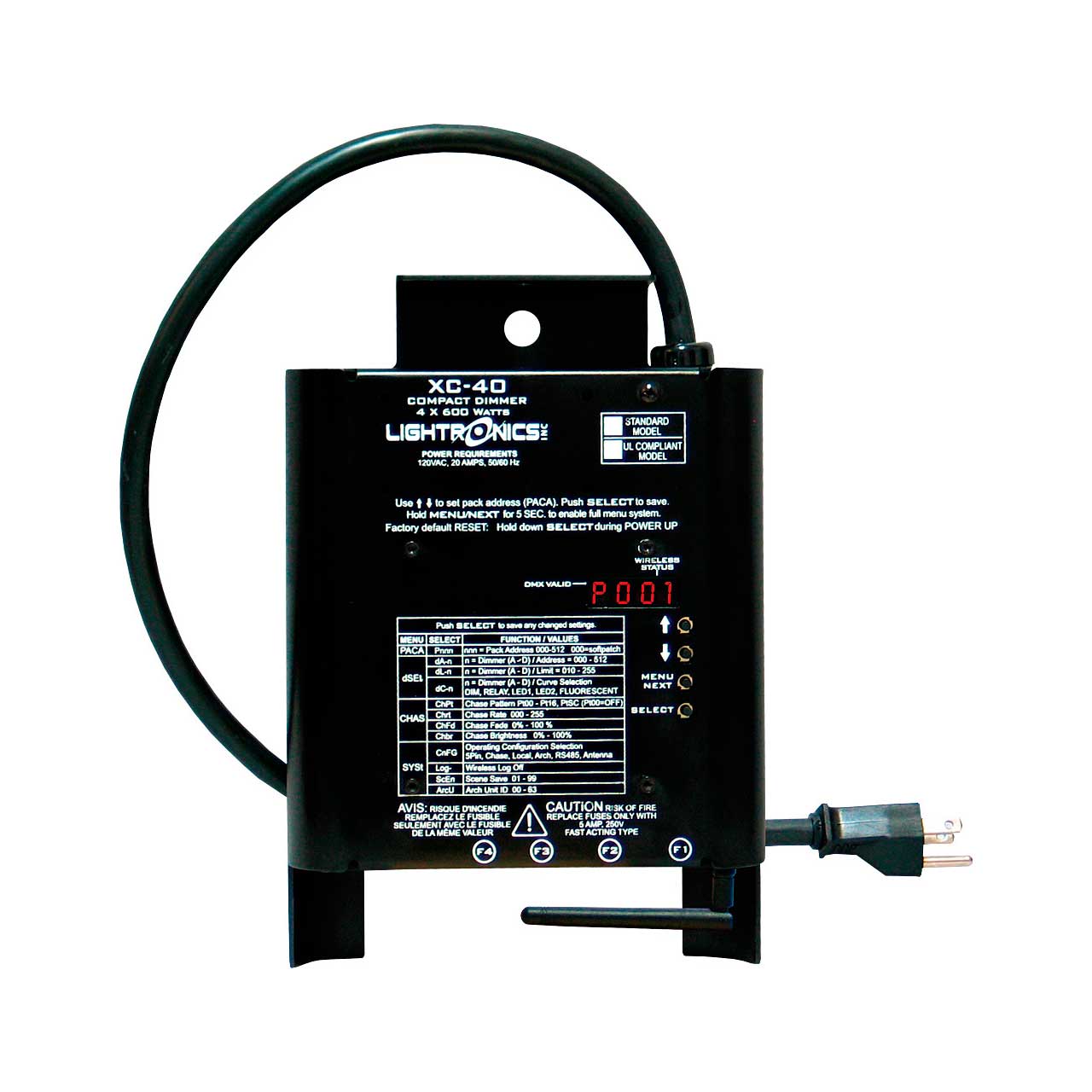

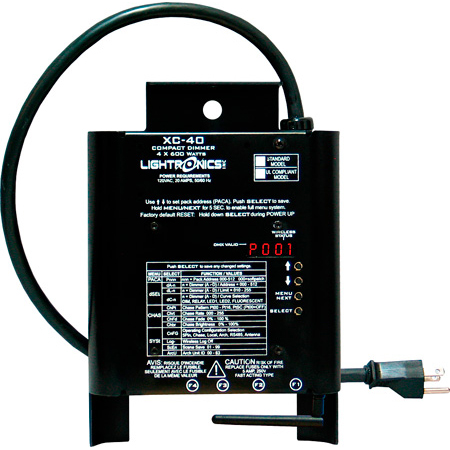

    XC40 - Overview

    The XC40 is a four circuit compact dimmer with a load capacity of 600 Watts per circuit. Each circuit is protected by a 5 Amp fuse. It can be controlled in several ways - the most common being DMX-512. Other control modes are also provided for stand alone operations. These include individual channel control and chaser functions. Individual circuits may be operated as non-dim (relay) circuits. Individual circuits may be set for one of several response curves and may be limited to less than full intensity. In addition to full soft patch capability there is a quick pack address function which enables rapid setup.

    The XC40 can optionally be provided with a wireless DMX receiver.

    • Features:

      • Optional Built In Wireless DMX
      • LED Digital Display
      • 4 Channels
      • 600W per Channel
      • Softpatch (each dimmer)
      • Dimmer Limiting
      • Dimmer Curve Selection
      • Architectural Interface
      • AMX/Crestron Interface
      • DMX-512 Protocol
      • 8 Built in Chases
      • Relay Mode Switchable
      • Fuses
      • Edison Outputs
      • 120V

    • Specifications:

      • Channels: 4
      • Channel Capacity: 600 Watts per Channel
      • Total Power: 2400 Watts
      • Control Protocol: DMX-512, RS-485, Architectural, Optional Wireless DMX
      • Control Connections: Dual 5 Pin XLR
      • Power Requirements: 120VAC, 20 Amp
      • Power Input: Edison Plug
      • Frequency: 50 or 60Hz
      • Fusing: 5 Amp each Channel
      • Preheat Voltage: Soft Start Control
      • Response Curve: Incandescent Bulbs, LED, Fluorescent, Relay Mode
      • Filter Rise Time: 150 Microseconds
      • Filter Max. Rate of Rise: 105 Milliamps / Microsecond
      • Full Load Voltage Drop: 3 Volts
      • Efficiency: 97%
      • Size: 8.5”L x 7”W x 2”D
      • Weight: 4 Pounds
