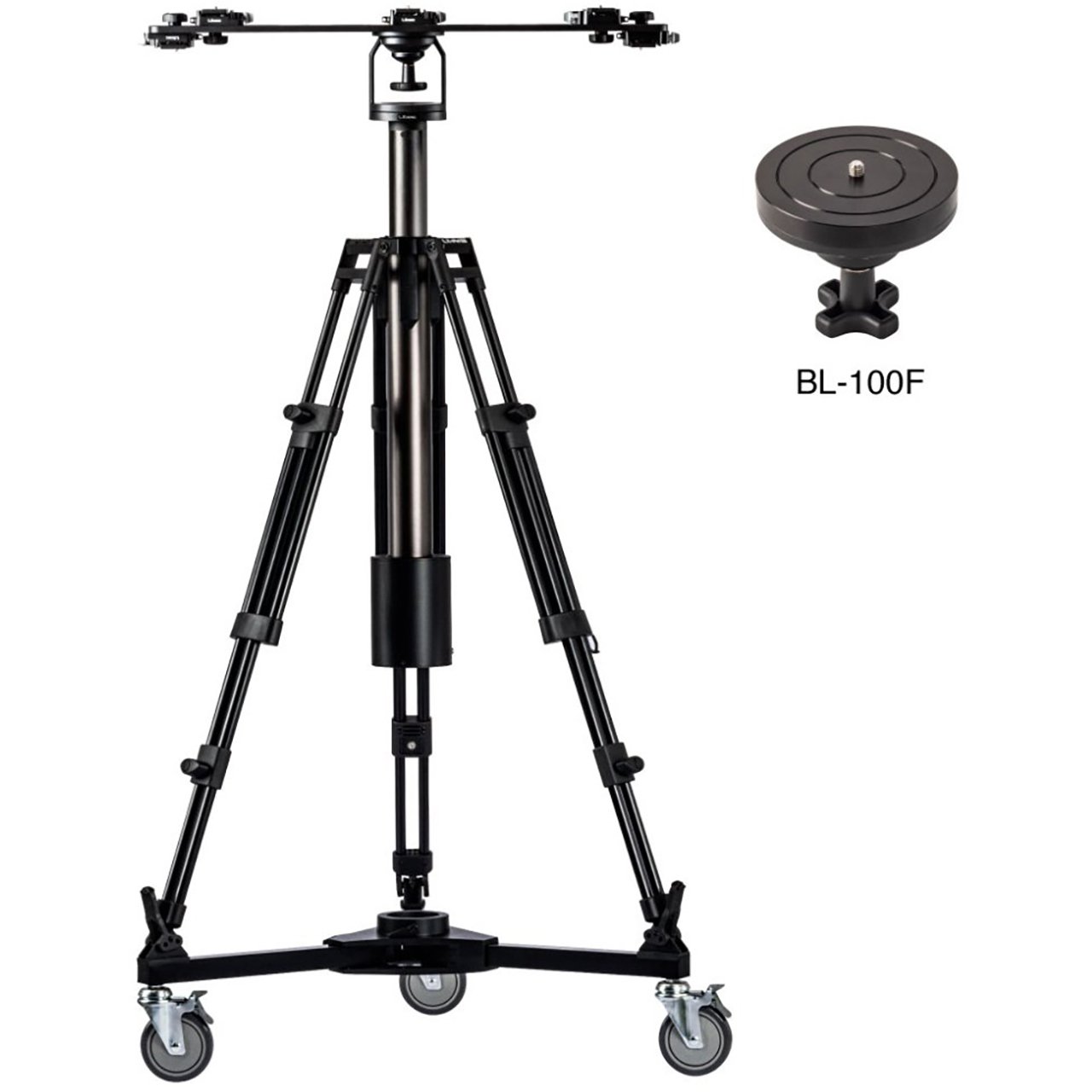

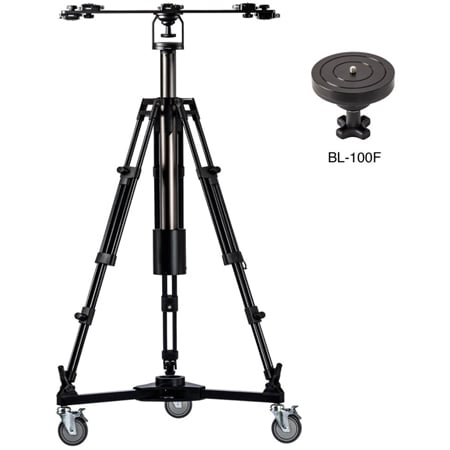

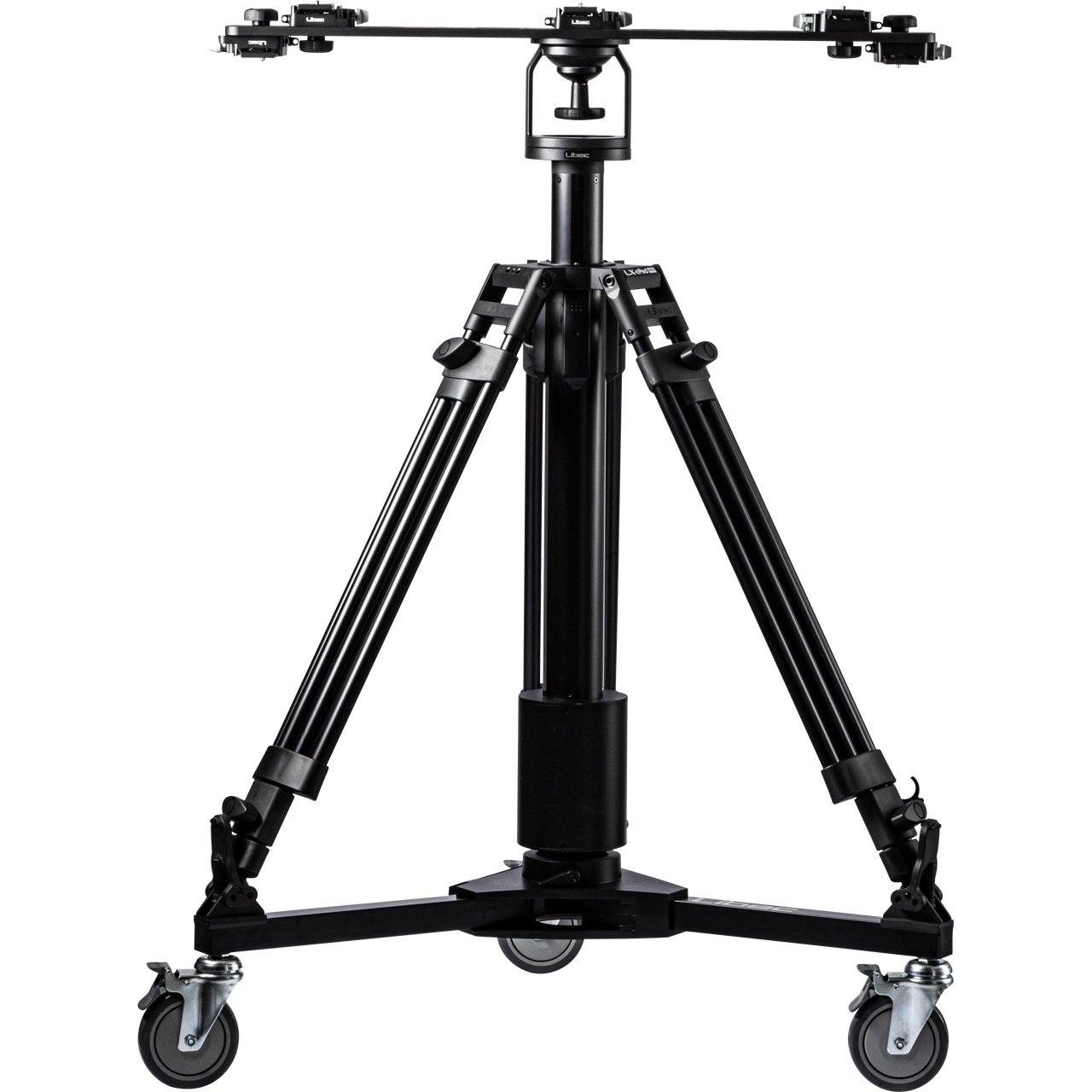

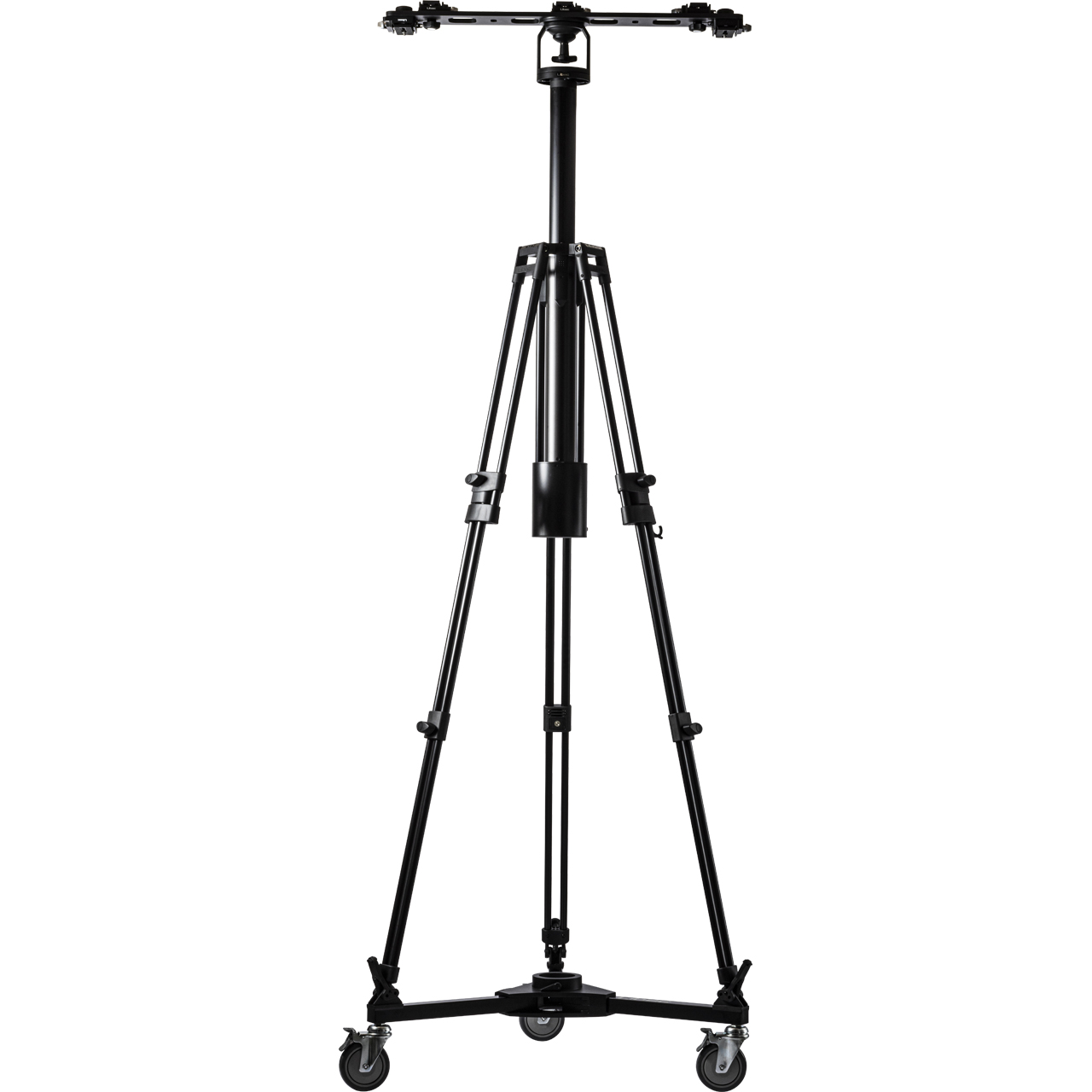

Libec LX-ePed PRO Heavy Duty Electric Pedastal with Dolly for PTZ Cameras

ITEM #: LIB-LX-EPED-PRO MFG #: LX-EPED PRO

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$6,800.00

Our Price:

$6,119.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LX-EPED PRO - Overview

The Libec LX-ePed PRO, an advanced model of the LX-ePed 2/LX-ePed 2 Studio, was developed to meet the growing demand of PTZ cameras' diverse usage. With a larger payload capacity, reduced sound movements, and a high rigidity, this electric pedestal can be used in extreme shoot conditions. With a payload of 30 kg / 66.1 lbs., this heavy-duty electric pedestal can support configurations such as a PTZ camera with a prompter, a combination of five PTZ cameras, or the "REMO30" remote head combined with a handheld camera. This quiet electric pedestal would also be a great fit for music concerts and other shoot sites with a low sound tolerance. With the optional "MPC-1" multi-protocol converter, the LX-ePed PRO can be connected and operated by PTZ controllers and the original application, LX-ePed PC APP, offering a variety of optional settings.

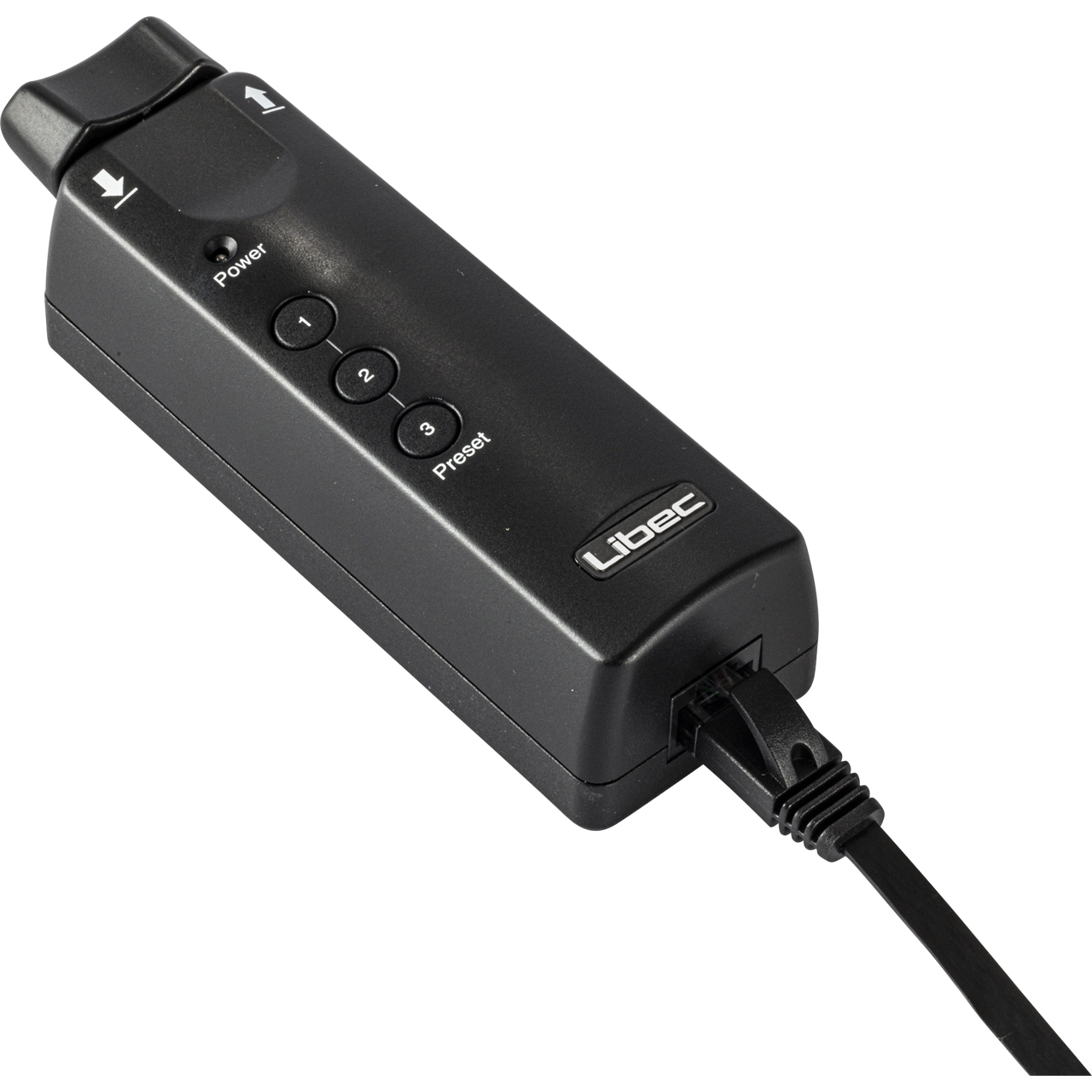

Position Presets
This new remote control can record up to three position presets, which makes height adjustments a piece of cake.

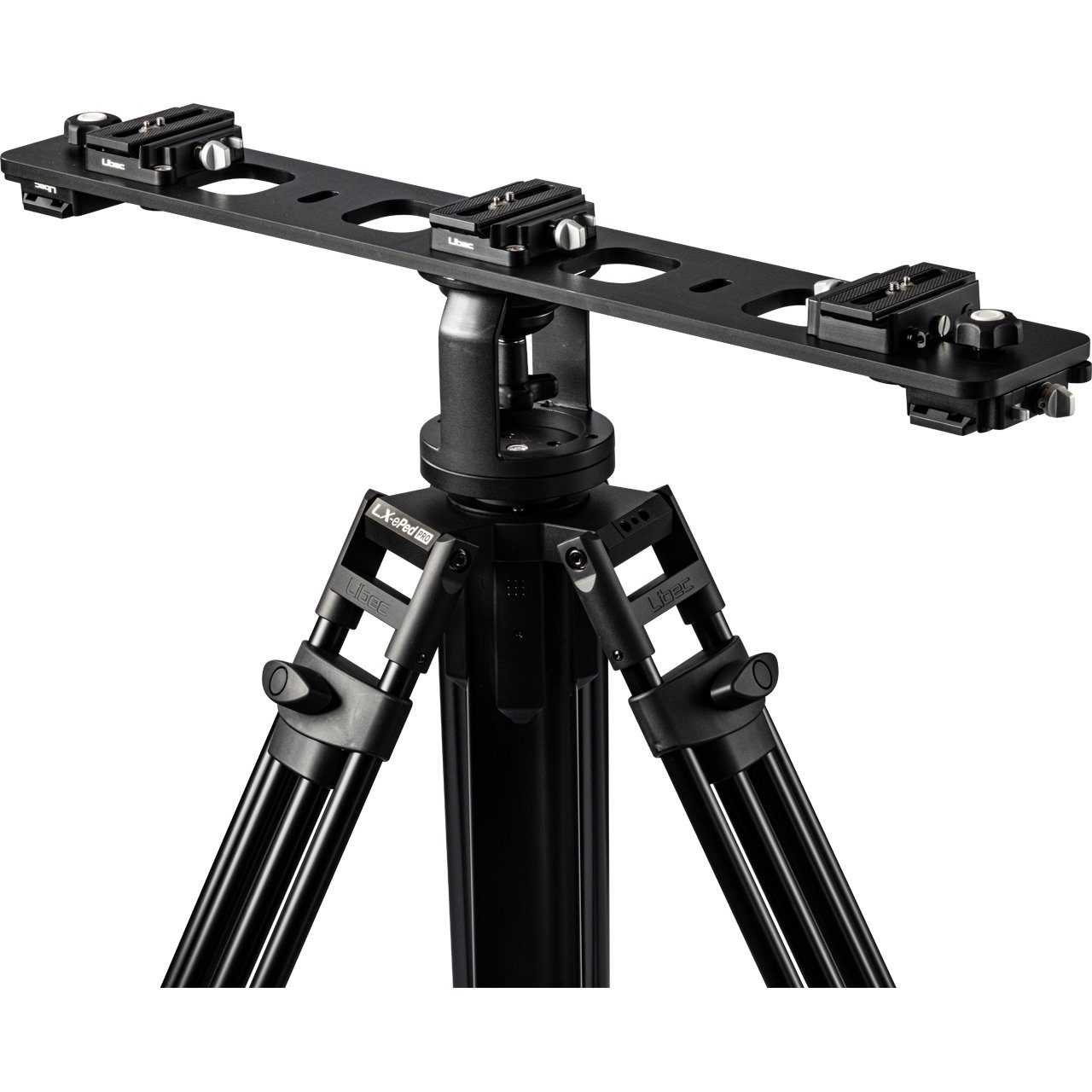

Smart Quick Release Adapter
The included "AP-X" smart quick release adapter enables you to attach/detach your camera much safer, easier and faster. To prevent the attached PTZ camera from dropping, the adapter is equipped with a hole to secure a safety wire for PTZ cameras.

IP Connectivity & Serial Communications
By using the optional "MPC-1" multi-protocol converter, the new LX-ePed PRO can be operated by PTZ controllers and the original PC application, LX-ePed PC APP, that enables precise adjustments. This unique feature definitely increases the electric pedestal's accessibility making the "MPC-1" a first of its kind.

High Payload of 66.1lbs (30kg)
Since the LX-ePed PRO's payload is three times greater than the LX-ePed 2, this heavy-duty electric pedestal can support configurations such as a PTZ camera with a prompter, a combination of five PTZ cameras, or the "REMO30" remote head combined with a handheld camera.

  • Features:

    • High Rigidity
    • Quiet Design
    • Can Place up to Five PTZ Cameras
    • Includes a T-bar, five "AP-X" adapters, and a "BL-F" adapter, reducing the need to buy additional accessories
    • Remote Controlled Electric Pedestal
    • Seamless and Accurate Movements
    • Continuous Speed Adjustment
    • Highly Reliable Wire Connection System
    • Compatible with Flat Base with 1/4" and 3/8" Screw Holes
    • Compatible with Video Heads
    • Compact Design
    • High-Angle Shots
    • User Friendly Accessory Port
    • Built-in Bubble Level

  • Specifications:

    • Payload: 66lbs (30kg)
    • Stroke Width: 15.7" (400mm)
    • Elevation Speed: 10mm/s to 30mm/s(Continuous)
    • Continuous Operating Time: Continuous operating time: 3 minutes
    • Control Cable: 1181.1" (30m)
    • Power Cable: 118.1" (3m)
    • Power: AC 100V - 240V
    • Operating Temperature: 14°F - 104°F (-10°C - 40°C)
    • Operating Humidity: 0% - 90%
    • Position Presets: Available
    • Battery-Powered: Optional
    • Camera Attachment: ¼" screw + Video pin
    • Head Attachment: 100mm/75mm ball (Optional)
    • Accessory Attachment: ¼" and 2x ⅜" screw holes
    • Bubble Level: Available
    • Weight: 61.2lbs (27.8kg)
    • Height: 47.8" - 106.4" (121.5cm - 270.5cm)
    • Section: 2-Stage

  • Item Includes:

    • 1x LX-ePed PRO Tripod System
    • 1x DL-8RB Dolly
    • 1x T-Bar
    • 1x Controller
    • 1x Elevation Control Rocker
    • 1x LED
    • 1x Preset Button
    • 1x LX-ePed Connection LAN Port
    • 1x AC/DC Adapter
    • 1x Plug
    • 1x Lock Ring
    • 3x AC/DC Plug Adapter
    • 1x Controller Connection Lan Cable - 30 Meters
    • 1x Connector
    • 1x Lock
    • 5x 1/4 Inch Spare Camera Screw
    • 5x AP-X Adapter Plate
    • 5x AP-X Attachment Knob
    • 1x BL-100F Flat Base Adapter
    • 1x Bowl Clamp
