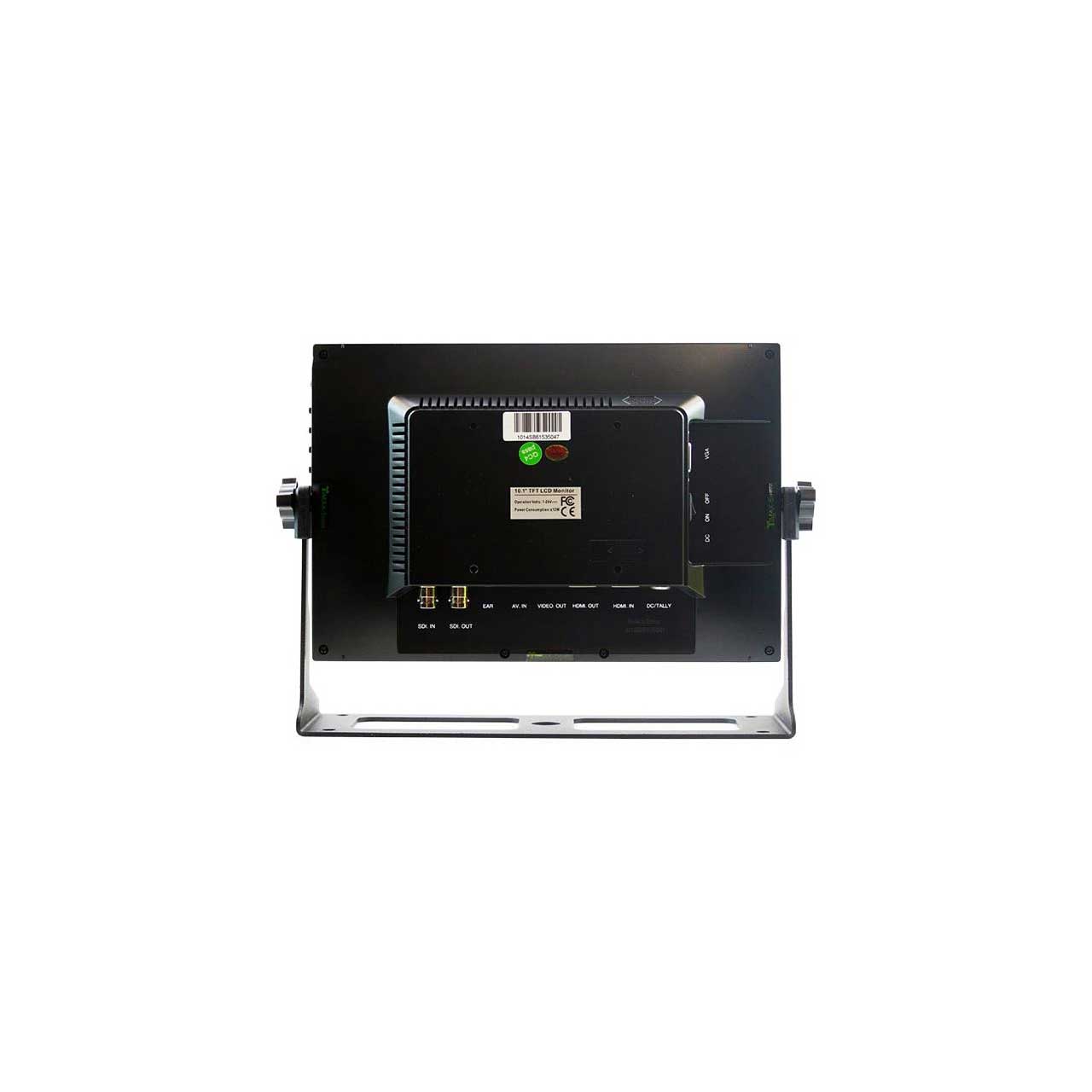

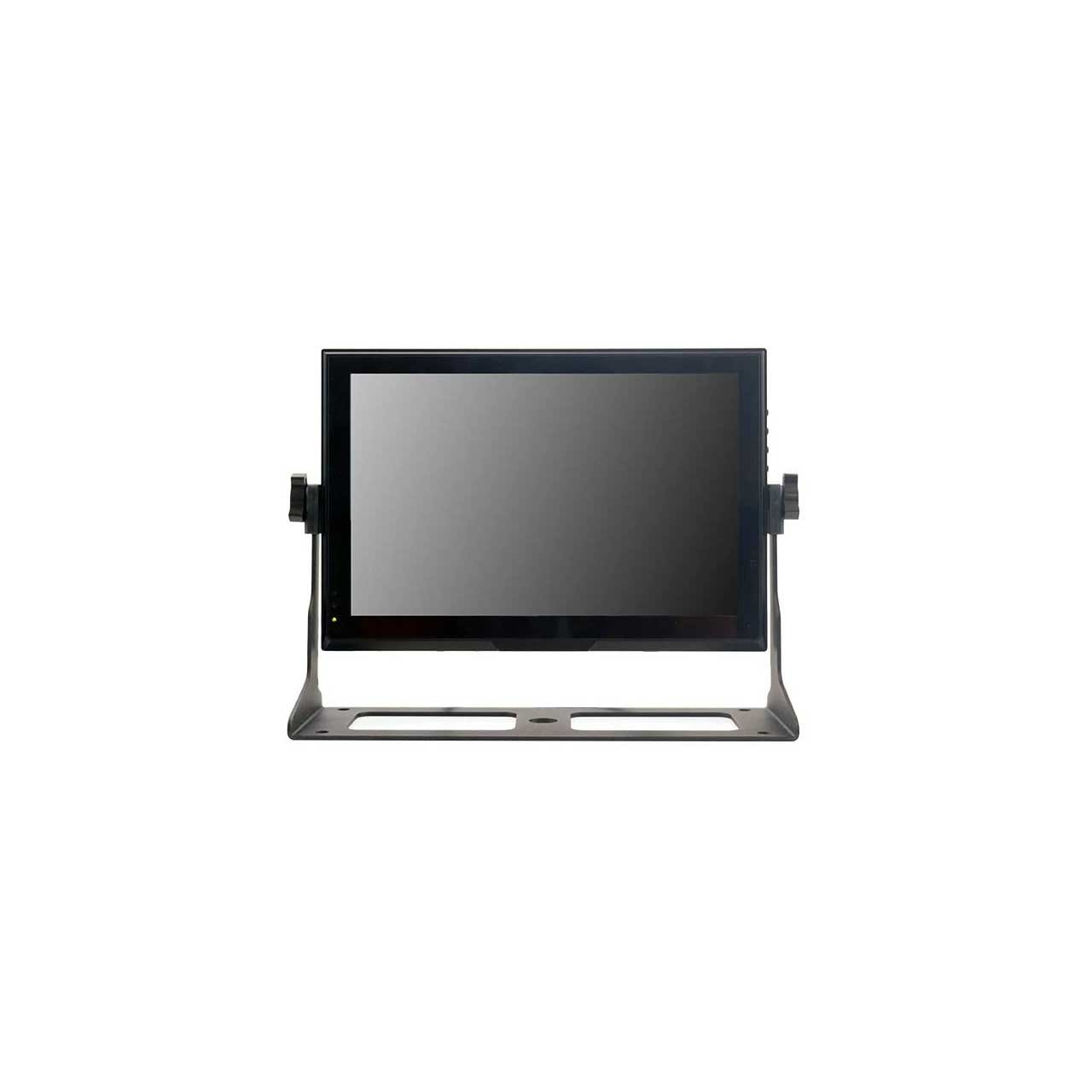

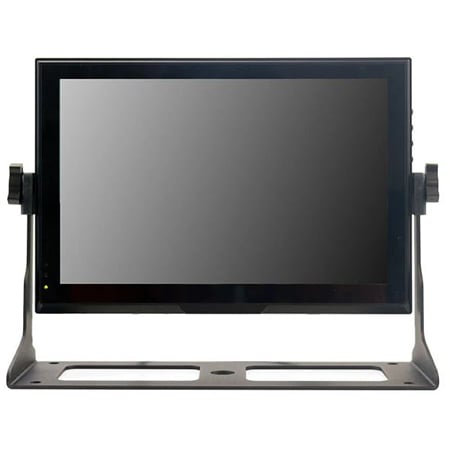

ViewZ VZ-101FM-E 10.1 Inch HD Broadcast IPS 8-bit Monitor - 3G SDI/HDMI In/CVBS/VGA

VZ-101FM-E - Overview

• Features:

  • 3G SDI - SMPTE 425M-A, 274M, 296M, 125M & ITU-R BT.656
  • 12bit to 8bit Processing
  • Resolution ( 1280×800 )
  • Integrated dust proof front panel, Color Temperature
  • Image Flip & Zoom
  • Lux Auto Brightness
  • Various Markers
  • Built-in Speaker
  • Check Field : Red, Green, Blue & Mono
  • Image Flip, Zoom
  • H/V Delay
  • Red/Green/Yellow Mode Tally
  • Zero, Under, Over, Pixel to Pixel Scan
  • Freeze, Clock, Phase
  • Precise White Balance & Gamma
  • On-Screen Menu
  • Shoe Mount, Battery Mount Plate


• Specifications:

  • Display
  • Screen Size: 7" (IPS Panel)
  • Max Resolution: 1280×800 @60Hz
  • Pixel Pitch: 0.039 mm x 0.117 mm
  • Brightness: 350 cd/m²(Typical)
  • Contrast Ratio: 800 : 1
  • Aspect Ratio: 16 : 10
  • Viewing Angle (H/V): 178°/178°
  • Display Color: 16.7 Million (8bit)

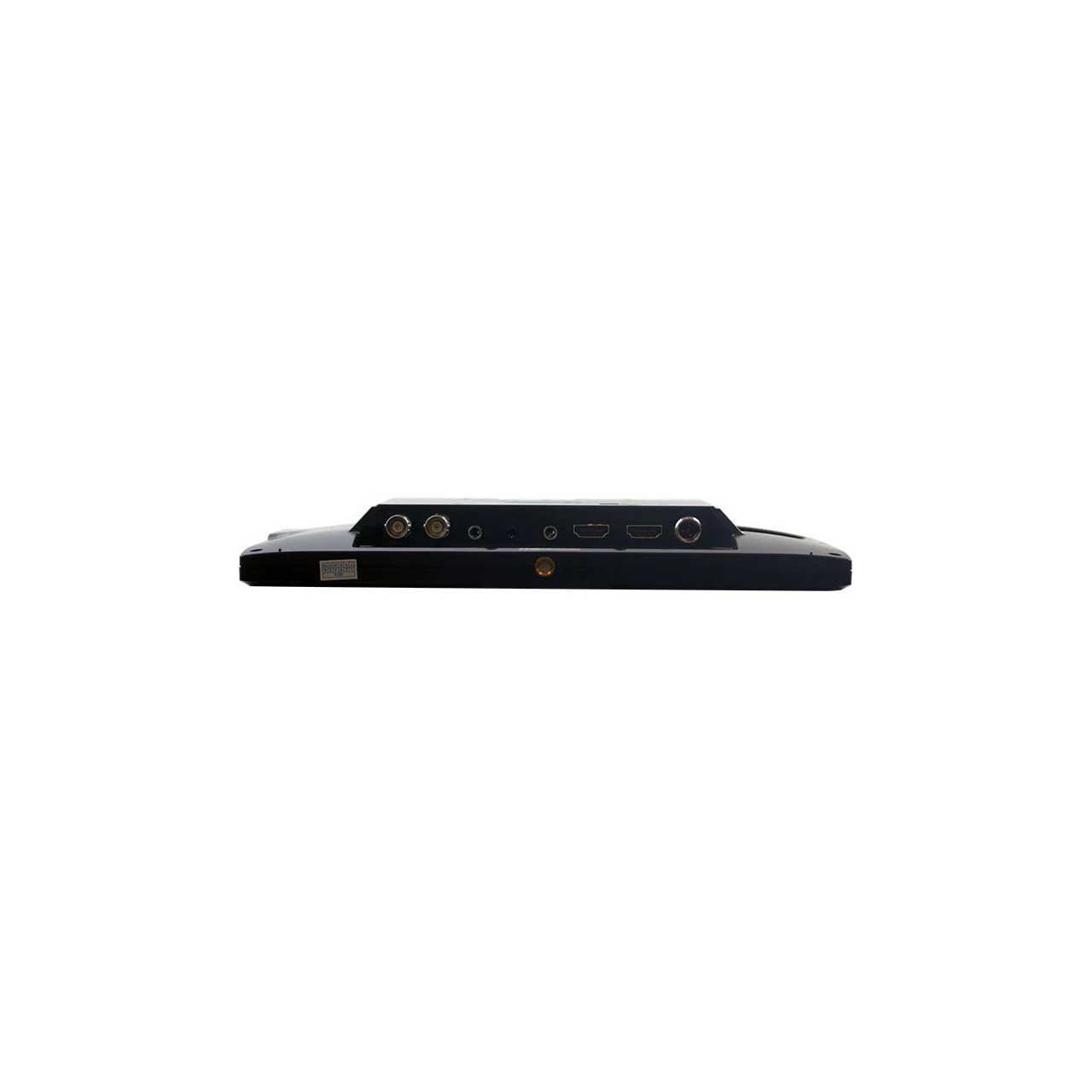

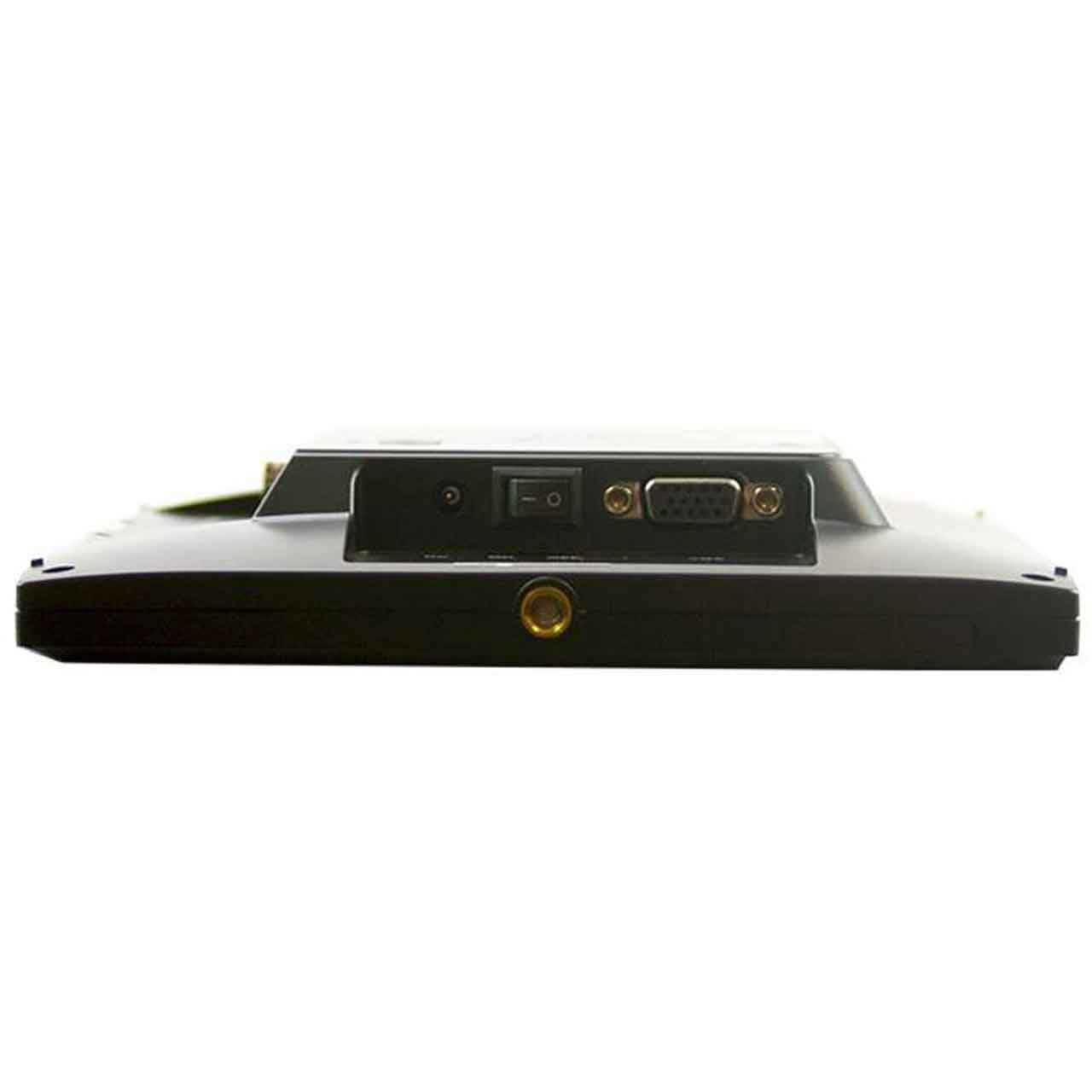

    Interface
  • 3G-SDI In / Out: 1 / 1
  • HDMI In / Out: 1 / 1
  • VGA In (RGB): 1
  • AV (Composite) In: 1
  • Audio In / Out: 1 / 1 (2ch De-Embedded Audio Selected Output)

    Audio
  • Built in speaker: 2W x 1
  • Dimensions & Weight
  • Outline Dimension (W x H x D): 7.53 x 5.98 x 1.22 / 5.55" (w/ Cover) / 191.5 x 152 x 31.5 / 141 mm (w/ Cover)
  • Net Weight: 1.598 lbs / 725g
  • Gross Weight: 1.98 lbs / 900g

    Input Format
  • SMPTE 425M-AB: 1920 x 1080p / 60/59.94/50, 1920 x 1080i / 60,59.94,50
  • SMPTE 274M: 1920 x 1080p / 30,29.97,25,24,23.98 psf
  • 1920 x 1080i / 60,59.94,50
  • SMPTE 296M: 1280 x 720p / 60,59.94,50
  • SMPTE 125M: 480i / 59.94
  • ITU-R BT.656: 576i / 50

    General Summary
  • Power - Electrical Ratings: XLR-4p (DC12V) / DC 7 ~ 24V
  • Power - Consumption: ≤ 11 W
  • Warranty: 2 Years
  • Operating Temperature: 32 - 104°F / 0 - 40°C
  • Regulation: FCC(A), CE


• Warranty:

  • 2 Years
