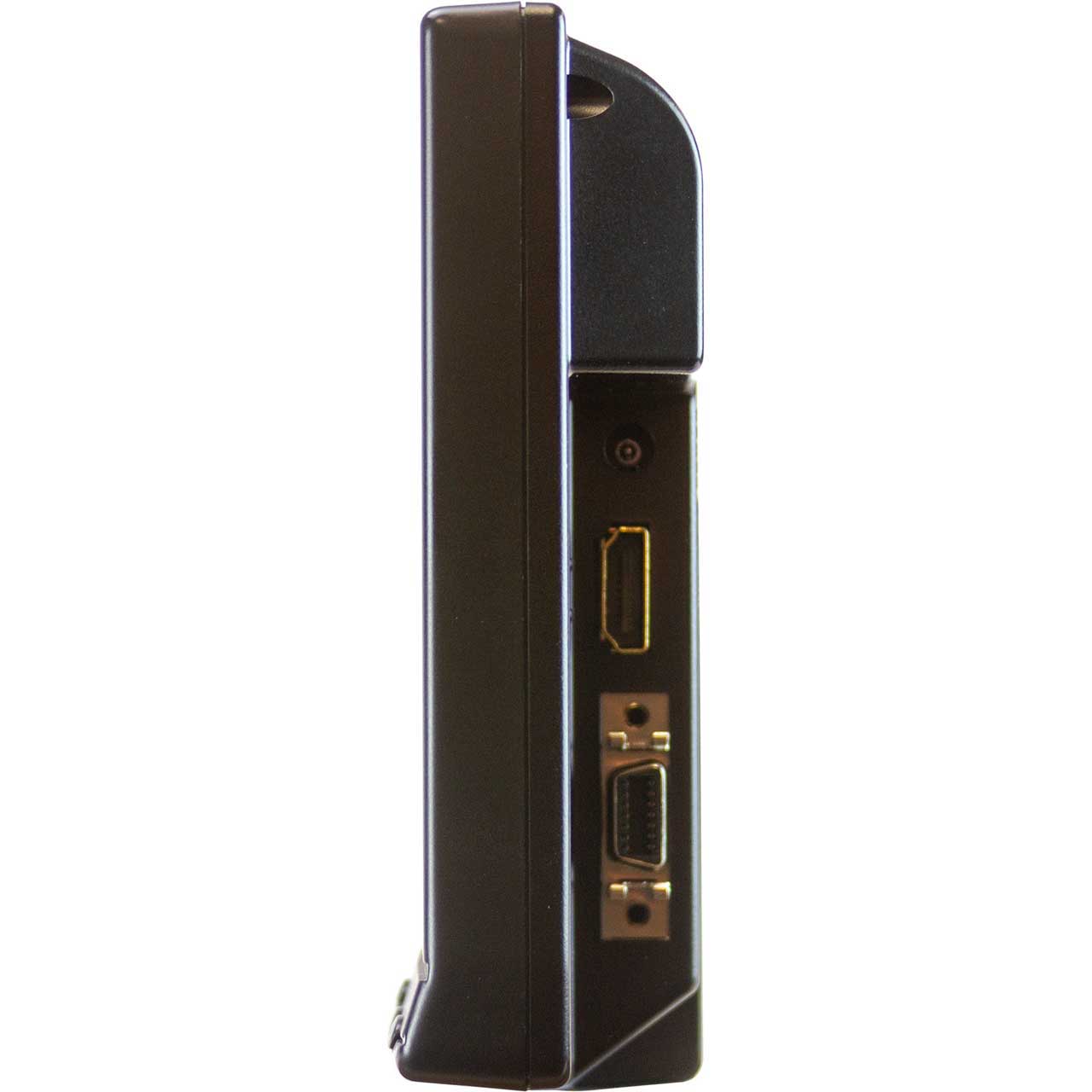

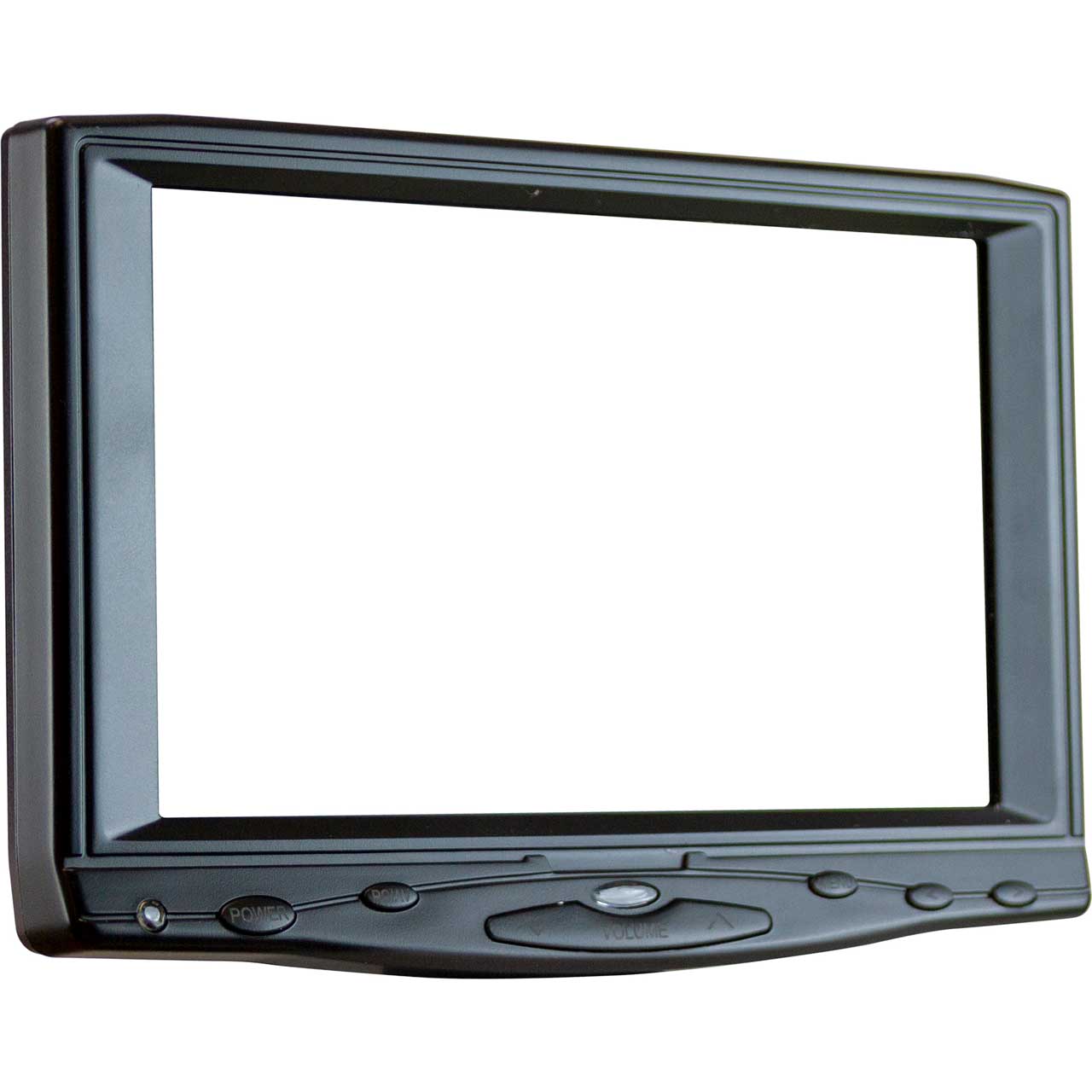

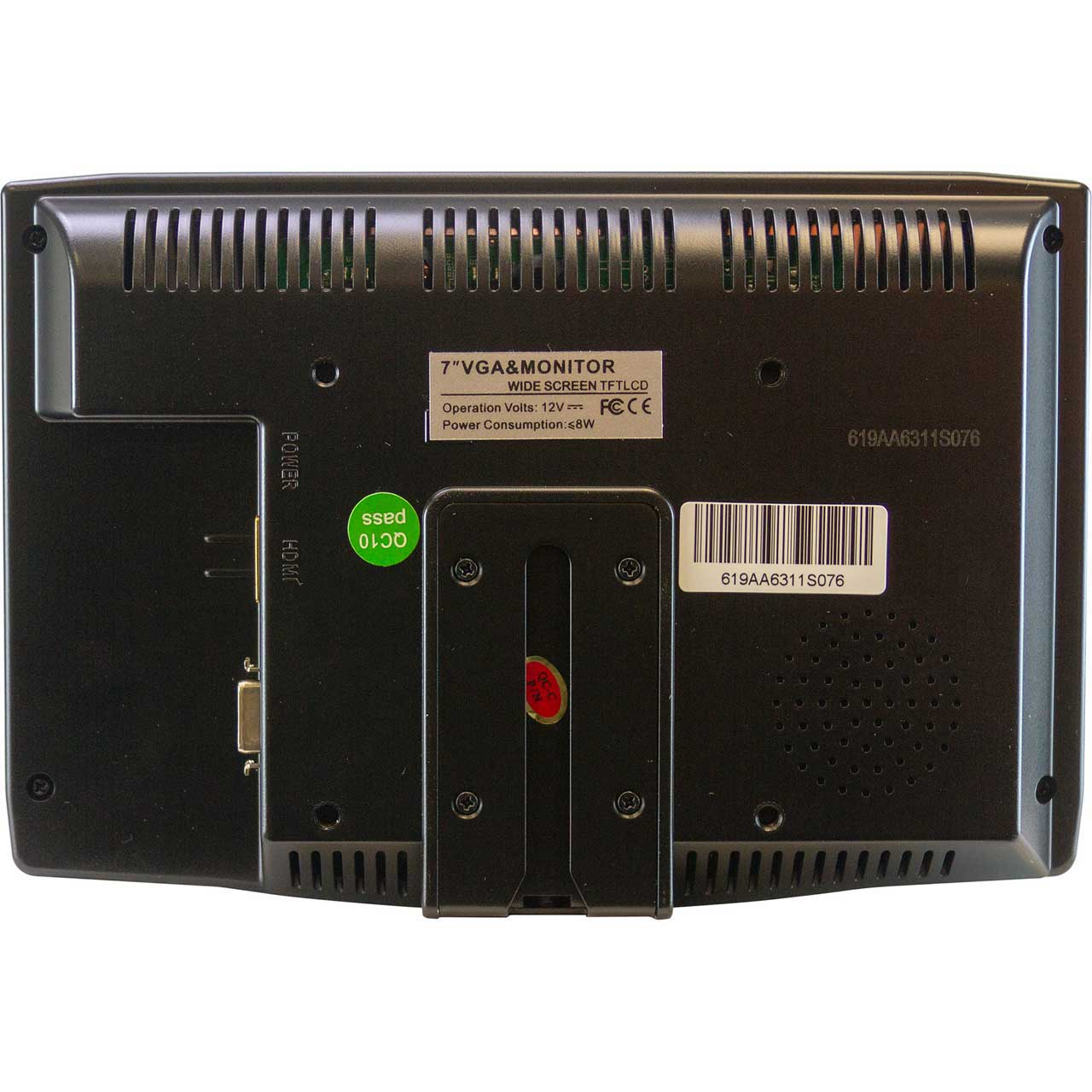

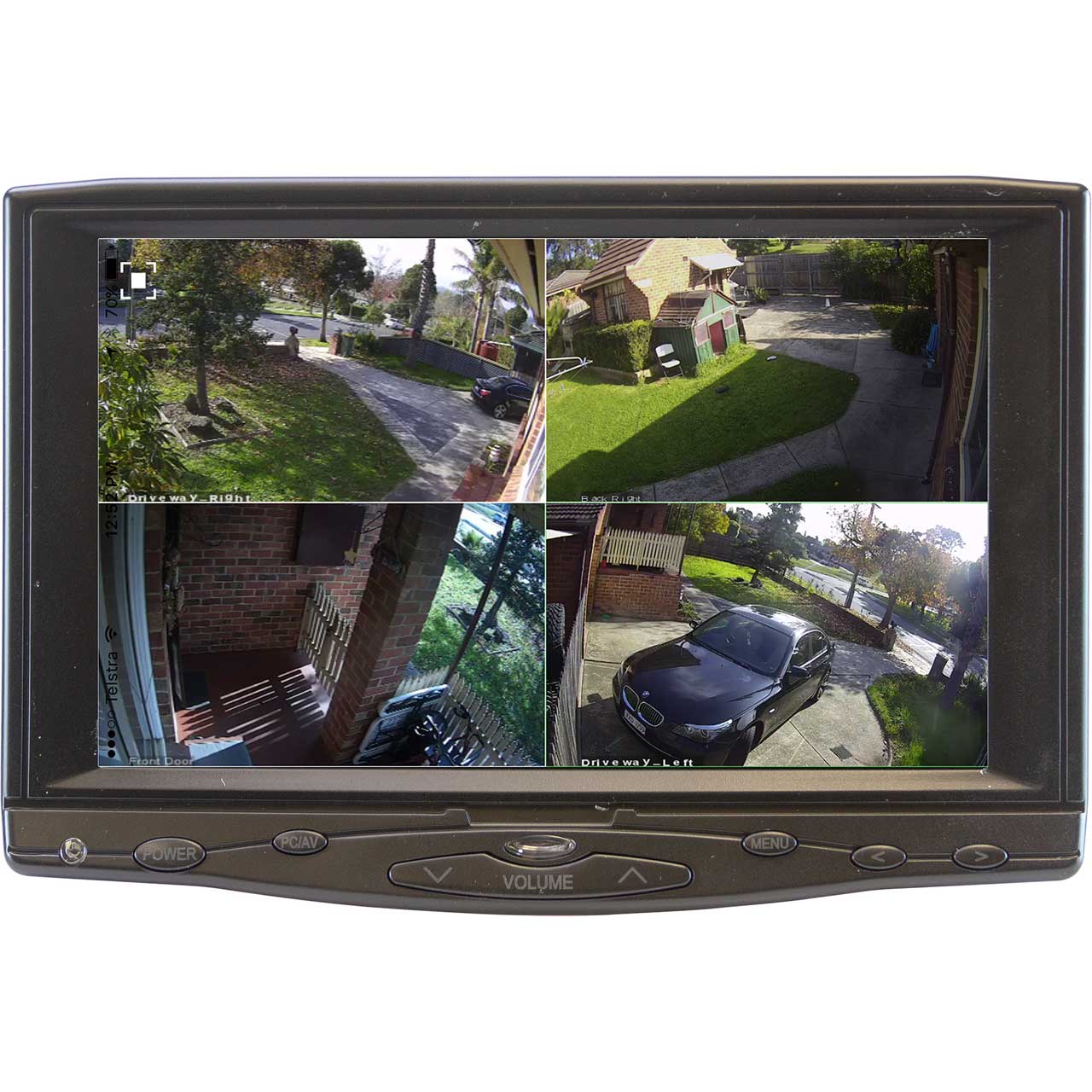

ViewZ VZ-070LED-L 7 Inch HD Broadcast 800x480 TN 8-bit Monitor - High Brightness 450cd/m2 - HDMI/VGA/AV

VZ-070LED-L - Overview

• Features:

  • 7" HD Resolution
  • HDMI, VGA, AV(CVBS), Audio
  • Clock, Phase, H/V Position, Color Temperature, Built-in 1 Speakers
  • Front Function Button
  • Auto Adjustment, Source, Brightness Up/Down Button


• Specifications:

  • Display
  • Screen Size: 7.0"
  • Max. Resolution: 800 x 480 @60Hz
  • Pixel Pitch: 0.0635 mm x 0.1905 mm
  • Brightness: 450cd/m²(Typical)
  • Contrast Ratio: 500:1
  • Aspect Ratio: 16 : 9
  • Viewing Angle (H/V): 140° / 120°
  • Display Color: 16.7 Million
  • Response Time: < 20 ms

    Interface
  • AV In (CVBS): 2
  • Audio In (RCA): 1
  • VGA In (15Pin D-Sub): 1
  • HDMI In: 1
  • DVI, YPbPr In (optional): 1

    Audio
  • Built in Speaker: 1W x1

    Special Features
  • Language: English, French, Russian, German
  • Front Menu Button: Support

    General
  • Transmitter - IR Remote Control: Yes
  • Power: Electrical Ratings - DC12V, 650 mA (AC100 ~ 240V[50/60Hz]), ⋚ 8 W Consumption
  • Outline Dimension (W x H x D): 7.3" x 4.8" x 1.27"
  • Net / Gross Weight: 1.07 lbs
  • Operating Temperature: 14 ~ 140°F / -10 ~ 60°C
  • Storage Temperature: -22 ~ 158°F / -30 ~ 70°C

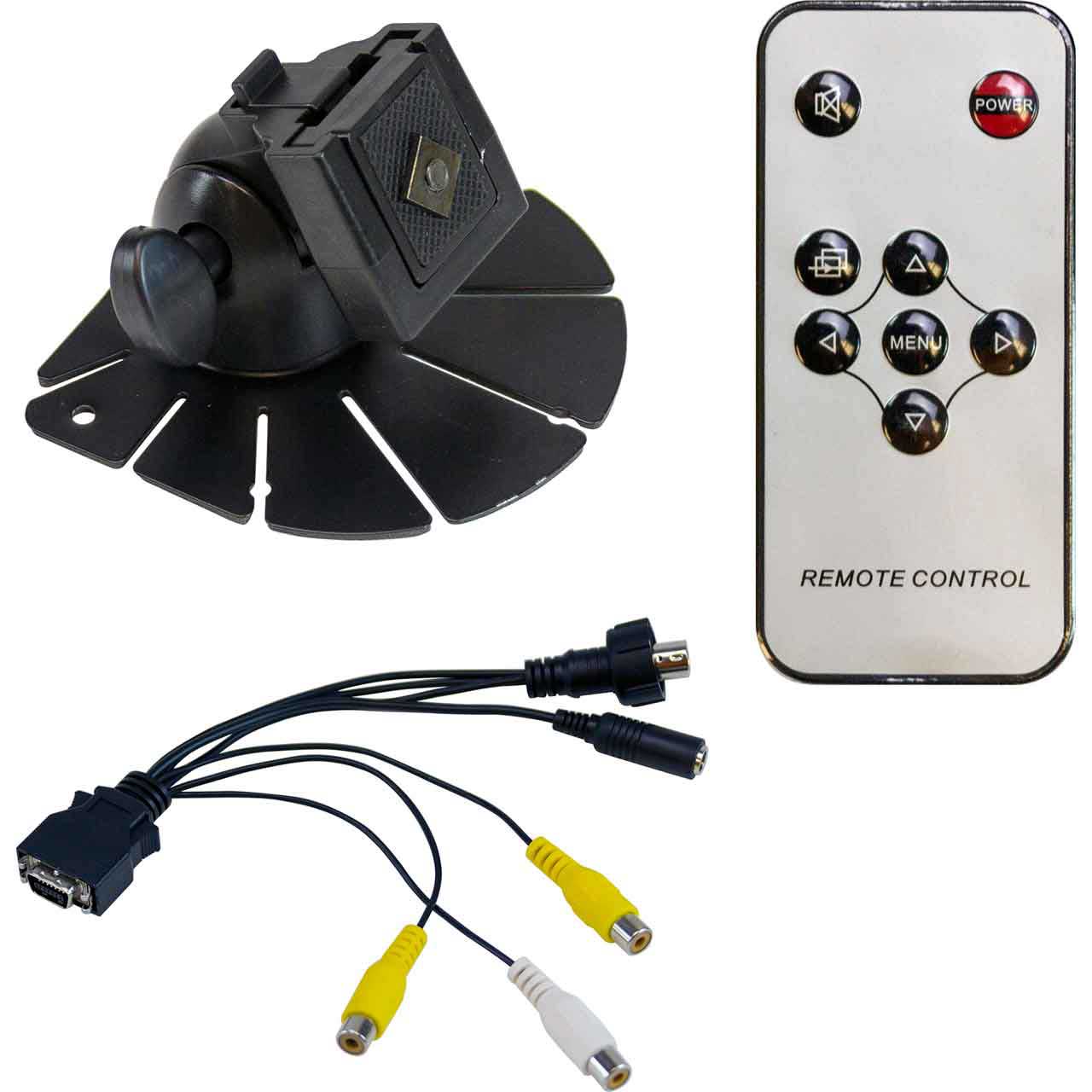

• Item Includes:

  • 1x LCD Monitor
  • 1x Remote Control
  • 1x Stand
  • 1x DC Adapter
  • 1x HDMI Cable
  • 1x VGA Cable
  • 1x User Manual


• Warranty:

  • 2 Years
