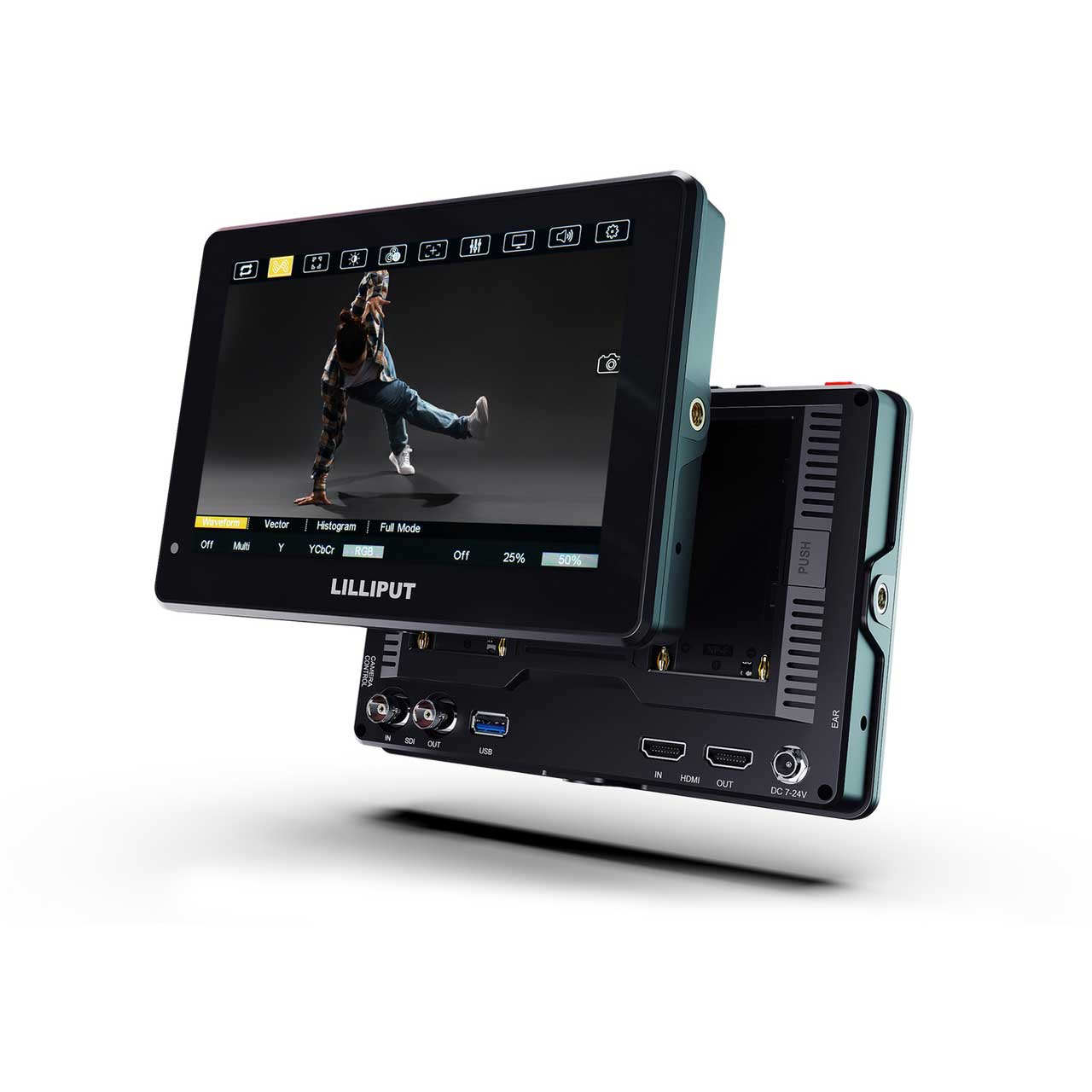

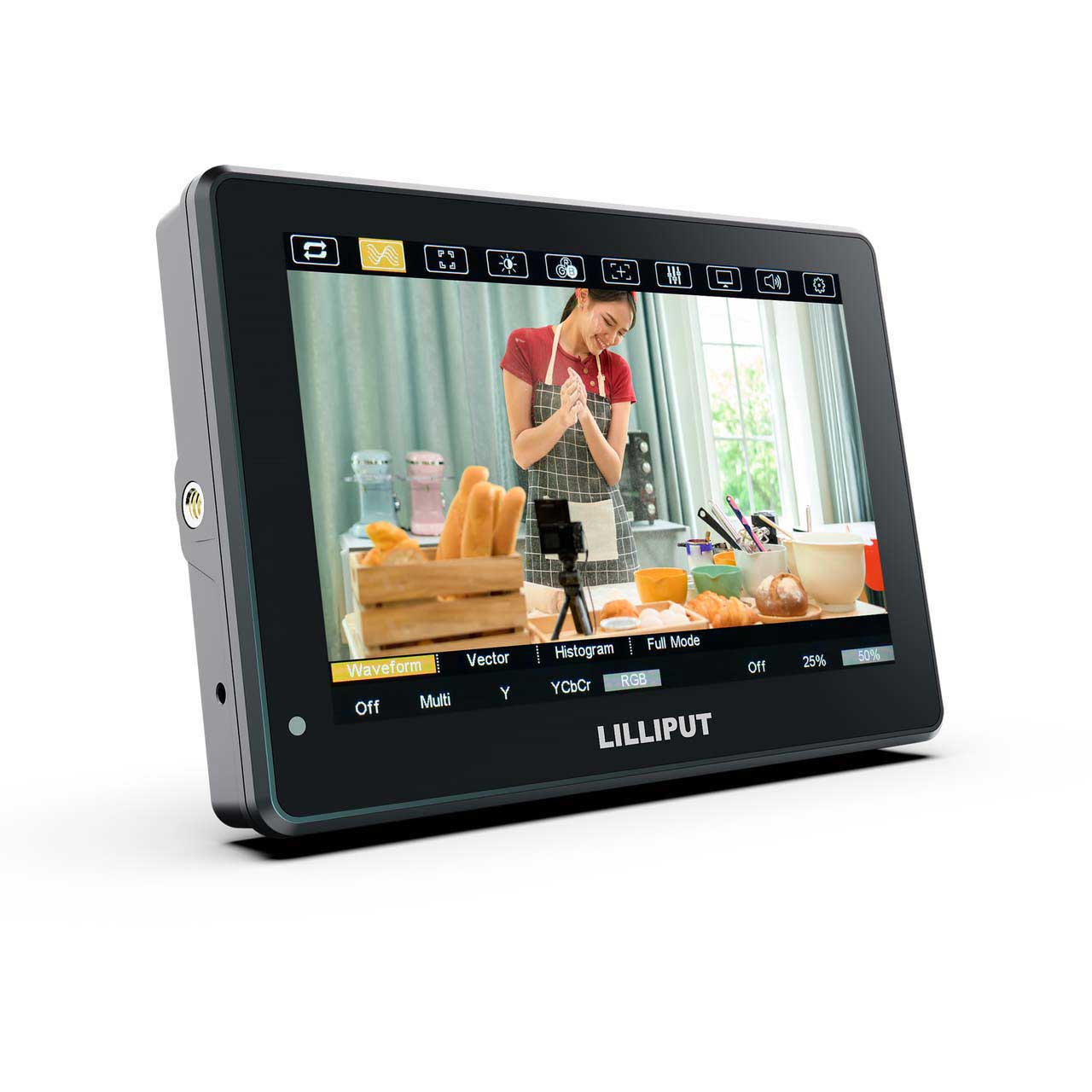

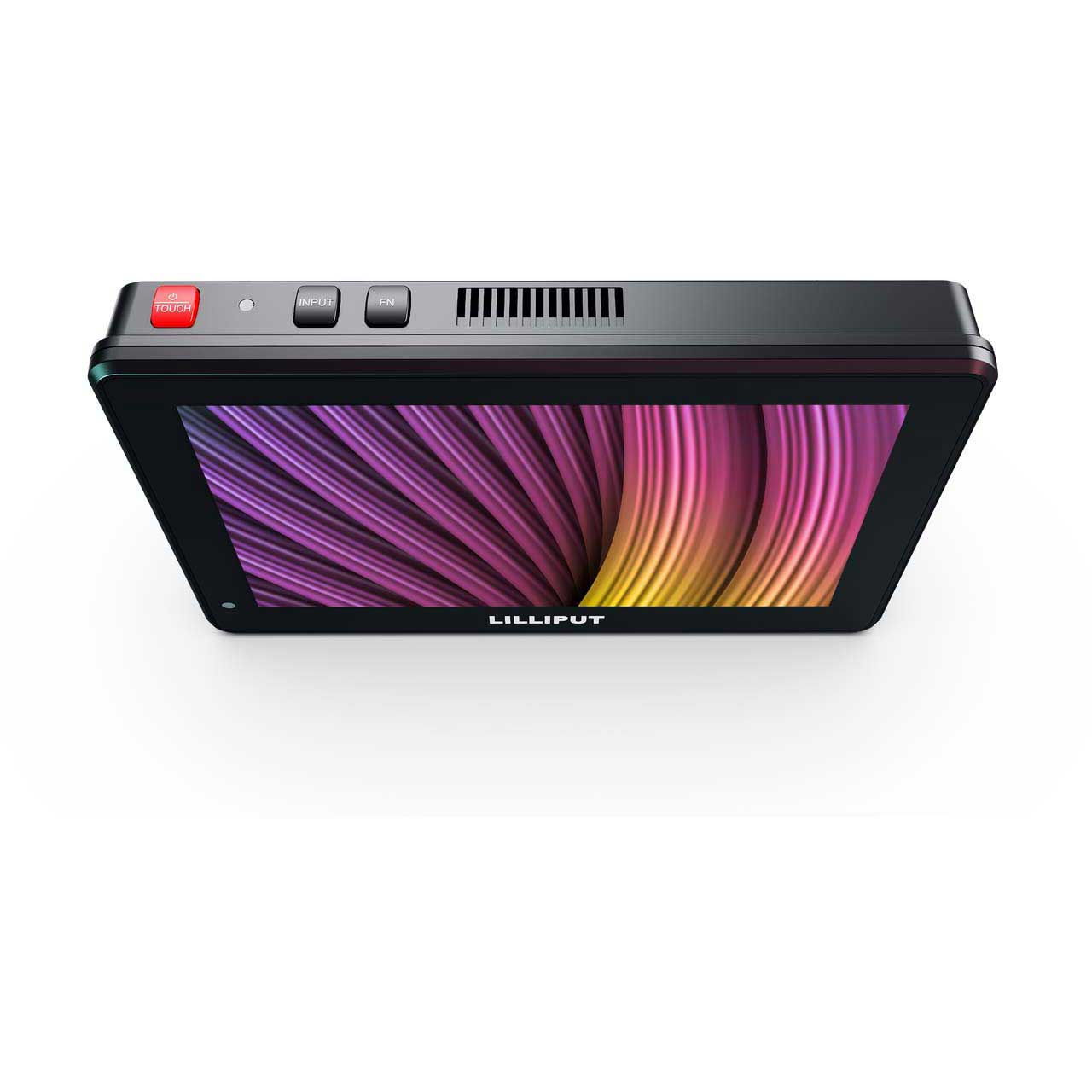

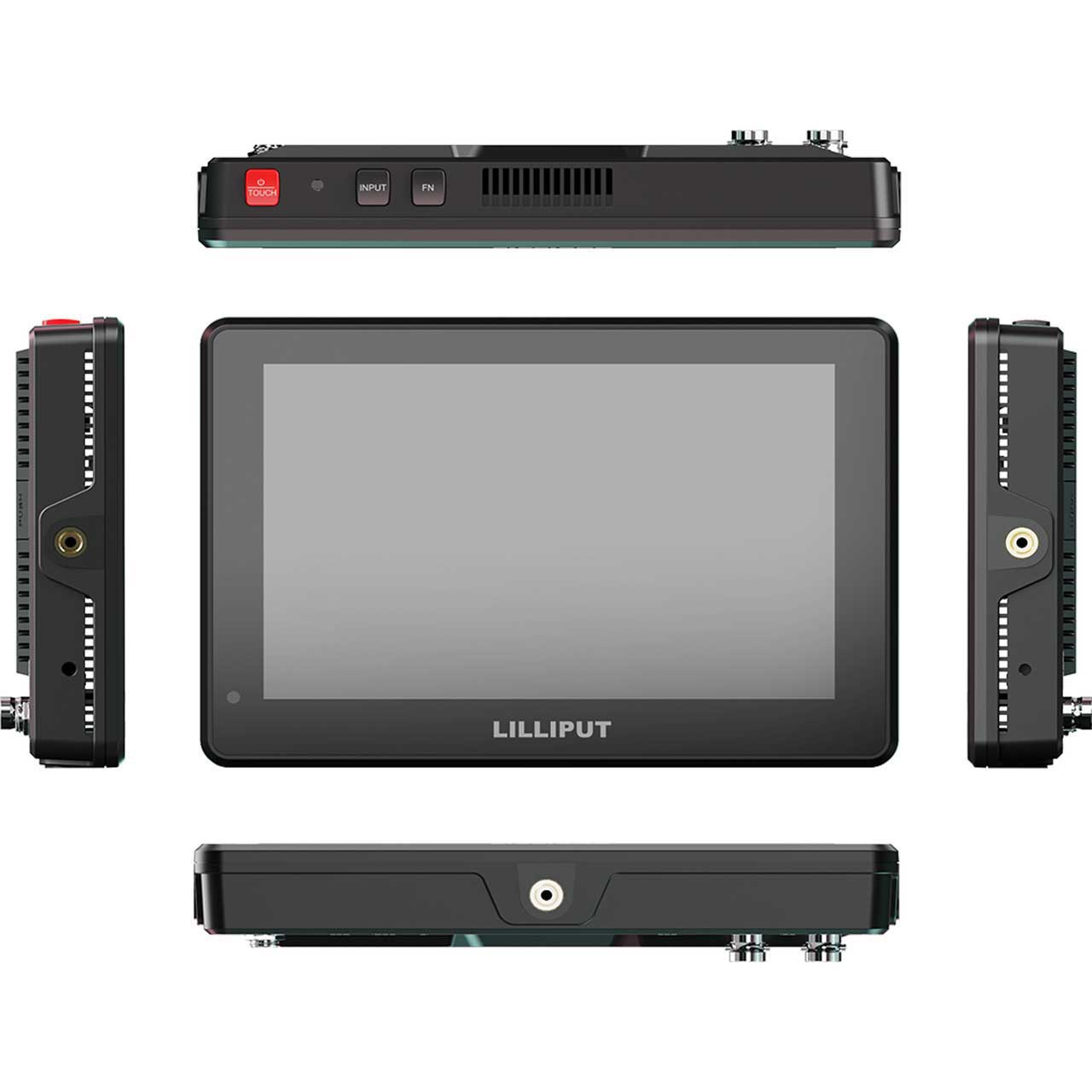

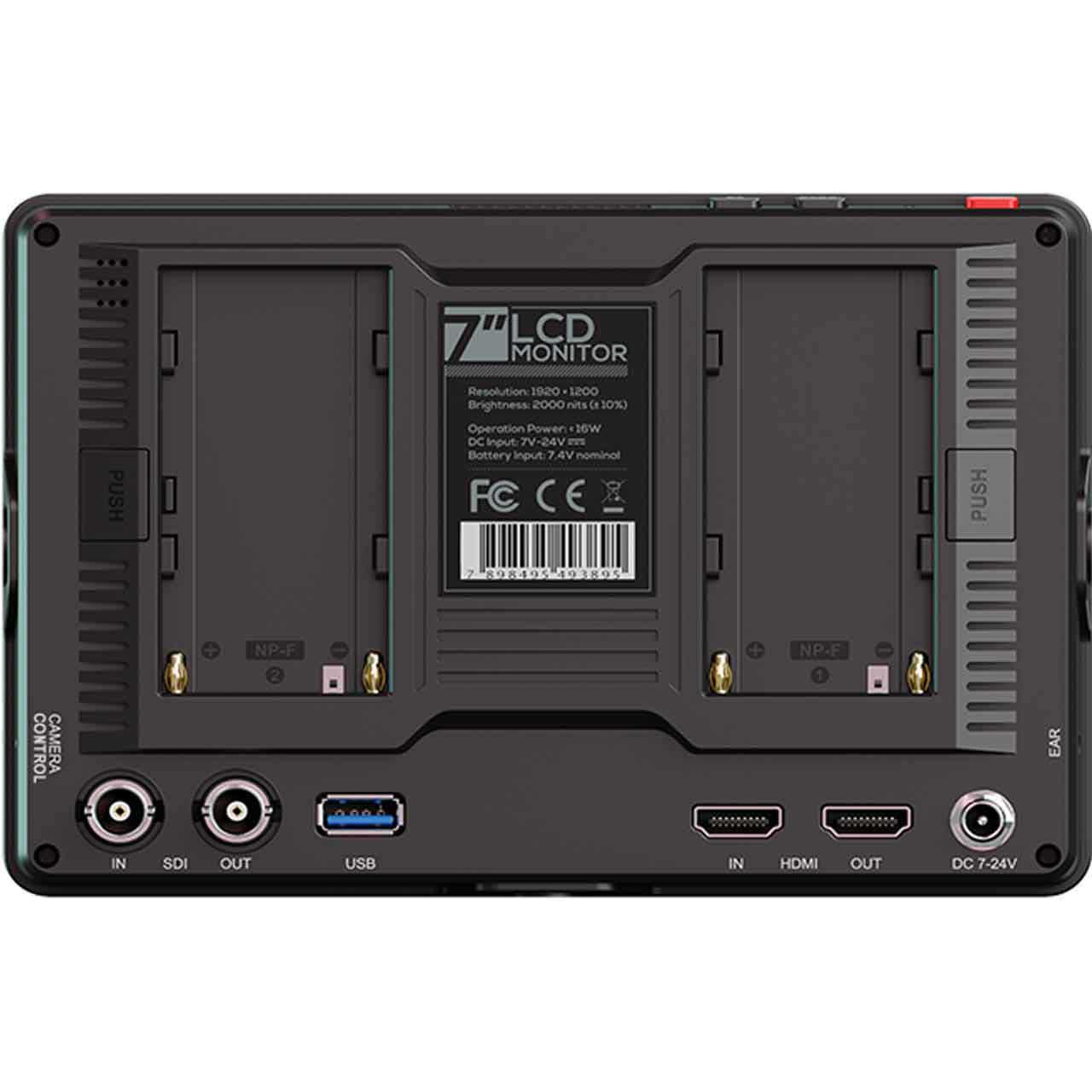

Lilliput HT7S 7-Inch 2000nits 3G-SDI / HDMI2.0 On-Camera Touch Control Monitor

ITEM #: LIL-HT7S MFG #: HT7S

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Lilliput Electronics
Free Shipping with $49 Minimum Order

List Price:

$359.00

Our Price:

$339.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    HT7S - Overview

    Lilliput HT7S is a precision on-camera monitor with an amazing 2000 nits Ultra High Brightness and innovative Touch LCD screen, capable of controlling your video camera's menu on set. A solid piece of kit, it is designed specifically for the outdoor photographer or film maker.

    Easy To Use Touch Control
    Easy and convenient touch commands to quickly wake up the menu on screen, then adjust camera assist functions, display and settings.

    • Features:

      • 2000 Nits Ultra-Bright
      • 1920x1200
      • Touch Screen
      • Dual Batteries
      • Camera Control
      • 3G-SDI / HDMI2.0
      • Auto Dimming
      • HDR
      • 3D LUT
      • Color Calibration


    • Specifications:

      • Display
      • Screen: Capacitive touch
      • Panel: 7" LCD
      • Resolution: 1920x1200
      • Aspect Ratio: 16:10
      • Brightness 2000nits
      • Contrast: 1200:1
      • Viewing Angle: 160° / 160° (H/V)
      • Color Space: 100% BT.709
      • HDR Supported: HLG; ST2084 300/1000/10000

        Inputs
      • HDMI: 1 (HDMI 2.0)
      • 3G-SDI: 1

        Outputs
      • HDMI: 1 (HDMI 2.0)
      • 3G-SDI: 1

        Supported Formats
      • HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
      • 3G-SDI: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60

        Audio In/Out
      • Speaker: 1
      • HDMI 8ch 24-bit
      • Ear Jack: 3.5mm - 2ch 48kHz 24-bit

        Power
      • Input Voltage: DC 7-24V
      • Power Consumptions: ≤16W (15V)

        Environment
      • Operating Temperature: 0°C - 50°C
      • Storage Temperature: -20°C - 60°C

        Dimensions
      • Size (LxWxD): 7.32 x 5.03 x 1.14"
      • Weight: 1.14lb


    • Item Includes:

      • 1x Lilliput HT7S 7-Inch 2000nits 3G-SDI / HDMI2.0 Touch Camera Control Monitor
      • 1x 2.6ft HDMI A-D Cable
      • 1x LANC cable
      • 1x Hot shoe mount
      • 1x USB drive disk


    • GTIN:

      6950821602485
