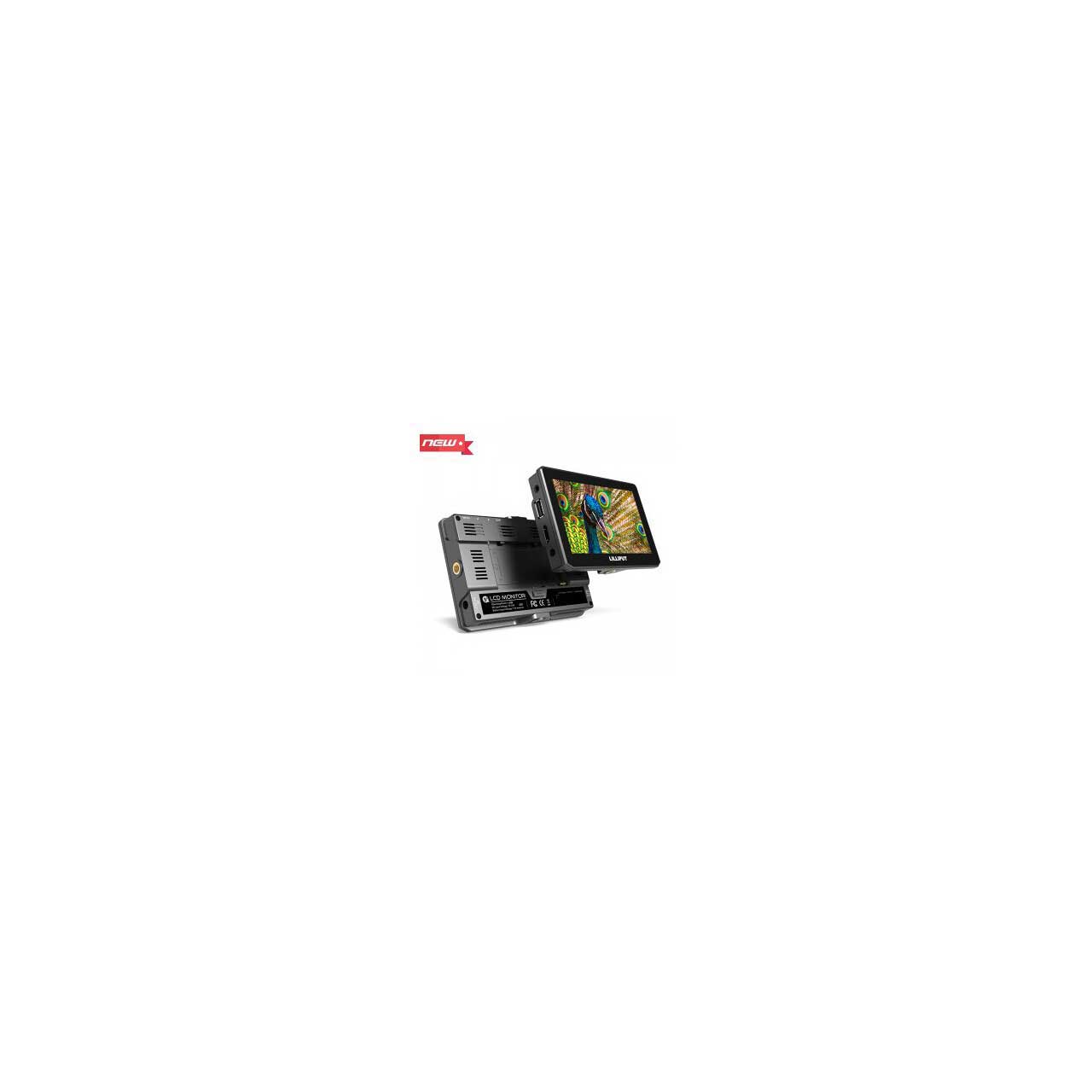

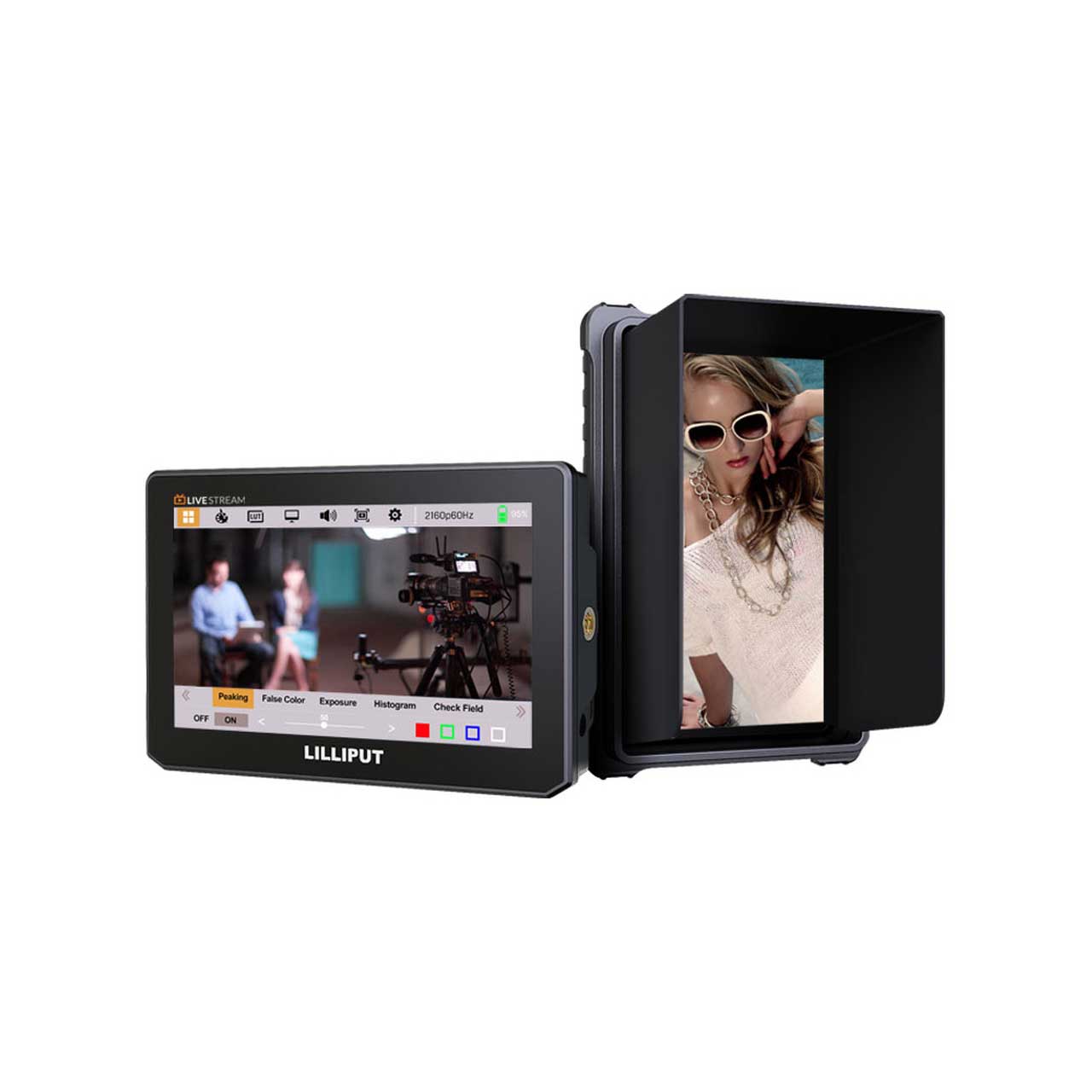

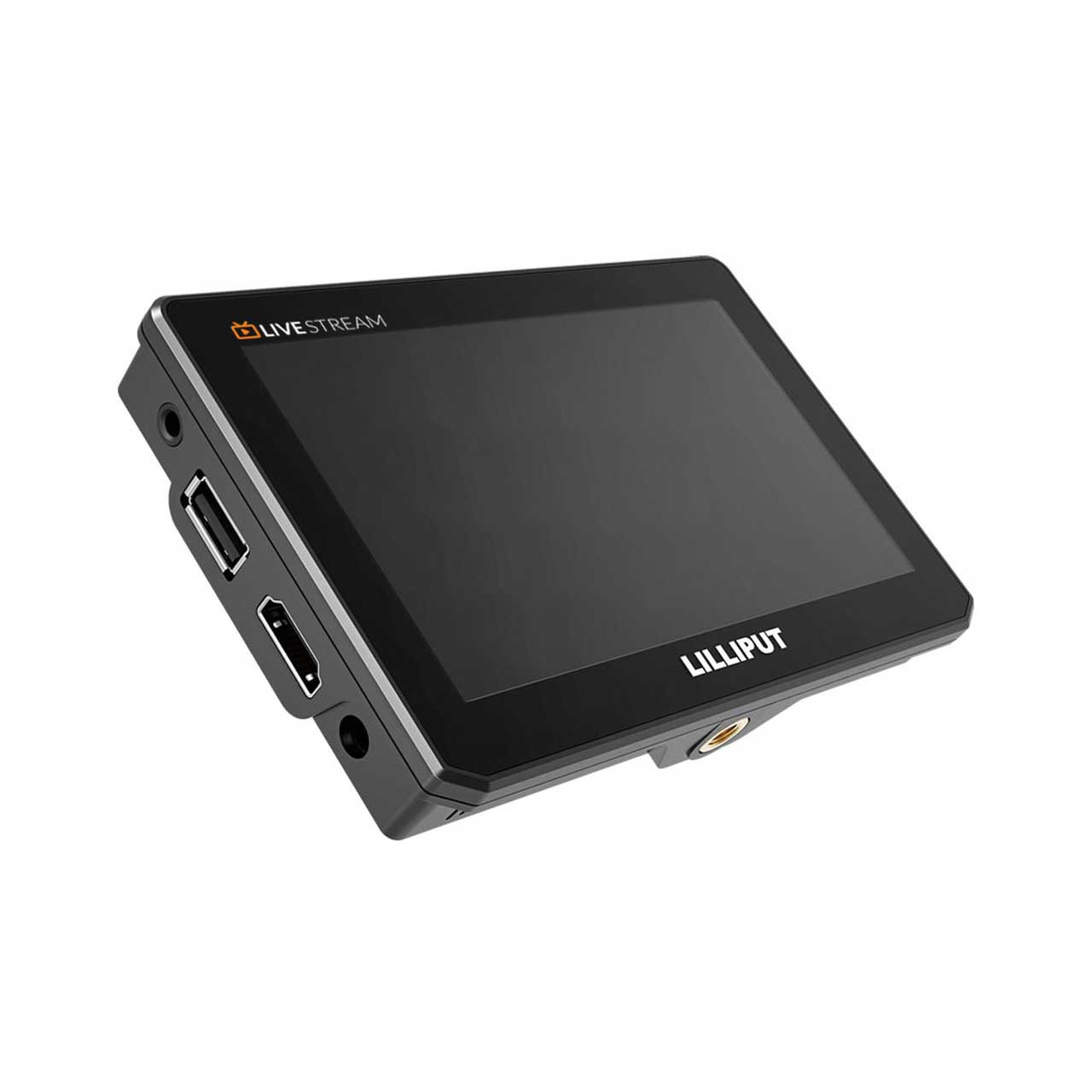

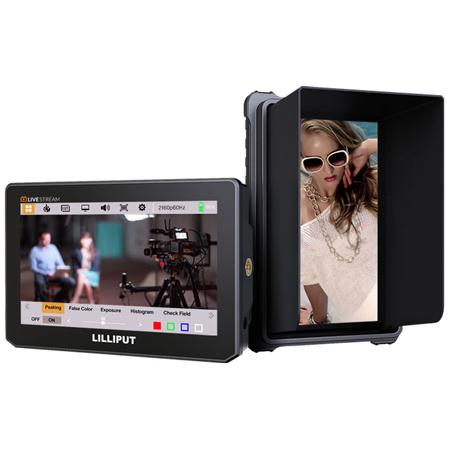

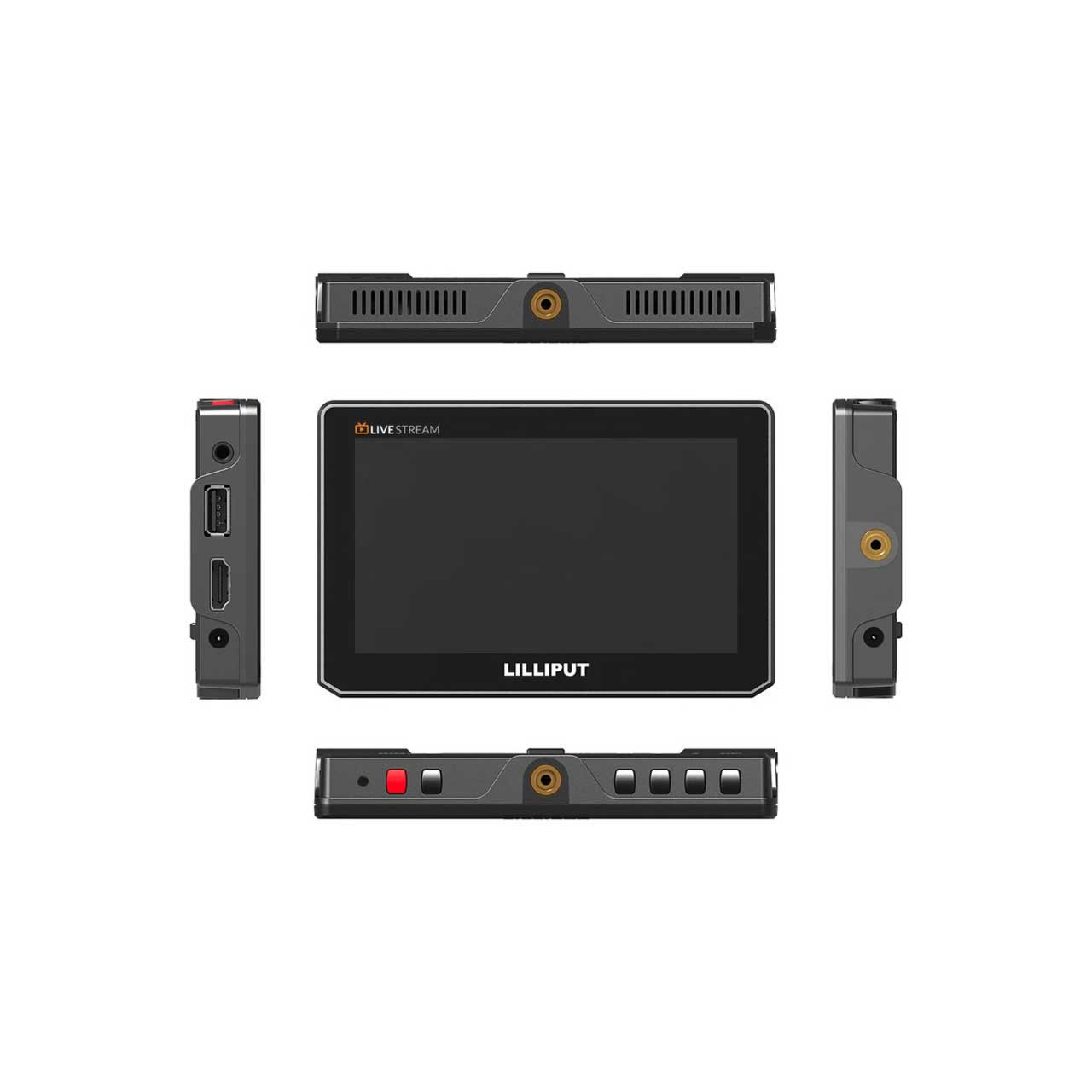

Lilliput T5U 5 Inch IPS 4K HDMI Live Streaming On-Camera Touchscreen Monitor with USB Output


  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    T5U - Overview

    The Lilliput T5U is a 5 Inch IPS 4K HDMI live streaming on-camera touchscreen monitor with external display.

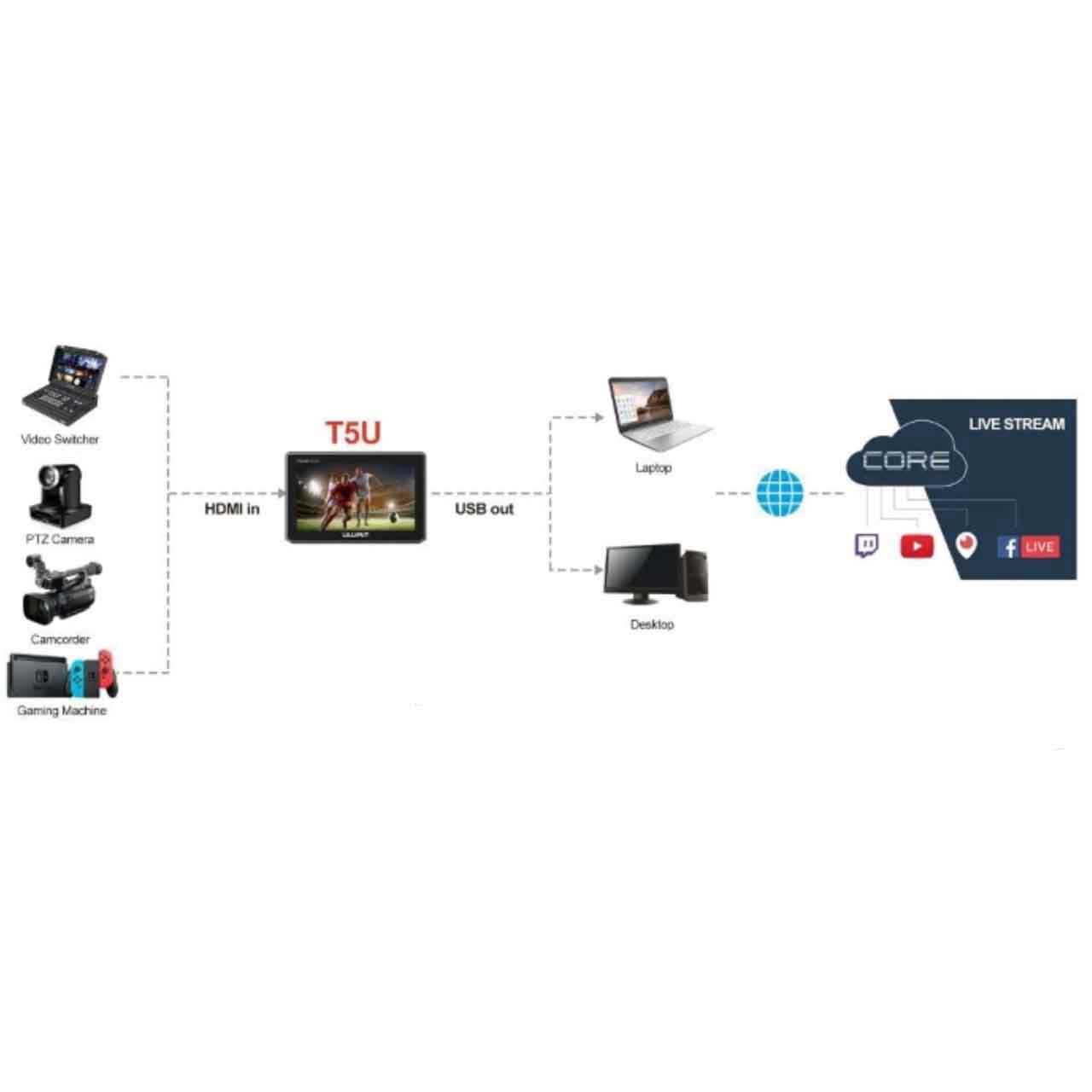

    Workflow for Live Streaming
    Professional live streaming with minimal equipment. It's easy to live stream anytime and anywhere.

    Use the monitor as a convenient webcam with a USB connection to output video of what you are recording directly into the video software for live streaming. Video software will recognize the monitor as a webcam and any streaming software can be used, such as Skype, Facebook, Youtube, Twitch, Periscope, Zoom and More.

    Penetratingly Minute
    Creatively integrated 1920 x 1080 native resolution (441ppi). 1000:1 contrast, and 400cd/m2 in a 5 Inch LCD panel, which covers 131% Rec.709 and 98% DCI-P3 color space.

    4K 60Hz HDMI 2.0
    HDMI 2.0 supports 4096 x 2160 60p/50p/30p/25p and 3840 x 2160 60p/50p/30p/25p

    HDR / 3D-LUT
    Support ST2084 300/1000/10000/HLG; Built-in 3D-LUT, featuring 17 default logs and 6 user logs.

    Capacitive Touch
    Quickly turn the function on or off from the menu, or slide freely to adjust the value.

    Power Supply
    The dual battery mounting plate is compatible with both Canon LP-E6 and Sony NP-F series batteries, plus there's a DC 8V power output for more options.

    • Features:

      • 5 Inch IPS screen with 1920 x 1080 resolution, capacitive touch screen
      • 4K HDMI 2.0 input, supporting up to 4K 60 Hz
      • Output to USB for live streaming
      • Wide color space supporting 98% DCI-P3, HDR, 3D-LUT
      • Dual-purpose battery plate: Sony NP-F, Canon LP-E6; DC 8V output
    • Specifications:

      • Display:
      • Panel: 5" IPS
      • Touch Screen: Capacitive
      • Physical Resolution: 1920x1080
      • Aspect Ratio: 16:9
      • Brightness: 400cd/m2
      • Contrast: 1000:1
      • Viewing Angle: 170°/ 170°(H/V)
      • HDR: ST 2084 300/1000/10000 / HLG
      • Supported Log Formats: Slog2 / Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User.
      • LUT support: 3D LUT (.cube format)

        Video Input:
      • HDMI: 1xHDMI2.0
      • Supported Formats: HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60.
      • Audio In/Out (48kHz PCM Audio): HDMI: 8ch 24-bit, Ear Jack: 3.5mm - 2ch 48kHz 24-bit

      • Input Voltage: DC 7-24V
      • Power Consumption: ≤7W / ≤17W (DC 8V power output in operation)
      • Compatible Batteries: Canon LP-E6 & Sony F-series
      • Power Output: DC 8V

      • Operating Temperature: 0°C~50°C
      • Storage Temperature: -10°C~60°C

      • Dimension(LWD): 132x86x18.5mm
      • Weight: 190g

        Formats for Live Streaming:
      • USB: 1xUSB2.0
      • USB: 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1440x900, 1368x768, 1280x1024, 1280x960,1280x800, 1280x720, 1024x768, 1024x576, 960x540, 856x480,
        800x600, 768x576, 720x576,720x480, 640x480,640x360
      • Support OS: Windows 7/8/10, Linux (Kernel version 2.6.38 and above), macOS (10.8 and above)
      • Software Compatibility: OBS studio, Skype, ZOOM, Teams, GoogleMeet, YoutubeLive, QuickTime Player, Facetime,Wirecast, CAMTASIA,,, Potplayer, etc.
      • Compatible SDK: DirectShow (Windows), DirectSound (Windows)
    • GTIN:
