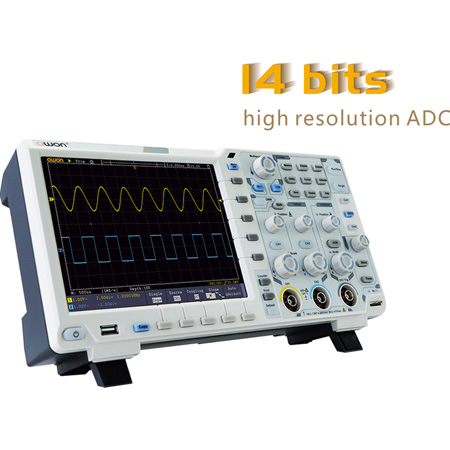

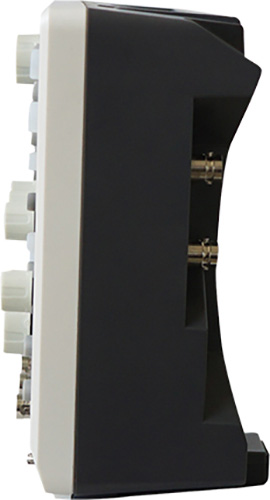

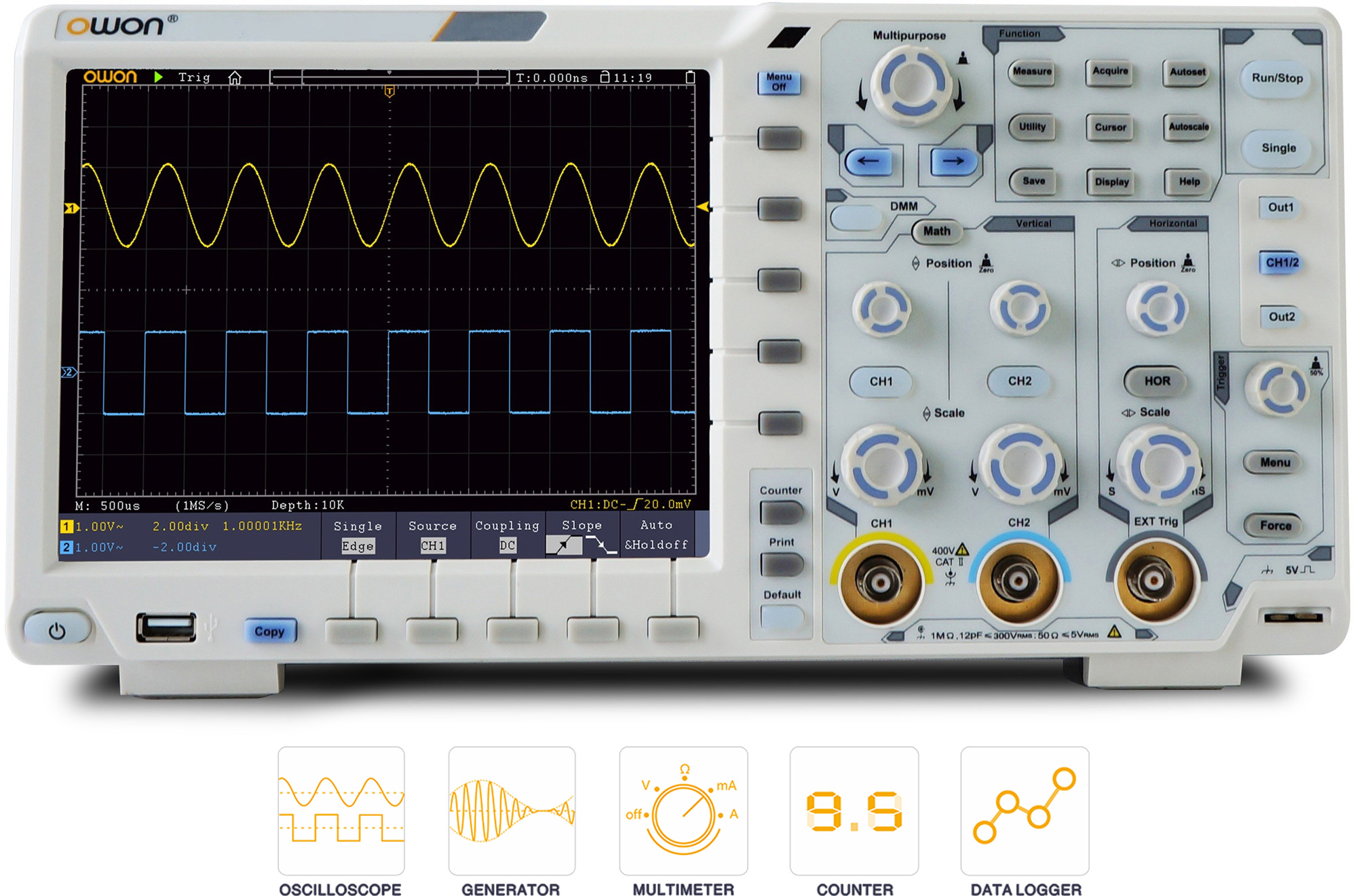

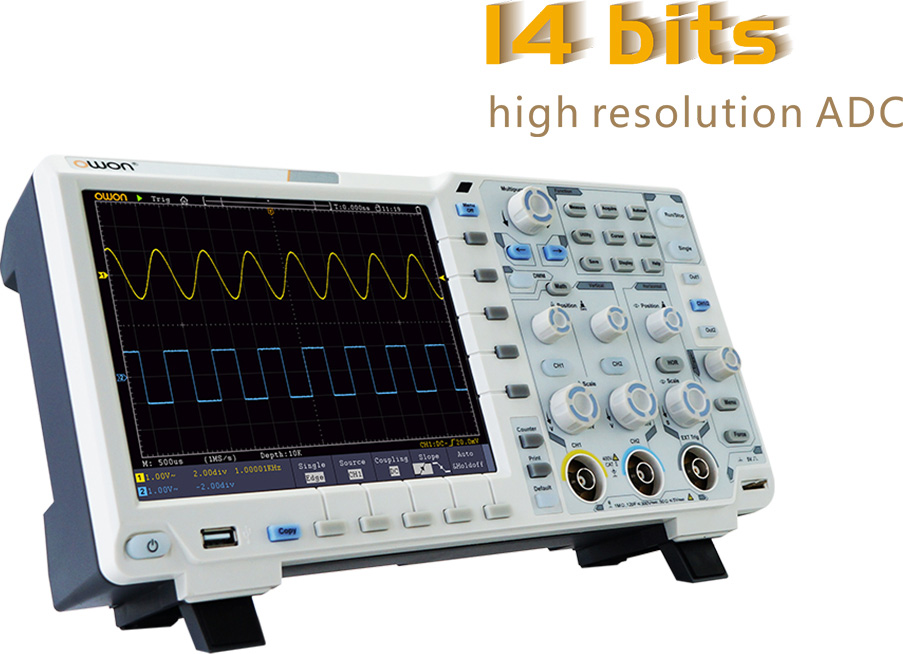

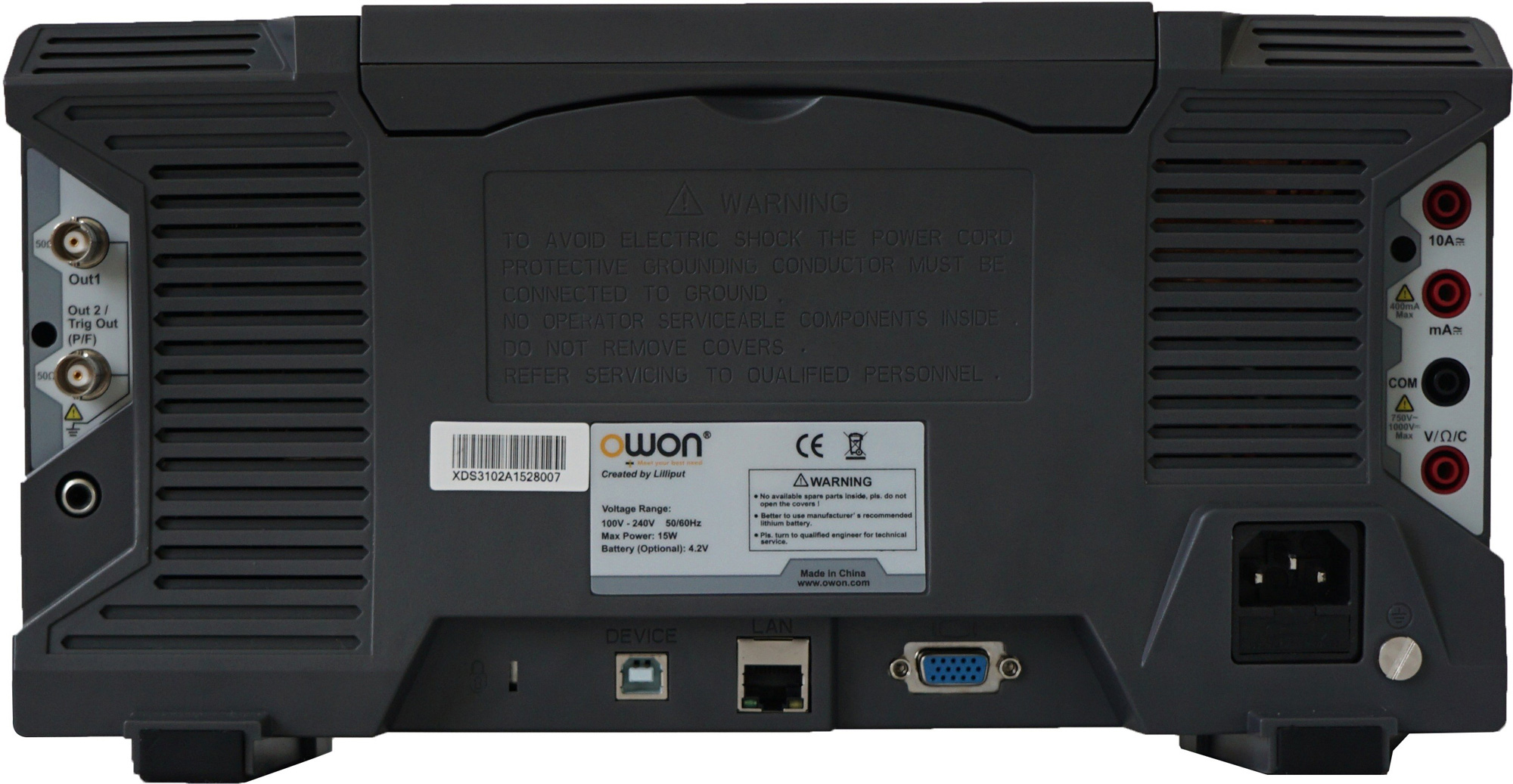

Lilliput OWON XDS3202E N-In-1 On-Site Measurement Station Digital Oscilloscope
  • Lilliput OWON XDS3202E N-In-1 On-Site Measurement Station Digital Oscilloscope
  • Lilliput OWON XDS3202E N-In-1 On-Site Measurement Station Digital Oscilloscope
  • Lilliput OWON XDS3202E N-In-1 On-Site Measurement Station Digital Oscilloscope
  • Lilliput OWON XDS3202E N-In-1 On-Site Measurement Station Digital Oscilloscope

Questions? Ask a Markertek Expert:
800-522-2025 Email

Lilliput OWON XDS3202E N-In-1 On-Site Measurement Station Digital Oscilloscope

Manufacturer: Owon

Item #: LIL-XDS3202E   •   MFG #: XDS3202E



List Price:$399.00
Our Price:$379.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Lilliput OWON XDS3202E N-In-1 On-Site Measurement Station xds series n-in-1 digital oscilloscope, usb scope, multimeter oscilloscope, high resolution oscilloscope, wifi oscilloscope and oscilloscope app is one of the most affordable units on the market today. The XDS series introduces us to a 12 / 14 bits hardware ADC and the precision is 16/64 times better against other oscilloscopes on the market. Equipped with OWON's original magnifier function, it can observe the signal down to 31.25æV/div. It includes a multi-function mobile tester with a Max 75,000 frame/sec waveform refresh rate, muti-level gray scale and color temperature display. It is essentially a
    Oscilloscope, signal generator, multimeter, data logger , frequency counter, decoder all wrapped up in one box!


    • Features

      • Super Performance
      • 8-bit high resolution ADC, restoring the waveform detail fully
      • 40M record length, and 75,000 wfms/s waveform refresh rate
      • low background noise, vertical sensitivity in 1 mV/div - 10 V/div
      • multi- trigger, and bus decoding function
      • SCPI supported
        Creative New Look
      • ultra-thin body-design, less space accommodation
      • multi-interface integration - USB host, USB device, LAN, AUX, and infrared controller
      • VGA port - better solution for video expansion, and teaching demonstration
      • 8 inch 800 x 600 high resolution LCD
      • optional multi-touch screen, more user-friendly operation experience
        n-in-1
      • functions as data logger, and multimeter with data logging function,
      • and dual-channel 25MHz / 50MHz arbitrary waveform generator,
      • furthermore, battery pack, and WiFi module supported

    • Specifications

      • Model XDS3104E
        Bandwidth 100MHz
        Sample Rate 1GS/s
        Vertical Resolution (A/D)) 8 bits
        Record length 40M
        Waveform Refresh Rate 45,000 wfms/s
        Horizontal Scale (s/div)) 2ns/div - 1000s/div, step by 1 - 2 - 5
        Rise Time (at input, typical) =3.5ns
        Channel 4
        Display 8" color LCD, 800 x 600 pixels display
        Input Impedance 1MO ± 2%, in parallel with 15pF ± 5pF
        Channel Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
        Max Input Voltage 1MO = 300Vrms
        DC Gain Accuracy ±3%
        DC Accuracy average=16:±(3% +0.05div) for ?V
        Probe Attenuation Factor 0.001X - 1000X, step by 1 - 2 - 5
        LF Respond (AC, -3dB) =10Hz
        Sample Rate / Relay Time Accuracy ±1ppm
        Interpolation (sinx) / x,x
        Interval (?T) Accuracy (full bandwidth)
      • Single: ±(1 interval time + 1ppm x reading + 0.6ns);
      • Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns)
        Input Coupling DC, AC, GND
        Vertical Sensitivity 1mV/div - 10V/div (at input)
        Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,
        and CAN (optional)
        Bus Decoding(optional) I2C, SPI, RS232, CAN
        Trigger Mode Auto, Normal, and Single
        Vertical Range ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div)
        Line / Field Frequency (video) NTSC, PAL and SECAM standard
        Cursor Measurement ?V, and ?T between cursors, ?V and ?T between cursors, and auto- cursors
        Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A?B ?, Delay A?B?, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area
        Waveform Math +, -, x, ö, FFT
        Waveform Storage 100 waveforms
        Lissajou's Figure,full bandwidth, Full bandwidth, ±3 degrees
        Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
        Frequency Counter available
        Power Supply 100V - 240V AC, 50/60Hz, CAT II
        Fuse 2A, T class, 250V
        Battery (optional) 3.7V, 13200mA
        Dimension (W x H x D) 340mmx177mmx90mm
        Diode 0V -1.5V
        Input Impedance 10MO
        Continuity Test <50 (±30) beeping
        Capacitance 51.2nF - 100uF: ±(3% ± 3 digits)
        Voltage DCV: 400mV, 4V, 400V: ±(1 ± 1 digit); max input: DC 1000V
      • ACV: 4V, 40V, 400V: ±(1 ± 3 digits); frequency: 40Hz - 400Hz; max input: AC 750V (virtual value)
        Current DCA: 40mA, 400mA: ±(1.5% ± 1 digit); 10A: ±(3% ± 3 digits)
      • ACA: 40mA: ±(1.5% ± 3 digits), 400mA: ±(2% ± 1 digit), 10A: ±(3% ± 3 digits)
        Impedance 400O: ±(1% ± 3 digits),4KO - 40MO: ±(1% ± 1 digit)
      • Max Frequency Output 25MHz
        Sample Rate 125MS/s
        Channel 2 channel ( only apply to XDS3064E, XDS3104E )
        Vertical Resolution 14 bits
        Amplitude Range 2mVpp - 6Vpp
        Waveform Length 8K
        Standard Waveform Sine, Square, Pulse, Ramp
        Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, Noise, and others, total 46 built-in waveforms, and user-defined arbitrary waveform

    • GTIN:

      6955344400594
