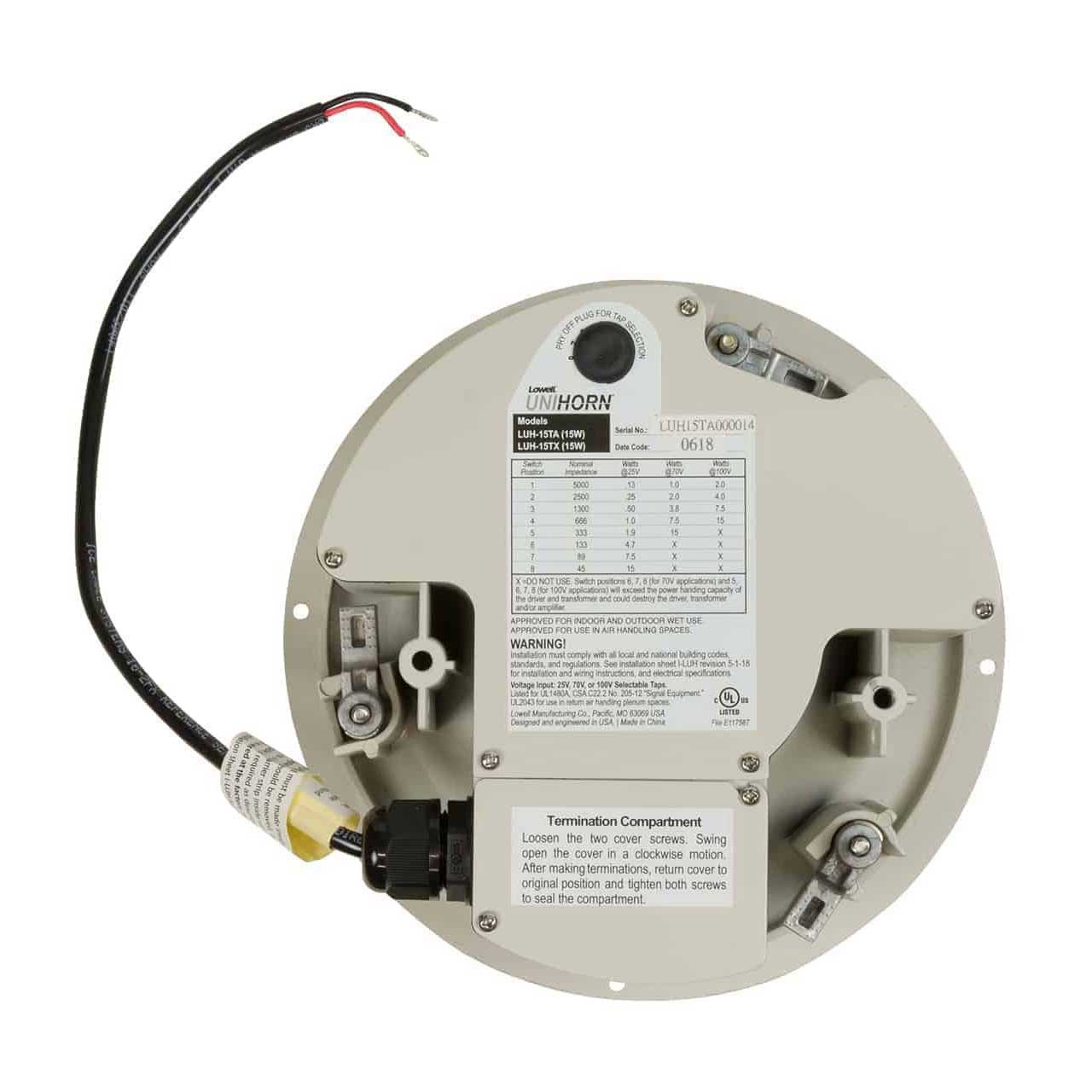

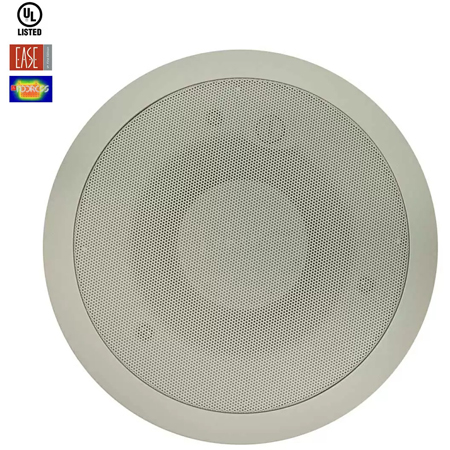

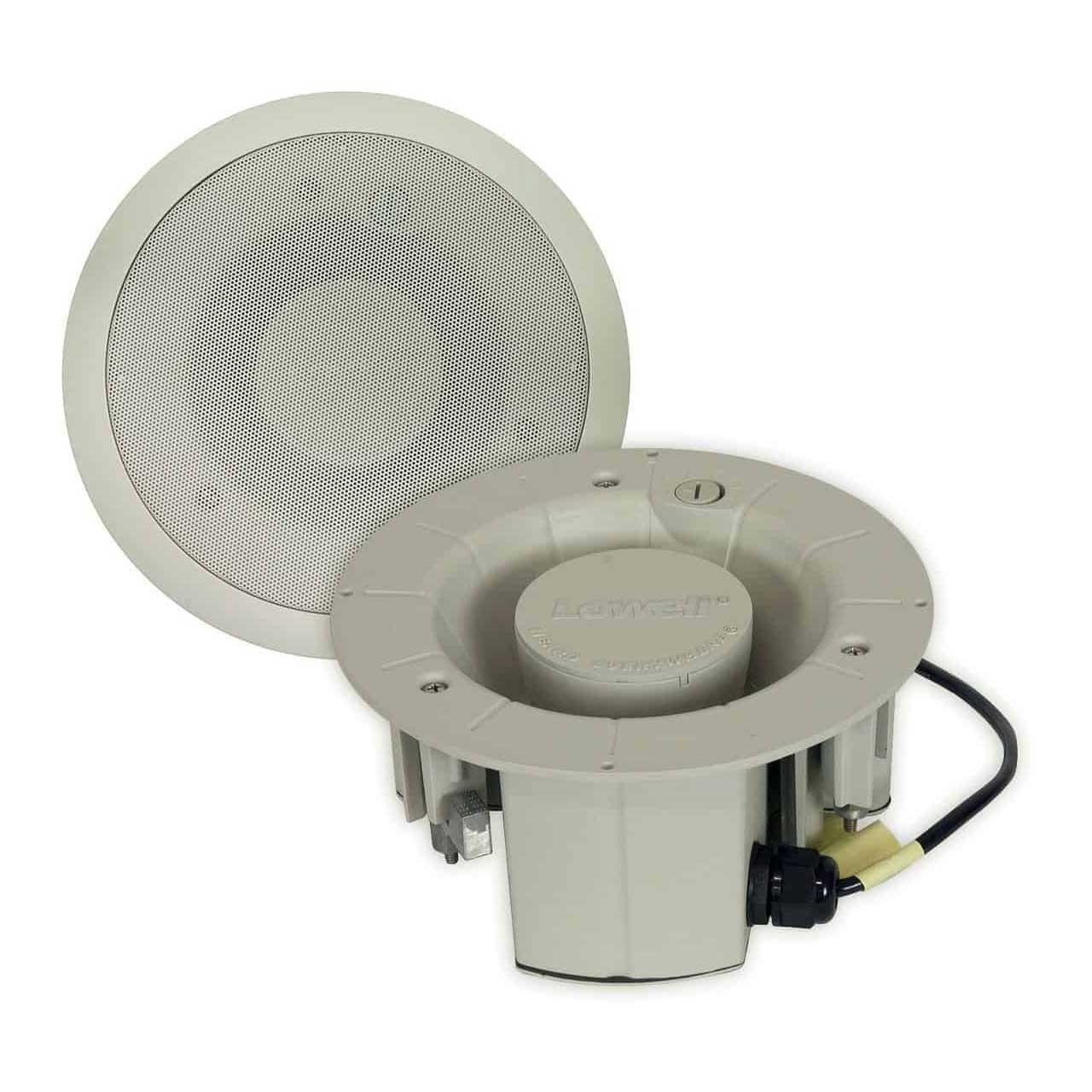

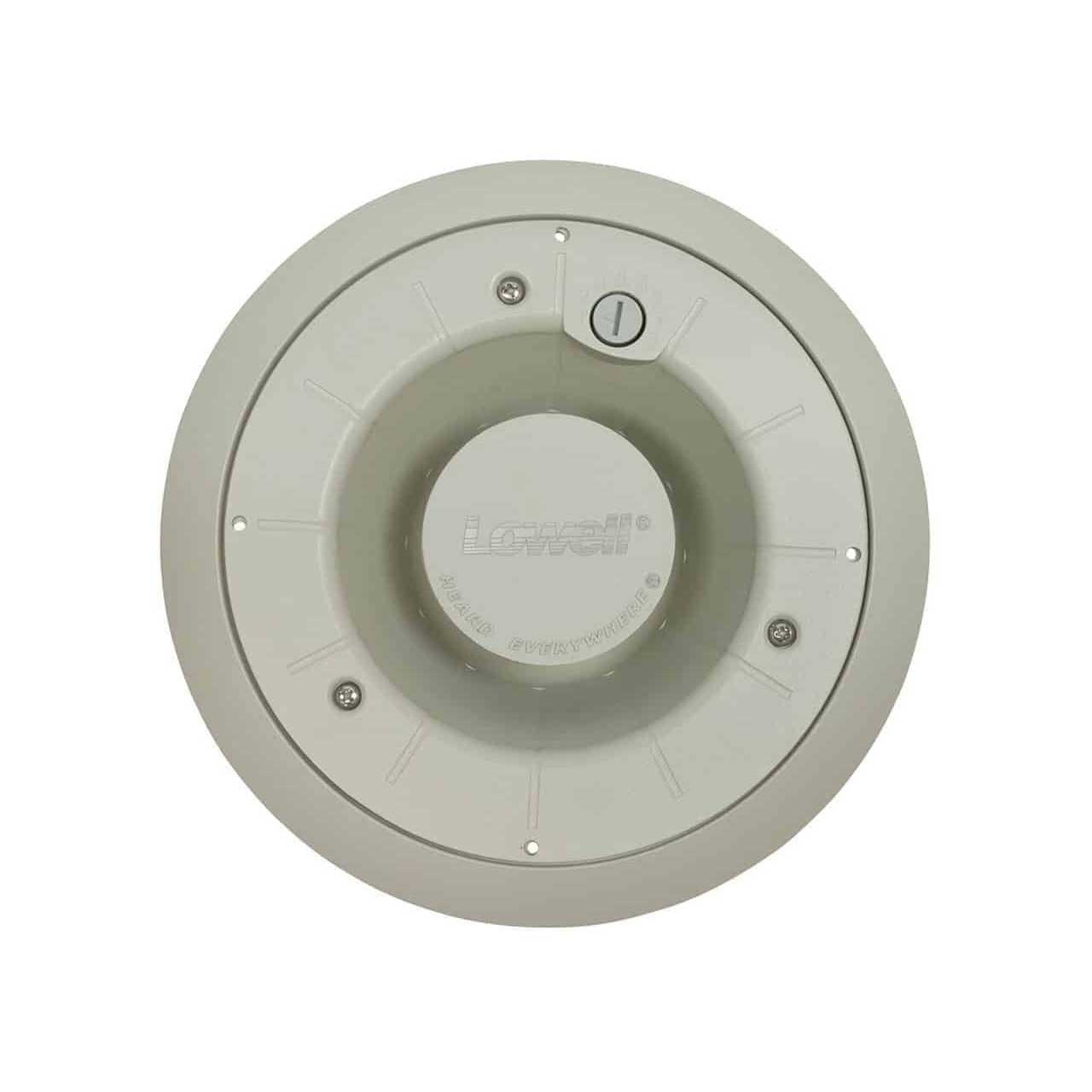

Lowell LUH-15TA 15W Flush-Mount Re-Entrant Unihorn w/ 25V/70V Transformer / Grille

ITEM #: LMC-LUH-15TA MFG #: LUH-15TA

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$286.00

Our Price:

$251.68

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    LUH-15TA - Overview

    The Lowell LUH-15TA for paging and general voice communications (25V, 70V, 100V, 8ohm), the ready-to-install paging re-entrant horn with weather-resistant housing is engineered for versatile, labor-saving installation in brick, concrete block, plaster, drywall or acoustic tile, indoors or outdoors, recessed or surface-mount, new or retrofit applications. Model LUH-15TA includes horn with mounting dogs, press-fit grille and trim ring. Depending on type of application, some accessories may be required.

    • Features:

      • Simple two-wire hookup to pigtail (in UL approved junction box) or through the waterproof gland-type cable fitting. (see instruction sheet)

    • Specifications:

      • Performance: Paging and general signaling
      • Driver: 15W
      • Transformer: 25V/70V/100V plus 8ohm bypass input, screwdriver adjustable
      • Housing: Aluminum with moisture-seal cover
      • Grille: Fine perforation, press-fit aluminum grille fits snugly for a hardware-free appearance, while helping to protect the front of horn from nesting birds and insects
      • Mounting Aids: Trim ring
      • Finish: Network Grey
      • Retrofit Installation: This model will accept an EIA standard grille for 8 in. speaker and the UL Listing will remain valid.
      • Average Sensitivity: 105dB (1W/1M)

    • Item Includes:

      • 1x UNIHORN Horn - Universal Mount - 15W, 70/25/100V General Signaling, Trim Ring
      • 1x Grille, Network Grey

    • Warranty:

      • 3 years


    LUH-15TA - Required Accessories
